HPF-04-02-T-S-LC datasheet, PDF

Datasheet> All Categories > The connector> The connector> HPF-04-02-T-S-LC

HPF-04-02-T-S-LC: DescriptionCONN SKT 4 POS 5.08 SMD; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HPF-04-02-T-S-LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HPF-04-02-T-S-LC	-	-	View	Buy Now

HPF-04-02-T-S-LC Overview

CONN SKT 4 POS 5.08 SMD

HPF-04-02-T-S-LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	3 weeks
Is Samacsys	N
Board mount options	POSITIONING PIN
body width	0.2 inch
subject depth	0.369 inch
body length	0.8 inch
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P4
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Options	GENERAL PURPOSE
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	4
Evacuation force-minimum value	14.456 N
Base Number Matches	1

Preview

Download Datasheet

View All

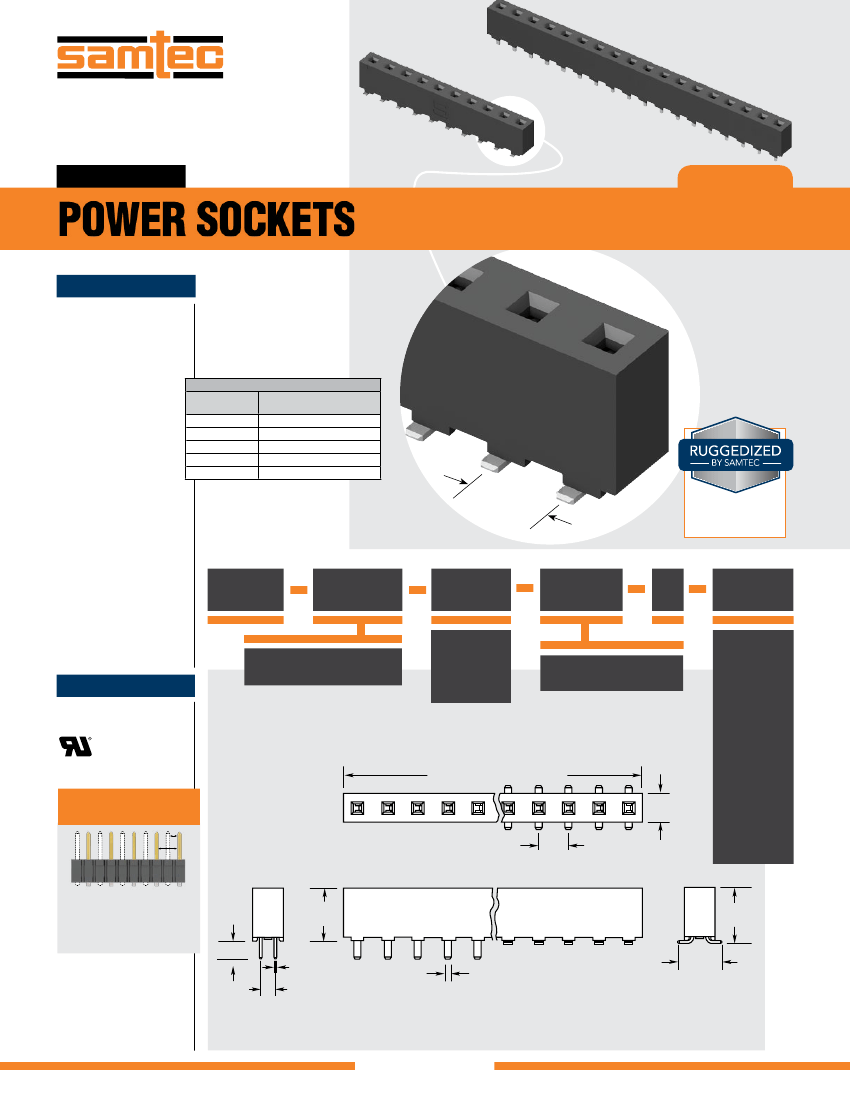

F-218 (Rev

10OCT17)

HPF–18–01–T–S

HPF–10–02–T–S

(5.08 mm) .200"

HPF SERIES

POWER SOCKETS

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?HPF

Insulator Material:

Black LCP

Contact Material:

BeCu

Plating:

Sn over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +105 °C

Voltage Rating:

850 VAC/1200 VDC

Insertion Depth:

(3.68 mm) .145" to (8.26 mm)

.325" (.368" (9.35 mm) plus

board thickness minimum for

bottom entry)

Wiping Distance:

(0.38 mm) .015"

Standard Creepage:

(2.82 mm) .111" (without -LC)

(1.38 mm) .054" (with -LC)

Standard Clearance:

(2.5 mm) .098" (without -LC)

(1.05 mm) .041" (with -LC)

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.15 mm) .006" max (02-10)*

(0.20 mm) .008" max (11-20)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

RoHS Compliant:

Yes

Mates with:

HPM, HPW

Surface Mount

Through-hole

PINS

HPF/HPM

CURRENT RATING

(PER CONTACT)

16.6 A

14.4 A

13.2 A

12.7 A

8.9 A

(5.08 mm)

.200" pitch

• Three-finger

Power Eye contact

• Locking clip option

HPF

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

OTHER

OPTIONS

02 thru 20

= Through-hole

–01

–02

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

= Matte Tin

–T

= Surface Mount

= Locking Clip

(Manual

placement

required)

(Style –02 only)

–LC

FILE NO. E111594

No. of Positions x (5.08) .200

= (6.50 mm) .256"

DIA Polyimide

Film Pick &

Place Pad

–K

CREEPAGE

AND CLEARANCE

(5.08)

.200

(5.08)

.200

= Tape & Reel

Packaging

(14 positions

maximum)

(Style –02 only)

–TR

Selectively loading

contacts achieves customer

specific creepage and

clearance requirements.

Contact asp@samtec.com

(2.59)

.102

(8.89)

.350

(9.35)

.368

(7.11)

.280

–02

(0.46)

.018

(2.46)

.097

–01

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

(1.14)

.045

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

HPF-04-02-T-S-LC Related Products

	HPF-04-02-T-S-LC	HPF-04-01-T-S	HPF-10-01-T-S	HPF-02-02-T-S	HPF-05-01-T-S	HPF-06-01-T-S
Description	CONN SKT 4 POS 5.08 SMD	conn sock strip 4pos .200" T/H	conn sock strip 10pos .200" T/H	.200 HI POWER SOCKET ASSEMBLY	CONN SOCK STRIP	CONN SOCK STRIP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli	compli	compliant	compliant	compliant
Factory Lead Time	3 weeks	8 weeks	8 weeks	2 weeks	8 weeks	2 weeks
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	MATTE TIN	TIN OVER NICKEL (50)	TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	TIN OVER NICKEL (50)	TIN OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	BERYLLIUM COPPER	BERYLLIUM COPPER	NOT SPECIFIED	BERYLLIUM COPPER	BERYLLIUM COPPER
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
Termination type	SOLDER	SOLDER	SOLDER	SURFACE MOUNT	SOLDER	SOLDER
Total number of contacts	4	4	10	2	5	6
body width	0.2 inch	0.2 inch	0.2 inch	-	0.2 inch	0.2 inch
subject depth	0.369 inch	0.351 inch	0.351 inch	-	0.351 inch	0.351 inch
body length	0.8 inch	0.8 inch	2 inch	-	1 inch	1.2 inch
Contact arrangement	S0P4	S0P4	S0P10	-	S0P5	S0P6
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT
maximum insertion force	ZIF N	15.568 N	15.1232 N	-	15.568 N	15.568 N
Insulator color	BLACK	BLACK	BLACK	-	BLACK	BLACK
Installation option 1	LOCKING	LOCKING	LOCKING	-	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	-	ONE	ONE
Guideline	UL, CSA	CSA, UL	CSA, UL	-	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Evacuation force-minimum value	14.456 N	14.456 N	14.456 N	-	14.456 N	14.456 N
Other features	-	POWER EYE CONTACT	POWER EYE CONTACT	POWER EYE CONTACT	POWER EYE CONTACT	POWER EYE CONTACT
Terminal length	-	0.096 inch	0.096 inch	-	0.096 inch	0.096 inch
