1

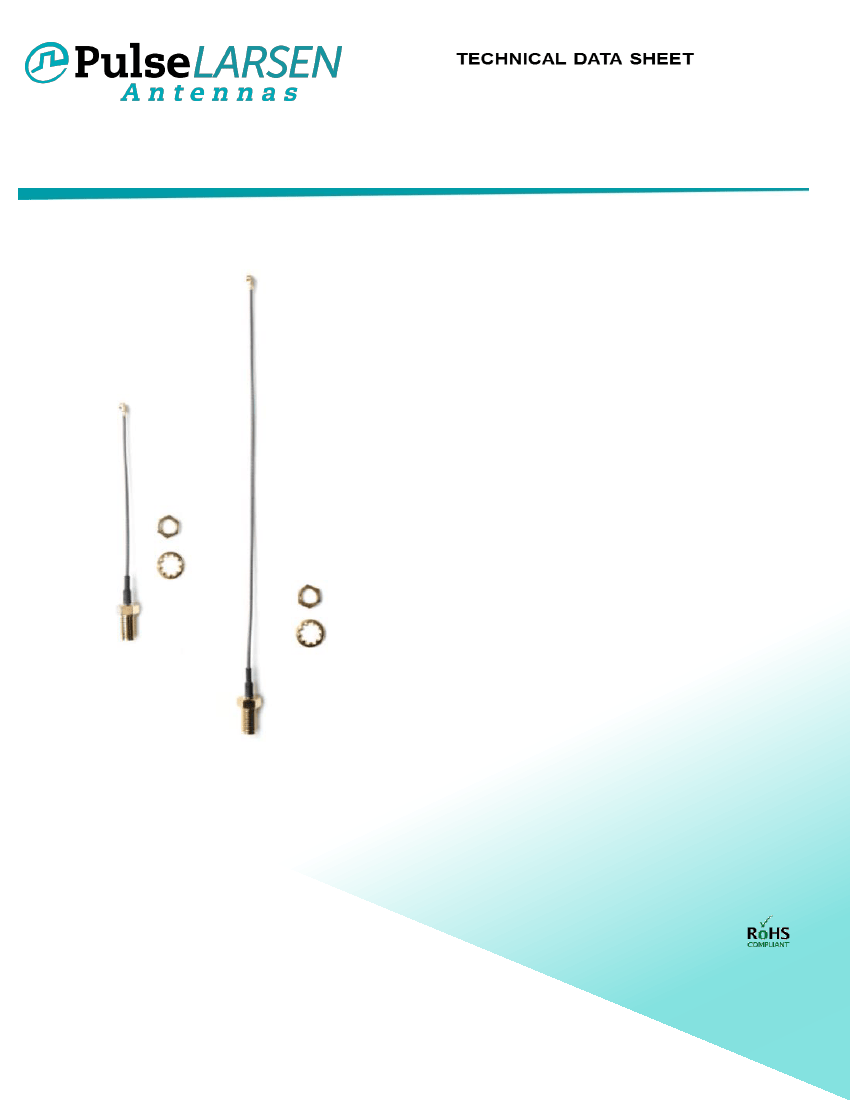

Series: Cable Assembly
Description: Low loss Mini Coax Jumper
Cable
PART NUMBER: W90XX
CABLE ASSEMBLY FOR WIRELESS APPLICATION
Part Number
W9003
W9003M
W9006
W9006M
W9009C
W9009M
W9011
W9011M
W9015
W9015M
W9020
W9020M
VSWR
2.4GHz/6GHz
1.3/1.6
1.3/1.6
1.3/1.6
1.3/1.6
1.3/1.6
1.3/1.6
1.3/1.6
1.3/1.6
1.3/1.6
1.3/1.6
1.3/1.6
1.3/1.6
Insertion Loss
2.4GHz/6GHz
-0.6dB/-1.4dB
-0.6dB/-1.4dB
-0.8dB/-1.7dB
-0.8dB/-1.7dB
-1.0dB/-1.9dB
-1.0dB/-1.9dB
-1.3dB/-2.6dB
-1.3dB/-2.6dB
-1.4dB/-2.8dB
-1.4dB/-2.8dB
-1.6dB/-3.2dB
-1.6dB/-3.2dB
Cable Length
(in/mm)
3/76
3/76
6/150
6/150
9/229
9/229
11/280
11/280
15/381
15/381
20/508
20/508
Connector Types
RP-SMA Female to U.FL
SMA Female to U.FL
RP-SMA Female to U.FL
SMA Female to U.FL
RP-SMA Female to U.FL
SMA Female to U.FL
RP-SMA Female to U.FL
SMA Female to U.FL
RP-SMA Female to U.FL
SMA Female to U.FL
RP-SMA Female to U.FL
SMA Female to U.FL
Issue: 1717
2
In the effort to improve our products, we reserve the right to make changes judged to be necessary.
CONFIDENTIAL AND PROPRIETARY INFORMATION
This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws.
Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or
use without specific written authorization of Pulse is strictly forbidden.
Series: Cable Assembly
Description: Low loss Mini Coax Jumper
Cable
PART NUMBER: W90XX
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Storage Temperature
RoHS Compliant
-40-+85° C
-40-+85° C
Yes
Issue: 1717
3
In the effort to improve our products, we reserve the right to make changes judged to be necessary.
CONFIDENTIAL AND PROPRIETARY INFORMATION
This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws.
Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or
use without specific written authorization of Pulse is strictly forbidden.
Series: Cable Assembly
Description: Low loss Mini Coax Jumper
Cable
PART NUMBER: W90XX

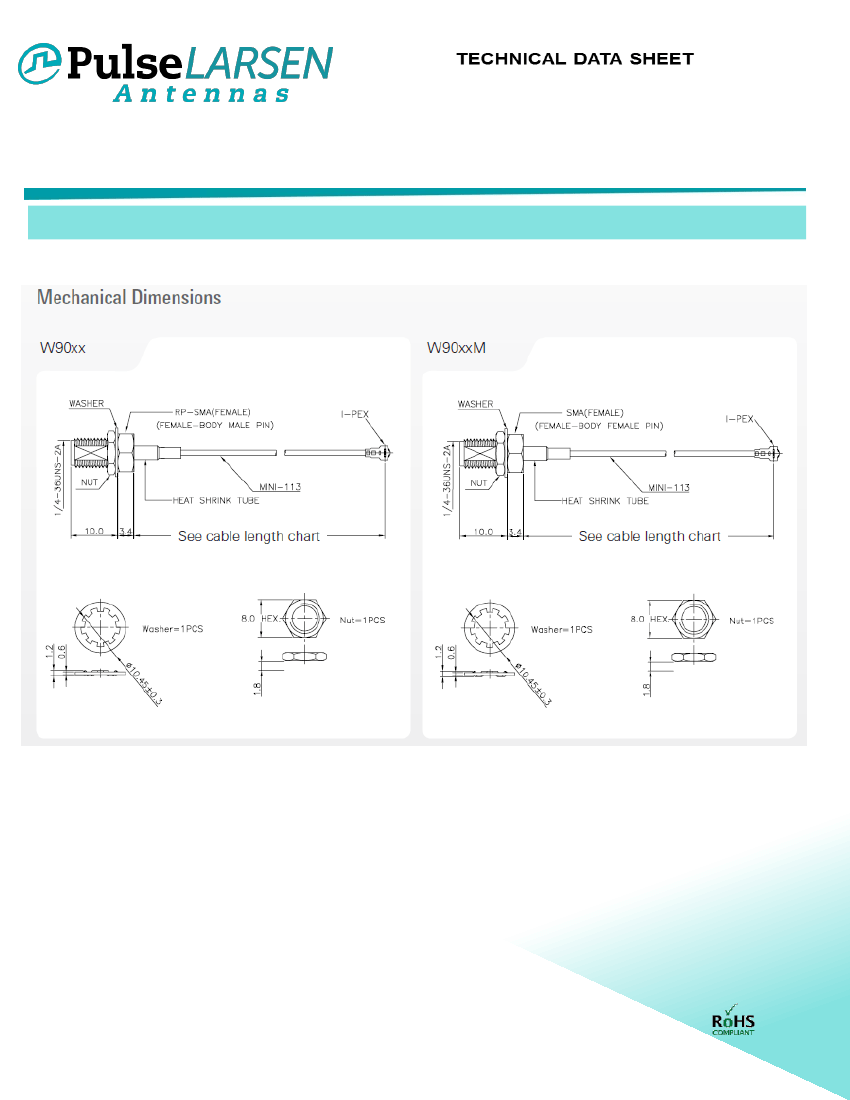

MECHANICAL DRAWING
Issue: 1717
4
In the effort to improve our products, we reserve the right to make changes judged to be necessary.
CONFIDENTIAL AND PROPRIETARY INFORMATION
This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws.
Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or
use without specific written authorization of Pulse is strictly forbidden.
Series: Cable Assembly
Description: Low loss Mini Coax Jumper
Cable
PART NUMBER: W90XX

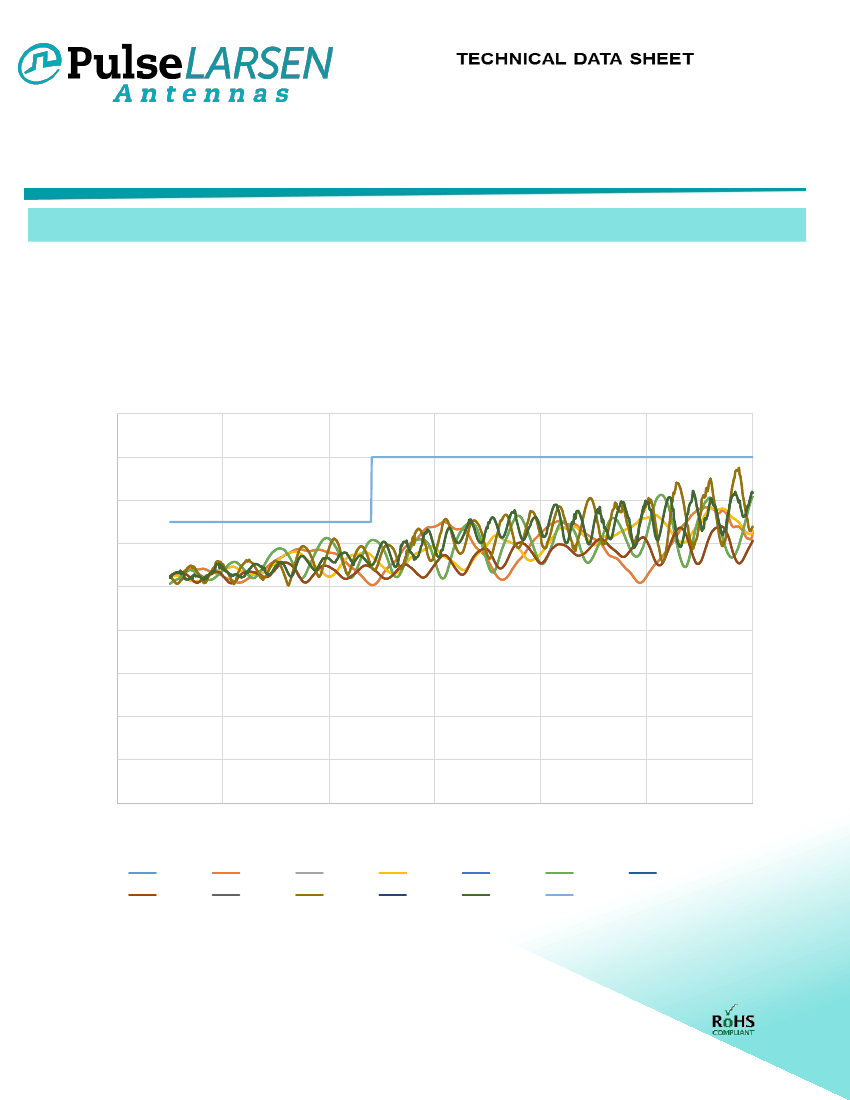

CHARTS
VSWR
W90XX
VSWR
1.8
1.6
1.4
1.2
VSWR
1.0
0.8
0.6
0.4
0.2
0.0
0
1000
2000
3000
4000
5000
6000
Frequency(MHz)
W9003
W9011M
W9003M
W9015
W9006
W9015M
W9006M
W9020
W9009
W9020M
W9009M
Spec
W9011
Issue: 1717
