31349106: DescriptionSCREW TYPE TERMINAL BLOCK, PLUG,; CategoryThe connector; File Size311KB，5 Pages; ManufacturerMETZ CONNECT USA Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

31349106 Overview

SCREW TYPE TERMINAL BLOCK, PLUG,

31349106 Parametric

Parameter Name	Attribute value
type	plug, female socket
Number of pins	6
Number of pins per level	6
Number of levels	1
spacing	0.197"（5.00mm）
Needle seat direction	-
Plug entrance	180°
Terminal type	Screws - Lift Cage Clamp
Installation type	free hanging
Current - IEC	-
Current - UL	16A
Voltage - UL	300V
Wire Gauge or Range - AWG	12-28 AWG
Wire gauge or range - mm²	0.08-2.5mm²
color	black
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	tin
characteristic	Fixed lock (non-wire side)
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	M3
Torque - Screws	0.51 Nm（4.5 Lb-In）
Wire stripping length	-
Contact material	copper tin
Shell material	Polyamide (PA66), Nylon 6/6
Contact tail length	-
Insulation height	0.610"（15.49mm）

31349106 Preview

Data Sheet

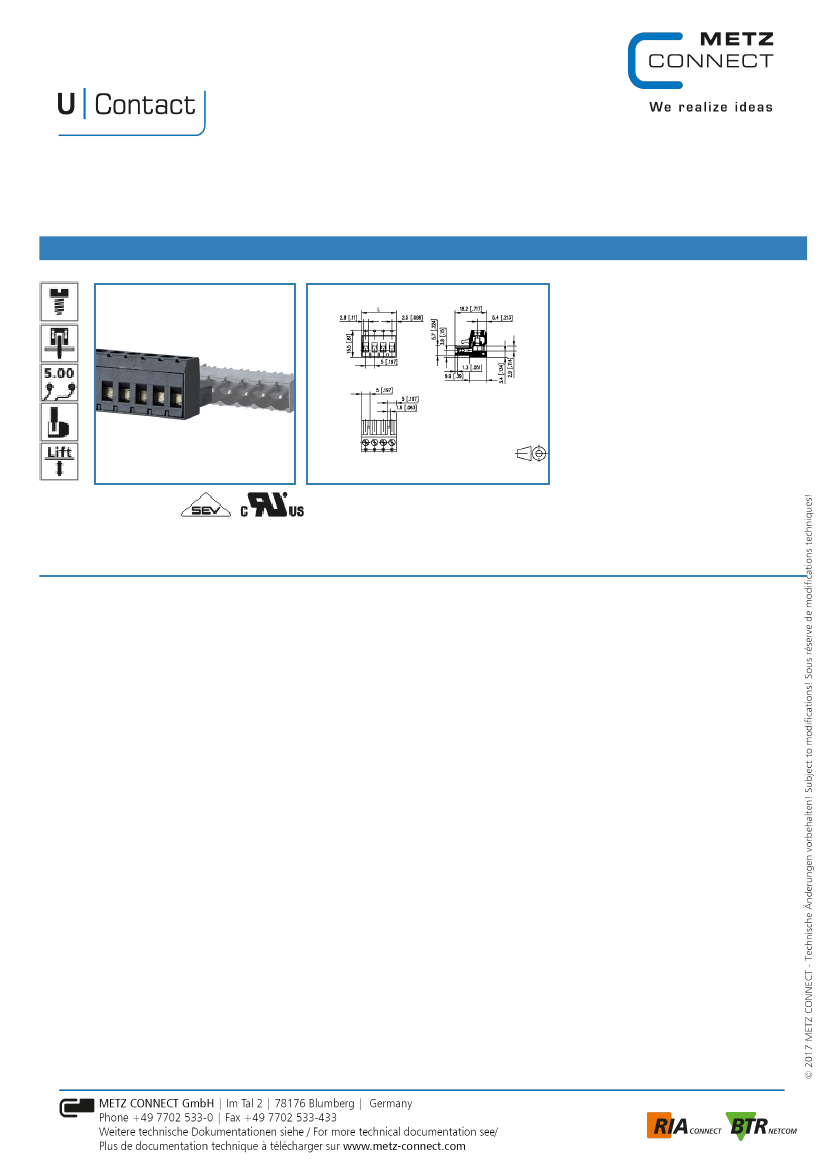

RP015xxVBLC

Illustration

Page 1/5

P/N

313491xx

xx=number of poles

2017/05/05

see enlarged drawing at the end of the document

Product specification

• screw type terminal block, pluggable

• centerline 5.00 mm, direction of connection vertical 0°

• lift system, fittable without loss of poles

• color black

• wire entry codeable side perpendicular to plug direction

Data Sheet

RP015xxVBLC

Technical Data

General Data

Tightening torque SEV

Tightening torque UL

min. number of poles

max. number of poles

Insulating material class

clearance/creepage dist.

protection category

Overvoltage category

Pollution degree

Rated voltage

Rated test voltage

0.5 Nm

4.5 lb-in

2

24

CTI 600

3.6 mm

IP 20

III

3

160.0 V

2.5 kV

III

2

400.0 V

2.5 kV

II

2

400.0 V

2.5 kV

Page 2/5

P/N

313491xx

xx=number of poles

2017/05/05

Connection data

Rated wiring solid wire

Rated wiring stranded wire

0.08 - 2.5 mm² / AWG 28 - 12

Approvals

extended wiring UL

2 AWG 16-18, or 1 AWG 16 stranded with 1 AWG 18 solid, or 1 AWG 16

stranded with 1 AWG 18 stranded

300 / 16 / 28 - 12

13.5 A / 320 V / 4 kV / 3 / IEC 61984 /

0.08 - 2.5 mm²

V / A / AWG

Material

insulating material

flammability class

contact material

Glow-Wire Flammability GWFI

Glow-Wire Flammability GWIT

contact surface

terminal body material

terminal body surface

PA66

V0

CuSn

960

775

Sn

CuZn

Ni

Data Sheet

RP015xxVBLC

screw surface

screw thread

Zn Cr(VI)-frei/free

M3

Page 3/5

P/N

313491xx

xx=number of poles

2017/05/05

Climatic properties

upper limit temperature

lower limit temperature

105 °C

-40 °C

General

Tolerance

ISO 2768 -mH

Data Sheet

RP015xxVBLC

Matching Part

P/N

311761

314761

313381

313371

313301

313291

313201

313191

312801

312781

312761

312741

312701

311771

314771

Product name

PR065xxHBBN Typ 176

PR065xxHBEC Typ 476

PR075xxHBER Typ 338

PR075xxHBEL Typ 337

PT115xxHBBN Typ 330

PT115xxHBEC Typ 329

PT115xxVBBN Typ 320

PT115xxVBEC Typ 319

PT105xxHGDN Typ 280

PT105xxVGDN Typ 278

PT165xxHGDN Typ 276

PT165xxVGDN Typ 274

PT175xxVGDN Typ 270

PR065xxVBBN Typ 177

PR065xxVBEC Typ 477

Page 4/5

P/N

313491xx

xx=number of poles

2017/05/05

Accessories

P/N

700025-01-9

Product name

700025

Data Sheet

RP015xxVBLC

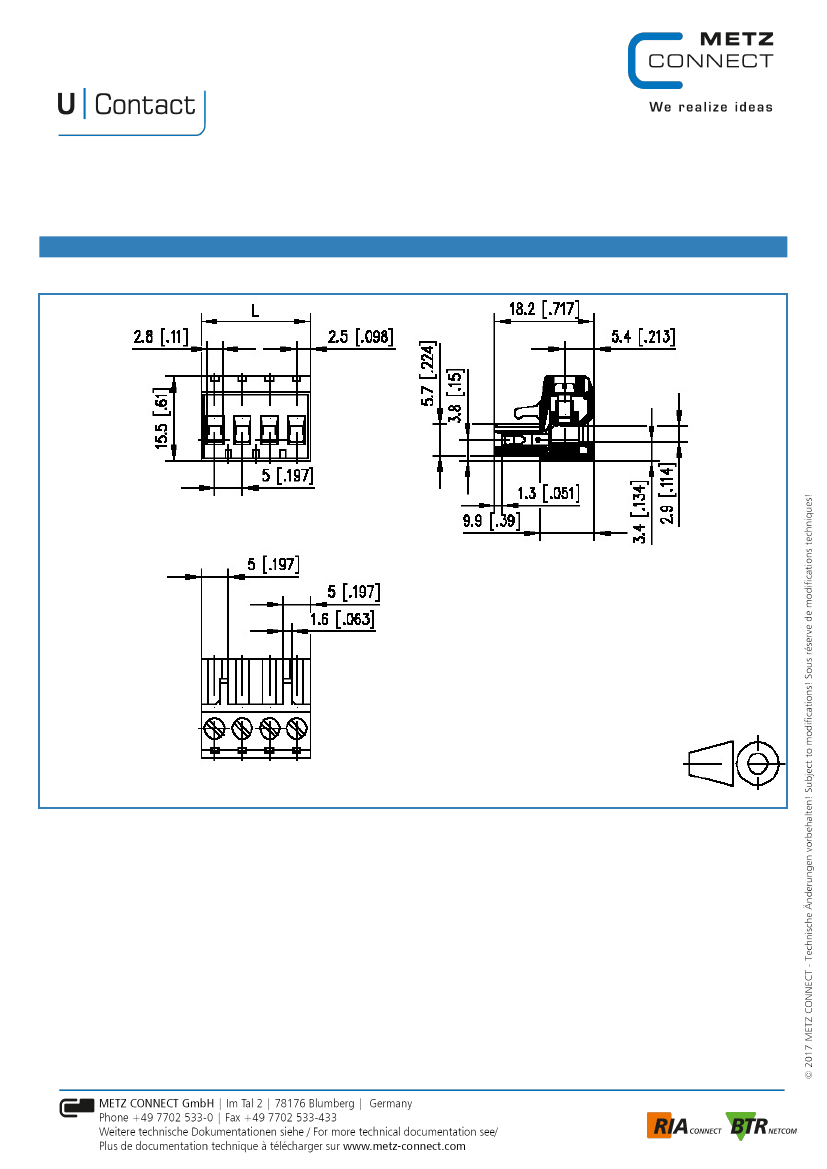

Illustration

Drawing

Page 5/5

P/N

313491xx

xx=number of poles

2017/05/05

L=(pole size - 1) x centerline + 5 [0.197]

Powered by TCPDF (www.tcpdf.org)

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

31349106 Related Products

	31349106	31349102	31349103	31349104
Description	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,
type	plug, female socket	plug, female socket	plug, female socket	plug, female socket
Number of pins	6	2	3	4
Number of pins per level	6	2	3	4
Number of levels	1	1	1	1
spacing	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）
Plug entrance	180°	180°	180°	180°
Terminal type	Screws - Lift Cage Clamp	Screws - Lift Cage Clamp	Screws - Lift Cage Clamp	Screws - Lift Cage Clamp
Installation type	free hanging	free hanging	free hanging	free hanging
Current - UL	16A	16A	16A	16A
Voltage - UL	300V	300V	300V	300V
Wire Gauge or Range - AWG	12-28 AWG	12-28 AWG	12-28 AWG	12-28 AWG
Wire gauge or range - mm²	0.08-2.5mm²	0.08-2.5mm²	0.08-2.5mm²	0.08-2.5mm²
color	black	black	black	black
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Contact mating surface treatment	tin	tin	tin	tin
characteristic	Fixed lock (non-wire side)	Fixed lock (non-wire side)	Fixed lock (non-wire side)	Fixed lock (non-wire side)
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Screw size	M3	M3	M3	M3
Torque - Screws	0.51 Nm（4.5 Lb-In）	0.51 Nm（4.5 Lb-In）	0.51 Nm（4.5 Lb-In）	0.51 Nm（4.5 Lb-In）
Contact material	copper tin	copper tin	copper alloy	copper alloy
Shell material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Insulation height	0.610"（15.49mm）	0.610"（15.49mm）	0.610"（15.49mm）	0.610"（15.49mm）
