2390QD3-28V datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> 2390QD3-28V

Preview

2390QD3-28V: DescriptionINDICATOR NEON AMBER PANEL MNT; CategoryLED optoelectronic/LED; File Size92KB，2 Pages; ManufacturerVisual Communications Company - VCC; Environmental Compliance

Download Datasheet Parametric View All

2390QD3-28V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2390QD3-28V	-	-	View	Buy Now

2390QD3-28V Overview

INDICATOR NEON AMBER PANEL MNT

2390QD3-28V Parametric

Parameter Name	Attribute value
type	incandescent
lamp color	amber
Lens color	-
Lens transparency	-
grade	-
Voltage	28V
current	-
Panel opening shape	-
Panel opening size	-
Lens style/size	Rectangular with flat top
millicandela level	-
Wavelength - Peak	-
perspective	-
Terminal type	Quick Connect - 0.187" (4.7mm)
Intrusion protection	-
characteristic	-

Preview

Download Datasheet

View All

TM

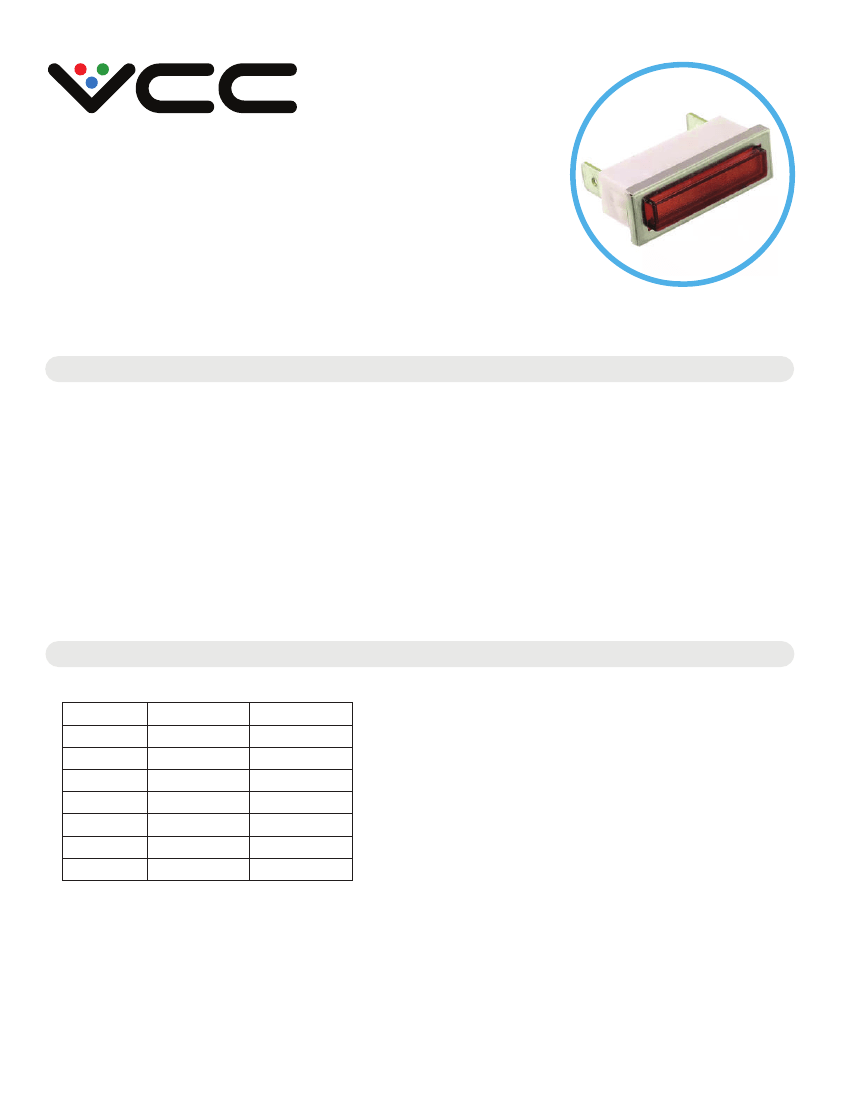

2330QD, 2332QD and 2390QD

Series Non-Relampable

Neon-Incandescent Indicator Lights

Rectangular Neon-Incandescent Quick Connect

Terminals Indicator Lights for 0.400” x 1.280” mounting hole

Specifications

Mounting: Will snap-fit into cut-out 0.400” x 1.280“ and will mount in .032” - .100” thick panels

Terminals: Quick-connect, tinned brass, 0.250”

Lens: Polycarbonate

Bezel: Stainless steel.

Underwriters Laboratories (UL) File No. E20356

Ordering Information

Neon

(105 - 125 VAC)

Lens C olor

R ed

Amber

White

G reen

Lamp us ed

Part No.

2330Q D1

2330Q D3

2330Q D4

2332Q D5*

C 6 A+Res is tor

Incandescent

(28 VAC/VDC)

Part No.

2390Q D1-28V

2390Q D3-28V

2390Q D4-28V

2390Q D5-28V

Lamp #: 2187

*Incorporates G2B lamp and resistor

your first call for illuminated components

www.vcclite.com

1.800.522.5546

03/17 Rev 2
