MF-200-UC06-H: DescriptionRND STNDFF 6-32 SYN RUB 1/2" 1PC; Categoryaccessories; File Size73KB，1 Pages; ManufacturerAearo Technologies; Environmental Compliance

Download Datasheet Parametric View All

MF-200-UC06-H Overview

RND STNDFF 6-32 SYN RUB 1/2" 1PC

MF-200-UC06-H Parametric

Parameter Name	Attribute value
type	Round support
With/without silk	Threaded
gender	Male head, female head
Screws, thread specifications	#6-32
Diameter - Internal	-
Diameter - External	0.400"（10.16mm）
Height between panels	0.500"（12.70mm）1/2"
Length - total	0.875"（22.23mm）7/8"
characteristic	Shock absorbing
Material	synthetic rubber
plating	-
color	black

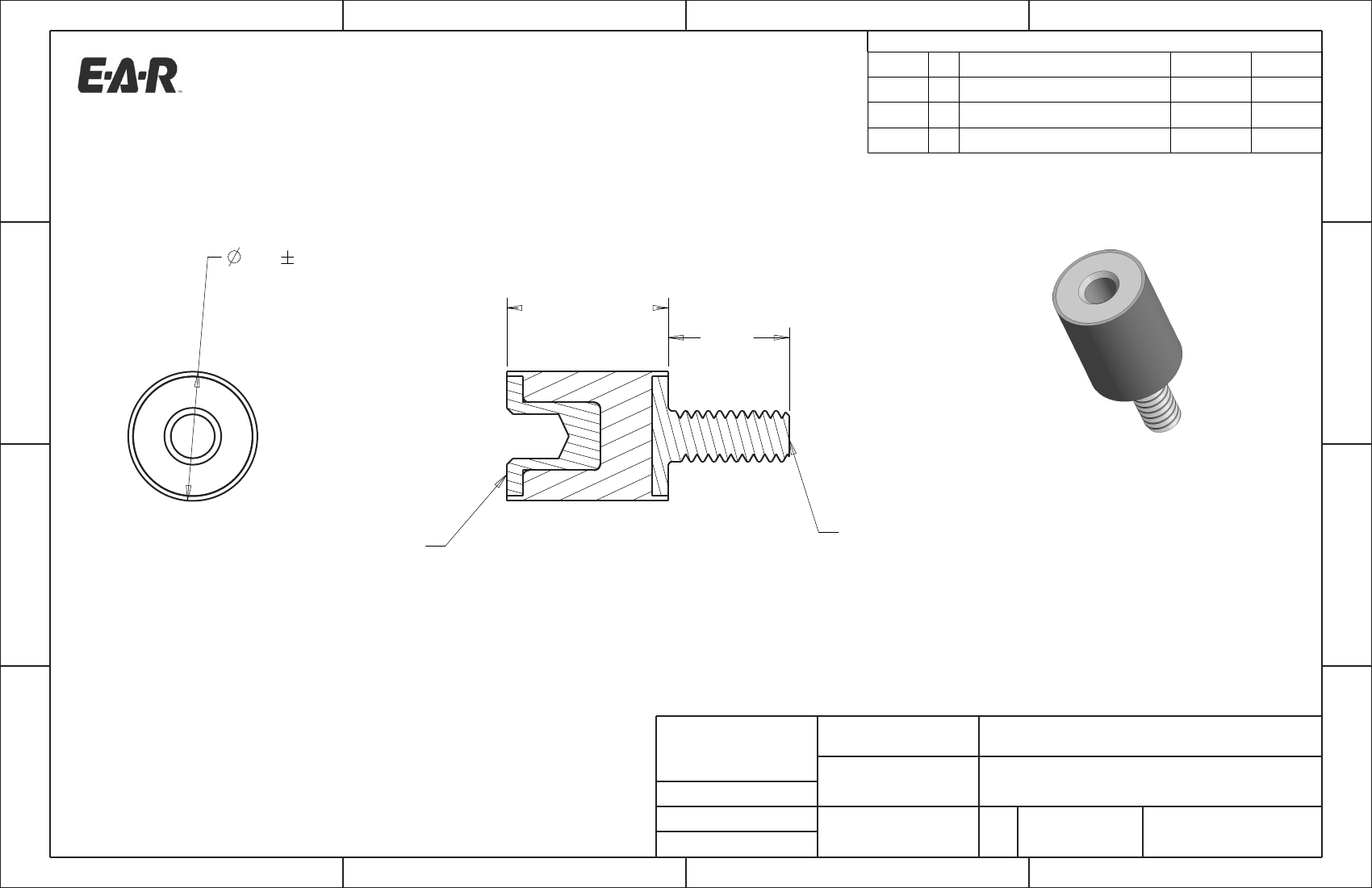

MF-200-UC06-H Preview

1

D

2

3

REVISIONS

4

DRAWN REV

DESCRIPTION

DATE

APPROVED

CP

01 INITIAL DESIGN

6/24/17

MS

D

.400

0.015

.500 ± 0.015

.375

C

SCALE 4.000

SECTION A-A

GROUP 2 FEMALE

INSERT #6-32

UNC-2B

B

GROUP 2 MALE

INSERT #6-32

UNC-2A

B

NOTES:

INSERTS:

MALE INSERT P/N: 021-1425

MATERIAL:

ISOLOSS HD

QUALITY CONTROL:

MUST COMPLY WITH AEARO

TECHONOLGIES LLC

SUPPLIER QUALITY MANUAL

REQUIREMENTS

1. CONTACT AREAS MUST BE 100% BONDED.

AEARO TECHNOLOGIES LLC * a 3M company

TITLE

A

FEMALE INSERT P/N: 021-1426

MATERIAL: S.A.E 1018 STEEL

FOR COATING DETAILS, SEE INSERT DRAWING.

UNITS:

IN

SANDWICH MOUNT, GROUP 2, MALE-FEMALE, ISOLOSS HD

SIZE

ITEM CODE

DWG NO.

A

NOTES:

ANY FEATURE NOT DIMENSIONED

IN PRINT MUST BE VISIBLY PRESENT,

UTILIZE 3D CAD FOR CREATION

B

MF-200-UC06-H

1

2

3

4
