31107106

Description
SCREW TYPE TERMINAL BLOCK, PLUG,
CategoryThe connector
File Size308KB,5 Pages
ManufacturerMETZ CONNECT USA Inc.
Environmental Compliance
Download Datasheet Parametric Compare View All

31107106 Overview

SCREW TYPE TERMINAL BLOCK, PLUG,

31107106 Parametric

Parameter NameAttribute value
typePlug without shroud
Number of pins6
Number of pins per level6
Number of levels1
spacing0.197"(5.00mm)
Needle seat direction-
Plug entrance90°
Terminal typeScrews - leaf springs, wire guards
Installation typefree hanging
Current - IEC-
Current - UL10A
Voltage - UL300V
Wire Gauge or Range - AWG12-28 AWG
Wire gauge or range - mm²0.33-2.5mm²
colorblack
Operating temperature-40°C ~ 105°C
Contact mating surface treatmenttin
characteristic-
Material flammability ratingUL94 V-0
Intrusion protection-
Screw sizeM3
Torque - Screws0.68 Nm(6 Lb-In)
Wire stripping length-
Contact materialcopper zinc
Shell materialPolyamide (PA66), Nylon 6/6
Contact tail length-
Insulation height0.504"(12.80mm)

31107106 Preview

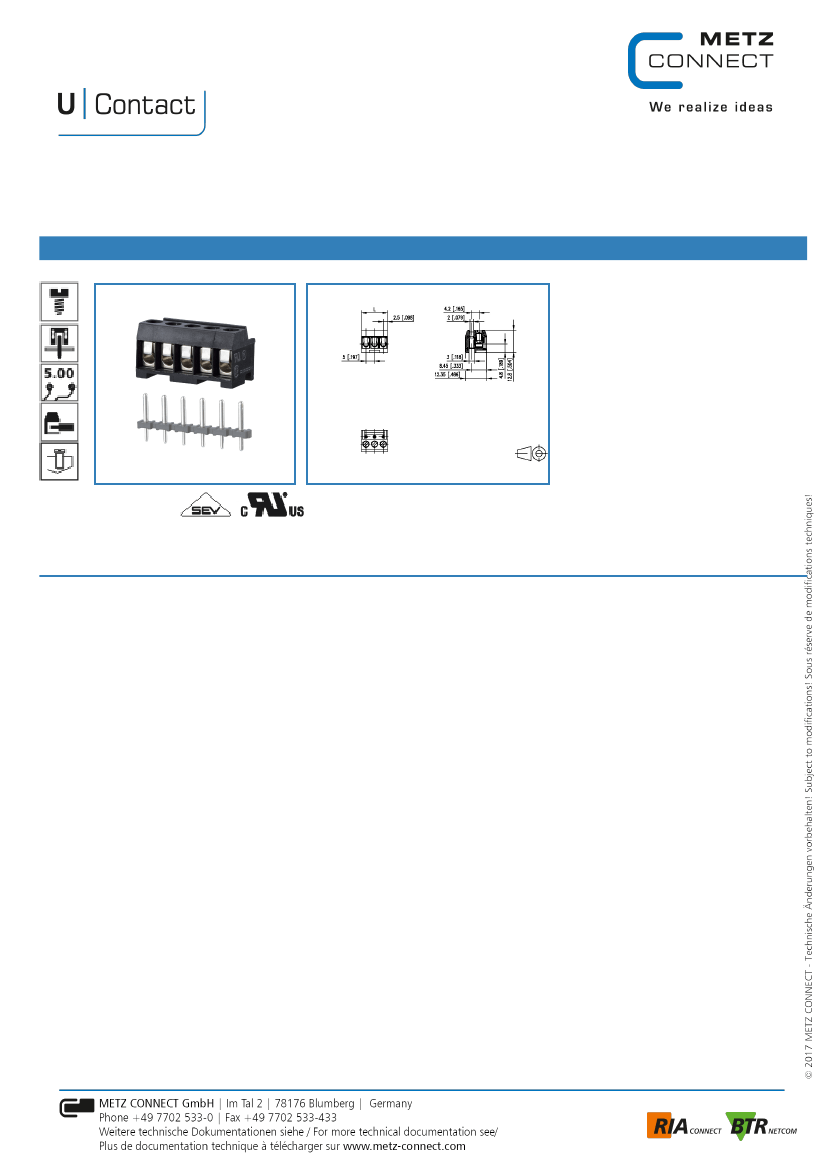

Data Sheet
RP025xxHBWC
Illustration
Page 1/5
P/N
311071xx
xx=number of poles
2017/05/04
see enlarged drawing at the end of the document
Product specification
• screw type terminal block, pluggable
• centerline 5.00 mm, direction of connection 90°
• wire protector, fittable without loss of poles
• color black
• Wire entry perpendicular to plug direction
Data Sheet
RP025xxHBWC
Technical Data
General Data
Tightening torque SEV
Tightening torque UL
min. number of poles
max. number of poles
Insulating material class
clearance/creepage dist.
protection category
Overvoltage category
Pollution degree
Rated voltage
Rated test voltage
0.5 Nm
6 lb-in
2
24
CTI 600
2.3 mm
IP 00
III
3
100.0 V
2.5 kV
III
2
320.0 V
2.5 kV
II
2
320.0 V
2.5 kV
Page 2/5
P/N
311071xx
xx=number of poles
2017/05/04
Connection data
Rated wiring solid wire
Rated wiring stranded wire
0.08 - 2.5 mm² / AWG 28 - 12
0.08 - 2.5 mm² / AWG 28 - 12
Approvals
V / A / AWG
300 / 10 / 28 - 12
10 A / 250 V / 2.5 kV / 3 / IEC 61984 /
0.33 - 2.5 mm²
Material
insulating material
flammability class
contact material
Glow-Wire Flammability GWFI
Glow-Wire Flammability GWIT
contact surface
terminal body material
terminal body surface
screw surface
wire protector material
PA66
V0
CuSn
960
775
Sn
CuZn
Ni
Zn Cr(VI)-frei/free
CuSn
Data Sheet
RP025xxHBWC
wire protector surface
screw thread
Sn
M3
Page 3/5
P/N
311071xx
xx=number of poles
2017/05/04
Climatic properties
upper limit temperature
lower limit temperature
105 °C
-40 °C
General
Tolerance
ISO 2768 -mH
Data Sheet
RP025xxHBWC
Matching Part
P/N
310171
310271
310391
310411
310421
314171
Product name
PR015xxVBHC Typ 017
PR015xxVBVC Typ 027
PT055xxHBHC Typ 039
PT065xxVBEN Typ 041
PT065xxVBVN Type 042
PM035xxVBHC Typ 417
Page 4/5
P/N
311071xx
xx=number of poles
2017/05/04
Accessories
P/N
710084
710085
710121-2
710122-2
716846
Product name
710084
710085
710121
710122
716846
Data Sheet
RP025xxHBWC

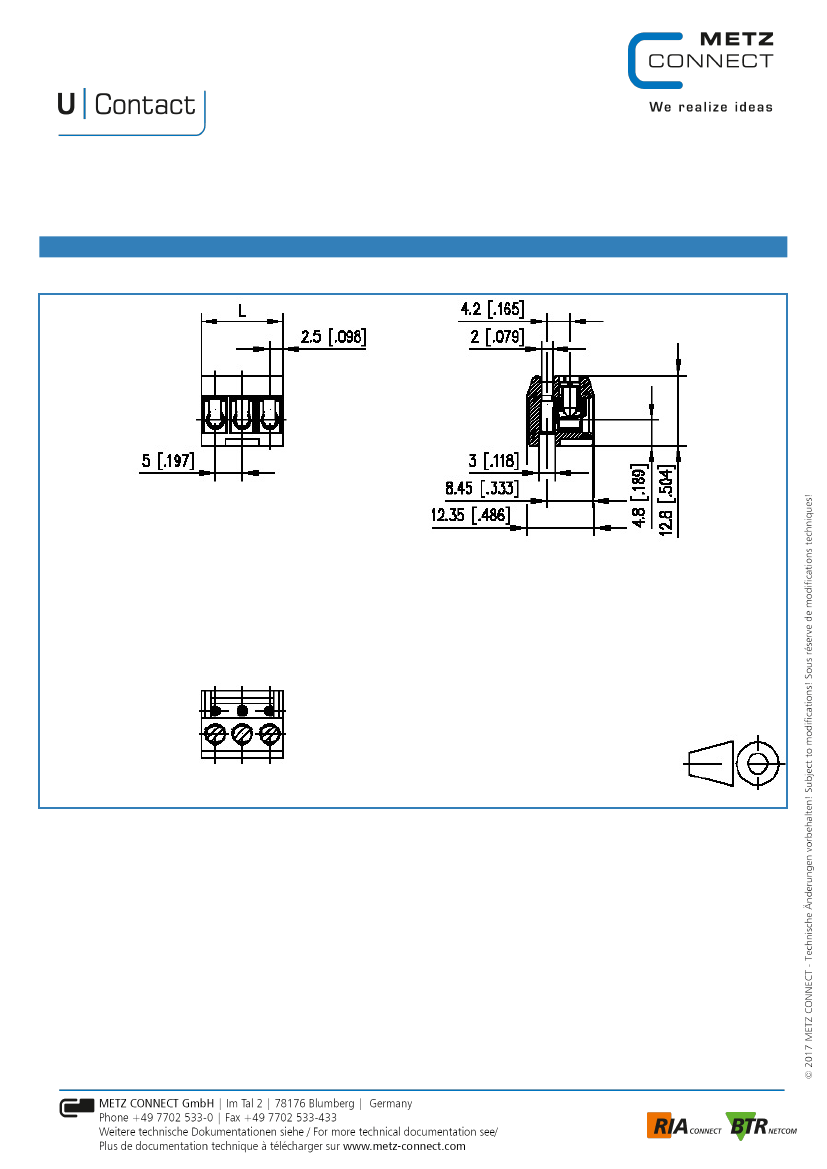

Illustration
Drawing
Page 5/5
P/N
311071xx
xx=number of poles
2017/05/04
L=(pole size - 1) x centerline + 5 [0.197]
Powered by TCPDF (www.tcpdf.org)

31107106 Related Products

31107106 31107102 31107103 31107104
Description SCREW TYPE TERMINAL BLOCK, PLUG, SCREW TYPE TERMINAL BLOCK, PLUG, SCREW TYPE TERMINAL BLOCK, PLUG, SCREW TYPE TERMINAL BLOCK, PLUG,
type Plug without shroud Plug without shroud Plug without shroud Plug without shroud
Number of pins 6 2 3 4
Number of pins per level 6 2 3 4
Number of levels 1 1 1 1
spacing 0.197"(5.00mm) 0.197"(5.00mm) 0.197"(5.00mm) 0.197"(5.00mm)
Plug entrance 90° 90° 90° 90°
Terminal type Screws - leaf springs, wire guards Screws - leaf springs, wire guards Screws - leaf springs, wire guards Screws - leaf springs, wire guards
Installation type free hanging free hanging free hanging free hanging
Current - UL 10A 10A 10A 10A
Voltage - UL 300V 300V 300V 300V
Wire Gauge or Range - AWG 12-28 AWG 12-28 AWG 12-28 AWG 12-28 AWG
Wire gauge or range - mm² 0.33-2.5mm² 0.33-2.5mm² 0.33-2.5mm² 0.33-2.5mm²
color black black black black
Operating temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Contact mating surface treatment tin tin tin tin
Material flammability rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Screw size M3 M3 M3 M3
Torque - Screws 0.68 Nm(6 Lb-In) 0.68 Nm(6 Lb-In) 0.68 Nm(6 Lb-In) 0.68 Nm(6 Lb-In)
Contact material copper zinc copper zinc copper zinc copper zinc
Shell material Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6
Insulation height 0.504"(12.80mm) 0.504"(12.80mm) 0.504"(12.80mm) 0.504"(12.80mm)
