Décor Series™ Class A products are a revolutionary advancement in lighting designed to match how humans
perceive and prefer light. The Class A specification was created by the Lighting Research Center (LRC) behavior studies
in conjunction with Bridgelux and other ASSIST members. Based on human factor response testing, the Décor Series
Class A products provide vibrant, natural and brilliant looking light, evoking an emotional attraction and response. The
Décor Series Class A products were developed for high-end retail, museum, architectural, premium building and
hospitality applications.
Bridgelux Décor Series Class A products are available on all Vero form factors. The Vero platform has been engineered
with advanced connectivity options and can operate over a broad current range, enabling multiple degrees of flexibility
in luminaire design optimization.
Features
Benefits
• Light quality is based on human perception of
color and light
• High gamma area index (GAI)
• No harmful UV or near IR light in the spectrum
• Substantially broader GAI and color spectrum
than halogen
• Radial die pattern enhances optical uniformity
• Based on Bridgelux Vero COB LED array platform
• Broad application coverage for interior and
exterior lighting
• Flexibility for application driven lighting design
requirements
• High quality true color reproduction
• Uniform consistent white light
• Flexibility in design optimization
• Enhanced ease of use and manufacturability
Vero
Contents
Product Feature Map
Product Nomenclature
Product Selection Guide
Performance at Commonly Used Drive Currents
Electrical Characteristics
Absolute Maximum Ratings
Performance Curves
Typical Radiation Pattern
Mechanical Dimensions
Packaging and Labeling
Design Resources
Precautions
Disclaimers
About Bridgelux
2
2
3
6
11
12
13
19
20
24
27
27
27
28
1

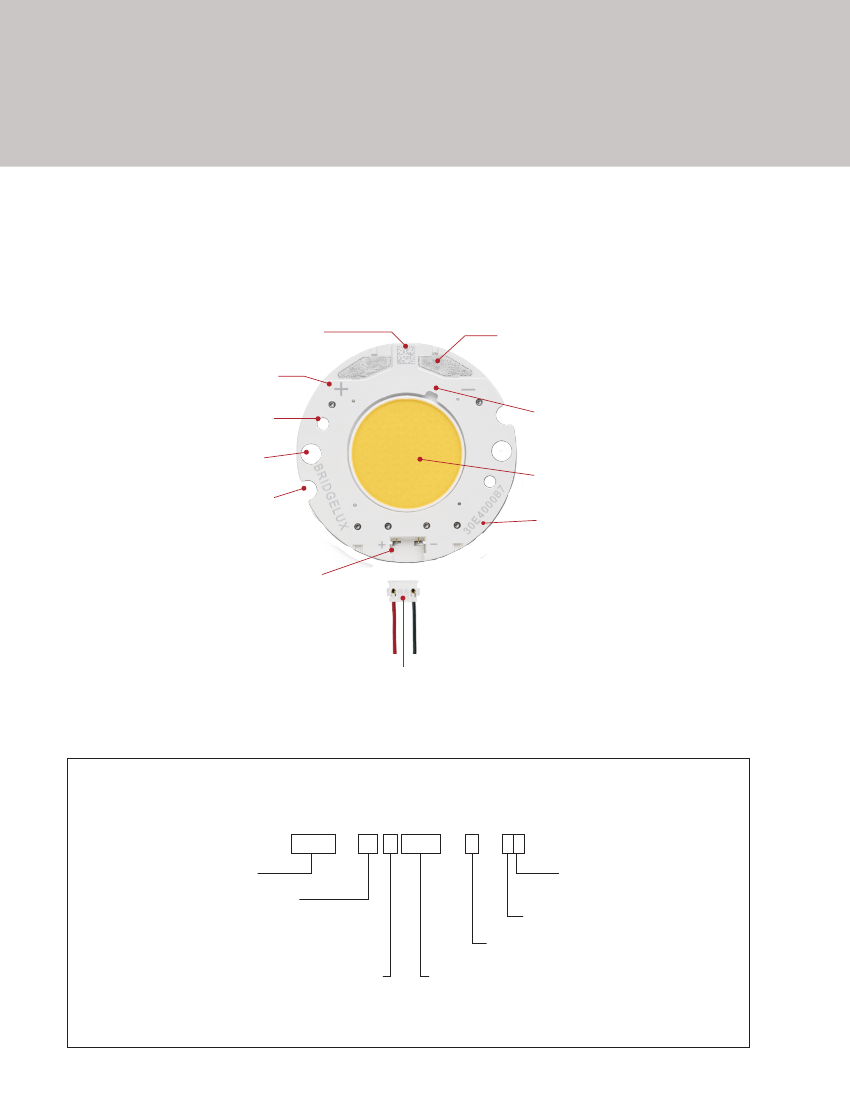

Product Feature Map
In addition to delivering the performance and light quality
required for many lighting applications, Décor Series
Class A LED arrays incorporate several features to
simplify the design integration and manufacturing process,
accelerate time to market and reduce system costs.
2D barcode provides full manufacturing traceability
Thermally isolated solder pads reduce
manufacturing cycle time and complexity
Polarity indication marks simplify
manufacturing operator instructions
T
c
Measurement point
Optics location/mounting features
Mounting holes
Radial die configuration improves lumen
density and beam control
Top side part number marking improves
inventory management and outgoing
quality control
Zhaga Book 3 compatible
mounting locations
Solderless connector port enables simplified
manufacturing processes, reduced inventory
carrying costs and can enable field upgradability
Optional Molex Pico-EZmate
™
connector harness
(sold separately)
Product Nomenclature
The part number designation for Bridgelux Vero LED Class A arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
–
12
– 13 14
BXRC – 30 A 1001 – B – 7 3
Product Family
Nominal CCT
30 = 3,000K
35 = 3,500K
40 = 4,000K
Typical GAI
GAI >80
CCT Bin Options
3 = 3 SDCM
Gen. 7
Array Configuration
Nominal Flux
1001- 1000lm
2001- 2000lm
4001- 4000lm
10K1- 10,000lm
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Nominal
CCT
1
(K)
3000
3000
3000
3500
3500
3500
4000
4000
4000
3000
3000
3000
3500
3500
3500
4000
4000
4000
3000
3000
3000
3500
3500
3500
4000
4000
4000
3000
3000
3000
3500
3500
3500
4000
4000
4000
Product
Part Number
GAI
2
CRI
3
Nominal
Drive
Current
4
(mA)
270
360
350
270
360
350
270
360
350
450
630
500
450
630
500
450
630
500
900
1170
1050
900
1170
1050
900
1170
1050
1800
1710
2100
1800
1710
2100
1800
1710
2100
Typical Pulsed
Flux
5,6,7
T
c
= 25ºC
(lm)
1086
1448
1056
1170
1560
1138
1245
1660
1210
1873
2622
1907
2014
2819
2050
2154
3015
2194
3745
4870
3641
4026
5235
3915
4307
5600
4188
11237
14233
9468
12080
15301
10178
12922
16368
10888
Minimum
Pulsed Flux
7,8
T
c
= 25ºC
(lm)
959
1274
982
1033
1373
1058
1099
1461
1126
1765
2412
1773
1898
2593
1906
2030
2774
2039
3515
4480
3441
3778
4816
3699
4042
5152
3957
10338
13095
8710
11113
14077
9363
11889
15059
10016
Typical
V
f
(V)
35.0
35.0
26.0
35.0
35.0
26.0
35.0
35.0
26.0
35.0
35.0
31.8
35.0
35.0
31.8
35.0
35.0
31.8
35.0
35.0
29.0
35.0
35.0
29.0
35.0
35.0
29.0
52.0
69.4
37.6
52.0
69.4
37.6
52.0
69.4
37.6
Typical
Power
(W)
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
15.6
21.9
15.9
15.6
21.9
15.9
15.6
21.9
15.9
31.2
40.6
30.4
31.2
40.6
30.4
31.2
40.6
30.4
93.6
118.6
78.9
93.6
118.6
78.9
93.6
118.6
78.9
Typical
Efficacy
(lm/W)
116
116
116
125
125
125
133
133
133
120
120
120
129
129
129
138
138
138
120
120
120
129
129
129
138
138
138
120
120
120
129
129
129
138
138
138
Décor Class A Vero 10
Décor Class A Vero 10
Décor Class A Vero 10
Décor Class A Vero 10
Décor Class A Vero 10
Décor Class A Vero 10
Décor Class A Vero 10
Décor Class A Vero 10
Décor Class A Vero 10
Décor Class A Vero 13
Décor Class A Vero 13
Décor Class A Vero 13
Décor Class A Vero 13
Décor Class A Vero 13
Décor Class A Vero 13
Décor Class A Vero 13
Décor Class A Vero 13
Décor Class A Vero 13
Décor Class A Vero 18
Décor Class A Vero 18
Décor Class A Vero 18
Décor Class A Vero 18
Décor Class A Vero 18
Décor Class A Vero 18
Décor Class A Vero 18
Décor Class A Vero 18
Décor Class A Vero 18
Décor Class A Vero 29
Décor Class A Vero 29
Décor Class A Vero 29
Décor Class A Vero 29
Décor Class A Vero 29
Décor Class A Vero 29
Décor Class A Vero 29
Décor Class A Vero 29
Décor Class A Vero 29
BXRC-30A1001-B-73
BXRC-30A1001-C-73
BXRC-30A1001-D-73
BXRC-35A1001-B-73
BXRC-35A1001-C-73
BXRC-35A1001-D-73
BXRC-40A1001-B-73
BXRC-40A1001-C-73
BXRC-40A1001-D-73
BXRC-30A2001-B-73
BXRC-30A2001-C-73
BXRC-30A2001-D-73
BXRC-35A2001-B-73
BXRC-35A2001-C-73
BXRC-35A2001-D-73
BXRC-40A2001-B-73
BXRC-40A2001-C-73
BXRC-40A2001-D-73
BXRC-30A4001-B-73
BXRC-30A4001-C-73
BXRC-30A4001-D-73
BXRC-35A4001-B-73
BXRC-35A4001-C-73
BXRC-35A4001-D-73
BXRC-40A4001-B-73
BXRC-40A4001-C-73
BXRC-40A4001-D-73
BXRC-30A10K1-B-73
BXRC-30A10K1-C-73
BXRC-30A10K1-D-73
BXRC-35A10K1-B-73
BXRC-35A10K1-C-73
BXRC-35A10K1-D-73
BXRC-40A10K1-B-73
BXRC-40A10K1-C-73
BXRC-40A10K1-D-73
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
93
Notes for Table 1:
1. Nominal CCT is defined by the Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
2. To help ensure optimal fixture level performance, GAI is measured at the fixture level, on axis, at a case temperature of 70°C. GAI may vary depending
on fixture design and performance.
3. CRI Values are specified as typical.
4. Drive current is referred to as nominal drive current.
5. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
6. Typical performance values are provided as a reference only and are not a guarantee of performance.
7. Bridgelux maintains a ±7% tolerance on flux measurements.
8. Minimum flux values at the nominal test current are guaranteed by 100% test.
