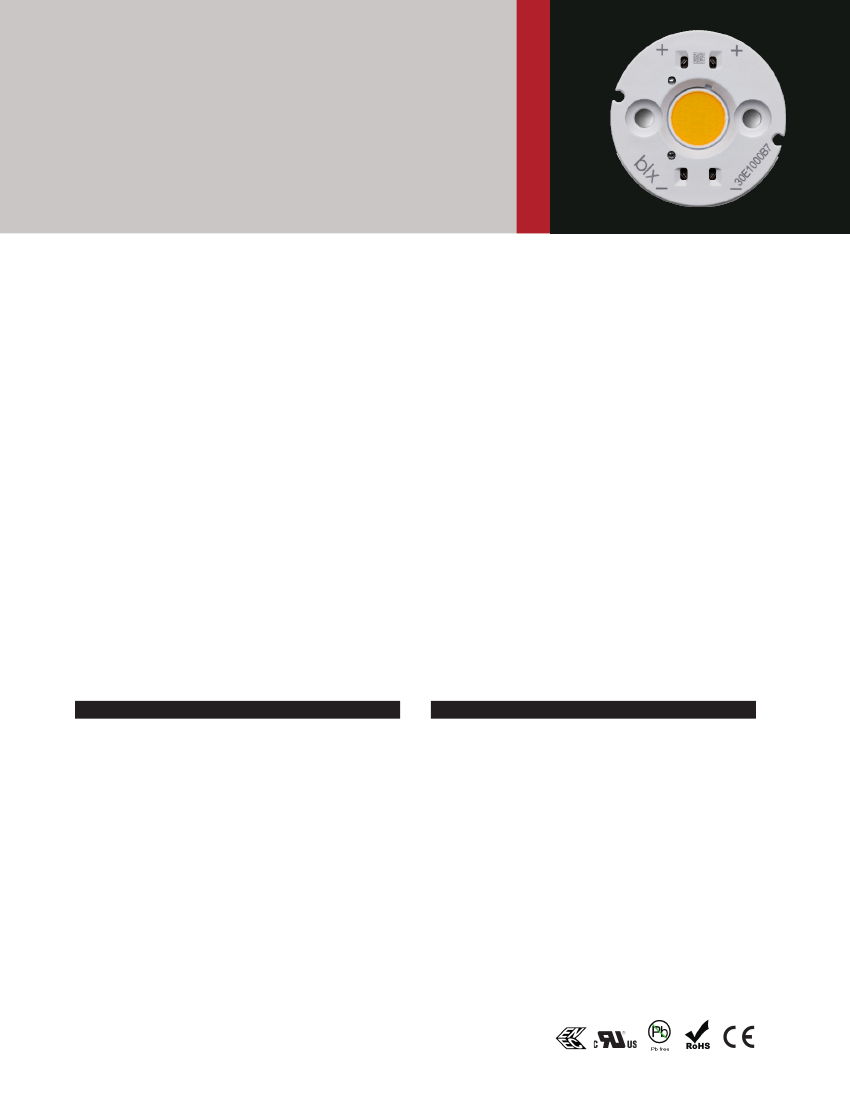

Introduction
Vero
®
SE is a revolutionary light source system that integrates Bridgelux’s seventh generation COB technology with poke-in
connectivity enabling solder-free installation. Vero SE LED light sources streamline assembly processes, lower manufacturing
cost, simplify luminaire design, improve light quality and increase design flexibility.
Vero SE is available in four different light emitting surface (LES) configurations that operate reliably over a broad current
range. With Vero SE, secondary connector and holder components are not required, allowing for rapid integration of arrays
into fixtures and an efficient field replaceable solution. Vero SE arrays deliver increased lumen density for improved beam
control and precision lighting with 2 and 3 SDCM color control standards for clean and consistent uniform lighting.
Bridgelux Décor Series is our state of the art color line designed specifically for premium applications, producing unmatched
LED light quality with brilliant color-rendering options and offer pleasing and inspiring lighting palettes. Bridgelux Décor
Series color points are available on Vero
®
SE Series, Vero
®
Series, V Series™ and H Series™.
Décor Series Class A
is based on human response testing, providing color points with a combined GAI and CRI metric.
Décor Series™ Ultra
products provide a high CRI of 97 and a minimum R9 value of 93, which emphasizes the reds and color
tones to which the human eye is most receptive - perfect for the most luxurious retail shops and world renowned museums.
Décor Series Ultra is also a good replacement for halogen lamps.
Décor Series™ Street and Landmark
is designed to be a direct replacement for high pressure sodium lamps.
Décor Series™ Showcase
is the optimal solution for replacing ceramic metal halide lamps, incorporating the same pure white
light with enhanced spectrum coverage and higher efficacy.
Features
Benefits
• Poke-in connectivity
• Efficacy of 150 lm/W typical
• Broad range of CCT options from 2700K to 6500K
• CRI options: minimum 65, 70, 80, and 90
• Color control: 2 and 3 SDCM for 2700K-4000K CCT
• Reliable operation at up to 2X nominal drive current
• Radial die pattern and improved lumen density
• Top side part number markings
• No exposed solder pads or electrical connections
• V
f
bin code backside marking
• Poke-in connectivity enables solderless, connector
free installation
• Broad application coverage for interior and exterior
lighting
• Flexibility for application driven lighting design
requirements
• High quality, true color reproduction
• Uniform consistent white light
• Flexibility in design optimization
• Enhanced ease of use and assembly
• Ability to configure multiple Vero SE arrays in series
and parallel reduces customer driver cost
• Improved inventory management and quality control
Vero SE
Product Feature Map
Vero SE 10 is the smallest form factor in the product
family of next generation solid state light sources.
In addition to delivering the performance and light
quality required for many lighting applications,
Vero SE incorporates several features to simplify the
design integration and manufacturing process, accelerate
time to market and reduce system costs. Please visit www.
bridgelux.com for more information on the Vero SE family
of products.

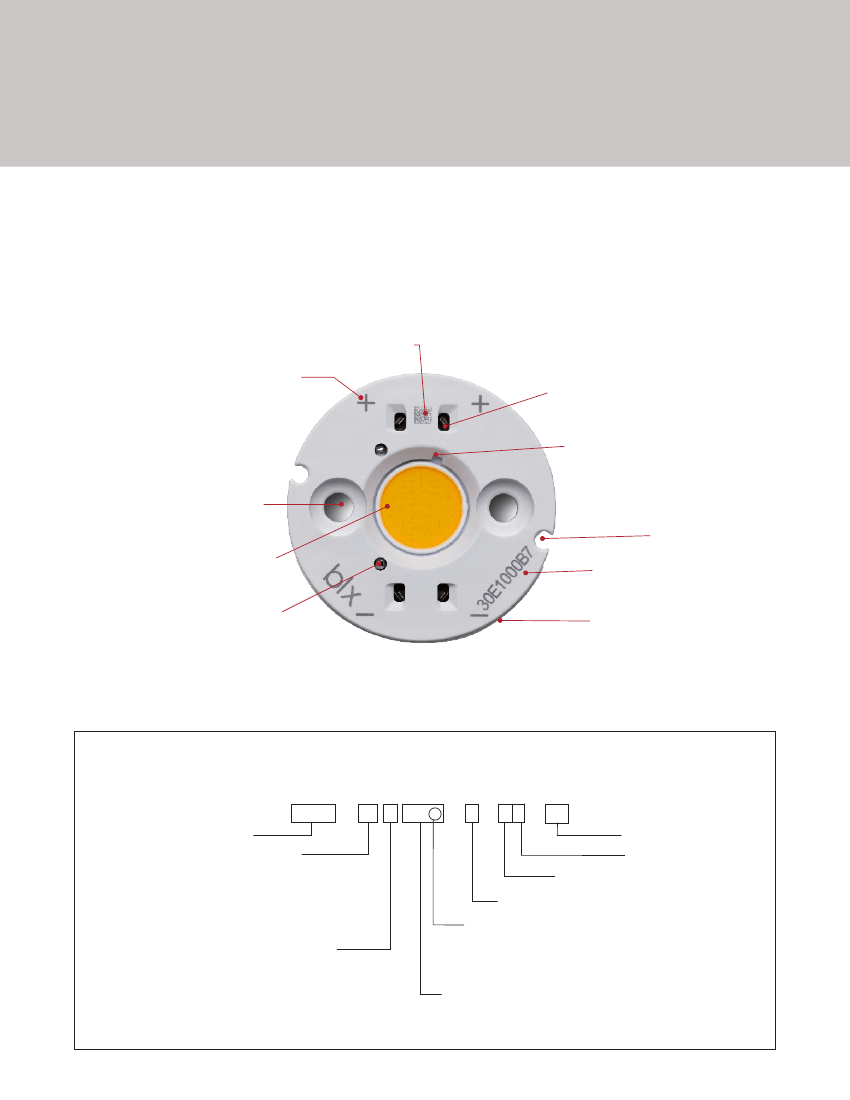

2D Bar code provides full
manufacturing traceability
Polarity indication marks simplify
manufacturing operator instructions
Wire release mechanisms (x4)
T
c
Measurement point
Mounting holes
Optic mounting holes
Radial die configuration improves lumen
density and beam control
Top side part number marking improves
inventory management and outgoing
quality control
Dual poke-in connectivity
Test ports for probing
Product Nomenclature
The part number designation for Bridgelux Vero SE LED arrays is explained as follows:
1 2 3 4
–
56
7
8 9 10 11
–
12
– 13 14
– 15 16
BXRC – 30 E 100 0 – C – 7 3 – SE
Product Family
Nominal CCT
20 = 2,000K
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
57 = 5,700K
65 = 6,500K
Special Edition
CCT Bin Options
Gen. 7
Array Configuration
Color Targeting Designator
0 = Cold Targeted
1 = Hot Targeted
C = Decor Series Showcase
Flux Indicator
100x = 1000 lm
2 = 2 SDCM
3 = 3 SDCM
4 = 4 SDCM
CRI
B = 65 CRI min.
C = 70 CRI min.
E = 80 CRI min.
G = 90 CRI min.
H = 97 CRI typ.
A = Class A
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
BXRC-20B1001-B-73-SE
BXRC-20B1001-D-73-SE
BXRC-27E1000-B-7x-SE
BXRC-27E1000-C-7x-SE
BXRC-27E1000-D-7x-SE
BXRC-27G1000-B-7x-SE
BXRC-27G1000-C-7x-SE
BXRC-27G1000-D-7x-SE
BXRC-27H1000-B-7x-SE
BXRC-27H1000-C-7x-SE
BXRC-27H1000-D-7x-SE
BXRC-30E1000-B-7x-SE
BXRC-30E1000-C-7x-SE
BXRC-30E1000-D-7x-SE
BXRC-30G1000-B-7x-SE
BXRC-30G1000-C-7x-SE
BXRC-30G1000-D-7x-SE
BXRC-30G100C-B-73-SE
BXRC-30G100C-D-73-SE
BXRC-30H1000-B-7x-SE
BXRC-30H1000-C-7x-SE
BXRC-30H1000-D-7x-SE
BXRC-30A1001-B-73-SE
8,9
BXRC-30A1001-C-73-SE
8,9
BXRC-30A1001-D-73-SE
8,9
Nominal
CCT
1
(K)
2000
2000
2700
2700
2700
2700
2700
2700
2700
2700
2700
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3500
3500
3500
3500
3500
3500
3500
3500
3500
CRI
2
65
65
80
80
80
90
90
90
97
97
97
80
80
80
90
90
90
90
90
97
97
97
93
93
93
80
80
80
90
90
90
93
93
93
Nominal Drive
Current
3
(mA)
270
350
270
360
350
270
360
350
270
360
350
270
360
350
270
360
350
270
350
270
360
350
270
360
350
270
360
350
270
360
350
270
360
350
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
1325
1283
1353
1804
1310
1128
1503
1092
977
1303
946
1409
1879
1365
1175
1566
1138
1090
1056
1052
1403
1019
1062
1416
1028
1456
1942
1411
1212
1616
1174
1146
1528
1110
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
1166
1129
1191
1588
1153
992
1323
961
860
1147
833
1240
1654
1201
1034
1378
1001
959
929
926
1235
897
934
1246
905
1282
1709
1241
1067
1422
1033
1009
1345
977
Typical V
f
(V)
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
Typical
Power
(W)
9.4
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
Typical
Efficacy
(lm/W)
141
141
144
144
144
120
120
120
104
104
104
150
150
150
125
125
125
116
116
112
112
112
113
113
113
155
155
155
129
129
129
122
122
122
BXRC-35E1000-B-7x-SE
BXRC-35E1000-C-7x-SE
BXRC-35E1000-D-7x-SE
BXRC-35G1000-B-7x-SE
BXRC-35G1000-C-7x-SE
BXRC-35G1000-D-7x-SE
BXRC-35A1001-B-73-SE
8,9
BXRC-35A1001-C-73-SE
8,9
BXRC-35A1001-D-73-SE
8,9
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011. Products with a CCT of 5000K-6500K are hot targeted to T
c
= 85°C.
2. CRI values are typical for Decor Series Ultra and Decor Series Class A products. CRI values are minimums for all other products. Minimum R9 value
for 80 CRI products is 0, the minimum R9 values for 90 CRI products is 50, the minimum R9 values for 97 CRI products is 93. Bridgelux maintains a
± 3
tolerance on R9 values.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
8. Nominal CCT is defined by the Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
9. GAI value is 80. To help ensure optimal fixture level performance, GAI is measured at the fixture level, on axis, at a case temperature of 70°C. GAI may
vary depending on fixture design and performance.
3
