PROPRIETARY INFORMATION:
PROPRIETARY OF GLOBTEK, INC. ANY REPRODUCTION, DISCLOSURE OR
USE OF THIS DRAWING, IN WHOLE OR IN PART, IS HEREBY
PROHIBITED EXCEPT AS SPECIFIED IN WRITING BY GLOBTEK,INC.
REVISION
REV
A
B
C
D
DESCRIPTION
INITIAL RELEASE, RFS. 14561, MS
UPDATE LENGTH, RFS. 14599, MS
UPDATE LENGTH GROUND RING, RFS. 15059, MS
UPDATE LENGTH GROUND RING TO 98 mm, RFS. 19561, MS
134±6
DATE
09/15/08
09/22/08
11/13/08
09/14/10
APPROVED
BS
BS
BS
BS
356 ± 20
A
B
98±6
1.GENERAL SPECIFICATIONS:
RATING:
CABLE TYPE / SIZE:
TEMPERATURE RATING:
CONDUCTOR COLORS:
CABLE JACKET COLOR:
OVERALL LENGTH (L):
END ‘A’ TERMINATION:
END ‘B’ TERMINATION:
APPROVALS PLUG:
APPROVALS CABLE:
APPROVALS CONNECTOR:
15A / 250V AC
SOW, 14 AWG X 3
90° C
BLACK / WHITE / GREEN
BLACK
356 + 20 mm
NEMA 6-15P, COLOR BLACK
SEE TAB BELOW
UL, CSA or cUL
UL, CSA or cUL
UL, CSA or cUL
NOTES:
2.
CORD, PLUG AND CONNECTOR MUST BE MARKED WITH
APPROVAL SYMBOLS OR FILE NUMBER(S).
1. CORD SET TO HAVE UL AND CSA APPROVAL FOR OUTDOOR USE.
2. PACKAGING BULK PACKED, BUNDLES OF 25, MAXIMUM SHIPPING CARTON WEIGHT IS 30 KG.
3. TO BE PURCHASED UNDER UL CORD SETS AND POWER SUPPLY CORDS CATEGORY .
4. ACTUAL PLUG DESIGN & SHAPE MAY VARY FROM DRAWING.
5. STRAIN RELIEF SHALL PASS A STRAIN RELIEF LOAD TEST OF 35 LBS.
6. STRAIN RELIEF SHALL BE 80P PVC, DUROMETER 68 SHORE A.
7. RECEIVING CORD BOXES TO HAVE AN UL HALOGRAPHIC LABEL FILE #E119066 FOR POWER
SUPPLY CORDS, ANY OTHER LABEL IS NOT ACCEPTABLE.
8. THE JOINT BETWEEN THE CORDAGE AND PLUG TO MEET NATIONAL ELECTRIC
CODE SECTION 400-10.
9. TERMINALS CRIMPS MUST PASS A 30lbs MIN. PULL TEST, BEFORE MOLDING OPERATINGS.
DASH
NO.
PART NO
REV.
DESCRIPTION
NOTES
OR
3. PACKING:
25 pcs BULK
Limitation of Use:
Globtek product are not authorized for use as
mission critical components in life support,
hazardous environment, nuclear or
aircraft applications without prior written
approval from the CEO of Globtek Inc.
TABULATION BLOCK
TOLERANCES:
DECIMALS
.xx +/- 0.1
.xxx +/- .005
ANGULAR
+/- 1
o
www.globtek.com
186 Veterans Dr. Northvale, NJ 07647
Tel. 201-784-1000 Fax 201.784.0111
Foot Note:
Globtek Inc. will not be liable for the
safety and performance of these power
Contents of this document
product if unauthorized access and repair
are subject to change without occurs. End user should consult the applica-
prior notice
ble UL,CSA or EN Standards for proper
installation instruction.
INIT.BY: MS
DRAWN: NF
APRVD: HM
DATE:
09/15/08
DATE:
09/15/08
DATE:
09/15/08
MILLIMETERS
.xx +/- 0.3
.xxx +/- .013
ANGULAR
+/- 1
o

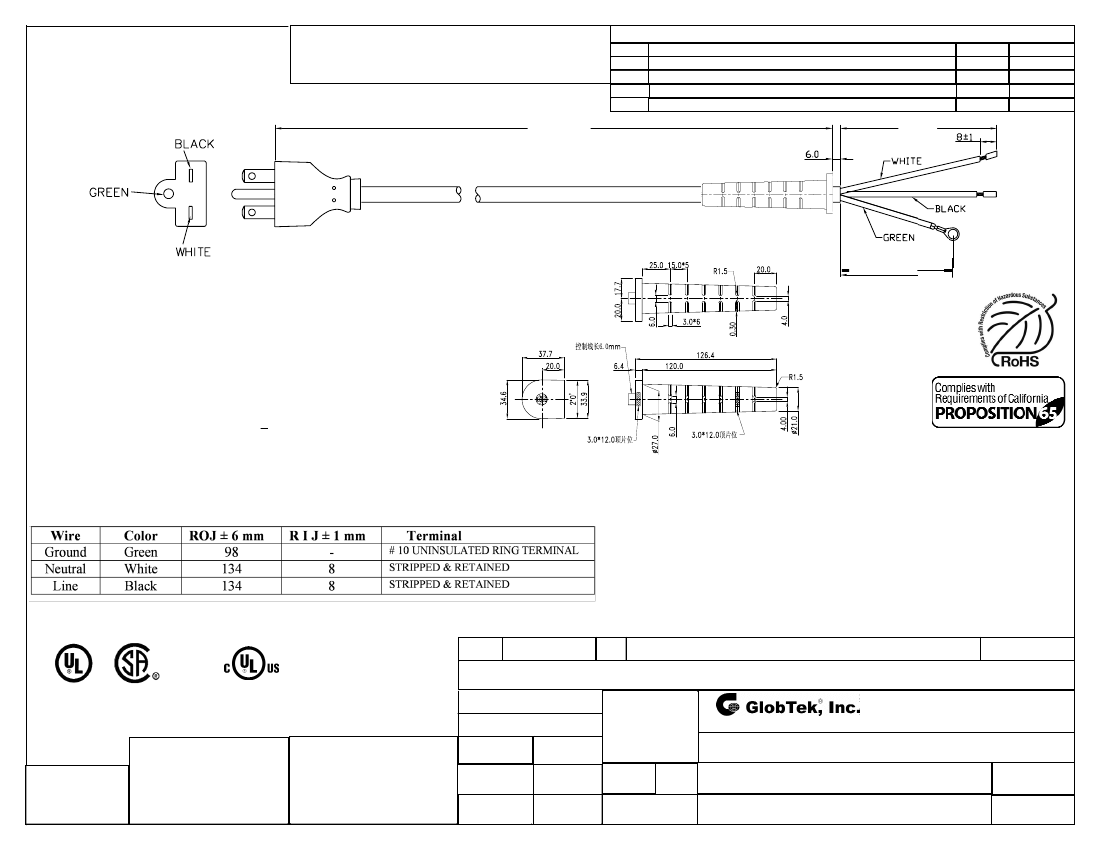

DWG TITLE: NORTH AMERICAN NON-DETACHABLE CORDSET
MODEL:
PART NO:
N/A
REV.
FSCN No.:
G, CC
SI Z E
A
D
SHEET 1/1
SCALE: NONE
3611781F2TRM(R)
