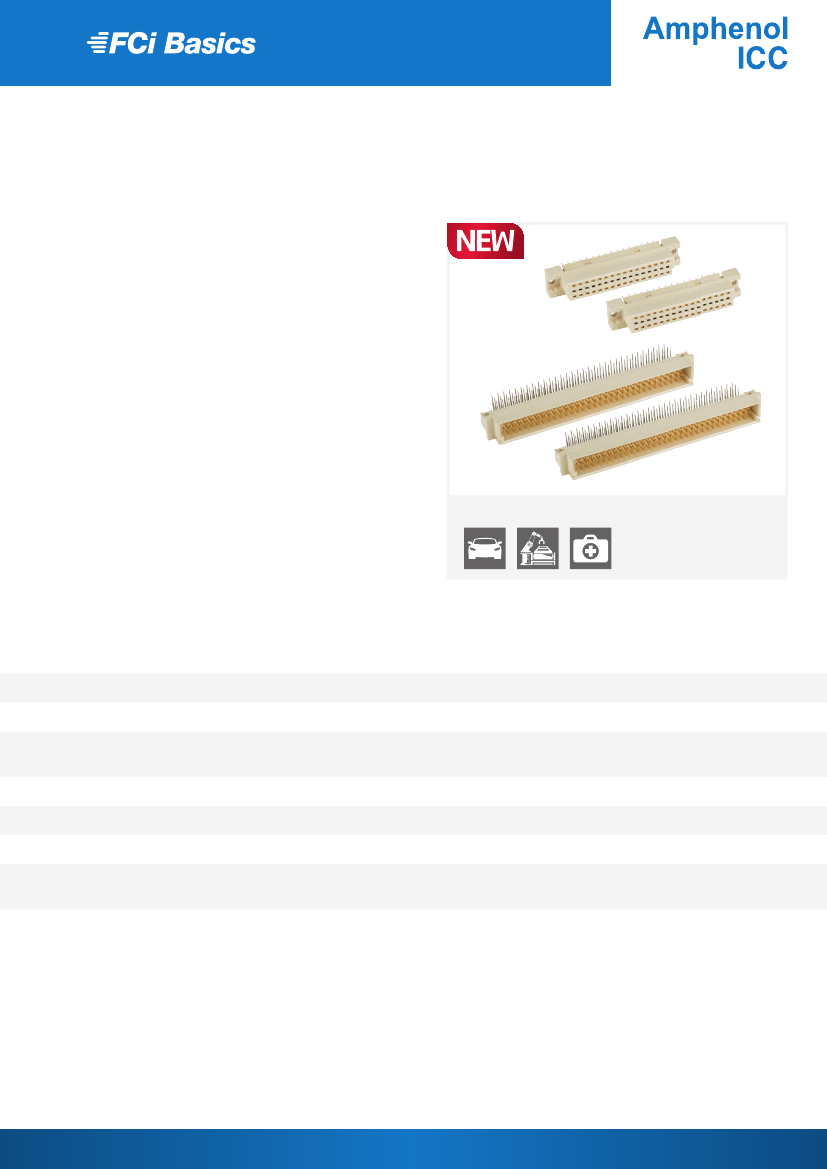

DIN 41612 High Temperature (HT)
Series Headers & Receptacles
EXTENDED RANGE FOR HIGH
TEMPERATURE APPLICATIONS
DIN 41612 High Temperature (HT) connectors meets the
fire safety standards required in Industrial and
Transportation market. The 2.54mm pitch HT connectors
comply with the relevant standards like IEC 603-2, NFF
16-101/102 and EN45545-2.
§
High temperature resin, suitable for THR process
§
High reliability
§
Flexibility in grounding and termination options
§
Ideal for Industrial & Instrumentation segment:
Railways & Medical
§
DIN 41612, IEC 603-2, NFF 16-101/102, EN 45545-2
§
Available in Style C & C/2- right angle header, vertical
receptacle
TARGET MARKETS
FEATURES
§
2.54mm and 5.08mm pitch
§
High temperature compatibility
§
Selective contact loading option
§
FMLB and LMEB contacts
§
Various termination types available
§
NFF 16-101/102 and EN45545-2 certified
§
Rear plug up option
§
Wide range of accessories available
BENEFITS
§
Adequate spacing for routing PCB trace
§
Facilitates custom loading
§
Reliability and no arcing damage on contact resting
position
§
Grounding option
§
Flexible PCB mounting options
§
Suitable for railway applications
§
Extended mating applications via shroud on rear
side of PCB
§
Enhances connector suitability and flexibility
Amphenol Information Communications and Commercial Products
DIN 41612 High Temperature (HT) Series Headers & Receptacles
TECHNICAL INFORMATION
MATERIAL
§§
Insulator: High Temperature Thermoplastic
APPROVAL & CERTIFICATION
§§
UL
§§
NFF 16-101/102
§§
EN45545-2
Polyester, UL94V-0, Natural
§§
Contact: Copper Alloy (Male/Female Contact)
§§
Plating: AU/GXT
®
over Nickel (Contact area),
Matte Tin over Nickel (Terminal area)
SPECIFICATIONS
§§
41612
DIN
§§
IEC603-2
ELECTRICAL PERFORMANCE
§§
Current Rating at 20°C: 1.5A
§§
Current Rating: 2A max.
§§
Contact Resistance:
≤
20mΩ
§§
Insulation Resistance:
≥
10
6
MΩ
§§
Test Voltage: 1000Vrms
PACKAGING
§§
Tray
TARGET MARKETS/APPLICATIONS
Off Road Vehicles
Heavy Duty Loaders, Conveyers
Locomotives
Onboard Electronics
Signaling
Test and Lab Equipment
Process Control
Robotics
Lighting & Displays
Energy Distribution
Imaging
Monitoring
Analyzers
MECHANICAL PERFORMANCE
§§
Insertion Force:
≤
0.94N per contact
§§
Extraction force:
≥
0.15N per contact
ENVIRONMENTAL
§§
Operating Temperature: -55°C to +125°C
§§
Performance levels as per IEC 603-2
§§
RoHS compliant according to the EU Directive
2011/65/EU
PART NUMBERS
Description
Style C Right Angle Header (STB)
Style C Straight Receptacle (STB)
Style C/2 Right Angle Header (STB)
Style C/2 Straight Receptacle (STB)
Configuration
3 row / 96 pos
2 row / 64 pos
3 row / 96 pos
2 row / 64 pos
3 row / 48 pos
2 row / 32 pos
3 row / 48 pos
2 row / 32 pos
Rows Loaded
a, b, c
a&c
a, b, c
a&c
a, b, c
a&c
a, b, c
a&c
Part Numbers
86093967113x*5F1LF
86094647113x*5F1LF
86093968114x*5F1LF
86094648114x*5F1LF
86093487313x*5F1LF
86094327313x*5F1LF
86093488314x*5F1LF
86094328314x*5F1LF
Notes
BPLDINHIGHTEMP0617EA4
x in part number denotes
B - High Temperature Housing (Natural)
T - High Temperature Housing (Natural) with Harpoon
Asterisk (*) in part number denotes Performance class:
6 - Class 1
5 - Class 2
4 - Class 3
Custom loading and other options available on request.
For more information,
please contact: Marketing@fci.com
or visit us at
www.amphenol-icc.com
Disclaimer
Please note that the above information is subject to change without notice.
