REVISION AL
NOTES:
1.
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM CONTACT RETENTION: 12 OZS.
3. MINIMUM LOCKING CLIP RETENTION: 8 OZS.
4. MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO PINS: .005[0.13].
5. MAXIMUM TERMINAL BURR: .003[0.08].
6. COPLANARITY: .004[0.10] = POS 02 THRU 26
.006[0.15] = POS 27 THRU 50.
7. MEASURED FROM BEND.
8. MEASURE FROM TIPS OF PIN.
9. SIDES OF PLASTIC BODIES ON ALL LEAD STYLES EXCEPT THE -01 & -02
WILL BE SOLID AND WITHOUT SIDE SLOTS.
10. THIS FEATURE ONLY PRESENT ON -01 & -02 LEAD STYLES.
11. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED,
THE –LC OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC
RECOMMENDS MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE
–LC OPTION.
12. NOTE DELETED.
C
TFC-1XX-XX-XX-D-XX
LEAD STYLE -01, -02: -02 THRU -50 (ALL
POSITIONS AVAILABLE)
LEAD STYLES -11, -12: (-05 THRU -50 MULTIPLES OF 5)
POSITIONS -12, -16, -17 ALSO AVAILABLE
LEAD STYLES -21, -22: (-05 THRU -50 MULTIPLES OF 5)
POSITIONS -12 & -13 ALSO AVAILABLE
LEAD STYLES -31, -32: (-05 THRU -50 MULTIPLES OF 5)
-12 POSITION ALSO AVAILABLE
No OF POSITIONS
OPTION
-A: ALIGNMENT PIN (USE TFM-XX-D-XX-A,
SEE TABLE 1, SHT 3) (SEE FIG 5, SHT 3)
(NOT AVAILABLE WITH -RA)
-LC: LOCKING CLIP (USE LC-05-TM)
(NOT AVAILABLE WITH -RA)
(SEE FIG 6, SHT 3, NOTE 3 & 11)
-P: PICK AND PLACE PAD (USE PPP-04)
LEAD STYLE
THROUGH HOLE
SURFACE MOUNT
-01 (SEE FIG 1)
-02 (SEE FIG 2, SHT 2)
-11 (SEE FIG 1)
-12 (SEE FIG 2, SHT 2)
-21 (SEE FIG 1)
-22 (SEE FIG 2, SHT 2)
-31 (SEE FIG 1)
-32 (SEE FIG 2, SHT 2)
(SEE TABLE 1, SHT 3)
(No. OF POSITIONS x .050[1.27]) + .125[3.18] REF
(No. OF POSITIONS x .050[1.27]) + .025[.64] REF
.110 2.79
REF
.155 3.94
REF
01
(NOT AVAILABLE WITH -RA)
(SEE FIG 7, SHT 3)
-RA: RIGHT ANGLE
(AVAILABLE ONLY IN LEAD STYLE: -01)
(SEE FIG 8, SHT 2)
-TR: TAPE AND REEL (SEE FIG 4, SHT 4)
(FOR -X2 ONLY)
(NOT AVAILABLE WITH -RA)
-K: POLYIMIDE FILM (SEE FIG 3, SHT 2)
(NOT AVAILABLE FOR -RA)
(USE K-DOT-.217-.313-.005)
(ALL LEAD STYLES EXCEPT -21 AVAILABLE)
(AVAILABLE IN ALL POSITIONS -05 THRU -50)
02
-F: 3µ" FLASH GOLD ON CONTACT AREA,
MATTE TIN TAIL
-L: 15µ" SELECTIVE GOLD ON CONTACT AREA,
MATTE TIN TAIL
-LM: 15µ" SELECTIVE GOLD ON CONTACT AREA,
MATTE TIN TAIL
-FM: 3µ" FLASH GOLD ON CONTACT AREA,
MATTE TIN TAIL
PLATING SPECIFICATION
BODY SPECIFICATION
-D: DOUBLE ROW
.135 3.43 REF
.075 1.91 REF
.050 1.27
REF
.225 5.72
REF
SEE NOTE 10
(No. OF POSITIONS x .050[1.27]) - .050[1.27]
.018 0.46 REF
"A"
2 MAX SWAY
(EITHER DIRECTION)
"D" REF
(SEE TABLE 1,
SHT 3)
"A" REF
(SEE TABLE 1,
SHT 3)
SEE NOTE 9
"A"
.014 0.36 REF
2 MAX SWAY
(EITHER DIRECTION)
"F"±.003[0.08]
(SEE TABLE 1, SHT 3)
.050 1.27
2 MAX SWAY
(EITHER DIRECTION)
.1635 4.153
REF
.096 2.44
.010 0.25 REF
2 MAX SWAY
(EITHER DIRECTION)
.050 1.27
(No. OF POSITIONS x .050[1.27]) - .050[1.27]
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
SECTION "A"-"A"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
"C"±.003[0.08]
(SEE TABLE 1, SHT 3)
THROUGH HOLE
-01, -11, -21, -31

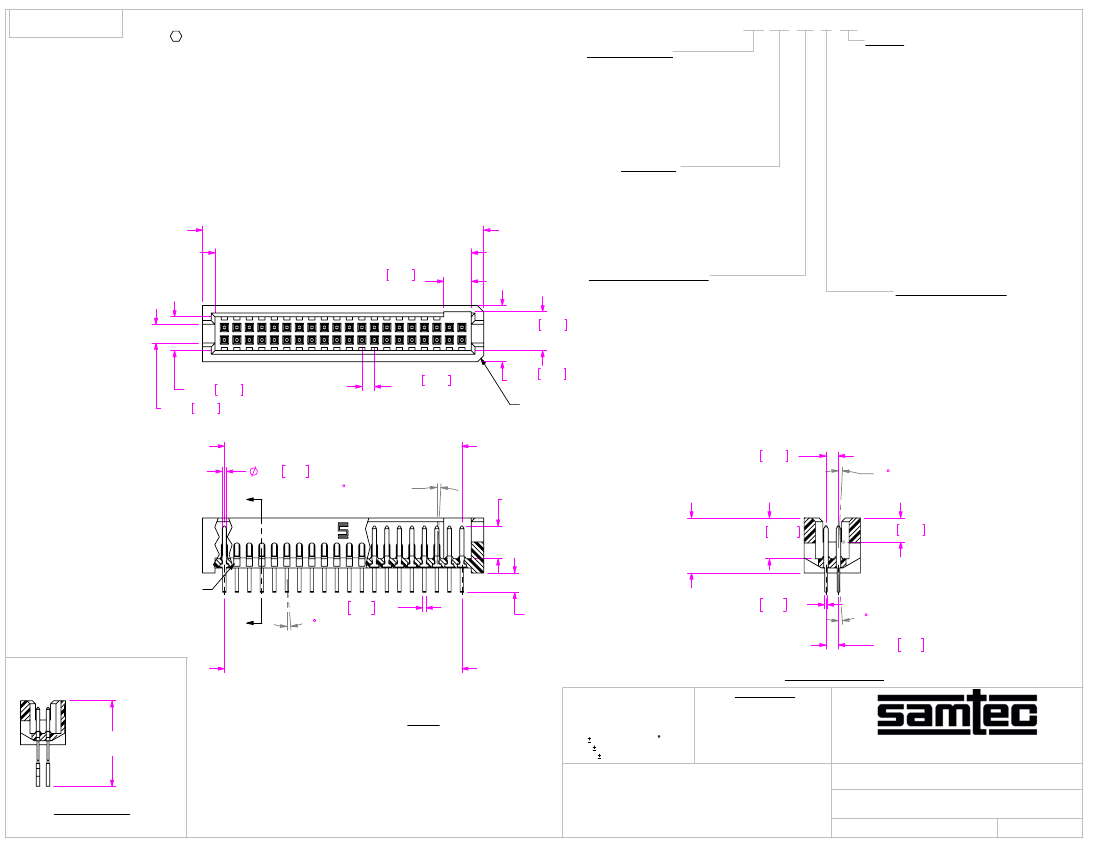

FIG 1
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
IN-PROCESS
INSULATOR:
LCP, UL 94-V0
COLOR: BLACK
TERMINAL: PHOSPHOR BRONZE
F:\DWG\MISC\MKTG\TFC-1XX-XX-XX-D-XX-MKT.SLDDRW
.050 X .050 TERMINAL STRIP
BY:
BRATCHER 05/25/2001
TFC-1XX-XX-XX-D-XX
SHEET
1
OF
4
REVISION AL
"B"
"J"±.006[0.15]
(SEE TABLE 1, SHT 3)
3
2
SEE NOTE 6
FLUSH TO .012 [0.30] MAX
(SEE NOTE 7)
7 (-12, -22 & -32 STYLES)
3 (-02 STYLE ONLY)
.235 5.97 MAX
NOTE: "R" = OVERALL LENGTH (REF)
"S" = {("R" - .216[5.49] /2} ±.020[.51]
.216 5.49
.005±.020 0.11±0.508
"E"
(SEE TABLE 1,
SHT 3)
SEE NOTE 9
"B"
01 03
3 MAX SWAY
(EITHER DIRECTION)
"S"
(SEE NOTE)
"R"
(SEE NOTE)
SEE NOTE 10
"E"
(SEE TABLE 1,
SHT 3)
SECTION "B"-"B"
02
(No. OF POSITIONS x .050) -.050[1.27]
(TOL ACCUM ±.005[0.13] OVER 50 POS)
SEE NOTE 10
SURFACE MOUNT
-02, -12, -22, -32
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
NOTCH TO BE
ORIENTED AS SHOWN
"C"
"A" REF
(SEE TABLE 1,
SHT 3)
TERMINAL 2
(SEE TABLE 1, SHT 3)
TERMINAL 1
(SEE TABLE 1, SHT 3)

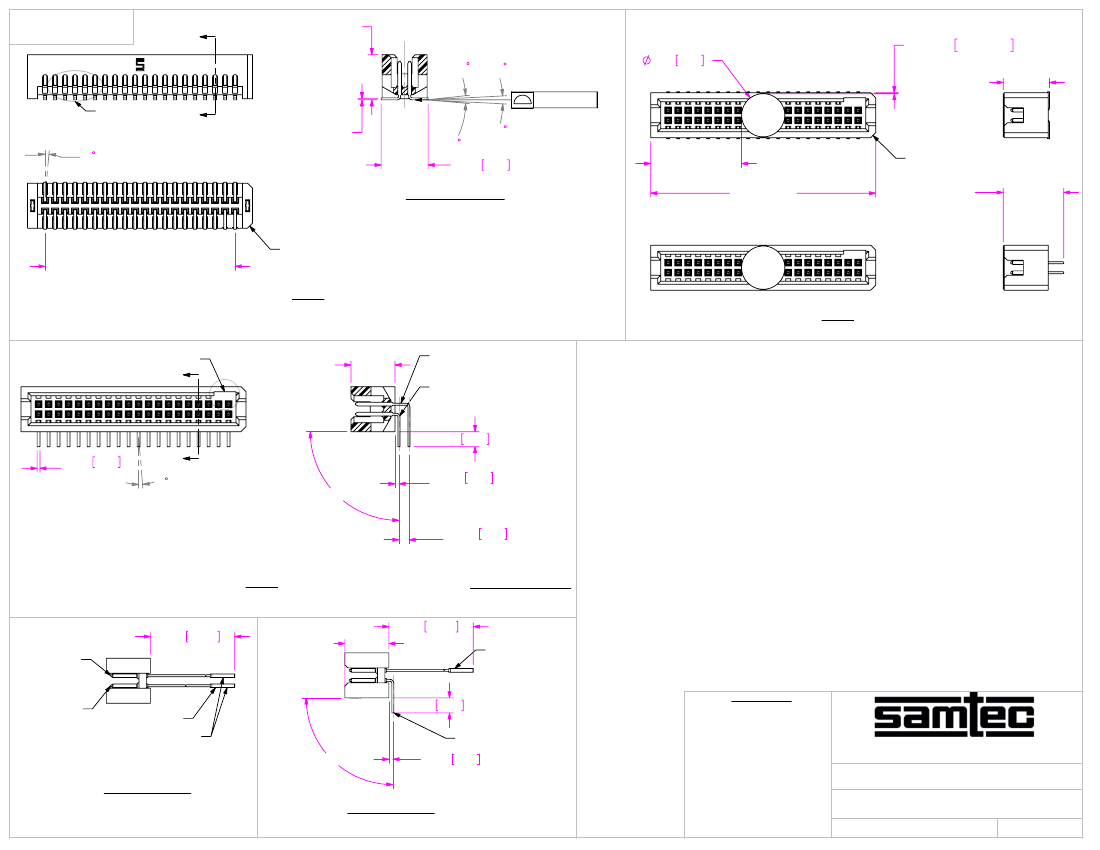

FIG 2
-K: POLYIMIDE FILM PAD
FIG 3
02
01
.075 1.91 REF
.014 0.36
REF (TYP)
"C"
2 MAX SWAY
(EITHER DIRECTION)
90°
.020 0.51
(SEE NOTE 8)
.050 1.27
(SEE NOTE 8)
-RA OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
.422 10.72
"A" REF
(SEE TABLE 1,
SHT 3)
.422 10.72
FIG 8
SECTION "C"-"C"
TERMINAL 2
(SEE TABLE 1,
SHT 3)
TERMINAL 1
(SEE TABLE 1,
SHT 3)
TERMINAL 2
(SEE TABLE 1,
SHT 3)
F:\DWG\MISC\MKTG\TFC-1XX-XX-XX-D-XX-MKT.SLDDRW
CARRIER STRIP
I.D. MARK
90°
.075 1.91 REF
TERMINAL 1
(SEE TABLE 1, SHT 3)
.020 0.51
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
(ORIENT I.D. MARK AS SHOWN)
(FOR -RA OPTION ONLY)
IN-PROCESS 1
DO NOT SCALE DRAWING
.050 X .050 TERMINAL STRIP
IN-PROCESS 2
SHEET SCALE: 2:1
BY:
BRATCHER 05/25/2001
TFC-1XX-XX-XX-D-XX
SHEET
2
OF
4

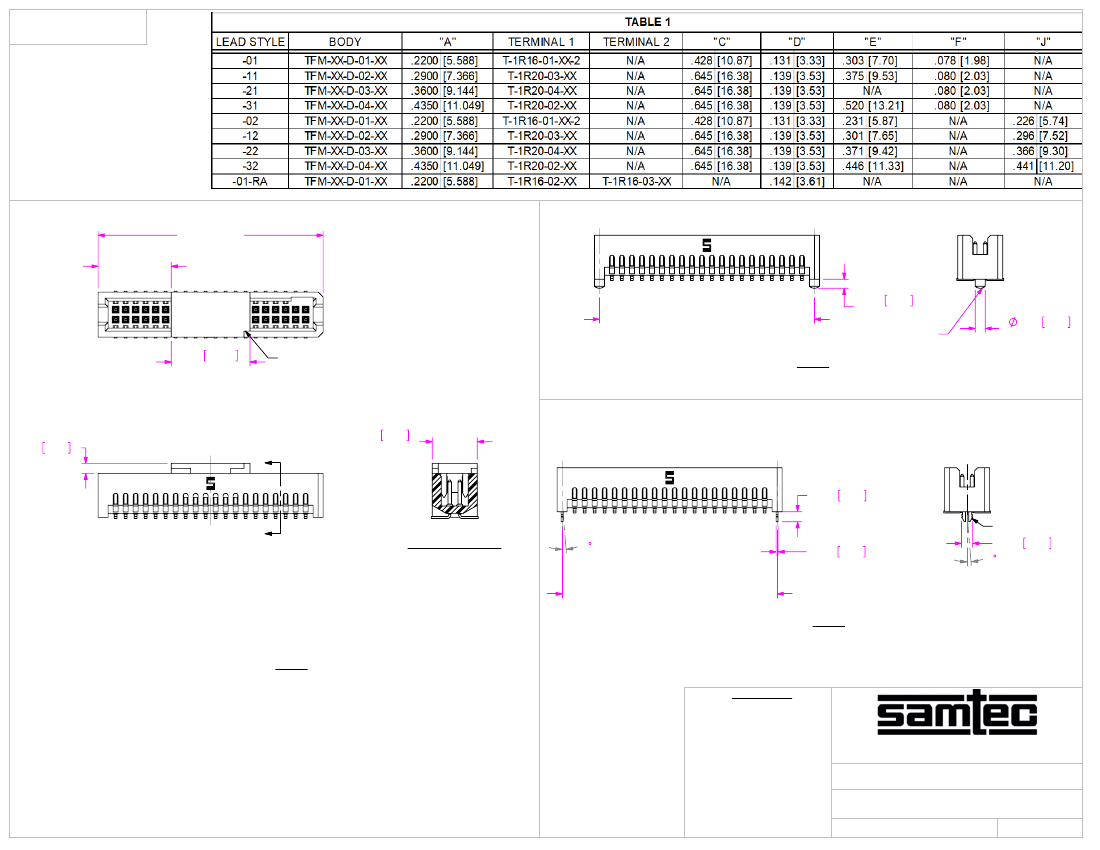

REVISION AL
"M"
(SEE NOTE)
"P"
(SEE NOTE)
.045 1.14
REF
R.025 [0.64] REF
.394 10.01
REF
*PPP-04
-A OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
(No. OF POSITIONS x .050[1.27]) + .075[1.91]
.050 1.27
REF
FIG 5
.050 1.27
"E"
.225 5.72
REF
C
L
.050 1.27
C
L
"E"
SECTION "E"-"E"
LC-05-TM
2 MAX SWAY
(EITHER DIRECTION)
.010 0.25 REF
.056 1.42 REF
2 MAX SWAY
(EITHER DIRECTION)
NOTE: "M" = (No. OF POS X .050[1.27]) + .125[3.18] (REF)
"P" = {(“M” - .394[10.01]) /2} ±.020[.51]
* NOTCH ON PAD TO BE ON SAME END
AS THE NOTCH IN THE TFM BODY
((No. OF POSITIONS x .050[1.27]) + .075[1.91])±.002[0.05]
-LC OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
(NOT AVAILBLE ON -RA)
F:\DWG\MISC\MKTG\TFC-1XX-XX-XX-D-XX-MKT.SLDDRW
*
PROPRIETARY NOTE
*
FIG 6
-P OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
(PAD TO BE POSITIONED ON CL AS SHOWN)
FIG 7
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 X .050 TERMINAL STRIP
BY:
BRATCHER 05/25/2001
TFC-1XX-XX-XX-D-XX
SHEET
3
OF
4
REVISION AL
ROUND HOLES
LOADING DIRECTION ARROW
POLARIZATION NOTCH
PT-1-24-18-09
(SEE TABLE 2)
PART NOTCH
OBLONG HOLES
PT-1-24-XX-09
USER DIRECTION OF UN-REELING
POCKET NOT DETAILED
-TR: TAPE AND REEL
LOADING DIRECTION ARROW
POLARIZATION NOTCH

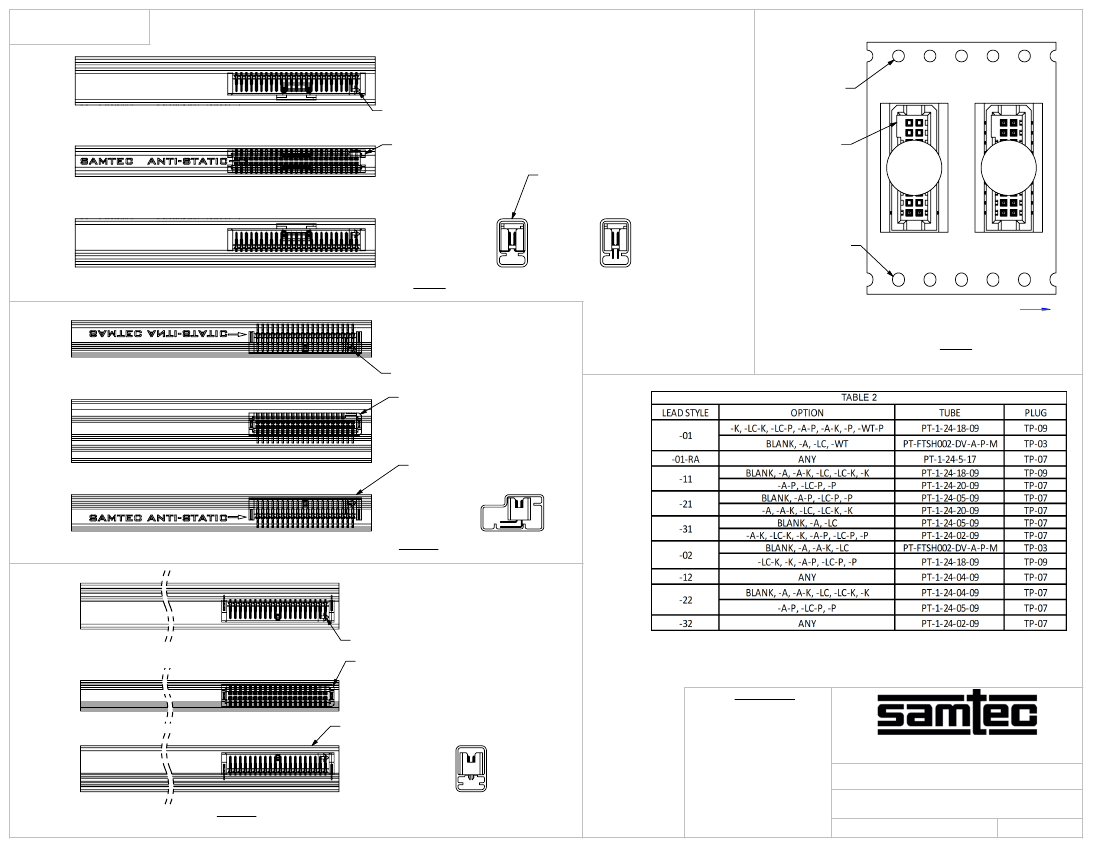

FIG 9
FIG 4
PT-1-24-05-17
(SEE TABLE 2)
PT-1-24-05-17
FIG 10
LOADING DIRECTION ARROW
POLARIZATION NOTCH
NOTE:
PARTS TO BE PACKAGED WITH THE LOADING DIRECTION ARROW
POINTED IN SAME DIRECTION AS THE ARROW ON TUBE.
F:\DWG\MISC\MKTG\TFC-1XX-XX-XX-D-XX-MKT.SLDDRW
*
PROPRIETARY NOTE
*
PT-FTSH002-DV-A-P-M
(SEE TABLE 2)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 X .050 TERMINAL STRIP
PT-FTSH002-DV-A-P-M
FIG 11
TFC-1XX-XX-XX-D-XX
SHEET
4
OF
4
BY:
BRATCHER 05/25/2001
