2mm Pitch Connector for Discrete Wire Connection(Product approved by UL CSA Standard)

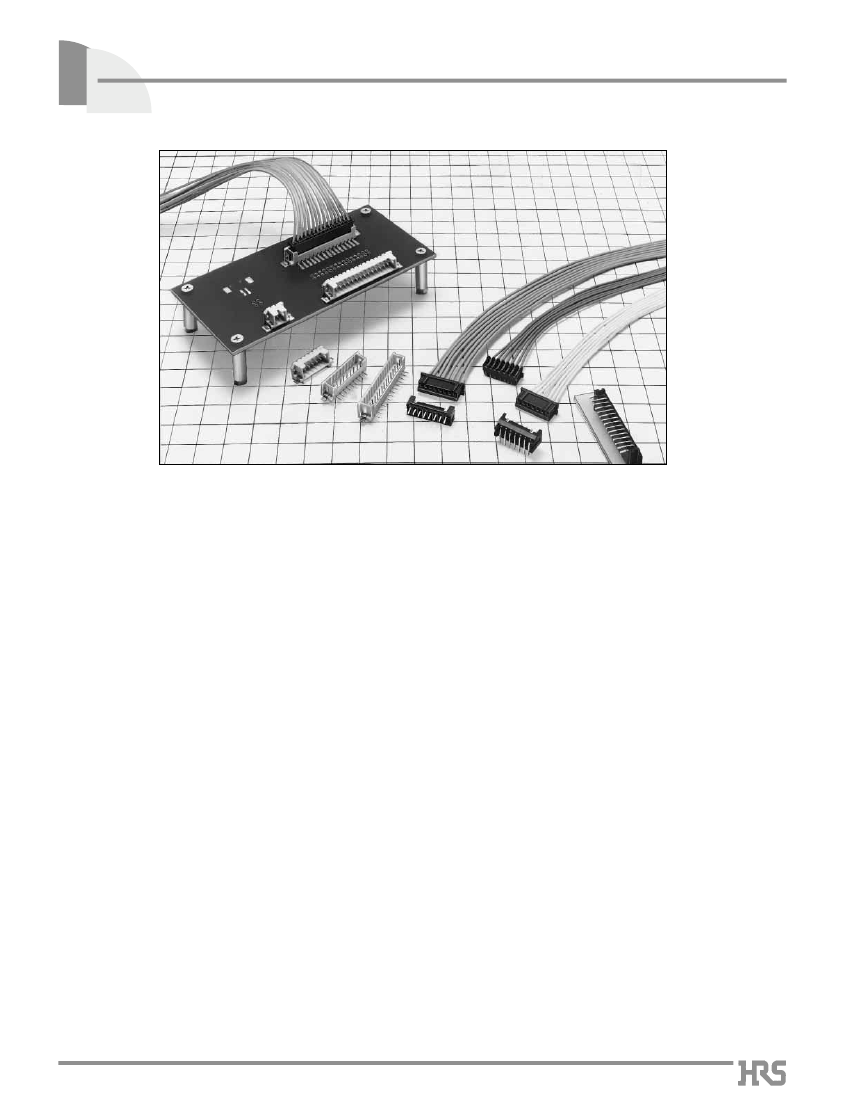

DF3 Series
sFeatures
Correspond to Board Design in Wide Variation
qID
Socket
(1) Low profile design with the mounting height of 6.8mm
(2) Achieves the multi-harness by the full automatic ID machine in combination with the DF11 series ID
type.
(DF11 series represents the 2mm pitch single-row product.Please refer to page B220 to B233.)
qCrimp
Socket
(1) Low profile design with mounting height 7.5mm.
(2) Provide the contact crimping area with the sufficient space, and secures the stable crimping
operation.
qReceptacle
(1) The board can be connected horizontally or vertically in combination with the straight header with the
right angle header.
(2) For horizontal connection, the board to board size is the low profile of 6.6mm.
(3) Compatibility with the in-line plug allows the receptacle to set the board side to the receptacle and
the cable side to the plug in the board to cable connection.
qPin
Header
(1) The board pre-fixed kink is treated with the post pin.
(2) The style employs a scoop-proof and sturborn box type.
(3) The type corresponding to SMT is avilable, using the heat-proof resin.
This SMT header is equipped with the metal tab to prevent peeling in the solder joint area.
qIn-line
Plug
(1) The crimping in-line plug consits of two types, one type, which has pursued after space merits, and
the other employs the panel lock type, which can be fixed to the panel.
(2) The in-line adapter is available to insert and in-line the ID socket from both sides.
sApplications
Business equipment such as copy machine and printer
B207
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
Connector for Discrete Wire Connection(Product approved by
search
CSA Standard)
DF3 Seriesq2mm Pitch
or will be discontinued soon. Please check the products status on the Hirose website RoHS
UL
at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
AWG#22 to 24 :3A
Current rating
Rating
Note 1
IDC
Voltage rating AC100V Crimping
Wire size
Press-fit: 250V AC
IDC
Crimping
Wire size
AWG#26
AWG#28
:2A
:1A
Operating Temperature Range -30ç to +85ç Note 2.
Operating Humidity Range
40% to 80%
AWG 26, 28:1A
Press-connect: 100V AC
Storage Temperature Range -10ç to +60ç Note 3.
Storagg Humidity Range
40% to 70% Note 3.
UL-CSA Safety Standard and Approved specification
Rated Current
Rating
Rated Voltage
Wire size
30V AC
AWG 24 to 28: 1A
sUL
CSA Safety Standard File No.
UL
:E52653
CSA
:LR95109
sUL
CSA Acquisition Objective Item
1DF3-*S-2C
2DF3/3A-*P-2DSA/DS
3DF3/DF3AA-*EP-2C
4DF3-*S-2R26/28
5DF3-*P-2H
Condition
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
5. Vibration
7. Temperature Cycle
1000M
ohms
min.
Specification
500V DC
650V AC/1 minute
100mA
No flashover or insulation breakdown.
30m
ohms
max
4. Single Insertor/Extraction Force MIN0.3N (30gf), MAX4.4N(450gf)
Measure by the square steel pin with 0.5±0.002mm
No electrical discontinuity of 1µs or more
Contact resistance: 30m
ohms
max.:Insulation resistance: 1000M
ohms
min.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes 5 to 35ç: 10 minutes 85ç: 30 minutes 5 to 35ç: 10minutes) 5 cycles
No deformation of components affecting performance.
Flow: 260ç for 10 seconds Manual soldering: 300ç for 2 seconds
Reflow: At the recommended temperature profile Manual soldering: 300ç for 3 seconds
Note 1: Current rating of header is 3A.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 4: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
sMaterial
Product
Crimping Socket
IDC Contact for Socket
ID Socket
Receptacle
Pin Header
Part
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
SMT Pin Header
In-line Plug
In-line IDC Contact
In-line Adapter
Contact
Metal tab
Insulator
Contact
Insulator
Contact
Materia
Polyamide
Phosphor bronze
Polyamide
Phosphor bronze
Polyamide
Phosphor bronze
Polyamide
Brass
Polyamide
Brass
Brass
Polyamide
Phosphor bronze
Polyamide
Brass
Finish
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Beige
Tin plated or gold plated
Tin plated
Black
Tin plated or gold plated
Black
Tin plated
Remarks
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
B208
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on
for
Hirose website
Wire
search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF3 Seriesq2mm Pitch Connector
the
Discrete
RoHS
Connection(Product approved by UL CSA Standard)

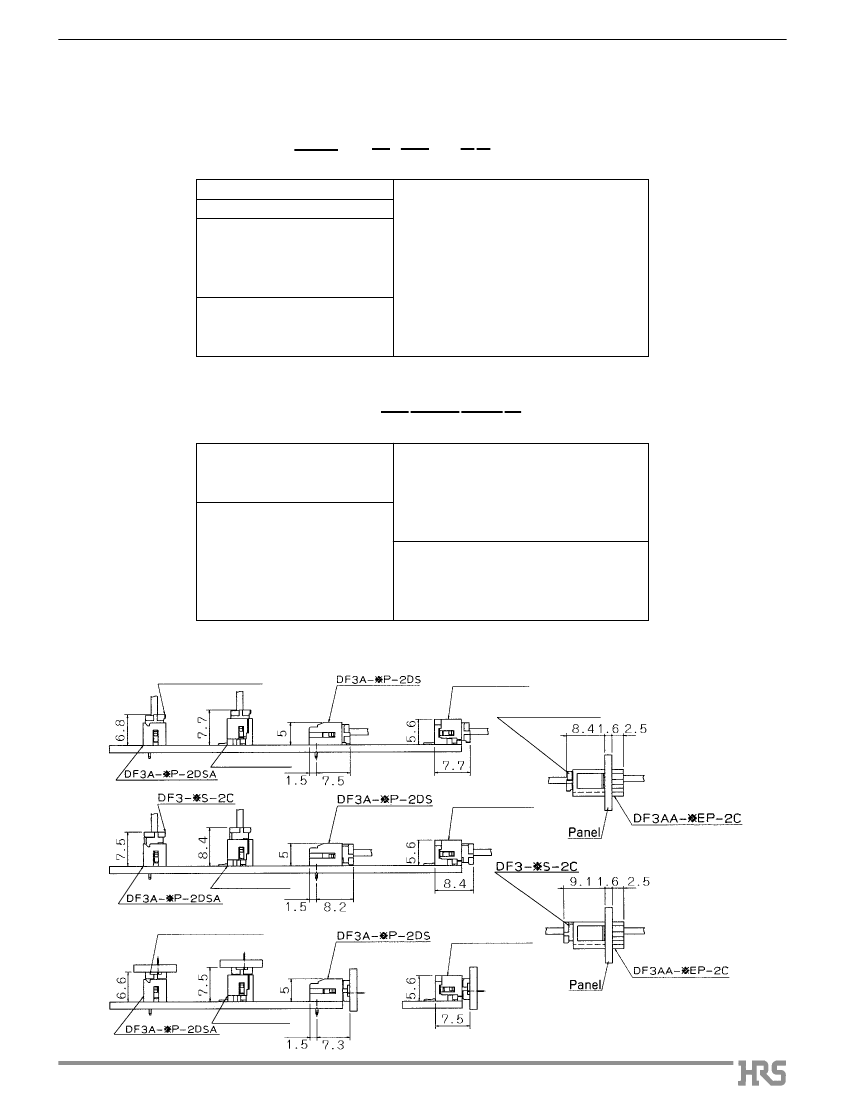

sOrdering
Information
qConnector
DF3 -
*
S - 2C
q
q
Series Name
e
Connector Type
S
P
EP
r
Contact Pitch
: Socket
: Pin Header
: In-line Plug
: 2mm
w
e
rt
: DF3, 3A, 3AA
t
Connection Form/Contact Style
C
: Crimp socket
R26 : ID socket for AWG26
R28 : ID socket for AWG28
DSA : Straight through hole
DS : Right angle through hole
V
H
A
: Straight SMT
: Right angle SMT
: Adapter
w
Number of Contacts : 2~15
qContact
DF3 - EP2428PCFA
q
q
Contact Type
Blank : For socket
EP
22
: For in-line plug
: AWG#22
w
Applicable Wire Size
2428 : AWG#24
to#28
w
e
r
e
Contact Type/Packaging Type
SCF
SC
PCF
PC
Blank
A
C
: Socket contact, Reel
: Socket contact, Bag
: Plug contact, Reel
: Plug contact, Bag
: Tin plated
: Gold plated (Plug contact)
: Gold plated (Socket contact)
r
Plating Type
sApplication
pattern
DF3-πS-2R**(05)
DF3Z-πP-2H
DF3-πS-2R**(05)
DF3Z-πP-2V
DF3Z-πP-2H
DF3Z-πP-2V
DF3-πS-2DSA(25)
DF3Z-πP-2H
DF3Z-πP-2V
B209
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
Connector for Discrete Wire Connection(Product approved by
search
CSA Standard)
DF3 Seriesq2mm Pitch
or will be discontinued soon. Please check the products status on the Hirose website RoHS
UL
at www.hirose-connectors.com, or contact your Hirose sales representative.

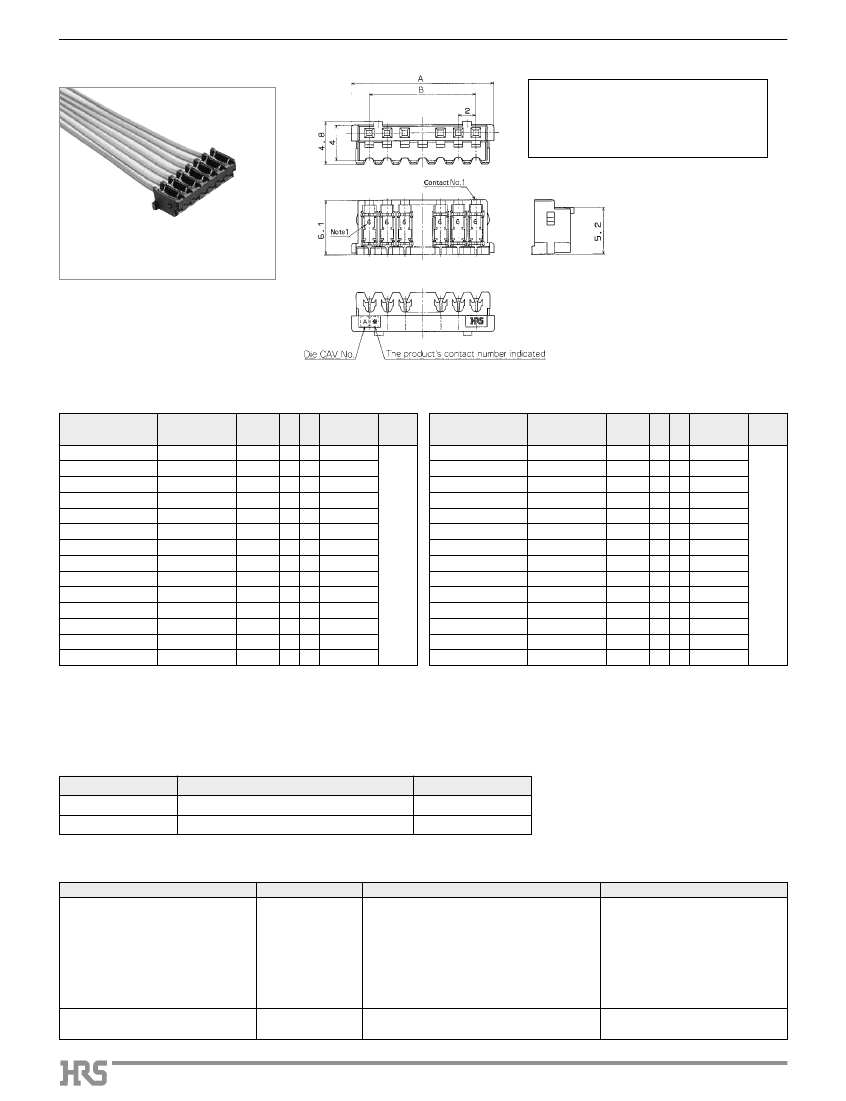

sID
Socket
[Specific No.]
–
* *
,
(*
*)
(01)
(05)
(25)
: Gold plated, 100 pieces per bag
: Tin plated, 100 pieces per bag
: Tin plated, Tube packaging
This picture shows the cable
assembled status.
Note 1.
Mark to determine the socket name
Mark6: R26, Mark8: R28
qAWG#28
Unit: mm
Unit: mm
Number of
Tube packaging
Number of
Tube packaging
Part Number
CL No.
A B
RoHS
Part Number
CL No.
A B
RoHS
Contacts
Quantity
Contacts
Quantity
DF3- 2S-2R26(**) 543-0078-7-**
2
6 2 190 pieces
DF3- 2S-2R28(**) 543-0092-8-**
2
6 2 190 pieces
DF3- 3S-2R26(**) 543-0079-0-**
3
8 4 142
DF3- 3S-2R28(**) 543-0093-0-**
3
8 4 142
DF3- 4S-2R26(**) 543-0080-9-**
4
10 6 114
DF3- 4S-2R28(**) 543-0094-3-**
4
10 6 114
DF3- 5S-2R26(**) 543-0081-1-**
5
12 8 94
DF3- 5S-2R28(**) 543-0095-6-**
5
12 8 94
DF3- 6S-2R26(**) 543-0082-4-**
6
14 10 80
DF3- 6S-2R28(**) 543-0096-9-**
6
14 10 80
DF3- 7S-2R26(**) 543-0083-7-**
7
16 12 70
DF3- 7S-2R28(**) 543-0097-1-**
7
16 12 70
DF3- 8S-2R26(**) 543-0084-0-**
8
18 14 62
DF3- 8S-2R28(**) 543-0098-4-**
8
18 14 62
YES
YES
DF3- 9S-2R26(**) 543-0085-2-**
9
20 16 56
DF3- 9S-2R28(**) 543-0099-7-**
9
20 16 56
DF3-10S-2R26(**) 543-0086-5-** 10
22 18 52
DF3-10S-2R28(**) 543-0100-4-** 10
22 18 52
DF3-11S-2R26(**) 543-0087-8-** 11
24 20 46
DF3-11S-2R28(**) 543-0101-7-** 11
24 20 46
DF3-12S-2R26(**) 543-0088-0-** 12
26 22 44
DF3-12S-2R28(**) 543-0102-0-** 12
26 22 44
DF3-13S-2R26(**) 543-0089-3-** 13
28 24 40
DF3-13S-2R28(**) 543-0103-2-** 13
28 24 40
DF3-14S-2R26(**) 543-0090-2-** 14
30 26 38
DF3-14S-2R28(**) 543-0104-5-** 14
30 26 38
DF3-15S-2R26(**) 543-0091-5-** 15
32 28 34
DF3-15S-2R28(**) 543-0105-8-** 15
32 28 34
Note 2.The quantity for delivery of the specific No. (01) and (05) is determined per bag (100pcs.). If needed, please order the
productsper bag.
Note 3.If the Full automatic IDC machine to hit the DF11 single core,the (25) tube packaging specification will be applied.
Note 4.Order the tube packaging product, multiplying the tube packaging quantity (pieces).
qAWG#26
sApplicable
Cable
Part Number
DF3-
*
S-2R26(**)
DF3-
*
S-2R28(**)
Applicable Cable
UL1061 AWG#26 (7/0.16)
UL1061 AWG#28
(
7/0.127
)
Jacket Diameter
Ø0.9 to 1mm
Ø0.9 to 1mm
sApplicable
ID Connection Tool
Type
Part Number
Connection Type
s
Effective Harness Form
1DF11-Both
ended, single ended
2DF11-DF11,
Separation
3DF11-DF3,
Separation
s
Effective Harness Length
100 to 2,000mm
s
Conduction Inspection Mechanism Installed
DF3 No restriction
DF4 No restriction
Remarks
DF11 Single Contact Punching
Full Automatic ID Machine
AM700/DF11
Connector is the
specification (25).
Tube packaging applied
DF3 DF4 Desktop ID Machine
SA701/DF3
Desktop machine for small lot
B210
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on
for
Hirose website
Wire
search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF3 Seriesq2mm Pitch Connector
the
Discrete
RoHS
Connection(Product approved by UL CSA Standard)

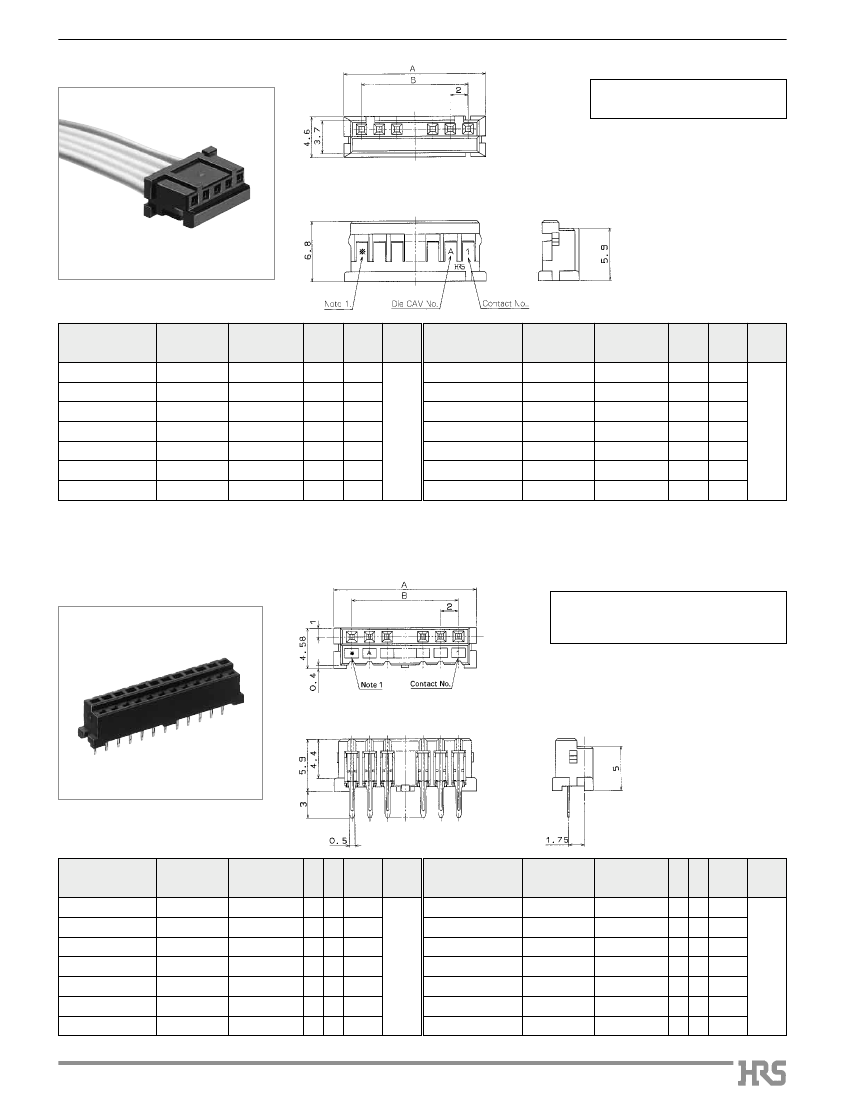

sCrimping
Socket
[Specific No.]
–
* *
,
(*
*)
Blank: 100 pieces per pack
This picture shows the Contact
crimped status.
Unit: mm
Part Number
CL No.
Number of Contacts
2
3
4
5
6
7
A
06
08
10
12
14
16
B
02
04
06
08
10
12
YES
RoHS
Part Number
CL No.
Number of Contacts
09
10
11
12
13
14
A
20
22
24
26
28
30
B
16
18
20
22
24
26
YES
RoHS
DF3-2S-2C(**) 543-0003-8-**
DF3-3S-2C(**) 543-0004-0-**
DF3-4S-2C(**) 543-0005-3-**
DF3-5S-2C(**) 543-0006-6-**
DF3-6S-2C(**) 543-0007-9-**
DF3-7S-2C(**) 543-0008-1-**
DF3-19S-2C(**) 543-0010-3-**
DF3-10S-2C(**) 543-0011-6-**
DF3-11S-2C(**) 543-0012-9-**
DF3-12S-2C(**) 543-0013-1-**
DF3-13S-2C(**) 543-0014-4-**
DF3-14S-2C(**) 543-0015-7-**
14
28
18
32
8
15
DF3-8S-2C(**) 543-0009-4-**
DF3-15S-2C(**) 543-0016-0-**
Note1: The product's contact number indicated.
Note2: The quantity for delivery of the specification No. "None" is determined per bag (100 pcs.).
If needed, please order the products per bag.
Note3: A quantity of "500 pieces package" and "1000 pieces package" for delivery is dealt with pieces. Order example: 500, 1000, and 1500 pieces...
sReceptacle
[Specific No.]
–
* *
,
(*
*)
(25) :Tin plated, Tube packaging
(55) :Gold plated, Tube packaging
Note1: The product's contact number indicated
qBoard
Through-hole Diameter:
Ø0.8
+
0.1
+
0
Unit: mm
Part Number
CL No.
Number of Contacts A
2
3
4
5
6
7
B
Tube Package
RoHS
Quantity
Part Number
CL No.
Number of Contacts A
09
10
11
12
13
14
15
B
Tube Package
RoHS
Quantity
DF3-2S-2DSA(**) 543-0048-6-**
DF3-3S-2DSA(**) 543-0049-9-**
DF3-4S-2DSA(**) 543-0050-8-**
DF3-5S-2DSA(**) 543-0051-0-**
DF3-6S-2DSA(**) 543-0052-3-**
DF3-7S-2DSA(**) 543-0053-6-**
06 02
80 pieces
08 04
60
10
06
48
12
08
40
14 10 34
16 12 30
YES
DF3- 9S-2DSA(**) 543-0055-1-**
DF3-10S-2DSA(**) 543-0056-4-**
DF3-11S-2DSA(**) 543-0057-7-**
DF3-12S-2DSA(
**)
543-0058-0-**
DF3-13S-2DSA(
**)
543-0059-2-**
DF3-14S-2DSA(**) 543-0060-1-**
20 16 24 pieces
22 18 21
24 20 20
26 22 18
28 24 17
30 26 16
32 28 15
YES
18 14 27
8
DF3-8S-2DSA(**) 543-0054-9-**
DF3-15S-2DSA(
**)
543-0061-4-**
Note2: Please order the tube packaging at the multiplied tube packaging quantity (pieces).
Source: Microcontroller and Embedded System ApplicationAuthor: Chen Enke from StarNet Ruijie Communications Co., Ltd. Introduces the working principle and interface chip of Registered SDRAM, as well a...
I found that adding FOC to f28027 involves the field of motor control. The program code is a bit complicated and difficult to understand. I am not very proficient in C language. Please tell me the met...
In the design of CDMA base station transceivers, cross-mixing, cross-modulation, spurious responses and other RF issues should be carefully considered. A major advantage of spread spectrum communicati...
Convert cadence to PDF. Today, my master asked me to convert the schematic diagram. After struggling for a long time, I finally solved it. Unlike DXP2010 and protel, you can just output it. In cadence...
As an actuator, stepper motor is one of the key products of mechatronics and is widely used in various automatic control systems. With the development of microelectronics and computer technology, the ...
Sailing is gaining more and more attention. How to use modern technology to assist training and improve competition results is particularly important. Considering the real-time data collection in t...[Details]
introduction
my country has a vast territory and a large population. The scale of housing construction is huge, and the amount of residential construction is large and wide. It is still on t...[Details]
0 Introduction
With the development of my country's economy, the number of motor vehicles continues to increase. The growth of existing roads and other hardware facilities can no longer meet t...[Details]
No matter which processor you are learning, the first thing you need to understand is the registers and working mode of the processor.
ARM has 37 registers, including 31 general registers and ...[Details]
In public places such as schools, government agencies, factories and mines, as well as public corridors in residential areas, the phenomenon of long-burning lights is very common, which causes a h...[Details]
Continuity test
A variety of devices need to be checked for continuity, including cable assemblies, printed circuit boards, and connectors to ensure that these components have the expected contin...[Details]
Only a small number of LED manufacturers can produce high-quality LEDs. For applications that are only used for simple indication, low-quality LEDs are sufficient. However, high-quality LEDs must...[Details]
Since the late 1990s, with the demand for higher system efficiency and lower power consumption, the technological update of telecommunications and data communication equipment has promoted the deve...[Details]
1. Overview
At present, an information revolution is in the ascendant around the world, led by microelectronics, computers and communication technologies, and centered on information technolog...[Details]
1 Introduction
With the improvement of people's quality of life, lamps are no longer just basic indoor lighting tools, but also a kind of practical art for architectural decoration. When ther...[Details]
1. Introduction
With the increasing popularity of fully automatic washing machines, consumers have higher and higher requirements for their environmenta...[Details]
Key Points
1. Now, in addition to high-end smartphones and tablets, users also expect to use touch screens in other applications, and they are gradually appearing in cars and instruments.
...[Details]
Distributed Wireless Communication System (DWCS) uses distributed antennas, distributed processing control, joint signal processing and other technologies to improve the system's spectrum efficie...[Details]
Overview
By transmitting ultrasonic energy into the human body and receiving and processing the returning reflected signals, phased array ultrasound systems can generate images of organs and s...[Details]
For battery-powered portable devices, in addition to breaking through the limitations of processing power, the performance of portable system power supplies also needs to be continuously improved. ...[Details]
_pdf/pg_0001.png)
Embedded System
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
