5923535013F Overview

LED PRISM 3MM RED/GRN/BLUE SMD

5923535013F Parametric

Parameter Name	Attribute value
color	Red, Green, Blue (RGB) (x 2)
Wavelength - Peak	626nm，525nm，470nm
Configuration	2 high
current	10mA
millicandela level	31mcd red, 84mcd green, 16mcd blue
perspective	40°
Lens type	scattering
Lens style/size	Round, with dome, 3mm (T-1)
Rated voltage	2V red, 2V green, 3.8V blue
Installation type	Surface mount, right angle

Preview

Download Datasheet

View All

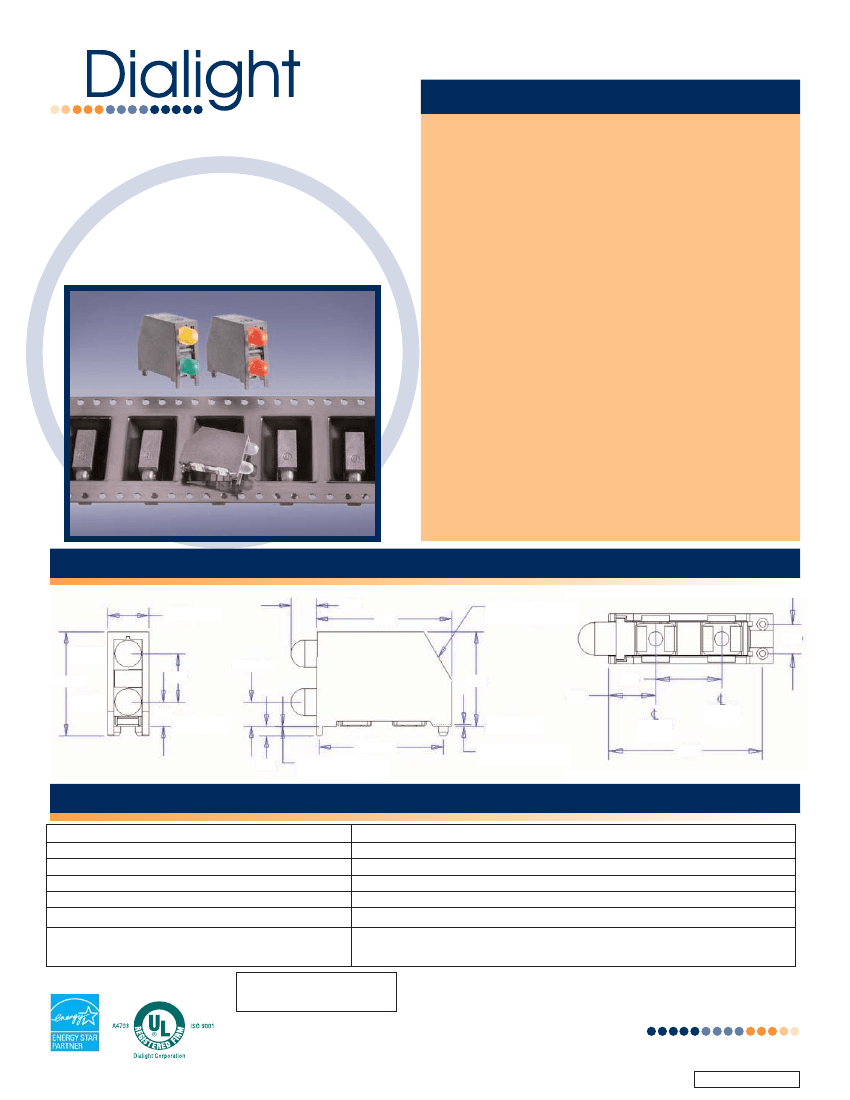

FEATURES / BENEFITS

Incorporates latest LED technology, specifically designed for

surface mounting.

Compatible with automatic placement equipment.

Compatible with surface mount reflow soldering processes.

Black housing enhances contrast ratio.

Housing material meet UL-94V-0 flammability ratings.

Patented Bi-level design provides increased indication

without increased space.

Illumination areas compatible with industry standard 3mm

through-hole Bi-level Circuit Board Indicators.

Packaged in moisture barrier bags for dry packaging per

IPC/JEDEC J-STD-033.

Helps to eliminate mixed technology pc board processing.

592 SERIES

3mm Bi-level Prism

CBI

Surface Mount LED

TRI-COLOR

SPECIFICATIONS

.105

.170 MAX

.560

CATHODE ID

(ANGLED SURFACE)

.100

POS. 1

.100 REF

.430 REF

.200

.390

.160

.100

.225

POS. 2

SURFACE A

.513 REF

.040

.004 MAX

BELOW SURFACE A

SURFACE A

.007 MAX

ABOVE SURFACE A

OF LED

REF

.525

OF LED

REF

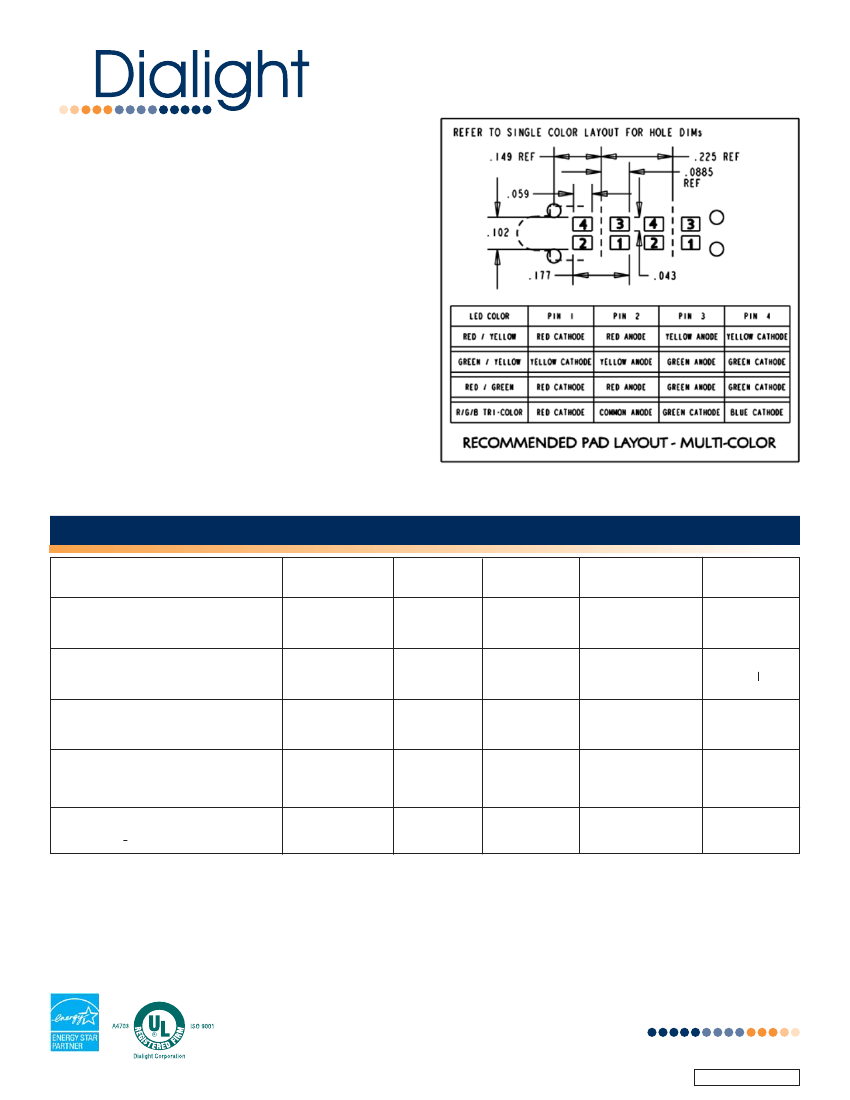

ABSOLUTE MAXIMUM RATINGS (T

= 25

Parameter

COLOR

POWER DISSIPATION

FORWARD DC CURRENT

OPERATING TEMPERATURE

STORAGE TEMPERATURE

SOLDERING TEMPERATURES

CONVECTION IR

VAPOR PHASE

Package Size Options

XX is -002 = 10 piece strip

-013 = 13” reel dia.

592-3535-0XX

Red/Green/Blue

150mW Total

20mA single chip, 30mA all chips on

-55

C to +100

-55

C to +100

235

C Peak, above 185

C for 90 sec., 215

C for 3 min.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732.919.3119 • Fax: (1) 732.751.5778 • www.dialight.com

a Roxboro Group Company

MDEF592C001_A
