Bulletin PD-20046 rev. C 07/02
89CNQ...A Series
SCHOTTKY RECTIFIER
New GenIII D-61 Package
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
I
FSM
@ tp = 5 µs sine
V
F
T
J
@ 40 Apk, T
J
= 125 °C
(per leg)
range
80 Amp
Description/Features
The 89CNQ...A center tap Schottky rectifier module has been
optimized for very low forward voltage drop, with moderate
leakage. The proprietary barrier technology allows for reliable
operation up to 175°C junction temperature. Typical
applications are in switching power supplies, converters, free
wheeling diodes, and reverse battery protection.
175 °C T
J
operation
Center tap module
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
89CNQ...A Units
80
135 to 150
4300
0.69
A
V
A
V
- 55 to 175
°C
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
New fully transfer-mold low profile, small
footprint, high current package

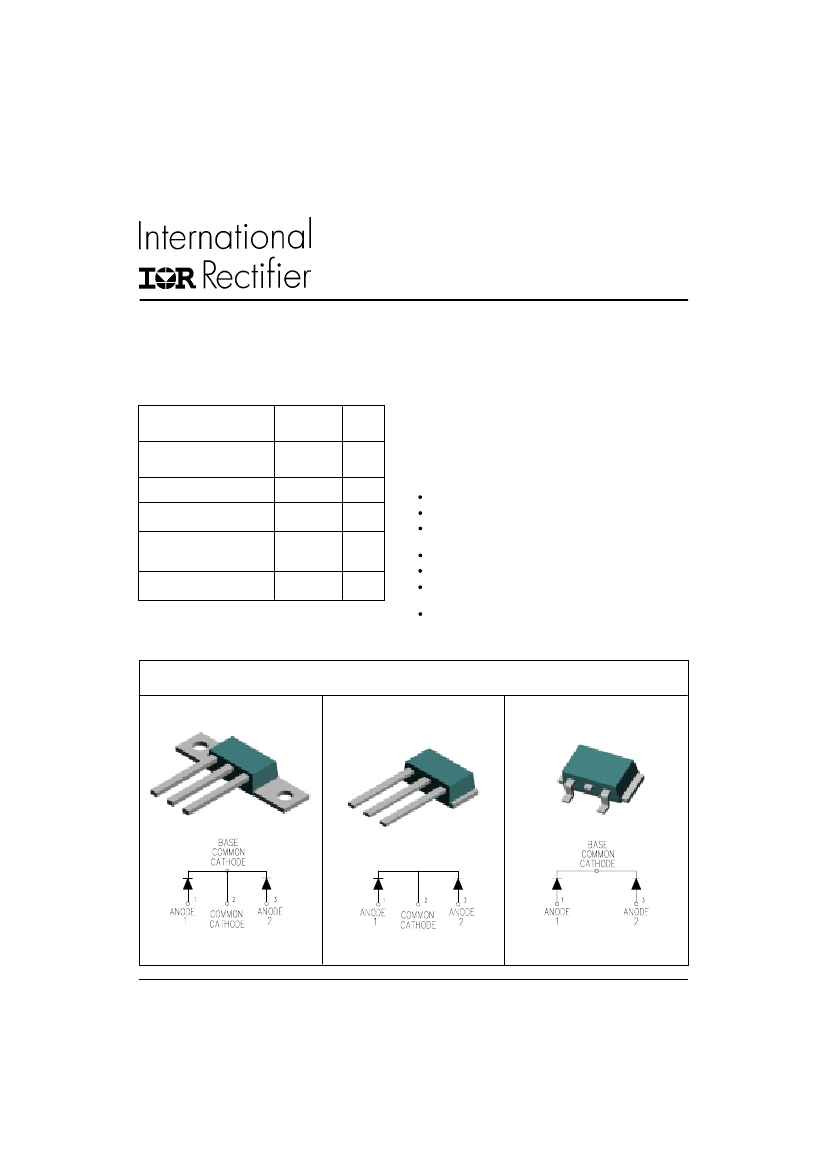

Case Styles
89CNQ...A
89CNQ...ASM
89CNQ...ASL
D61-8
www.irf.com
D61-8-SM
D61-8-SL
1
89CNQ...A Series
Bulletin PD-20046 rev. C 07/02
Voltage Ratings
Part number
V
R
Max. DC Reverse Voltage (V)
V
RWM
Max. Working Peak Reverse Voltage (V)
89CNQ135A
135
89CNQ150A
150
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Av.Forward Current (Per Leg)
See Fig. 5
(Per Device)
I
FSM
E
AS
I
AR
Max. Peak One Cycle Non-Repetitive
Surge Current (Per Leg) See Fig. 7
Non-Repetitive Avalanche Energy
(Per Leg)
Repetitive Avalanche Current
(Per Leg)
89CNQ Units
40
80
4300
500
9
1.0
A
Conditions
50% duty cycle @ T
C
= 130°C, rectangular wave form
(Rated V
R
)
Following any rated
load condition and with
10ms Sine or 6ms Rect. pulse rated Vr applied
T
J
= 25 °C, I
AS
= 1 Amps, L = 18 mH
Current decaying linearly to zero in 1 µsec
Frequency limited by T
J
max. V
A
= 1.5 x V
R
typical
5µs Sine or 3µs Rect. pulse
A
mJ
A
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
(Per Leg)
See Fig. 1
(1)
89CNQ Units
0.99
1.14
0.69
0.78
1.5
21
980
5.5
10000
V
V
V
V
mA
mA
pF
nH
V/ µs
@ 40A
@ 80A
@ 40A
@ 80A
Conditions
T
J
= 25 °C
T
J
= 125 °C
V
R
= rated V
R
I
RM
C
T
L
S
Typical Reverse Leakage Current
(Per Leg)
See Fig. 2
(1)
Max. Junction Capacitance (Per Leg)
Typical Series Inductance (Per Leg)
T
J
= 25 °C
T
J
= 125 °C
V
R
= 5V
DC
, (test signal range 100Khz to 1Mhz) 25°C
Measured lead to lead 5mm from package body
dv/dt Max. Voltage Rate of Change
(Rated V
R
)
(1) Pulse Width < 300µs, Duty Cycle <2%
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
89CNQ Units
-55 to 175
-55 to 175
0.85
0.42
0.30
7.8 (0.28)
Min.
Max.
40 (35)
58 (50)
°C
°C
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case (Per Leg)
R
thJC
Max. Thermal Resistance Junction
to Case (Per Package)
R
thCS
Typical Thermal Resistance, Case
to Heatsink
(D61-8 Only)
wt
T
Approximate Weight
Mounting Torque
(D61-8 Only)
°C/W DC operation
°C/W DC operation
°C/W Mounting surface , smooth and greased
Device flatness < 5 mils
g (oz.)
Kg-cm
(Ibf-in)
2
www.irf.com
89CNQ...A Series
Bulletin PD-20046 rev. C 07/02
1000
1000
Tj = 175˚C
100
Reverse Current - I
R
(mA)
150˚C
10
1
125˚C
100˚C
75˚C
0.1
0.01
0.001
0
30
50˚C
25˚C
Instantaneous Forward Current - I
F
(A)
100
60
90
120
150
Reverse Voltage - V
R
(V)
T = 175˚C
J
Junction Capacitance - C
T
(p F)

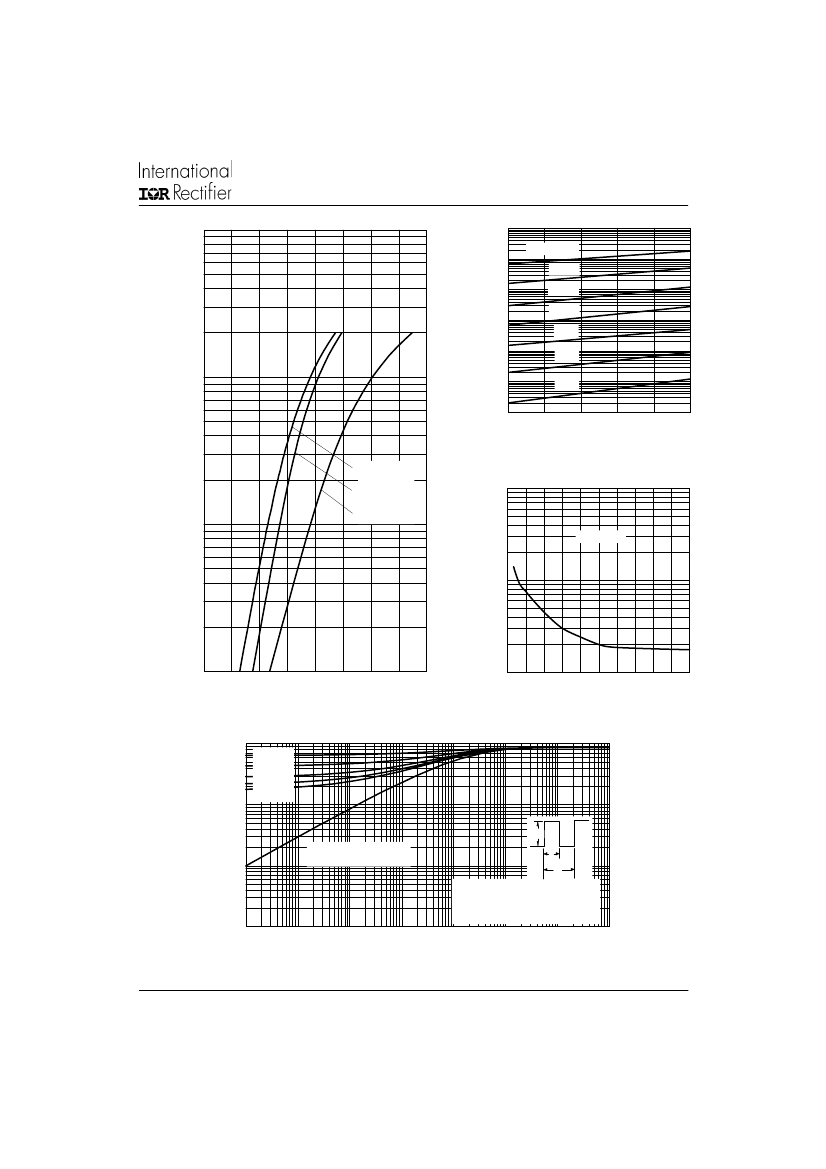

Fig. 2 - Typical Values Of Reverse Current
Vs. Reverse Voltage (Per Leg)
T = 125˚C
J
10000
10
T = 25˚C
J
T = 25˚C
J
1000
1
0
0.2 0.4 0.6 0.8
1
1.2
Forward Voltage Drop - V
FM
(V)
1.4
1.6
100
0
30
60
90
120
150
Reverse Voltage - V
R
(V)
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage (Per Leg)
Fig. 1 - Max. Forward Voltage Drop Characteristics
(Per Leg)
1
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
0.1
Thermal Impedance Z
thJC
(°C/W)
P
DM
0.01
Single Pulse
(Thermal Resistance)
Notes:
1. Duty factor D = t1/ t2
t1
t2
0.001
0.00001
2. Peak Tj = Pdm x ZthJC + Tc
0.0001
0.001
0.01
0.1
1
t
1
, Rectangular Pulse Duration (Seconds)
10
100
Fig. 4 - Max. Thermal Impedance Z
thJC
Characteristics (Per Leg)
www.irf.com
3
89CNQ...A Series
Bulletin PD-20046 rev. C 07/02
180
Allowable Case Temperature (°C)
170
160
150
140
130
120
Square wave (D = 0.50)
Rated Vr applied
DC
110
100
90
see note (2)
80
0
10
20
30
40
50
60
Average Forward Current - I
F(AV)
(A)
Fig. 6 - Forward Power Loss Characteristics
(Per Leg)
Average Forward Current - I
F(AV)
(A)
Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current (Per Leg)
Non-Repetitive Surge Current - I
FSM
(A)
10000
1000
At Any Rated Load Condition
And With Rated Vrrm Applied
Following Surge
100
10
100
1000
10000
Square Wave Pulse Duration - t
p
(microsec)
Fig. 7 - Max. Non-Repetitive Surge Current (Per Leg)
L
HIGH-SPEED
SWITCH
FREE-WHEEL
DIODE
40HFL40S02
Vd = 25 Volt
DUT
IRFP460
Rg = 25 ohm
Average Power Loss (Watts)
+
CURRENT
MONITOR
Fig. 8 - Unclamped Inductive Test Circuit
(2)
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward Power Loss = I
F(AV)
x V
FM
@ (I
F(AV)
/
D) (see Fig. 6);
Pd
REV
= Inverse Power Loss = V
R1
x I
R
(1 - D); I
R
@ V
R1
= Rated V
R
4
www.irf.com
89CNQ...A Series
Bulletin PD-20046 rev. C 07/02

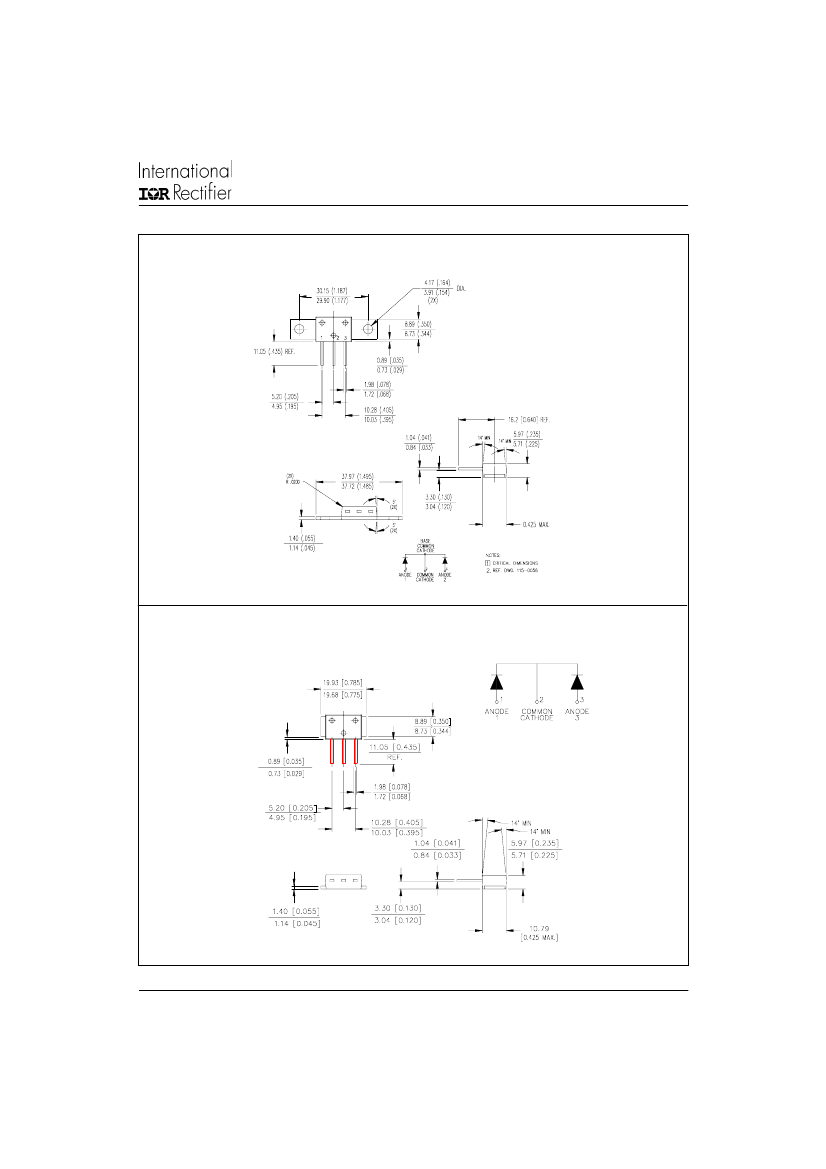

Outline Table
Outline D61-8
Dimensions are in millimeters and (inches)
Outline D61-8-SM
Dimensions are in millimeters and (inches)
www.irf.com
5
