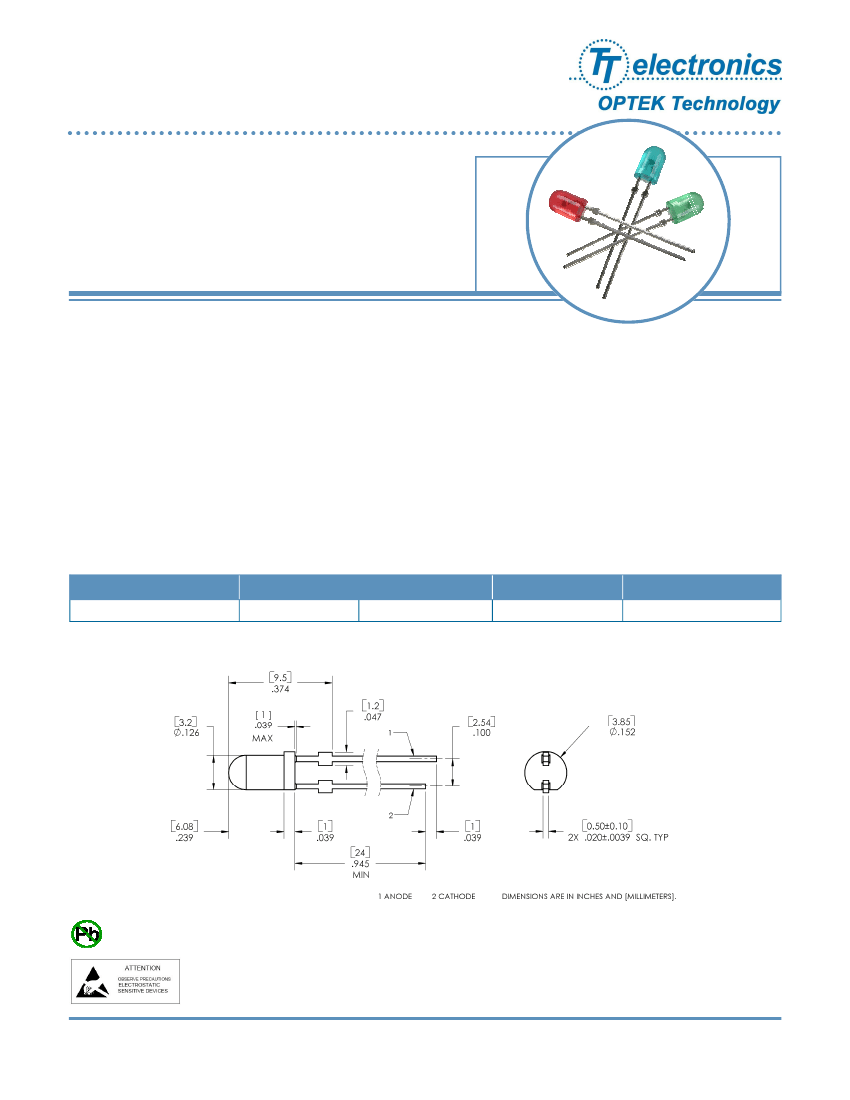

Round Red LED Lamp (3mm)
OVLAS6CB8
x
x
x
x
65° viewing angle
Diffused lens for uniform light output
Available on tape or reel
Red color (628nm)
Product Photo Here
The OVLAS6CB8 is designed for wide-angle, uniform light output. The industry standard leads have a stand-off
making this package ideal for PC board process assembly.
Applications
x
Indicators for Medical, Industrial, Consumer, and Office Equipment
x
Indicators for White Goods and Home Appliances
x
Interior and Exterior Architectural and Accent Lighting
x
Signs and Digital Information Displays, Video Screen Non-color and RGB Presentation
x
Automotive Backlighting and Indicators
Part Number
OVLAS6CB8
Material
AlInGaP
Emitted Color
Red
Intensity Typ. mcd
1100
Lens Color
Water Clear
RoHS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue 1.0
0605
Page 1
Round Red LED Lamp (3mm)
OVLAS6CB8
Absolute Maximum Ratings
T
A
= 25
o
C unless otherwise noted
Storage Temperature Range
Operating Temperature Range
Reverse Voltage
Continuous Forward Current
Peak Forward Current (10% Duty Cycle, 1KHz)
Power Dissipation
Lead Soldering Temperature (3mm from the base of the epoxy bulb)
1
Note:
1. Solder time less than 3 seconds at temperature extreme.
-40 ~ +100 °
C
-40 ~ +95 °
C
5V
50 mA
200 mA
130 mW
C
260°
Electrical Characteristics
T
A
= 25
o
C unless otherwise noted
SYMBOL
I
v
V
F
I
R
D
PARAMETER
Luminous Intensity
Forward Voltage
Reverse Current
Dominant Wavelength
50% Power Angle
MIN
550
----
----
620
----
TYP
1100
2.3
----
628
65
MAX
----
2.6
100
635
----
UNITS
CONDITIONS
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 20mA
I
F
= 20mA
mcd
V
µA
nm
deg
2 ½H-H
Lamps are sorted to luminous intensity (I
V
) and dominant wavelength (
D
) bins shown.
Orders for OVLAS6CB8 may be filled with any or all bins contained as below.
Luminous Intensity (mcd)
Standard Bins
(I
F
= 20mA)
1520
1100
770
550
620
635
T
S
R
Luminous intensity is
at R bin or above.
Dominant Wavelength (nm)
Important Notes:
1. All ranks will be included per delivery, rank ratio will be based on the chip distribution.
2. To designate luminous intensity ranks, please contact OPTEK.
3. Pb content <1000PPM.
Issue 1.0
Page 2
0605
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Round Red LED Lamp (3mm)
OVLAS6CB8

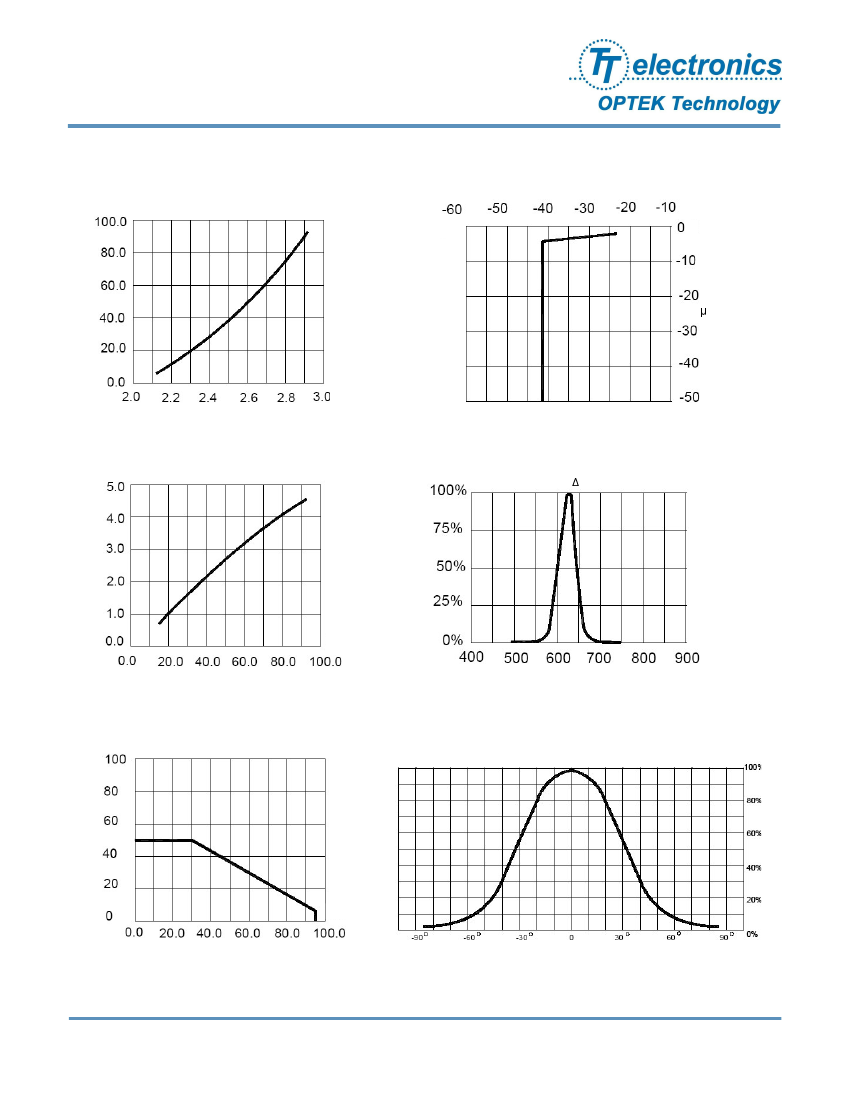

Typical Electro-Optical Characteristics Curves
V
mA
A
Forward Current vs. Forward Voltage
V
Reverse Current vs. Reverse Voltage
Half Power
WL = 23nm
%
mA
mA
Relative Luminous Intensity vs. Forward Current
Relative Luminous Intensity vs. Wavelength
50% Power Angle: 65°
mA
°
C
Maximum Forward DC Current vs. Ambient
Temperature
Far Field Pattern
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue 1.0
0605
Page 3
Round Red LED Lamp (3mm)
OVLAS6CB8
Issue
Change Description
Approval
Date
1.0
Initial Release
J. Haynie
June 27, 2005
Issue 1.0
Page 4
0605
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
