SDURB1560CTTR

Description
DIODE ARRAY GEN PURP 600V D2PAK
Categorysemiconductor    Discrete semiconductor
File Size625KB,7 Pages
ManufacturerSMC
Websitehttp://www.smc-diodes.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

SDURB1560CTTR Overview

DIODE ARRAY GEN PURP 600V D2PAK

SDURB1560CTTR Parametric

Parameter NameAttribute value
Diode configuration1 pair of common cathodes
Diode typestandard
Voltage - DC Reverse (Vr) (Maximum)600V
Current - average rectification (Io) (per diode)-
Voltage at different If - Forward (Vf1.5V @ 8A
speedFast recovery = < 500 ns, > 200mA (Io)
Reverse recovery time (trr)50ns
Current at different Vr - Reverse leakage current10µA @ 600V
Operating Temperature - Junction-55°C ~ 150°C
Installation typesurface mount
Package/casingTO-263-3, D²Pak (2-lead + tab), TO-263AB
Supplier device packagingD2PAK

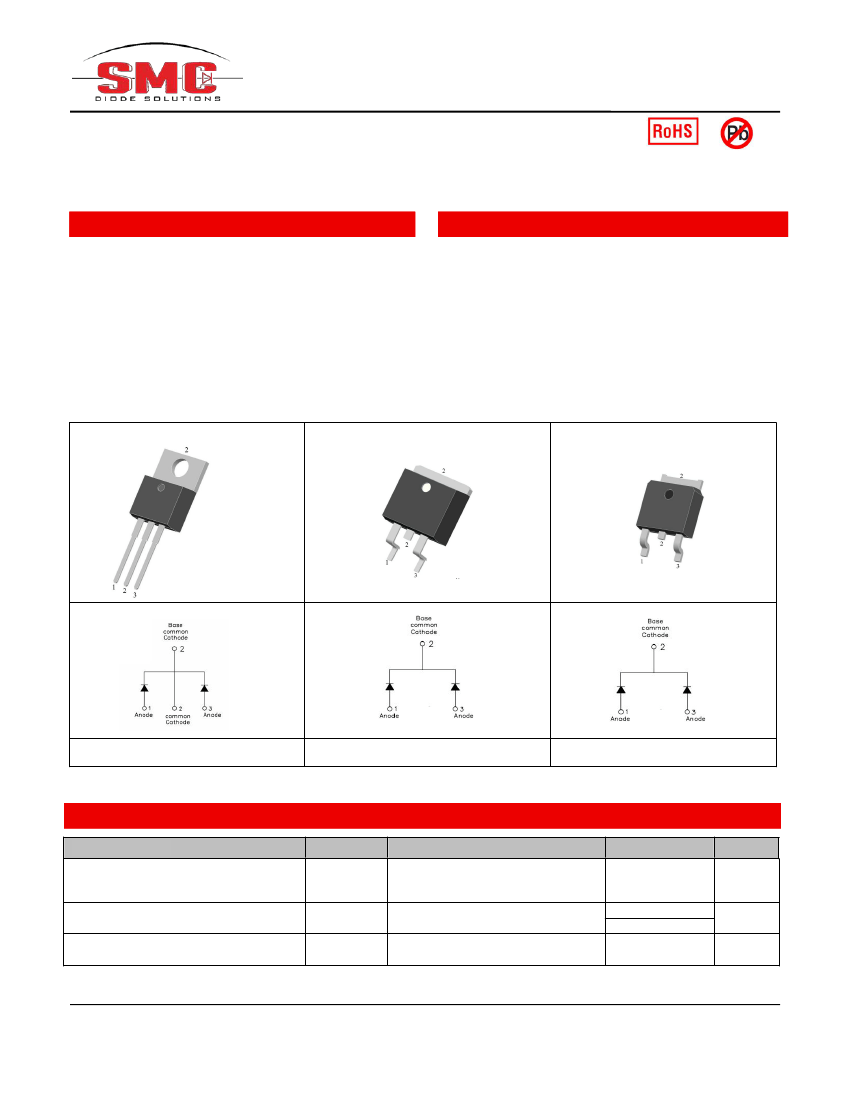

SDUR1560CT
SDURB1560CT
SDURD1560CT
Technical Data
Data Sheet N1286, Rev. A
SDUR1560CT SDURB1560CT SDURD1560CT
ULTRAFAST RECTIFIER
Features
Ultra-Fast Switching
High Current Capability
Low Reverse Leakage Current
High Surge Current Capability
Plastic Material has UL Flammability Classification
94V-O
“-A” is an AEC-Q101 qualified device
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Applications
Antiparallel diode for high frequency switching
devices
Anti saturation diode
Snubber diode
Free wheeling diode in converters and motor control
circuits
Rectifiers in switch mode power supplies (SMPS)
Inductive heating and melting
Uninterruptible power supplies (UPS)
Ultrasonic cleaners and welders

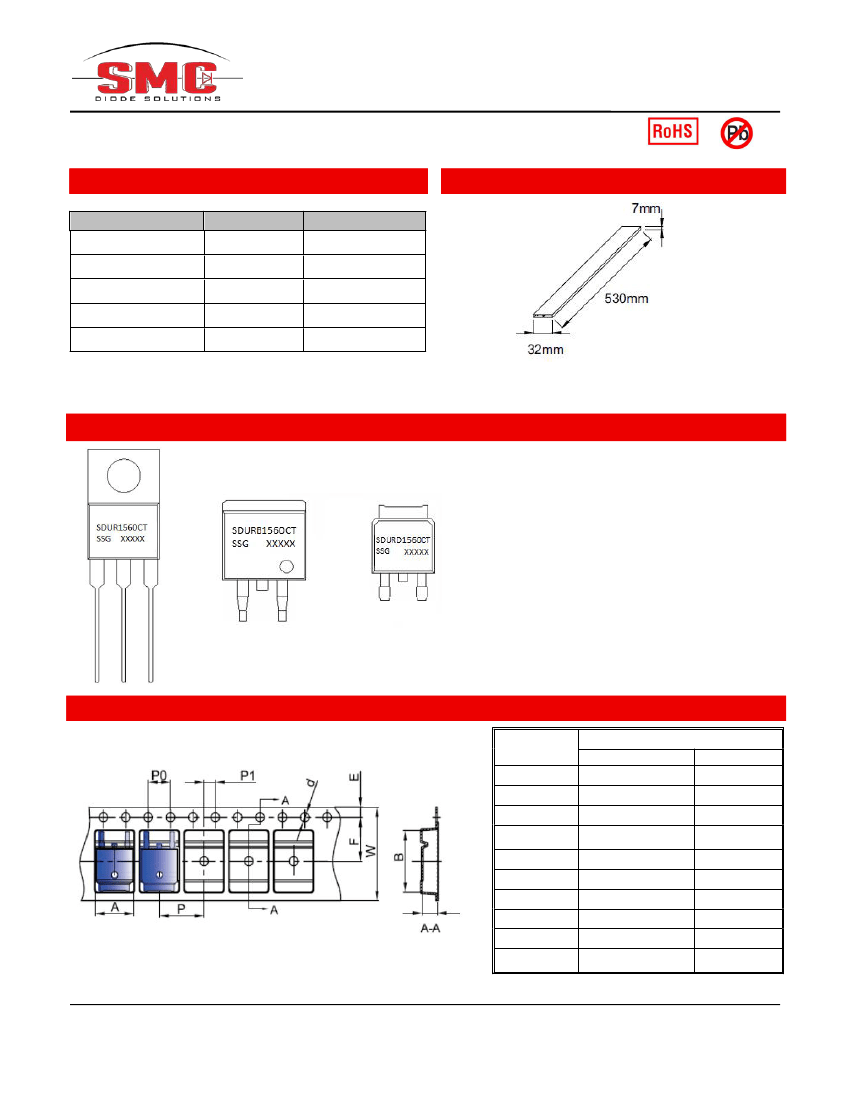

SDUR1560CT
SDURB1560CT
SDURD1560CT

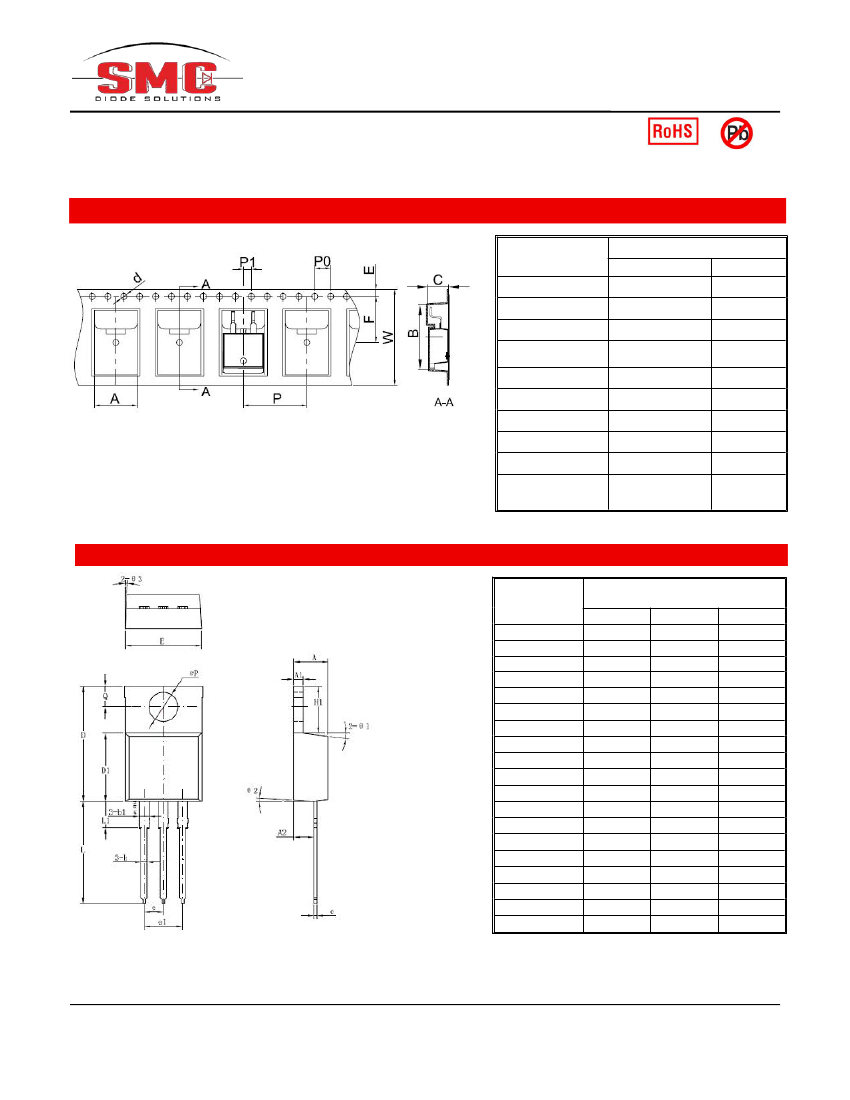

TO-220AB
D
2
PAK
DPAK

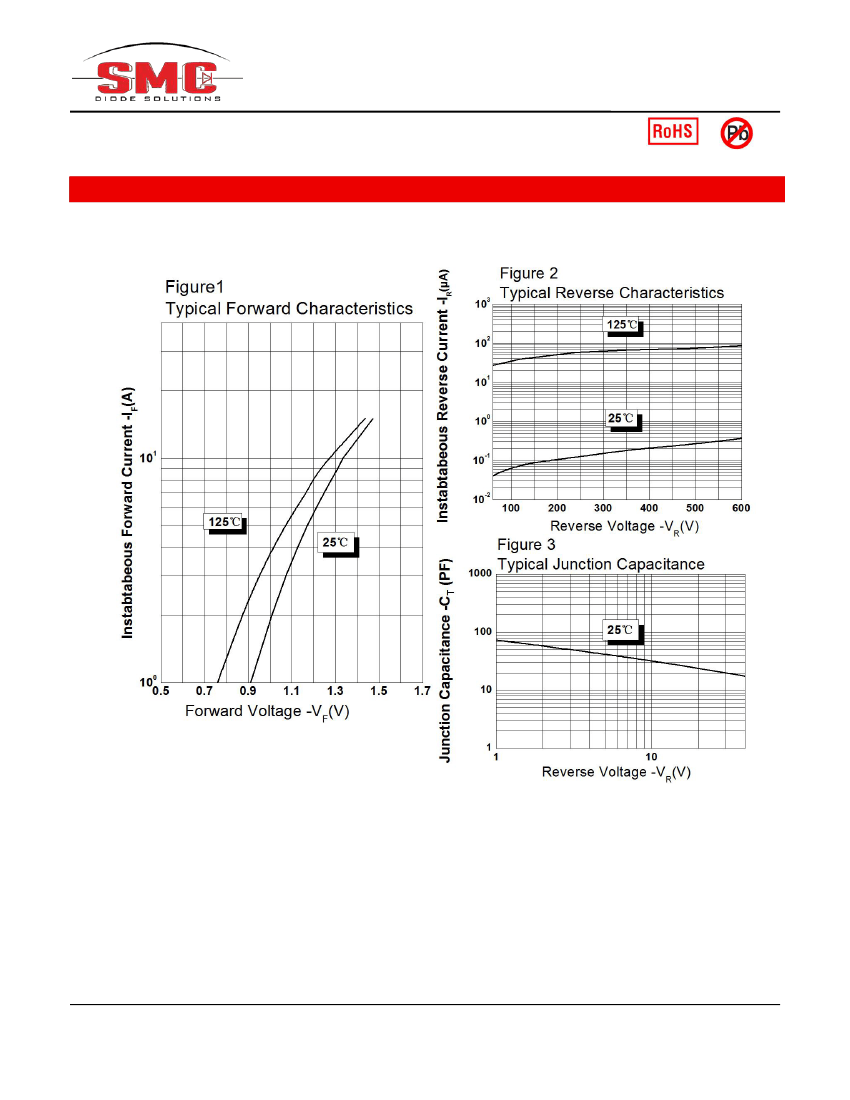

Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive Surge
Current(Per Leg)
Symbol
V
RRM
V
RWM
V
R
I
F (AV)
I
FSM
Condition
-
Max.
600
8(Per Leg)
15(Per Device)
110
Units
V
A
A
50% duty cycle @Tc=105°C,
rectangular wave form
8.3ms, Half Sine pulse
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
