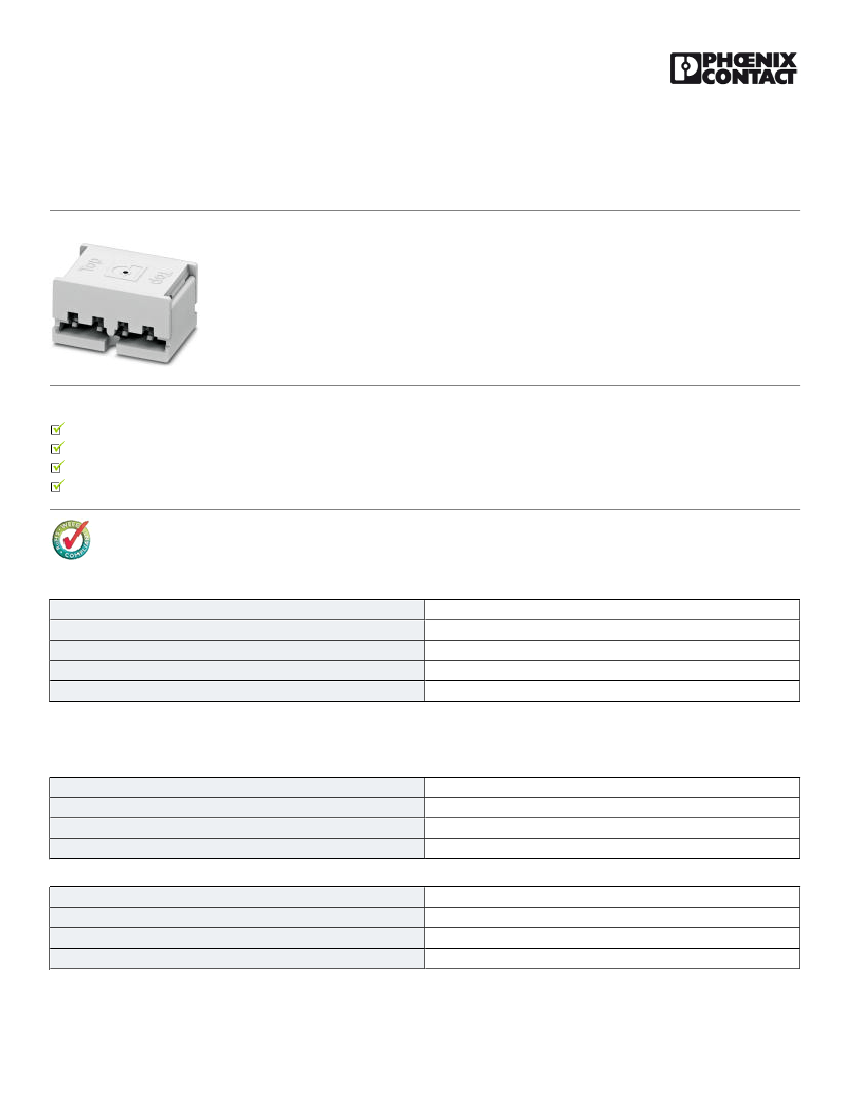

Printed-circuit board connector - PTF 0,3/ 4-BB-10-H - 1707563
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 10 A, Rated voltage (III/2): 24 V, Number of positions: 4, Pitch: 2.4 mm, Color:
white, Contact surface: Tin, for flexible PCBs with a width of 10 mm and a permissible PCB thickness in the
contact zone of 0.15 mm ... 0.3 mm
Product Features
The small size enables connection even in applications where space is limited
Easy connection of the PCB saves time
According to IEC 60838-2-2
The tight fit on the PCB and high current carrying capacity create a safe connection
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
25 pc
2.4 g
85366990
Germany
Technical data
Dimensions
Length
Height
Width
Pitch
8 mm
4.8 mm
11.2 mm
2.4 mm
General
Insulating material group
Rated voltage (III/2)
Nominal current I
N
Maximum load current
IIIa
24 V
10 A
10 A (Total current of all contacts)
09/03/2015 Page 1 / 2
https://www.phoenixcontact.com/us/products/1707563
Printed-circuit board connector - PTF 0,3/ 4-BB-10-H - 1707563
Technical data
General
Insulating material
Inflammability class according to UL 94
Number of positions
PBT
V0
4
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
27141190
27141190
27440401
ETIM
ETIM 4.0
ETIM 5.0
EC002643
EC002643
Drawings
Drilling diagram
4
Dimensional drawing
8
11,2
1,8
0,75
10
0,6
t = 0,15 ... 0,3
5,7
4,8
10,2
0,5
1,5
3,75
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
09/03/2015 Page 2 / 2
0,4
