WM012I,GY: DescriptionBOX ABS GRAY 3.6"L X 2.25"W; CategoryTopical application Mechanical and electrical/engineering/automation; File Size214KB，2 Pages; ManufacturerSERPAC; Environmental Compliance

Download Datasheet Parametric Compare View All

WM012I,GY Overview

BOX ABS GRAY 3.6"L X 2.25"W

WM012I,GY Parametric

Parameter Name	Attribute value
Container type	box with mounting flange
size/dimensions	3.600" long x 2.250" wide (91.44mm x 57.15mm)
high	1.600"（40.64mm）
Area (L x W)	8.10"（52.3cm）
design	Cover included
Material	Plastic - ABS
color	grey
thickness	0.100"（2.54mm）
characteristic	PCB support, wall mounting
grade	IP40，NEMA 1
Material flammability rating	UL94 HB
delivery information	Shipping from Digi-Key
weight	0.15 lbs (68.04g)

Preview

Download Datasheet

View All

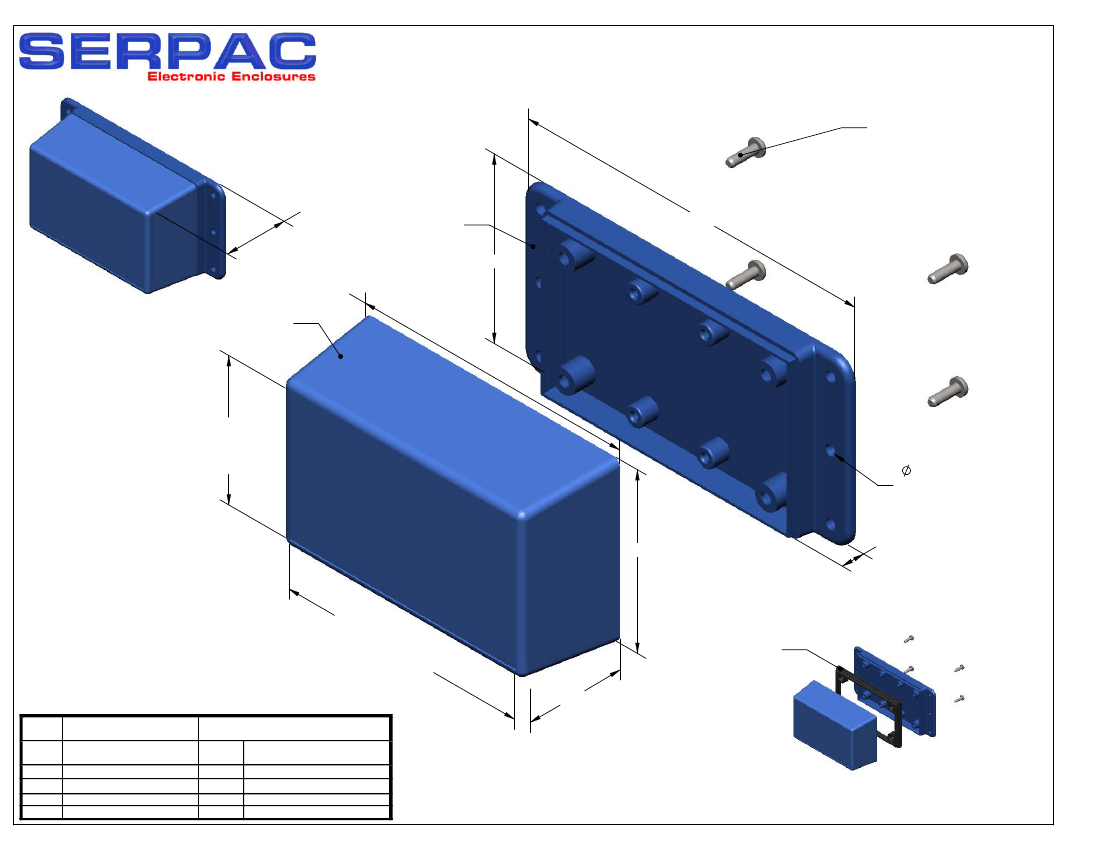

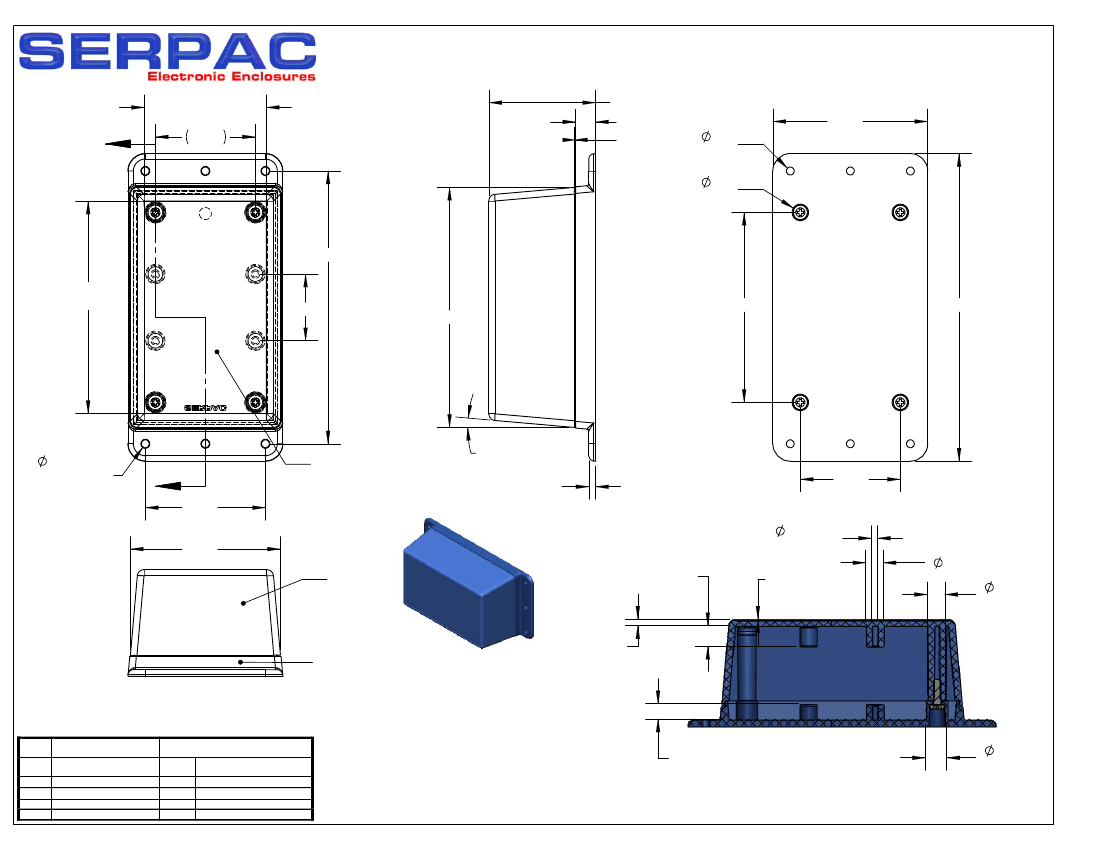

WM012-I

(exploded isometric)

PN 6005 (4)

Self tapping

screws

1.60 Height

WM01

2.32

3.60

4.61

1-2-I

1.83

Insert Area

Non-Textured

0.015" recessed

.14 typ.

6 plc's

for # 4 screws

.30

2.25

3.19

Insert Area

Non-Textured

0.015" recessed

1.28

PART

NO.

1-2-I

WM01

6005

DESCRIPTION

(Included)

TOP

BOTTOM

#4 self tapping screw (4)

ACCSESSORIES

(Optional)

PART

NO.

50

PS-11

310

410

DESCRIPTION

Non-skid Feet

Perimeter Seal

Prototype grid board (Horiz)

Prototype clad board (Horiz)

Water proofing gasket

PS-11 optional.

see note #2

Notes:

1) Enclosure meets or exceeds IP40 and NEMA 1

2) When used with PS-11 the enclosure meets or exceeds

IP 67 and NEMA 4X, 12 and 13 MIL-STD-810G 506.5

3) Circuit Board drawings can be download at:

ALL DIMENSIONS ARE ± .010"

5/5/09

(1 of 2)

http://www.serpac.com/Accessories/CircuitBoard/drawings/310-410.pdf

619 Commercial Ave. Covina, CA 91723

All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com

WM012I,GY Related Products

	WM012I,GY	WM012I,BK	WM012I,AL
Description	BOX ABS GRAY 3.6"L X 2.25"W	BOX ABS BLACK 3.6"L X 2.25"W	BOX ABS ALMOND 3.6"L X 2.25"W
Container type	box with mounting flange	box with mounting flange	box with mounting flange
size/dimensions	3.600" long x 2.250" wide (91.44mm x 57.15mm)	3.600" long x 2.250" wide (91.44mm x 57.15mm)	3.600" long x 2.250" wide (91.44mm x 57.15mm)
high	1.600"（40.64mm）	1.600"（40.64mm）	1.600"（40.64mm）
Area (L x W)	8.10"（52.3cm）	8.10"（52.3cm）	8.10"（52.3cm）
design	Cover included	Cover included	Cover included
Material	Plastic - ABS	Plastic - ABS	Plastic - ABS
color	grey	black	almond color
thickness	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
characteristic	PCB support, wall mounting	PCB support, wall mounting	PCB support, wall mounting
grade	IP40，NEMA 1	IP40，NEMA 1	IP40，NEMA 1
Material flammability rating	UL94 HB	UL94 HB	UL94 HB
delivery information	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key
weight	0.15 lbs (68.04g)	0.15 lbs (68.04g)	0.15 lbs (68.04g)
