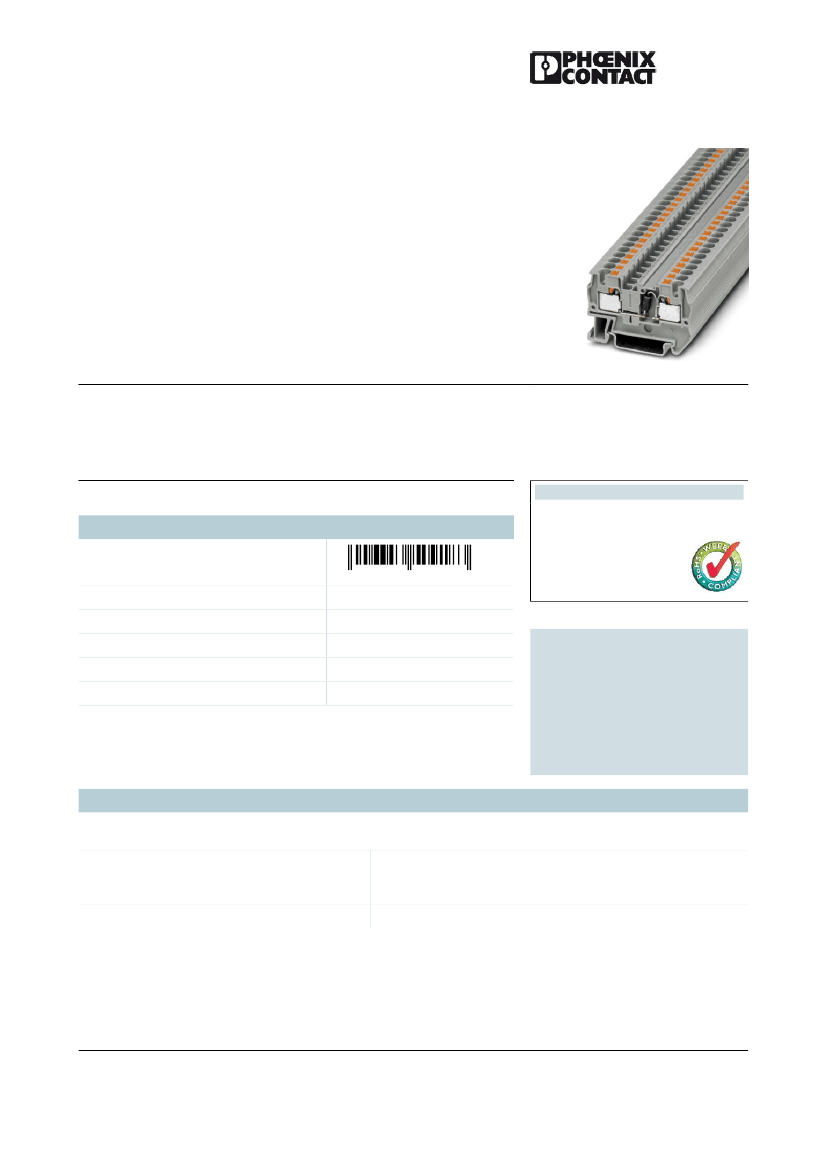

PIT 4-DIO 1N 5408/L-R
Order No.: 3212112
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3212112
Component terminal block, Connection type: Leg spring connection,
Cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, Nominal current: 1.5
A, Nominal voltage: 800 V, Length: 56 mm, Width: 6.2 mm,
Color: gray, Assembly: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
4
046356
509183
WEEE/RoHS-compliant since:
05/08/2009
Note
sales group
Pack
Customs tariff
Catalog page information
Made-to-order
A642
50 pcs.
85369010
Page 118 (CL1-2011)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Note
The max. current is determined by the diode. Installed: diode 1N
5408, reverse voltage: 1000 V, maximum continuous current: 1.5
A
1
Number of levels
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 7
Jul 15, 2011
PIT 4-DIO 1N 5408/L-R
Order No.: 3212112
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3212112
Number of connections
Color
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Nominal current I
N
Nominal voltage U
N
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2
gray
PA
V0
6.2 mm
56 mm
36.5 mm
44 mm
1.5 A (the maximum current is determined by the diode)
8 kV
3
III
I
1.5 A
800 V
ja
0.2 mm²
6 mm²
0.2 mm²
4 mm²
24
10
0.25 mm²
4 mm²
0.25 mm²
4 mm²
0.5 mm²
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 7
Jul 15, 2011
PIT 4-DIO 1N 5408/L-R
Order No.: 3212112
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3212112
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Certificates / Approvals
1 mm²
Leg spring connection
10 mm
A4
Certification
CUL, GL, GOST, UL
Accessories
Item
Assembly
3030721
3022276
ATP-ST 4
CLIPFIX 35-5
Partition plate, Length: 61 mm, Width: 2 mm, Height: 42 mm,
Color: gray
Snap-on end bracket, for NS 35/7.5 or NS 35/15 DIN rail, can be
fitted with Zack strip ZB 5 and ZBF 5, terminal strip marker KLM
2 and KLM, parking facility for FBS...5, FBS...6, KSS 5, KSS 6,
width: 5,15 mm, color: gray
End cover, Length: 56 mm, Width: 2.2 mm, Height: 36.5 mm,
Color: gray
Spacer plate, Color: red
DIN rail, material: Aluminum, unperforated, height 7.5 mm, width
35 mm, length: 2 m
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
NS 35 DIN rail, height 7.5 mm, length 755 mm
NS35 DIN rail, height 7.5 mm, length 955 mm
NS 35 DIN rail, height 7.5 mm, length 1155 mm
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, Width: 35 mm, Height: 7.5 mm, Color: silver
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, Width: 35 mm, Height: 7.5 mm, Color: silver
Designation
Description
3030420
3036738
0801704
0801762
1207640
1207653
1207666
0801733
1208131
0801681
1208115
D-ST 4
DP PS-6
NS 35/ 7,5 AL UNPERF
2000MM
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 755MM
NS 35/ 7,5 PERF 955MM
NS 35/ 7,5 PERF 1155MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 PERF/...
NS 35/ 7,5 UNPERF 2000MM
NS 35/ 7,5 UNPERF/...
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 3 / 7
Jul 15, 2011
PIT 4-DIO 1N 5408/L-R
Order No.: 3212112
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3212112
1208128
0801377
1206421
1206434
1201895
1201730
1201714
1208144
1208157
1206586
NS 35/ 7,5 UNPERF/SO/...
NS 35/ 7,5 V2A UNPERF
2000MM
NS 35/ 7,5 ZN PERF 2000MM
NS 35/ 7,5 ZN UNPERF
2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15 UNPERF/...
NS 35/15 UNPERF/SO/...
NS 35/15 ZN UNPERF 2000MM
DIN rail, Width: 35 mm, Height: 7.5 mm, Color: silver
DIN rail, Width: 35 mm, Height: 7.5 mm, Length: 2000 mm,
Color: silver
DIN rail, material: Galvanized, perforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Galvanized, unperforated, height 7.5 mm, width
35 mm, length: 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, Width: 35 mm, Height: 15 mm, Color: silver
DIN rail, Width: 35 mm, Height: 15 mm, Color: silver
DIN rail, material: Galvanized, unperforated, height 15 mm, width
35 mm, length: 2 m
Bridges
3030336
3030242
3030255
3030349
3030271
3030365
3032224
General
0828282
CARRIER-TM 300
Marker adapter,
300 mm long, can be snapped into the marker
groove, designed to accommodate ZB ... or UC‑TM ...
FBS 2-6
FBS 3-6
FBS 4-6
FBS 5-6
FBS 10-6
FBS 20-6
FBS 50-6
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 50, Color: red
Marking
0810588
GBS 5-25X12
Group marker label, snaps onto terminal center for screw, spring-
cage and quick connection terminal blocks, labeled with a 25 x 12
mm label or manually with the B-STIFT, in the foot part with ZB 5
Group marking label, snaps onto terminal center for screw, spring-
cage and quick connection terminal blocks, labeled with ESL
26x6 mm or EST 25x6 mm, in the foot part with Zack marker strip,
length: 29 mm
Markers for terminal blocks with 6 mm pitch, perforated, unprinted,
for all terminal blocks with ZB and ZBF keyway, can be labelled
using a thermo transfer printer, 1 roll = 1,000 strips, 16 labels/
strips, strip height: 6.4 mm
0809298
GBS-ZB/26X6
0816498
TMT 6 R
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 4 / 7
Jul 15, 2011
PIT 4-DIO 1N 5408/L-R
Order No.: 3212112
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3212112
0828295
TMT (EX9,5)R
Terminal marking with 9.5 mm strip height, continuous, without
color print, for all terminals with ZB or ZBF groove, can be labeled
using a thermal transfer printer, 1 roll = 50 m
UniCard materials for labeling terminal blocks with a marker
groove,80-section, can be labeled with BLUEMARK and CMS-P1-
PLOTTER, color: white
Terminal block marking, can be labeled as per customer
specifications
UniCard materials for labeling terminal blocks using a flat marker
groove, 80-section, can be labeled with BLUEMARK and CMS-
P1-PLOTTER, color: white
UniCard sheets, for labeling terminal blocks with a flat
zack marker sheet groove, can be printed as per customer
requirements
UniCard materials for thermal transfer printer, for labeling terminal
blocks with a marker groove, 60-section, can be labeled with
THERMOMARK CARD and BLUEMARK LED, color: white
Terminal block marking, can be labeled as per customer
specifications
UniCard materials for thermal transfer printer, for labeling terminal
blocks with a horizontal marker groove, 60-section, can be labeled
with THERMOMARK CARD and BLUEMARK LED, color: white
Terminal block marking, can be labeled as per customer
specifications
Zack strip, unprinted, strips with 10 labels for individual labeling
with M-PEN or CMS system, for terminal block width: 6.2 mm,
color: white
Zack strip, flat, unprinted: 10-section, for individual labeling with
M-PEN or ZBF-T, sufficient for 100 terminal blocks, color: white
0818085
UC-TM 6
0824589
0818140
UC-TM 6 CUS
UC-TMF 6
0824646
UC-TMF 6 CUS
0828736
UCT-TM 6
0829602
0828746
UCT-TM 6 CUS
UCT-TMF 6
0829665
1051003
UCT-TMF 6 CUS
ZB 6:UNBEDRUCKT
0808710
ZBF 6:UNBEDRUCKT
Plug/Adapter
3002885
3002898
0201731
0201689
0201702
0201728
0201676
0201715
0201663
0201692
0201744
3032871
ISH 4/0,5
ISH 4/1,0
MPS-IH BK
MPS-IH BU
MPS-IH GN
MPS-IH GY
MPS-IH RD
MPS-IH VT
MPS-IH WH
MPS-IH YE
MPS-MT
PAI-4-N GY
Insulating sleeve, Color: gray
Insulating sleeve, Color: black
Insulating sleeve, Color: black
Insulating sleeve, Color: blue
Insulating sleeve, Color: green
Insulating sleeve, Color: gray
Insulating sleeve, Color: red
Insulating sleeve, Color: violet
Insulating sleeve, Color: white
Insulating sleeve, Color: yellow
Test plugs
Test adapter, Color: gray
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 5 / 7
Jul 15, 2011
