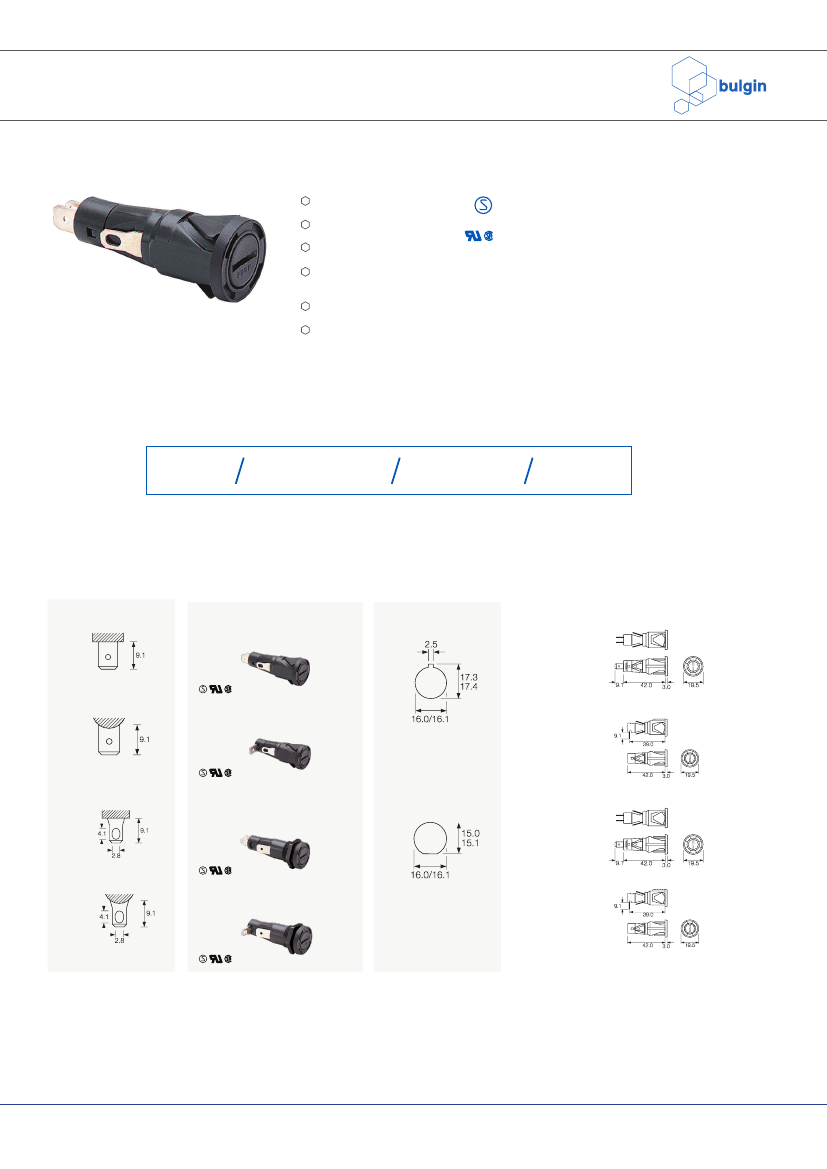

Fuseholders 6.3 x 32mm (1¼”
x ¼”),
PC2
Fuseholders
Key Features
6.3 x 32mm fuses
Screwdriver slot knob
PC2 protection category
4.8, 6.3 and solder
terminals
Low profile bezel
Snap in or threaded
bushing mounting options
Approvals and specifications
10A 250V (max fuse rating*) T–55 to T+70 (ambient)
Maximum dissipation wattage: 4W
16A UL 250V UL file E92075 CSA file LR44770
These products comply with safety category PC2.
*Users should be aware of the de-rating factors published
by specialist manufacturers of fuses.
Fuseholders with in-line termination have combination
(4.8/6.3) terminals. It has not been possible to show both
views here. Units with right angle terminals have user speci-
fied end terminals and combination mid-body terminals.
T
Terminal
0347
Body & Cap
RA
Panel Hole
----
Options
Terminal
Body
Options
Dimensions
0345 (C terminal shown)
C
0345
(C terminal shown)
Screwdriver release
RA
6.3 x 0.8
D
6.3 x 0.8
Right angle
0345
(D terminal shown)
Screwdriver release
Panel thickness
0.8 - 2.0mm for snap fit
0.8 - 7.0mm for screw to
panel fixing
0345 (D terminal shown)
T
4.8 x 0.8
Solder
0347
(T terminal shown)
Screwdriver release
RD
0347 (C terminal shown)
U
0347
0347 (D terminal shown)
(U terminal shown)
Screwdriver release
Panel thickness
0.8 - 2.0mm for snap fit
0.8 - 7.0mm for screw to
panel fixing
Optional metal fixing nut available for 0347
4.8 x 0.8
Solder
Fuseholders 335
