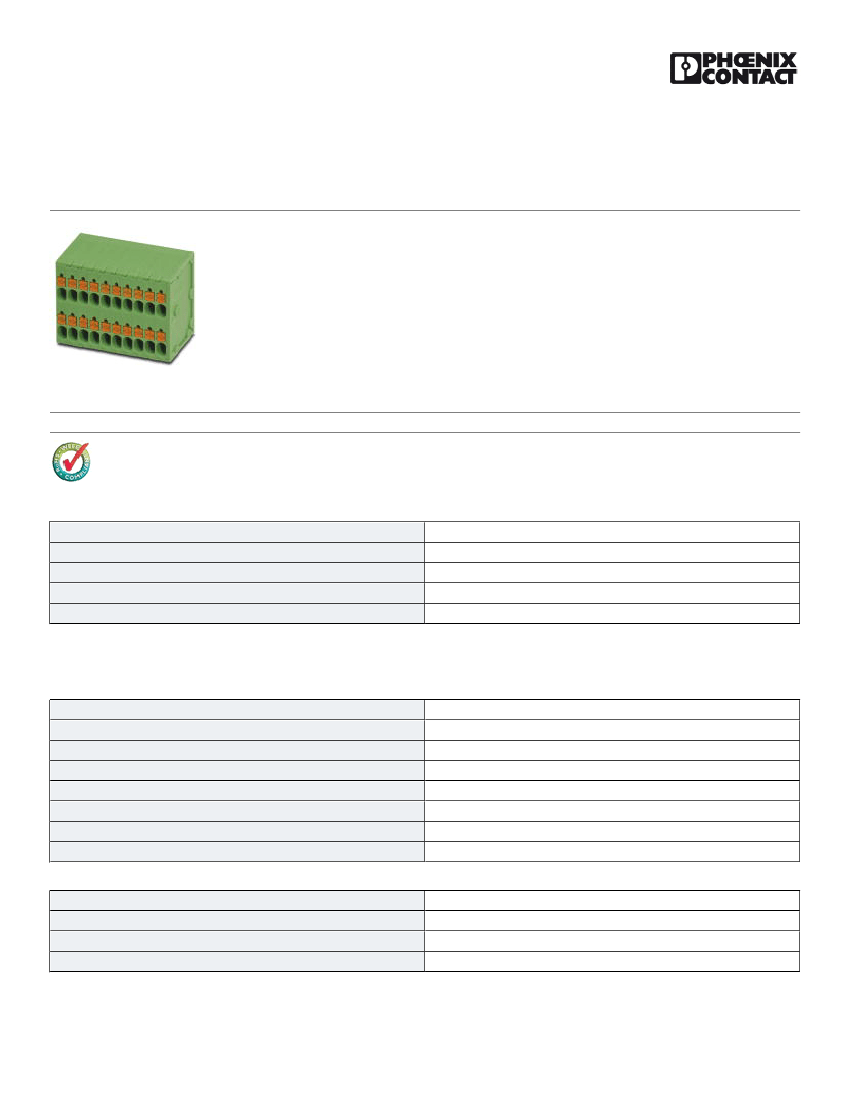

PCB terminal block - SPTD 1,5/ 9-H-3,5 - 1841568
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 10 A, Nom. voltage: 200 V, Pitch: 3.5 mm, Number of positions: 9,
Connection method: Push-in spring connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °,
Color: green
The figure shows a 10-position
version of the product
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
25 pc
20.8 g
85369010
China
Technical data
Dimensions
Length
Pitch
Dimension a
Height
Length of the solder pin
Pin dimensions
Pin spacing
Hole diameter
18 mm
3.5 mm
28 mm
24.2 mm
3.5 mm
0,6 x 1,0 mm
9.35 mm
1.3 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
SPTD 1,5
I
2.5 kV
2.5 kV
09/04/2015 Page 1 / 4
https://www.phoenixcontact.com/us/products/1841568
PCB terminal block - SPTD 1,5/ 9-H-3,5 - 1841568
Technical data
General
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Solder pin surface
Inflammability class according to UL 94
Stripping length
Number of positions
2.5 kV
160 V
200 V
400 V
EN-VDE
10 A
1.5 mm²
10 A
PA
Sn
V0
8 mm
9
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
0.75 mm²
26
16
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
27141190
27261101
27440401
ETIM
ETIM 4.0
ETIM 5.0
EC002643
EC002643
09/04/2015 Page 2 / 4
https://www.phoenixcontact.com/us/products/1841568
PCB terminal block - SPTD 1,5/ 9-H-3,5 - 1841568
Approvals
Approvals
Approvals
cULus Recognized
Ex Approvals
Approvals submitted
Approval details
cULus Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
10 A
150 V

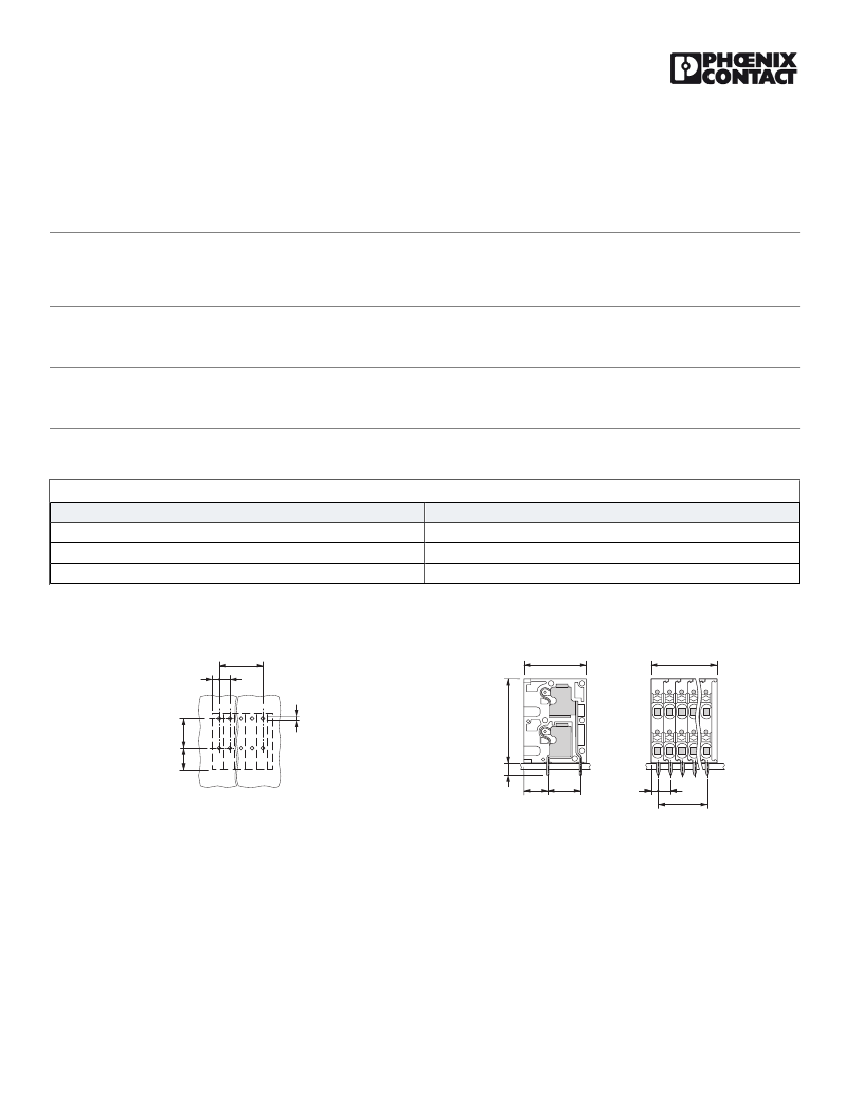

Drawings
Drilling diagram
a
2,1
3,5
Dimensional drawing
18
a+5
Ø1,3
6,9
9,35
24,2
3,5
6,9
9,35
2,1
3,5
a
09/04/2015 Page 3 / 4
https://www.phoenixcontact.com/us/products/1841568
PCB terminal block - SPTD 1,5/ 9-H-3,5 - 1841568
Diagram
Current strength [A]
14
12
10
8
6
4
2
0
0
20
40
60
80
100
Ambient temperature [°C]
2
= 1,5 mm
Type: SPTD 1,5/...-H-3,5
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
09/04/2015 Page 4 / 4
