3M
™
Ribbon Cable Wiremount Socket Assembly, 451 Series
3M
™
Shrouded Boardmount Header, 452 Series

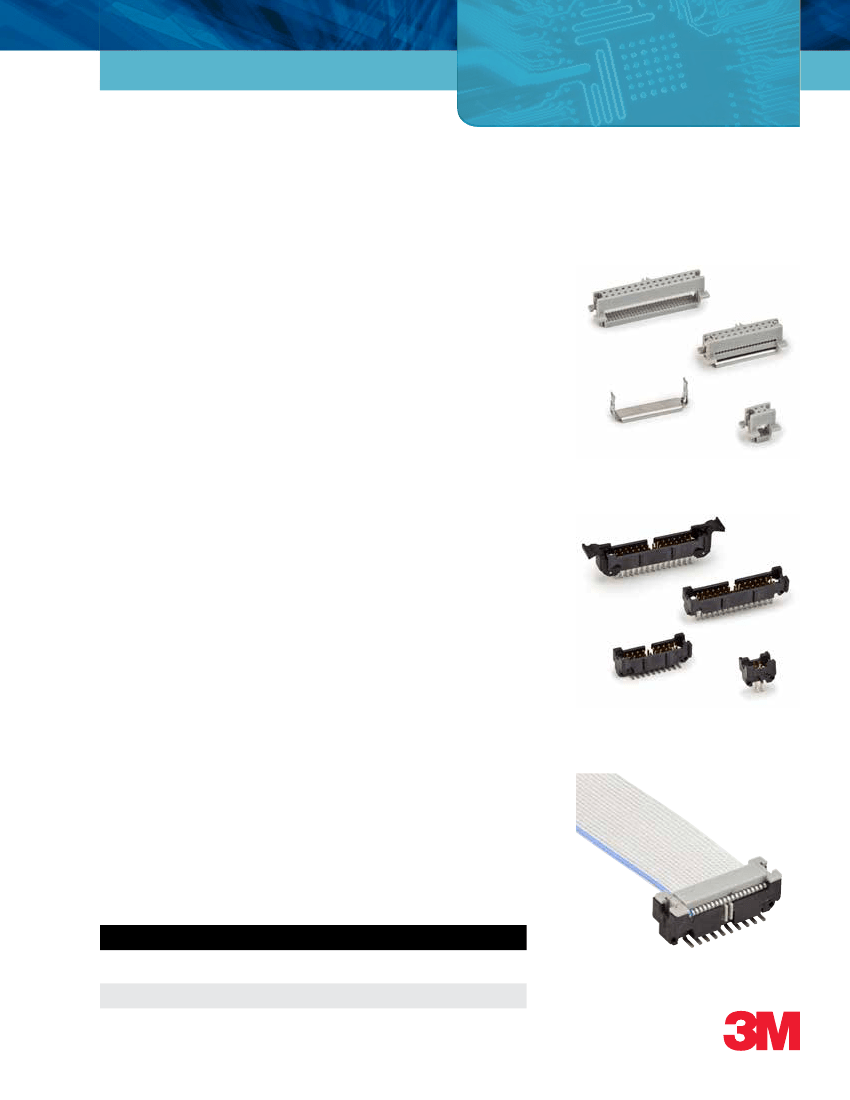

For more than fifty years, 3M has been among the world’s leaders in connectors
utilizing Insulation Displacement Contacts (IDCs). We now offer a new family of
products to expand this rich history of leadership and innovation:
• 3M Ribbon Cable Wiremount Socket Assembly, 451 Series, 0.050” Pitch
• 3M Shrouded Boardmount Header, 452 Series 0.050” Pitch
The Ribbon Cable Wiremount Socket Assembly, 451 Series, offers a robust connector
in a very small package and with the following options:
• Fine pitch delivers high connection density in a very small space
• 30 µ” Au and Au flash available plating versions offer multiple mate/unmate cycle
option levels at different price points
• Available friction latch configurations enable increased protection against accidental
disconnect when using a box header
• Optional strain relief accessory provides additional security to help guard against
damage when users pull on a terminated cable
The Shrouded Boardmount Header, 452 Series, is designed to maximize design
flexibility while minimizing PCB footprint. They mate to Ribbon Cable Wiremount
Socket Assembly, 451 Series and are available in the following configurations:
• The standard shrouded header is available with or without ejector latches. This
innovative assembly method allows the addition of positive latch and ejection
functionality with minimal size addition.
• 30 µ” Au and Au flash available plating versions offer multiple mate/unmate cycle
option levels at different price points
• Vertical mount, thru-hole and SMT configurations available
• Right angle mount, thru-hole configuration available
• Tape and reel packaging for SMT version enables use in automated placement
applications
• Lead-free process capable
• PCB standoffs enable pin-in-paste processing capability
Configuration
Ribbon Cable Wiremount Socket Assembly,
451 Series
Shrouded Boardmount Header, 452 Series
Part Number
451XX-0X00XX
452XX-XX02XX
Customer Drawing
78-5100-2436-3
78-5100-2437-1
3M
™
Ribbon Cable Socket Wiremount Assembly
3M
™
Ribbon Cable Wiremount Socket
Assembly, 451 Series
3M
™
Shrouded Boardmount Headers,
452 Series
3M
™
Ribbon Cable Wiremount Socket Assembly, 451 Series
3M
™
Shrouded Boardmount Headers, 452 Series
Product Specifications
451 & 452 Series
Current Rating
1.0 A, all lines energized, 30°C temp rise per EIA 364-70
1.5 A, 6 lines energized, 30°C temp rise per EIA 364-70
2.5 A, 1 line energized, 30°C temp rise per EIA 364-70
125V min
> 1 x 10
9
Ohms at 500 VDC
1250 VACrms at sea level
-65°C to +105°C
260°C
Yes
MSL1 per J-STD-020
Voltage Rating
Insulation Resistance
Withstanding Voltage
Operating Temperature
Processing Temperature
Lead-Free Solderable
Moisture Sensitivity Level

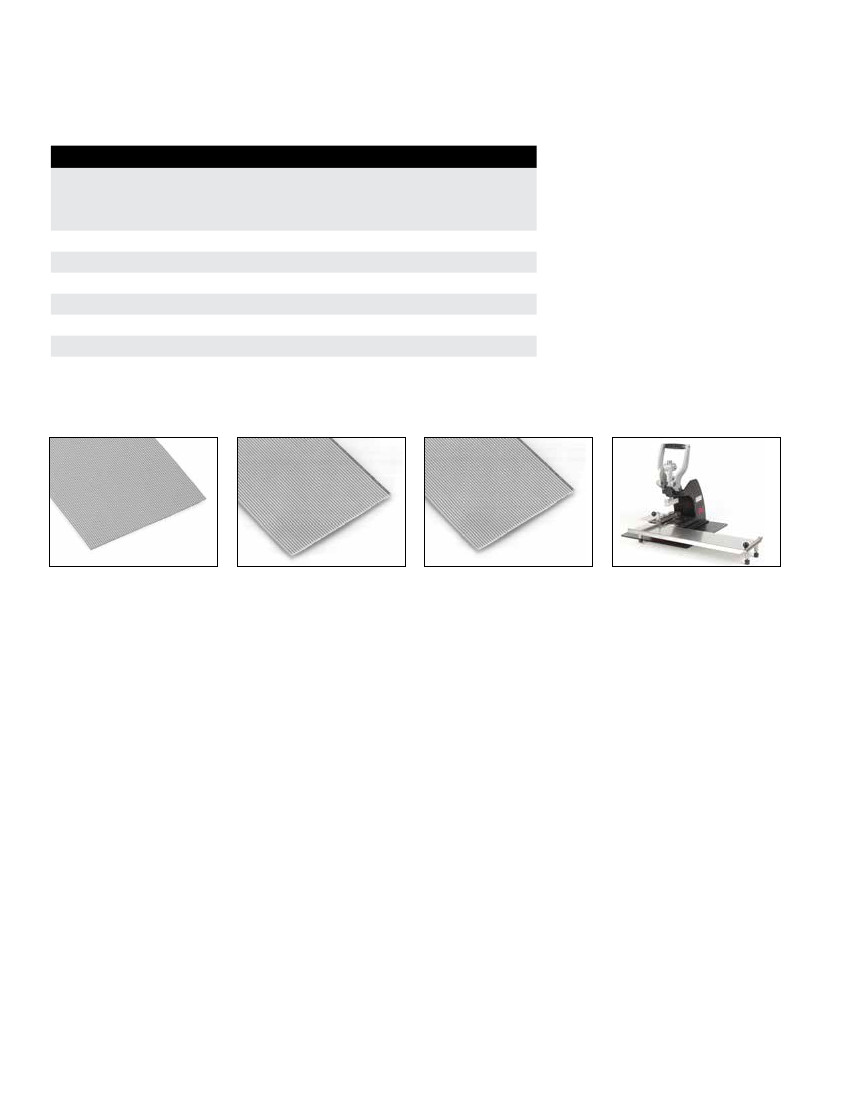

Related Products
3M
™
Round Conductor Flat Cable,
3447 Series, PVC Jacketed, 30
AWG,Tinned Copper, 20 to 100
Solid Conductor Cable
3M
™
Round Conductor Flat Cable,
3754 Series, PVC Jacketed, 30 AWG,
Tin Plated, 20 to 100
Stranded Conductor Cable
3M
™
Round Conductor Flat Cable,
3609 Series, FEP Jacketed, 30
AWG, Silver Plated, 20 to 100 Solid
Conductor Cable. For extreme
temperature requirements.
3M
™
Standard Assembly Press,
Model 3640 and 3M
™
Locator Plate
3443-82-XX
