38.35 [1.51]
27.69 [1.09]
01/10/14
09/04/15
04/27/18
A
B
C
UPDATED TO ROHS 2
COMPLIANT
ADDED NOTCH
Updated Positive contact design
T.B.
T.B.
T.B.
B.S.
B.S.
B.S.
9.02 [0.35]
MPD
15.16 [0.60]
_
3.56 [0.14]

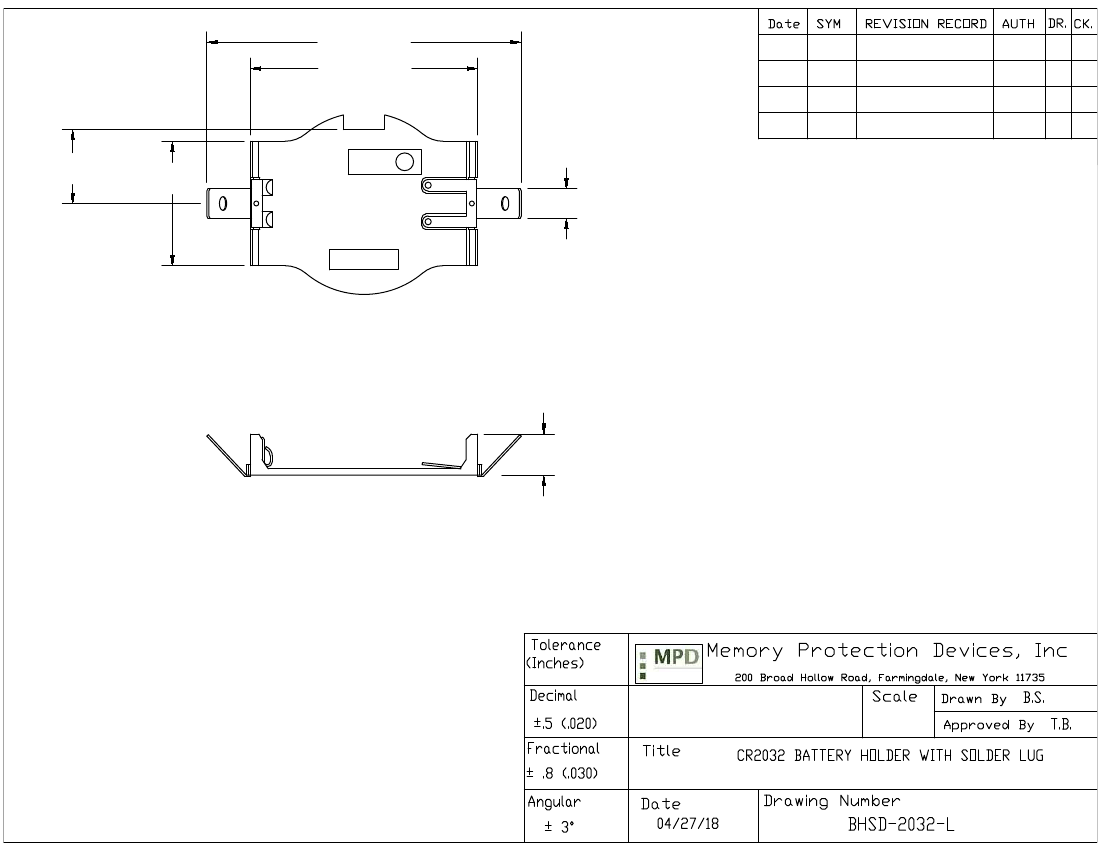

BHSD2032
5.00 [0.20]
SPECIFICATIONS:
* Holder material- LCP Vectra, Color white, UL File No. E174096
* Contacts : Phosphor Bronze C5191, Gold Flash, 1u - 3u thickness
* Temperature range: -40°C to +280°C
* Vibration Test: 10-50-10 Hz sweeped in 60 seconds
X,Y,Z direction: 1 hour each direction
* Result: No dislodgement of the cell or damage
No discontinuity over 10 micro-seconds
* Shock Test: Half sine wave acceleration 150G. 6 m/s
3 shock pulses each direction per axis, total of 18 pulses
* Result: No evidence of physical damage
* Drop Test: 1meter - No dislodgement of cell
* ROHS 2 Compliant
