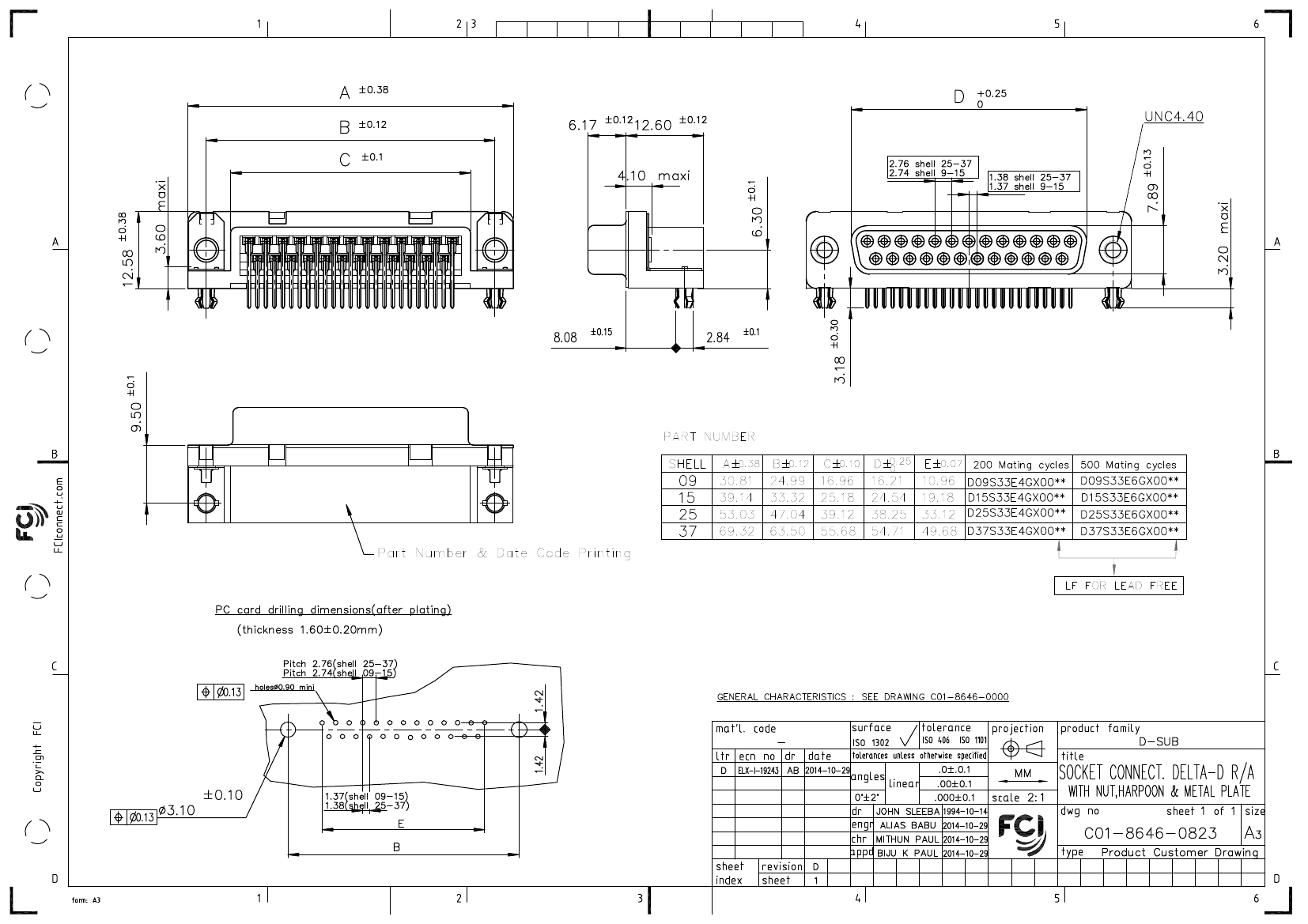

D15S33E4GX00LF: DescriptionCONN D-SUB RCPT 15POS R/A SOLDER; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D15S33E4GX00LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D15S33E4GX00LF	-	-	View	Buy Now

D15S33E4GX00LF Overview

CONN D-SUB RCPT 15POS R/A SOLDER

D15S33E4GX00LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks
Other features	ROHS COMPLIANT
body width	0.495 inch
subject depth	0.496 inch
body length	1.541 inch
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	5.004 N
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.108 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	2/A
Terminal length	0.125 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Evacuation force-minimum value	.30024 N

Preview

Download Datasheet

View All

PDS: Rev :D

STATUS:Released

Printed: Oct 30, 2014

D15S33E4GX00LF Related Products

	D15S33E4GX00LF	D09S33E4GX00LF	D37S33E6GX00LF	D09S33E6GX00LF	D25S33E6GX00LF	D37S33E4GX00LF
Description	CONN D-SUB RCPT 15POS R/A SOLDER	CONN D-SUB RCPT 9POS R/A SOLDER	CONN D-SUB RCPT 37POS R/A SOLDER	CONN D-SUB RCPT 9POS R/A SOLDER	CONN D-SUB RCPT 25POS R/A SOLDER	CONN D-SUB RCPT 37POS R/A SOLDER
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	11 weeks	12 weeks	10 weeks	8 weeks	12 weeks	11 weeks
body width	0.495 inch	0.495 inch	0.495 inch	0.495 inch	0.495 inch	0.495 inch
subject depth	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch
body length	1.541 inch	1.213 inch	2.729 inch	1.213 inch	2.088 inch	2.729 inch
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	GOLD (30) OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
maximum insertion force	5.004 N	5.004 N	4.8928 N	4.8928 N	4.8928 N	4.8928 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
MIL compliance	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.108 inch	0.108 inch	0.109 inch	0.108 inch	0.109 inch	0.109 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	THREADED INSERT	THREADED INSERT	THREADED INSERT	THREADED INSERT	THREADED INSERT	THREADED INSERT
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	1/E	4/C	1/E	3/B	4/C
Terminal length	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch
Terminal pitch	2.7432 mm	2.7432 mm	2.7686 mm	2.7432 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	9	37	9	25	37
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.30024 N	.30024 N	.30024 N	.30024 N	.30024 N	.30024 N
Is it lead-free?	Lead free	Lead free	-	Lead free	-	Lead free
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	-	Matte Tin (Sn) - with Nickel (Ni) barrier	-	Matte Tin (Sn) - with Nickel (Ni) barrier
JESD-609 code	e3	e3	-	e3	-	e3
Insulator color	-	-	BLACK	BLACK	BLACK	BLACK
