DIALIGHT
PART NUMBER
559-0102-003F
559-0103-003F
559-0202-003F
559-0203-003F
559-0302-003F
559-0303-003F
559-1101-003F
559-1201-003F
559-1301-003F
559-2101-003F
559-2201-003F
559-2301-003F
559-2501-003F
FORWARD
VOLTAGE
(V)
TYP
5.0
12.0
5.0
12.0
5.0
12.0
1.8
1.9
1.8
2.2
2.1
2.0
1.9
FORWARD
CURRENT
(mA)
TYP
10
13
12
13
10
13
2*
2*
2*
10**
10**
10**
10**
LED EPOXY
COLOR
RED DIFF.
RED DIFF.
GREEN DIFF.
GREEN DIFF.
YELLOW DIFF.
YELLOW DIFF.
RED DIFF.
YELLOW DIFF.
GREEN DIFF.
RED DIFF.
GREEN DIFF.
YELLOW DIFF.
ORANGE DIFF.
LED CHIP
GaAsP
GaAsP
GaP
GaP
GaAsP/GaP
GaAsP/GaP
GaAsP/GaP
GaAsP/GaP
GaP
GaAsP/GaP
GaP
GaAsP/GaP
GaAsP/GaP
LUMINOUS
PEAK
INTENSITY
WAVELENGTH
(mcd)
(nm)
TYP
635
635
565
565
583
583
635
583
565
650
563
585
600
8.0
8.0
8.0
8.0
8.0
8.0
2.3
1.8
1.8
6.3
10.0
10.0
7.0
.210
[5,33]
MAX
.281
[7,14]
REF
5mm LED
REV
A
ECN NO
REVISIONS
DRN CKD APP
KLJ
DATE
NEW RELEASE
RP
MES 7-7-08
NO 7-24-09
RoHS COMPLIANT 559-XX0X-003F
Part Numbers with the "F" suffix ending are RoHS Compliant.
Packaging is marked with "RoHS Compliant" label or equivalent
markings. Parts can be wave soldered, dip soldered or hand
soldered using typical lead-free soldering process with max
260°C temp. for 5 sec.
B
ADDED WIRE INSULATION O.D., STRIPPED
LENGTH DIMENSION AND INCLUDED
AJF KLJ
"TYPE C MIL-W-168780" IN NOTE 2.
.625
[15,88]
MAX
DIALCO
559-XXXX
.058 #
.005
[1,47 #
0,127]
TYP.
RED WIRE
.50 #
.03
[12,7 #
0,76]
NOTES:
1. * REQUIRES EXTERNAL RESISTOR.
** REQUIRES EXTERNAL RESISTOR, MAX FORWARD D.C. CURRENT 7mA.
2. LEAD WIRES: #24 PVC 7/32 PRE-BONDED TYPE C MIL-W-168780.
3. RECOMMENDED MOUNTING HOLE:
.249-.252 ON PANELS .031-.062 THICK.
ANODE LEAD (+)
2
1
HOUSING
(VALOX)
BLACK WIRE
6.000 #
.125
[152,4 #
3,18]
ATTENTION:
OBSERVE PRECAUTIONS FOR
HANDLING ELECTROSTATIC
SENSITIVE DEVICES
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND
THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING
OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE
FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.
SCALE: 4:1
CATHODE LEAD (-)
DRAWING NUMBER
REV
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
4. LED LEAD DIMENSIONS SHOWN ARE MEASURED AT HOUSING EXIT.
5. PIN NUMBERS FOR REFERENCE ONLY, DESIGNATION NON-EXISTENT ON PART.
6. DIALIGHT PART NUMBERS: 559-XX0X-003F.
7. THIS ASSEMBLY CONTAINS ELECTROSTATIC DISCHARGE SENSITIVE DEVICES
(ESDS). MAINTAIN ALL PRECAUTIONARY MEASURES DURING ASSEMBLY,
HANDLING, AND STORAGE IN ACCORDANCE WITH IPC-A-610.
PIN 2
PIN 1
CATHODE
C-17617
TITLE
B
FRACTIONS: #
1/64
DECIMALS (.XX): #
.02
DECIMALS (.XXX): #
.015
DECIMALS (.XXXX): #
.0005
ANGLES: # $
3

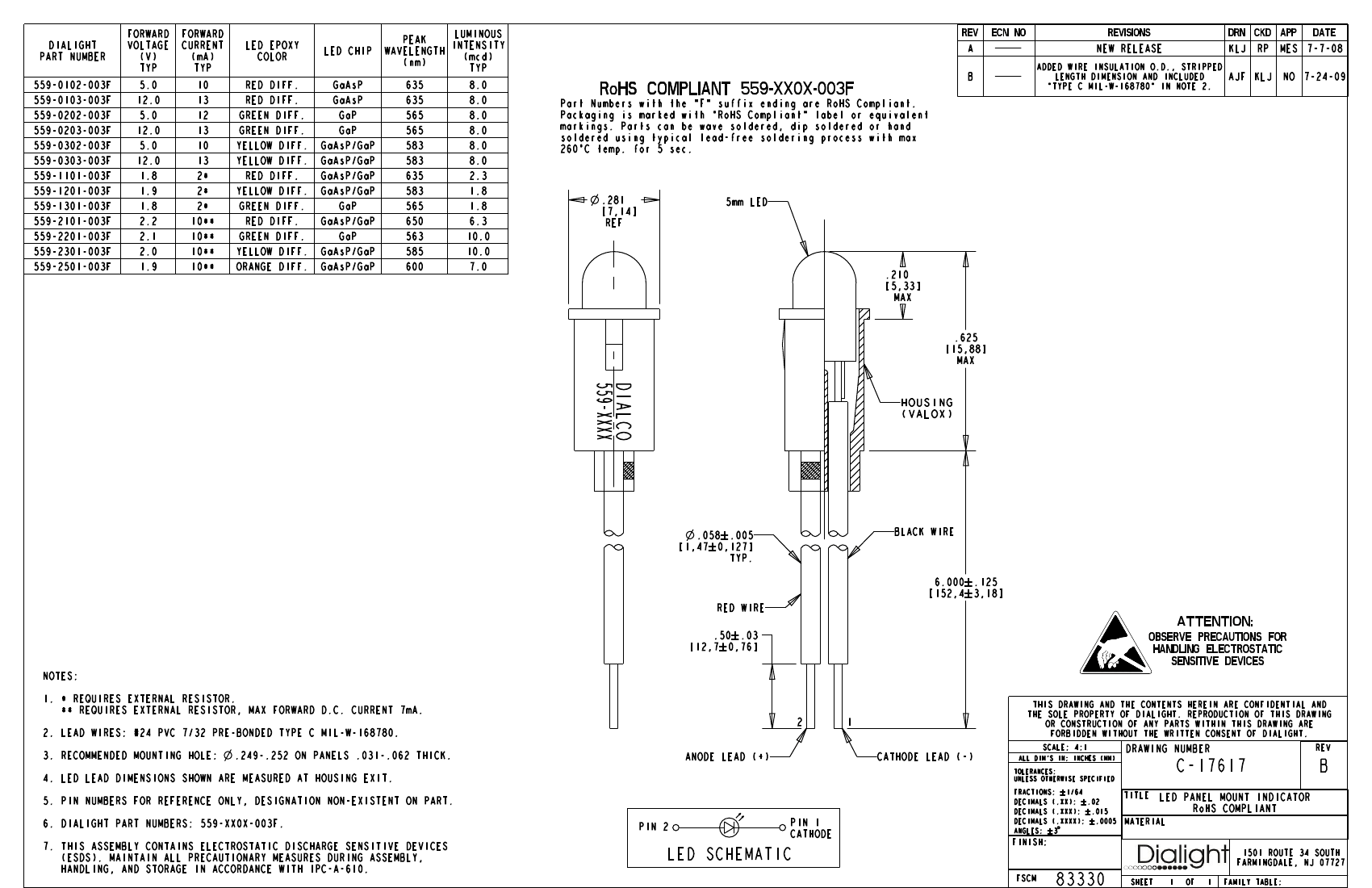

LED PANEL MOUNT INDICATOR
RoHS COMPLIANT
MATERIAL
LED SCHEMATIC
FINISH:
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
FSCM
83330
SHEET
1
OF
1
FAMILY TABLE:
