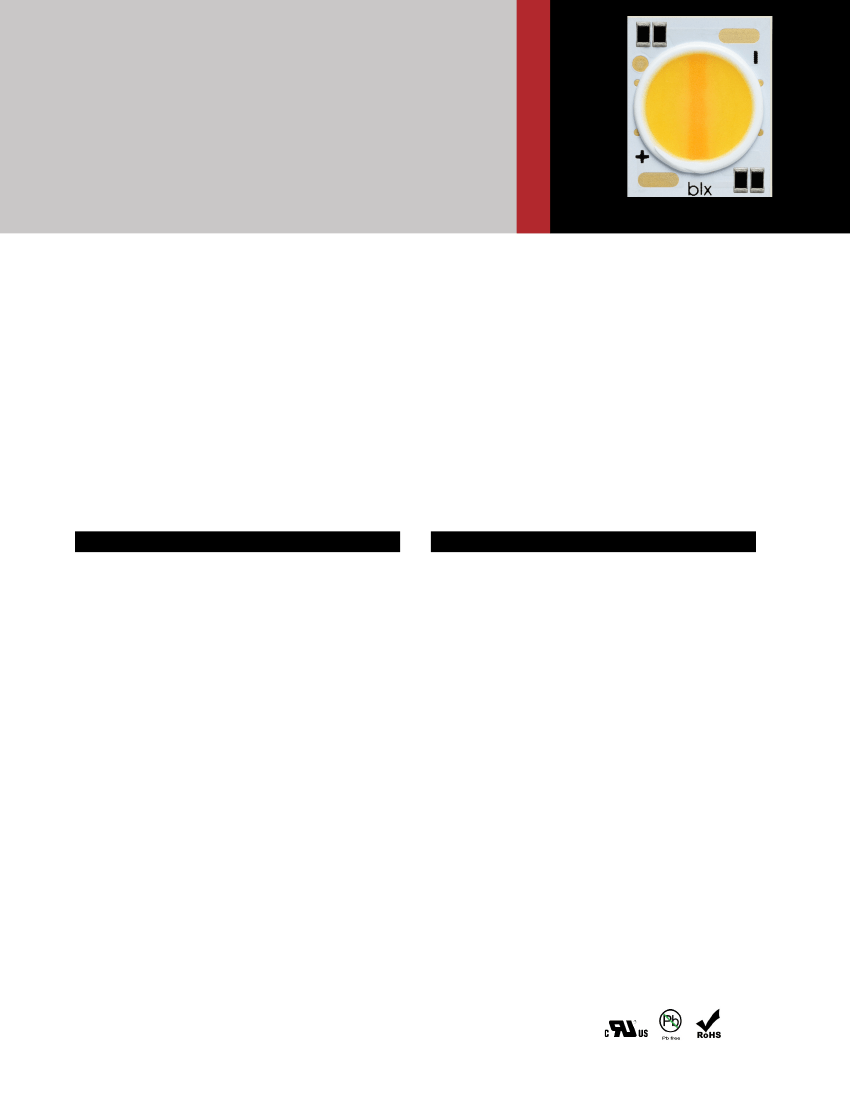

Bridgelux Vesta™ Series Dim-To-Warm
9mm Array
®
Product Data Sheet DS150
Introduction
Vesta
™
Series Dim-To-Warm Array products deliver adaptable light in a cost-effective, solid state lighting package.
Vesta
™
Series products tap into the powerful mediums of light and color to influence experience, well-being, and human
emotion. They allow fixture manufacturers to simulate the familiar glow and dimming of incandescent lamps. This
high flux density light source is designed to support a wide range of high quality, low cost directional luminaires and
replacement lamps for commercial and residential applications.
Lighting system designs incorporating these LED arrays deliver comparable performance to 150 Watt incandescent-
based luminaires, while increasing system level efficacy and prolonging service life. Typical luminaire and lamp types
appropriate for this family include replacement lamps, down lights, wall packs and accent, spot and track lights.
Features
Benefits
• Dimming range from 3000K to 1800K
• Efficacy of 96-97 lm/W typical
• Uniform, high quality illumination
• Minimum 95 CRI option
• More energy efficient than incandescent, halogen
and fluorescent lamps
• Industry standardized dimensions
• Flux packages from 570 to 1400 lumens typical
• Superior color dimming transition
• Compact system design resulting from high lumen
density
• High quality, true color reproduction
• Enhanced optical control
• Uniform, consistent white light
• Lower operating costs
• Reduced maintenance costs
Vesta™ Series
Contents
Product Feature Map
Product Nomenclature
Product Selection Guide
Electrical Characteristics
Absolute Maximum Ratings
Performance Curves
Typical Radiation Pattern
Typical Color Spectrum
Mechanical Dimensions
Color Binning Information
Packaging and Labeling
Design Resources
Precautions
Disclaimers
About Bridgelux
2
2
3
4
5
6
8
9
10
11
12
13
13
13
14
1
Product Feature Map

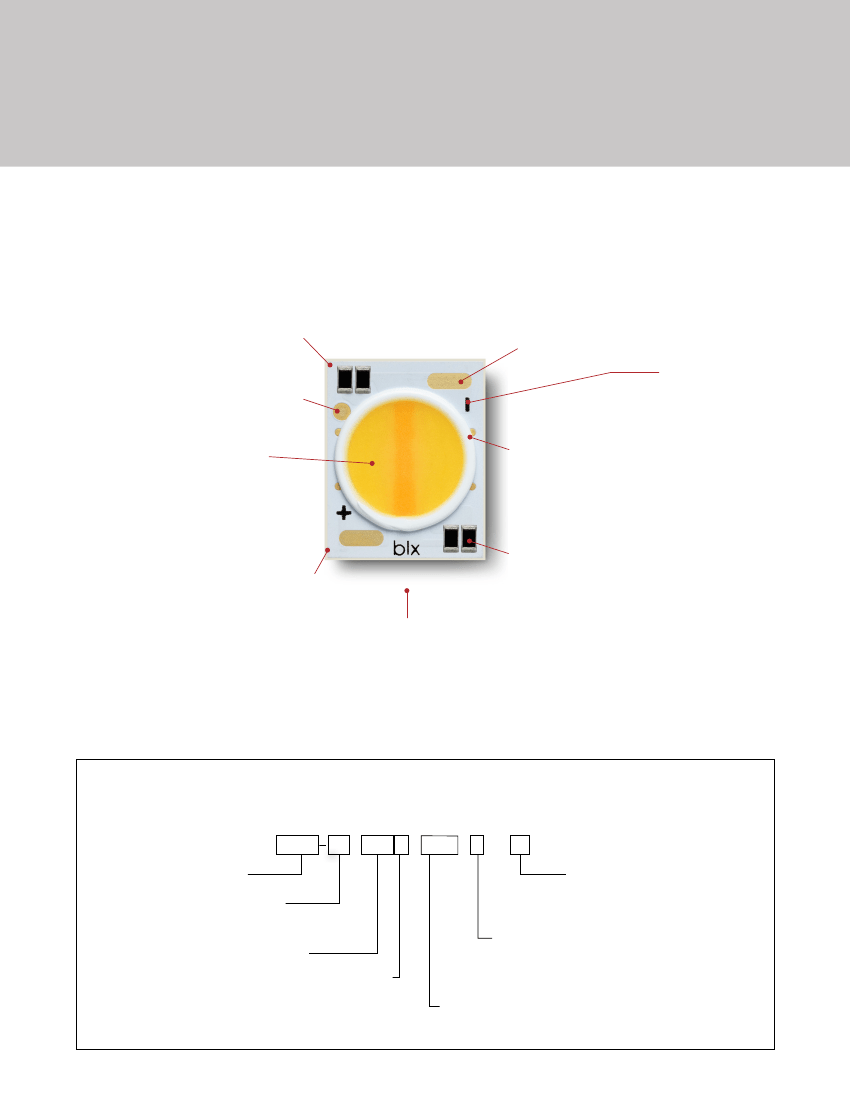

Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered
mechanical platform. The arrays incorporate several features to simplify design integration and assembly. Please visit
wwww.bridgelux.com for more information on the Vesta Series Family of products.
Fully engineered substrate
for consistent thermal, mechanical
and optical properties
Solder Pads
Polarity symbols
Case Temperature (T
c
) Measurement Point
Yellow phosphor Light
Emitting Surface (LES)
White ring around LES
Designed to comply with global
safety standards for creepage
and clearance distances
Dimming control component
Note: Part number and lot codes are scribed on back of array
Product Nomenclature
The part number designation for Bridgelux Vesta Series arrays is explained as follows:
1 2 3 4
5 6
7 8 9 10 11 12131415 – 16
17 18
BXRV DR – 1830 H – 1000 – x – 13
Product Family
Dim-To-Warm Array
Nominal CCT
18 = 1,800K
30 = 3,000K
CCT Bin Options
13 = 3 SDCM
Array Configuration
Minimum CRI
H = 95 CRI
A = 6W
B = 12W
Form Factor Designator
1000 = 9mm LES
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Measurement Data (T
j
= T
c
= 25°C)
Nominal
CCT
1
(K)
3000
1800
BXRV-DR-1830H-1000-B-13
3000
1800
Drive
Current
(mA)
350
14
350
14
Typical V
f
T
c
=25°C
(V)
17.0
11.2
33.8
26.9
Typical
Power
T
c
=25°C
(W)
6.0
0.2
11.8
0.4
Typical
Efficacy
T
c
=25°C
(lm/W)
96
83
97
82
Typical Pulsed
Flux
3, 4, 5
T
c
=25°C
(lm)
570
13
1150
31
Minimum
Pulsed Flux
6, 7
T
c
=25°C
(lm)
513
-
1035
-
Typical
DC Flux
7, 8
T
c
=85°C
(lm)
518
12
1045
28
Part Number
CRI
2
BXRV-DR-1830H-1000-A-13
95
95
95
95
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011.
2. CRI Values are minimums. Minimum R9 value for 95 CRI products is 85, Bridgelux maintains a ±3 tolerance on all R9 values.
3. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
4. Typical performance values are provided as a reference only and are not a guarantee of performance.
5. Bridgelux maintains a ±7% tolerance on flux measurements.
6. Minimum flux values at the nominal test current are guaranteed by 100% test.
7. Typical stabilized DC performance values are provided as reference only and are not a guarantee of performance.
8. Typical performance is estimated based on operation under DC (direct current) with LED array mounted onto a heat sink with thermal interface
material and the case temperature maintained at 85°C. Based on Bridgelux test setup, values may vary depending on the thermal design of the
luminaire and/or the exposed environment to which the product is subjected.
3
