BU-P1166-12-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Test and measurement> BU-P1166-12-0

BU-P1166-12-0: DescriptionTEST LEAD BANANA TO GATOR 12"; CategoryTopical application Test and measurement; File Size153KB，1 Pages; ManufacturerMueller Electric; Websitehttp://muellerelectric.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BU-P1166-12-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BU-P1166-12-0	-	-	View	Buy Now

BU-P1166-12-0 Overview

TEST LEAD BANANA TO GATOR 12"

BU-P1166-12-0 Parametric

Parameter Name	Attribute value
stacking method	Multiple stacking, front and vertical stacking
Configuration	Banana plug to short alligator clip
first connector	Banana plug, single, stackable
Second connector	Terminal clamp, insulated
cable length	12.0"（304.80mm）
type	patch cord
content	1 lead, black
Material - Insulation	Polyvinyl chloride (PVC)
Wire gauge	18 AWG
Voltage - Rated	1000V（1kV）
grade	-
Rated current	10A

Preview

Download Datasheet

View All

BU‐P1166‐XX‐*

(Test Lead: Stackable Banana Plug to Alligator Clip)



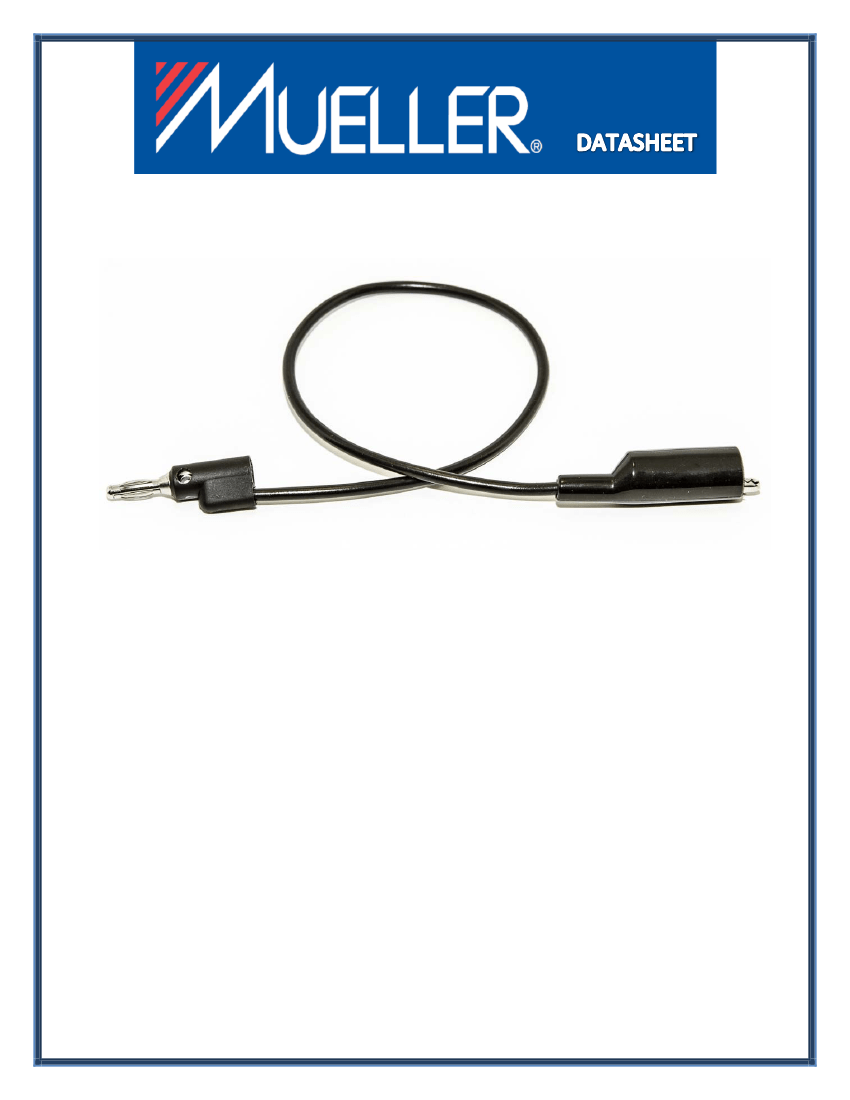

The BU‐P1166‐XX‐* is a stackable, 4mm banana plug to an insulated

alligator clip



Constructed with 18 AWG PVC jacketed, test lead wire and has color

matching polypropylene banana over‐mold and PVC alligator insulator.



The alligator clip used in this assembly is Mueller’s world famous BU‐60. It

has a maximum jaw opening of .31” (7.8mm)



Length: The “XX” in the model number represents the overall length in

inches. Standard lengths are: 12” (30cm), 24” (61cm) , 36”(.9m), 48” (1.2m)

and 60” (1.5m)



Color: The “*” in the model number represents color. Available colors are:

‐0 Black, ‐2 Red, ‐4 Yellow, ‐5 Green, ‐6 Blue, ‐9 White



Ratings: Hands free testing to 1000V., 10 Amps.



RoHS Compliant

Mueller Electric Company

1208 Massillon Rd. Ste. N-1500

Akron, OH 44306-4524

Toll Free: 800.955.2629

Phone: 330.780.2525

Fax: 330.780.2524

www.muellerelectric.com

BU-P1166-12-0 Related Products

	BU-P1166-12-0	BU-P1166-36-2	BU-P1166-36-0	BU-P1166-24-0	BU-P1166-12-2	BU-P1166-24-2	BU-P1166-60-0	BU-P1166-48-0	BU-P1166-60-2	BU-P1166-48-2
Description	TEST LEAD BANANA TO GATOR 12"	TEST LEAD BANANA TO GATOR 36"	TEST LEAD BANANA TO GATOR 36"	TEST LEAD BANANA TO GATOR 24"	TEST LEAD BANANA TO GATOR 12"	TEST LEAD BANANA TO GATOR 24"	TEST LEAD BANANA TO GATOR 60"	TEST LEAD BANANA TO GATOR 48"	TEST LEAD BANANA TO GATOR 60"	TEST LEAD BANANA TO GATOR 48"
stacking method	Multiple stacking, front and vertical stacking	Multiple stacking, front and vertical stacking	Multiple stacking, front and vertical stacking	Multiple stacking, front and vertical stacking	Multiple stacking, front and vertical stacking	Multiple stacking, front and vertical stacking	Multiple stacking, front and vertical stacking	Multiple stacking, front and vertical stacking	Multiple stacking, front and vertical stacking	Multiple stacking, front and vertical stacking
Configuration	Banana plug to short alligator clip	Banana plug to short alligator clip	Banana plug to short alligator clip	Banana plug to short alligator clip	Banana plug to short alligator clip	Banana plug to short alligator clip	Banana plug to short alligator clip	Banana plug to short alligator clip	Banana plug to short alligator clip	Banana plug to short alligator clip
first connector	Banana plug, single, stackable	Banana plug, single, stackable	Banana plug, single, stackable	Banana plug, single, stackable	Banana plug, single, stackable	Banana plug, single, stackable	Banana plug, single, stackable	Banana plug, single, stackable	Banana plug, single, stackable	Banana plug, single, stackable
Second connector	Terminal clamp, insulated	Terminal clamp, insulated	Terminal clamp, insulated	Terminal clamp, insulated	Terminal clamp, insulated	Terminal clamp, insulated	Terminal clamp, insulated	Terminal clamp, insulated	Terminal clamp, insulated	Terminal clamp, insulated
cable length	12.0"（304.80mm）	36.0"（914.40mm）	36.0"（914.40mm）	24.0"（609.60mm）	12.0"（304.80mm）	24.0"（609.60mm）	60.0"（1524.00mm）	48.0"（1219.20mm）	60.0"（1524.00mm）	48.0"（1219.20mm）
type	patch cord	patch cord	patch cord	patch cord	patch cord	patch cord	patch cord	patch cord	patch cord	patch cord
content	1 lead, black	1 lead, red	1 lead, black	1 lead, black	1 lead, red	1 lead, red	1 lead, black	1 lead, black	1 lead, red	1 lead, red
Material - Insulation	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)
Wire gauge	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG
Voltage - Rated	1000V（1kV）	1000V（1kV）	1000V（1kV）	1000V（1kV）	1000V（1kV）	1000V（1kV）	1000V（1kV）	1000V（1kV）	1000V（1kV）	1000V（1kV）
Rated current	10A	10A	10A	10A	10A	10A	10A	10A	10A	10A
