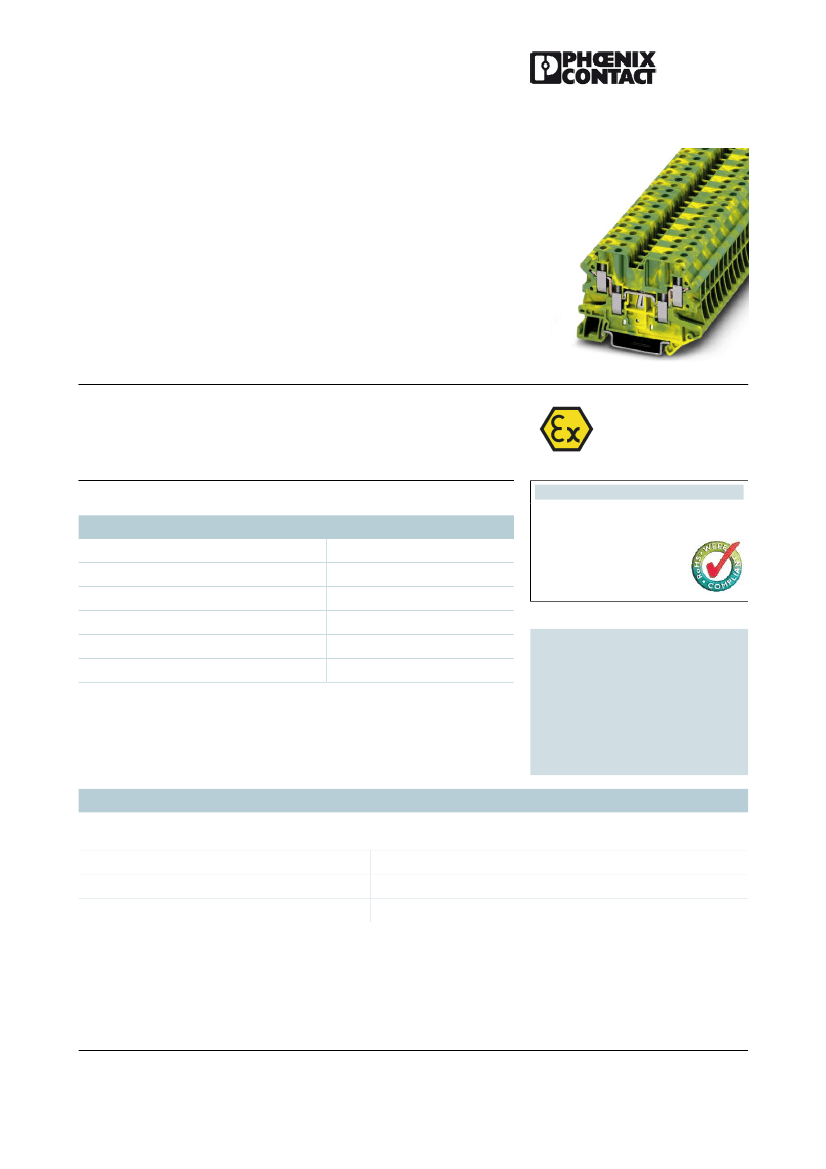

Extract from the online
catalog
UT 4-QUATTRO-PE
Order No.: 3044597
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3044597
Four-conductor universal ground terminal block, Type of
connection: Screw connection, Screw connection, Cross section:
0.14 mm² - 6 mm², AWG 26 - 10, Width: 6.2 mm, Color: green-yellow,
Mounting type: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
sales group
Pack
Customs tariff
Weight/Piece
Catalog page information
4046356055482
A833
50 pcs.
85369010
0.02152 KG
Page 39 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
04/16/2004
Technical data
General
Number of levels
Number of connections
Color
1
4
green-yellow
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 6
Oct 28, 2010
UT 4-QUATTRO-PE
Order No.: 3044597
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3044597
Insulating material
Inflammability class acc. to UL 94
Bridge accessories
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
PA
V0
3030271 FBS 10-6
6.2 mm
65.4 mm
47.5 mm
55 mm
6 kV
3
III
I
IEC 60947-7-2
ja
0.14 mm²
6 mm²
0.14 mm²
6 mm²
26
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 6
Oct 28, 2010
UT 4-QUATTRO-PE
Order No.: 3044597
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3044597
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
0.5 mm²
1 mm²
0.14 mm²
1.5 mm²
Screw connection
9 mm
A4
M3
0.6 Nm
0.8 Nm
Certification
Certification Ex:
CUL
AWG/kcmil
UL
AWG/kcmil
Accessories
Item
Assembly
3047196
3022218
ATP-UT-QUATTRO
CLIPFIX 35
Designation
CUL, GL, UL
IECEx, KEMA-EX
26-10
26-10
Description
Partition plate, Length: 69.7 mm, Width: 2.2 mm, Height: 52.5 mm,
Color: gray
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 6
Oct 28, 2010
UT 4-QUATTRO-PE
Order No.: 3044597
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3044597
3022276
CLIPFIX 35-5
Snap-on end bracket, for NS 35/7.5 or NS 35/15 DIN rail, can be
fitted with Zack strip ZB 5 and ZBF 5, terminal strip marker KLM
2 and KLM, parking facility for FBS...5, FBS...6, KSS 5, KSS 6,
width: 5,15 mm, color: gray
End cover, Length: 65.4 mm, Width: 2.2 mm, Height: 47.5 mm,
Color: gray
Cover segment, Color: gray
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
3047170
3047109
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
D-UT 2,5/4-QUATTRO
DS-UT 2,5/4
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
Bridges
3030336
3030242
3030255
3030349
3030271
3030365
3032224
Marking
3047332
0811228
1051016
5060935
WS UT 4
X-PEN 0,35
ZB 6,LGS:FORTL.ZAHLEN
ZB 6/WH-100:UNBEDRUCKT
Warning sign for UT terminal blocks
Marker pen without ink cartridge, for manual labeling of markers,
labeling extremely wipe-proof, line thickness 0.35 mm
Zack marker strip, 10-section, printed horizontally: with the
numbers 1 - 10, 11 - 20 and so on up to 491 - 500, color: white
Zack strip, unprinted: For individual labeling with M-PEN, ZB-T
or CMS system, large batch, sufficient for labeling 1000 terminal
blocks, for a terminal width of 6.2 mm, color: White
FBS 2-6
FBS 3-6
FBS 4-6
FBS 5-6
FBS 10-6
FBS 20-6
FBS 50-6
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 50, Color: red
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 6
Oct 28, 2010
UT 4-QUATTRO-PE
Order No.: 3044597
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3044597
1050499
ZB 6:SO/CMS
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Plug/Adapter
0201689
0201676
0201663
0201744
3030925
3030996
3038736
Tools
1205053
SZS 0,6X3,5
Actuation tool, for ST terminal blocks, insulated, also suitable
for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-
component grip, with non-slip grip
MPS-IH BU
MPS-IH RD
MPS-IH WH
MPS-MT
PAI-4
PS-6
PS-6/2,3MM RD
Insulating sleeve, Color: blue
Insulating sleeve, Color: red
Insulating sleeve, Color: white
Test plugs
Test adapter, Color: gray
Test adapter, Color: red
Test plugs, Color: red
Diagrams/Drawings
Circuit diagram
