UMFT201XB, UMFT220XB and UMFT230XB Datasheet
Version 1.2
Document Reference No.: FT_000506
Clearance No.: FTDI# 272
Future Technology
Devices International
Ltd
Datasheet
UMFT201XB, UMFT220XB,
UMFT230XB Breakout
Modules
USB to I
2
C/UART/FT1248 breakout modules
1
Introduction
UMFT201XB, UMFT220XB, and UMFT230XB breakout
modules utilize FTDI’s FT201XQ, FT220XQ, and
FT230XQ chips, respectively, to convert USB to serial
or parallel interfaces. . These modules support the
following popular interfaces:
-
-
UMFT201XB bridges from USB to I
2
C IC.
UMFT220XB bridges from USB to a user chosen,
parallel bit interface, FTDI’s FT1248/SPI. Note: 2
out of the 4 I/0 lines are available for this module.
UMFT230XB bridges from USB to UART IC.
1.1
Features

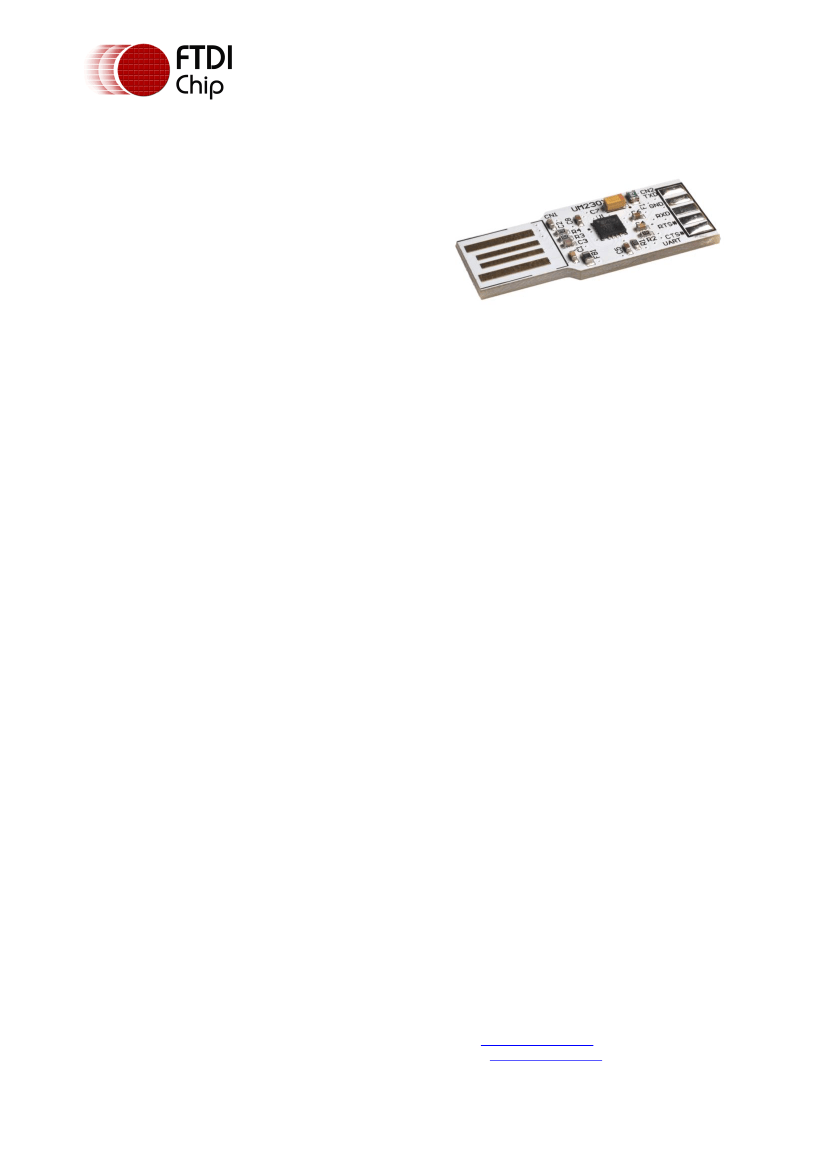

This module is a breakout board with a low
profile. It converts USB2.0 Full-Speed to a
serial interface and connects the serial
signals to a 2.54mm (0.1”) pitch 10pin
female receptacle. The boards do not use a
USB connector, but instead the modules
plug directly into the USB host connector
and the pads of the PCB makes electrical
contact with the electrical contacts of the
USB connector.
All serial interfaces on these modules
operate at +3.3V voltage levels, however all
I/Os are 5V tolerant.
-
2
Driver Support
Royalty-Free VIRTUAL COM PORT (VCP)
DRIVERS for:
Windows 8 32,64-bit
Windows 7 32,64-bit
Windows Vista
Windows XP 32,64-bit
Windows XP Embedded
Windows CE.NET 4.2 , 5.0 and 6.0
MAC OS OS-X
Linux 3.0 and greater
Android
Royalty-Free D2XX Direct Drivers (USB Drivers +
DLL S/W Interface):
Windows 8 32,64-bit
Windows 7 32,64-bit
Windows Vista
Windows XP 32,64-bit
Windows XP Embedded
Windows CE.NET 4.2, 5.0 and 6.0
MAC OS OS-X
Linux 3.0 and greater
Android
The drivers listed above are all available to download for free from
www.ftdichip.com.
Various 3rd Party
Drivers are also available for various other operating systems - visit
www.ftdichip.com
for details.
Use of FTDI devices in life support and/or safety applications is entirely at the user’s risk, and the user agrees
to defend, indemnify and hold harmless FTDI from any and all damages, claims, suits or expense resulting
from such use.
UMFT201XB, UMFT220XB and UMFT230XB Datasheet
Version 1.2
Document Reference No.: FT_000506
Clearance No.: FTDI#
272
3
Ordering Information
Module
UMFT201XB-01
UMFT201XB-NC
Interface
I
2
C
I
2
C
Features
USB to I
2
C with four control bus lines, 3.3V power out (with a 50mA
current limit) and fused 5V. Standard option, connector fitted to CN2.
USB to I
2
C with four control bus lines, 3.3V power out (with a 50mA
current limit) and fused 5V. No connector option, no connector is fitted
to CN2.
USB to I
2
C with four control bus lines, 3.3V power out (with a 50mA
current limit) and fused 5V. Wire ended option, 6” flying leads fitted to
CN2.
USB to FT1248 uses 2 FT1248 I/O lines, 3.3V power out (with a 50mA
current limit) and fused 5V. Standard option, connector fitted to CN2.
USB to FT1248 uses 2 FT1248 I/O lines, 3.3V power out (with a 50mA
current limit) and fused 5V. No connector option, no connector is fitted
to CN2.
USB to FT1248 uses 2 FT1248 I/O lines, 3.3V power out (with a 50mA
current limit) and fused 5V. Wire ended option, 6” flying leads fitted to
CN2.
USB to UART with four control bus lines, 3.3V power out (with a 50mA
current limit) and fused 5V. UART rate can be up to 3 Mega Baud.
Standard option, connector fitted to CN2.
USB to UART with four control bus lines, 3.3V power out (with a 50mA
current limit) and fused 5V. UART rate can be up to 3 Mega Baud. No
connector option, no connector is fitted to CN2.
USB to UART with four control bus lines, 3.3V power out (with a 50mA
current limit) and fused 5V. UART rate can be up to 3 Mega Baud. Wire
ended option, 6” flying leads fitted to CN2.
UMFT201XB-WE
I
2
C
UMFT220XB-01
UMFT220XB-NC
4-bit
FT1248
4-bit
FT1248
4-bit
FT1248
Basic
UART
Basic
UART
Basic
UART
UMFT220XB-WE
UMFT230XB-01
UMFT230XB-NC
UMFT230XB-WE
2
Copyright © 2015 Future Technology Devices International Limited
UMFT201XB, UMFT220XB and UMFT230XB Datasheet
Version 1.2
Document Reference No.: FT_000506
Clearance No.: FTDI#
272
Table of Contents
1
2
3
4
Introduction ................................................................................... 1
1.1
Features ........................................................................................................ 1
Driver Support ................................................................................ 1
Ordering Information ..................................................................... 2
Signals and Configurations ............................................................. 4
4.1
4.2
4.3
4.4
4.5
4.6
4.7
UMFT-XB Module Pin Outs ............................................................................. 4
Signal Descriptions ....................................................................................... 4
UMFT201XB CN2 Signal Descriptions ............................................................ 5
UMFT220XB CN2 Signal Descriptions ............................................................ 5
UMFT230XB CN2 Signal Descriptions ............................................................ 6
CBUS Signal Options ..................................................................................... 6
Configuring the MTP ROM .............................................................................. 7
5
6
7
Module Dimensions ........................................................................ 8
IC Package Markings ...................................................................... 8
UMFT-XB-WE Module Wire Connections .......................................... 9
7.1
7.2
7.3
UMFT201XB-WE Wire Connections ................................................................ 9
UMFT220XB-WE Wire Connections .............................................................. 10
UMFT230XB-WE Wire Connections .............................................................. 10
8
Module Circuit Schematics ............................................................ 11
8.1
8.2
8.3
UMFT201XB Schematic ................................................................................ 11
UMFT220XB Schematic ................................................................................ 11
UMFT230XB Schematic ................................................................................ 12
9
Environmental Compliances ......................................................... 12
10 Internal MTP ROM Configuration .................................................. 13
11 Contact Information ..................................................................... 14
Appendix A - List of Figures and Tables ................................................................. 15
Appendix B: Revision History ................................................................................ 16
3
Copyright © 2015 Future Technology Devices International Limited
UMFT201XB, UMFT220XB and UMFT230XB Datasheet
Version 1.2
Document Reference No.: FT_000506
Clearance No.: FTDI#
272
4
Signals and Configurations
For all three modules, CN1 connects directly to a USB host or HUB port, or can be connected to a USB
extension cable. This connects the USB data signals, 5V USB Bus power and GND. When connecting these
modules to a USB host or HUB the USB signal pads should be facing upwards, and when connecting to
vertical connector the USB signal pad should be facing right. If the module is plugged in the wrong way,
no contact will be made between PCB and HUB, no damage will occur from plugging the module in upside
down.
4.1
UMFT-XB Module Pin Outs
Pin
1
2
3
4
5
6
7
8
9
10
UMFT201XB
SCL
VBUS
GND
RESET
SDA
3V3
CB0
CB2
CB1
CB3
UMFT220XB
IO0
VBUS
GND
RESET#
SCK
3V3
SS#
CB3
MISO
IO1
UMFT230XB
TXD
VBUS
GND
RESET#
RXD
3V3
RTS#
CB0
CTS#
CB1
Table 4.1 Module PinOut List
4.2
Pin No.
Signal Descriptions
Name
Type
Description
5V power input USB port. For a low power USB bus powered design, up to 100mA can
be sourced from the 5V supply on the USB bus. A maximum of 500mA can be sourced
from the USB bus in a high power USB bus powered design.
Negative USB data signal
Positive USB data signal
1
2
3
VBUS
D-
D+
PWR
Signal
Signal
4
GND
PWR
Module Ground Supply
Table 4.2 CN1 PinOut Description
4
Copyright © 2015 Future Technology Devices International Limited
UMFT201XB, UMFT220XB and UMFT230XB Datasheet
Version 1.2
Document Reference No.: FT_000506
Clearance No.: FTDI#
272
4.3
UMFT201XB CN2 Signal Descriptions
Pin No.
1
2
3
4
5
6
Name
SCL
VBUS
GND
RST#
SDA
3V3
Type
Input
PWR
Output
PWR
Input
I/O
Output
Description
I2C clock input
5V Power output USB port.
Module Ground Supply
Can be used by an external device to reset the FT201X. If not required can be left
unconnected, or pulled up to VCCIO.
I2C bi-directional data line
3.3V output from integrated LDO regulator. This pin is decoupled to ground on the
module PCB with a 10nF capacitor. The prime purpose of this pin is to provide the
internal 3.3V supply to the USB transceiver cell.
Configurable CBUS I/O Pin. Function of this pin is configured in the device internal
MTP ROM. Factory Default pin Function is PWREN#. See CBUS Signal Options, Table 4.6
Configurable CBUS I/O Pin. Function of this pin is configured in the device internal
MTP ROM. Factory Default pin Function is SLEEP#. See CBUS Signal Options, Table 4.6
Configurable CBUS I/O Pin. Function of this pin is configured in the device internal
MTP ROM. Factory Default pin Function is Tristate. See CBUS Signal Options, Table 4.6
Configurable CBUS I/O Pin. Function of this pin is configured in the device internal
7
CB0
I/O
8
CB2
I/O
9
CB3
I/O
MTP ROM. Factory Default pin Function is Tristate. See CBUS Signal Options, Table 4.6
Table 4.3 I C Module Pin Out Description
2
10
CB3
I/O
4.4
UMFT220XB CN2 Signal Descriptions
Pin No.
1
2
3
4
5
6
7
8
9
Name
IO0
VBUS
GND
RST#
SCK
3V3
SS#
CB3
MISO
Type
I/O
PWR
Output
PWR
Input
Input
Output
Input
I/O
Output
Description
FT1248 Bi-Directional data bit 0
5V Power output USB port.
Module Ground Supply
Can be used by an external device to reset the FT220X. If not required can be left
unconnected, or pulled up to VCCIO.
FT1248 Clock input from FT1248 interface master
3.3V output from integrated LDO regulator. This pin is decoupled to ground on the
module PCB with a 10nF capacitor. The prime purpose of this pin is to provide the
internal 3.3V supply to the USB transceiver cell.
FT1248 Chip select input to enable the device interface. Active low logic.
Configurable CBUS I/O Pin. Function of this pin is configured in the device internal
MTP ROM. Factory Default pin Function is PWREN#. See CBUS Signal Options, Table 4.6
Master In Serial Out. Used to provide status information to the FT1248 interface
master.
10
IO1
I/O
FT1248 Bi-Directional data bit 1
Table 4.4 FT1248 Module Pin Out Description
5
Copyright © 2015 Future Technology Devices International Limited
