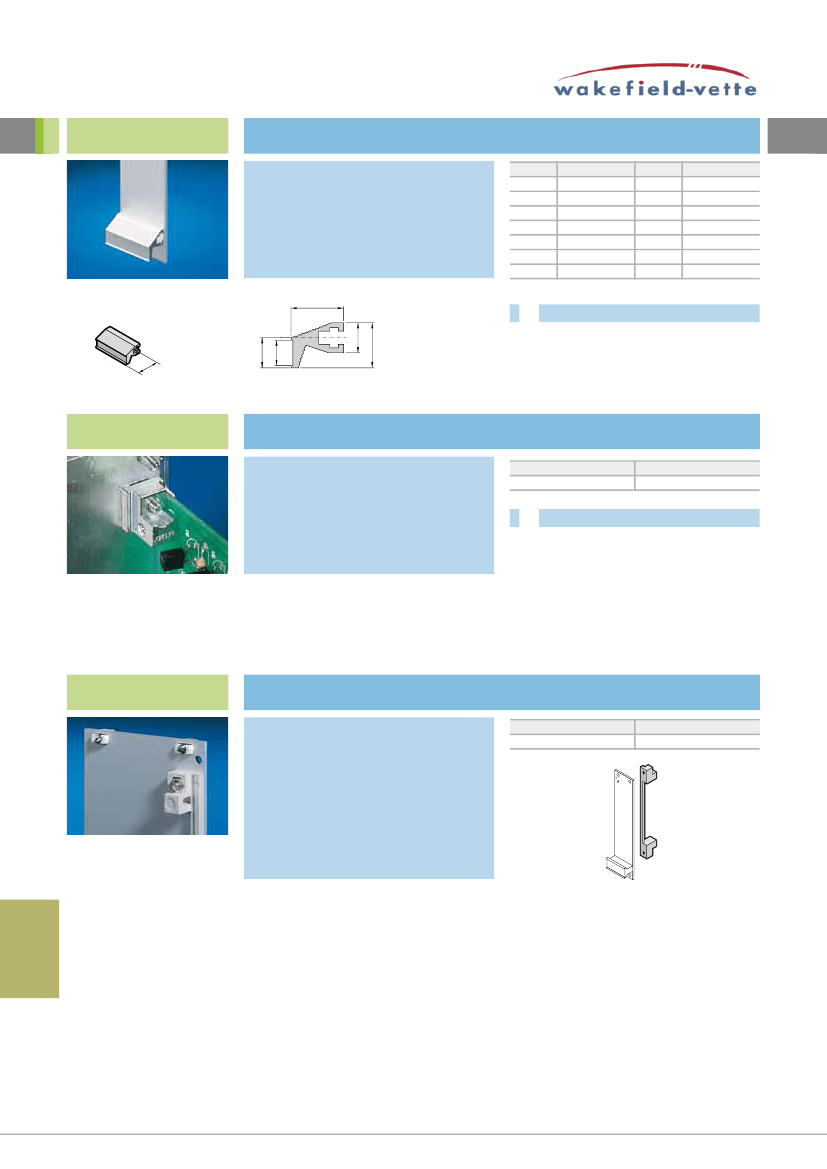

COMPONENTS / ACCESSORIES
Front panels, HanDles
type vi handle
aluminum
material:
Aluminum, anodized.
HP
3
4
5
6
7
8
10
14
order no.
3685.605
3685.606
3685.607
3685.608
3685.609
3685.610
3685.611
HP
12
14
21
28
42
84
1m
order no.
3685.612
3685.613
3685.614
3685.615
3685.616
3685.617
3685.618
!
8
also required:
14
Mounting kit,
packs of 1 set, order no. 3687.146,
(from 6 HP 2 packs required),
see page 165
pcB holder kit
For attaching the PCB to front panels with handle
types I, II, IV, IVs, VII.
material:
Die-cast
note:
Only required at the top with 3 U front panels.
Packs of
10
order no.
3685.198
6.7
8
12
!
also required:
For attaching the PCB to the PCB holder:
Pan-head screws,
packs of 100, order no. 3654.320,
see page 164
For attaching the front panel to the PCB holder:
Oval csk-screws,
packs of 100, order no. 3685.282,
see page 165
pcB holder
For front panels
For attaching PCBs to front panels
(handle type V, VI).
material:
Noryl
supply includes:
Assembly parts.
Packs of
10
order no.
3606.330
146
