5187-C-48: DescriptionBNC MALE/MINIGRABBER RG58C/U 48"; CategoryTopical application Test and measurement; File Size29KB，1 Pages; ManufacturerPomona Electronics

Download Datasheet Parametric Compare View All

5187-C-48 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5187-C-48	-	-	View	Buy Now

5187-C-48 Overview

BNC MALE/MINIGRABBER RG58C/U 48"

5187-C-48 Parametric

Parameter Name	Attribute value
Configuration	BNC to grabber, hook
first connector	BNC, male plug
Second connector	mini hook (2)
cable length	48.0"（1219.20mm）
Wire gauge	20 AWG
Cable type	RG-58C/U
Voltage - Rated	300VAC
temperature range	122°F（50°C）
Material - Insulation	Polyvinyl chloride (PVC)
color	Black cable with black and red leads

Preview

Download Datasheet

View All

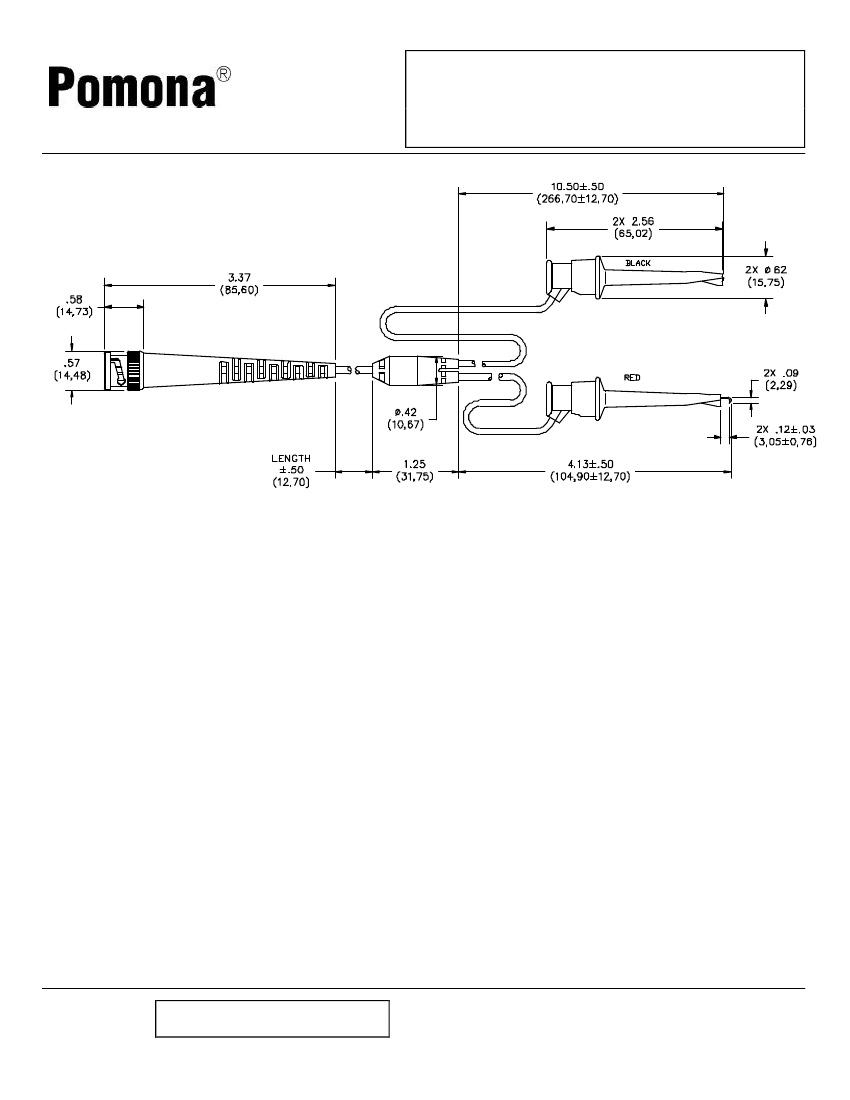

Model 5187

BNC (Male) With Molded Strain

Relief To Minigrabber® Test Clips

FEATURES:

•

BNC Cable breakouts to Minigrabber® Test Clips for test versatility.

•

BNC connector and breakout wires are molded directly to the cable for added pull strength.

•

Grabber hook attaches to terminal sizes up to .060” (1,5mm)

•

Schematic: Black Grabber to BNC Shell, Red Grabber to BNC Center Contact.

MATERIALS:

BNC: Body: Brass, Nickel Plated, Center Pin: Brass, Gold Plated, Impedance: 50 Ohms

Strain Relief and Molded Breakout: PVC, Color: Black

Breakout Wires: 20 AWG Stranding 41 x 36 t. c., PVC Insulated, .087” (2,21 mm) O.D.,

Color Matches Grabbers

Cable: “C” Cable: RG58C/U, .195” (5.0mm) O.D., Color: Black, 20AWG (Strand 19 x .0071 t.c.)

“K” Cable: RG174/U, .100” (2.5mm) O.D., Color: Black, 26 AWG (Strand 7 x 34 Bare Copper)

Marking “POMONA“ 5187-C-XX” or “5187-K-XX”

Grabber: Contact – Beryllium Copper, Gold Plated

Spring – Stainless Steel

Insulation – Glass Filled Nylon. Color: one red, one black

RATING:

Operating Voltage: 300 VRMS

Operating Temperature: 50°C (+122°F) Max.

ORDERING INFORMATION:

Model 5187-Cable Code- Length in Inch

Cable Code: -C = RG58C/U, -K = RG174/U, XX = Lengths in Inches, Std. Lengths: 24” (60,96 cm), 36” (91,44 cm),

48” (121,92 cm) & 60” (152,40 cm) Additional lengths are available upon request.

Ordering Example: 5187-C-36, Cable will be 36” (91,44cm) of RG58C/U.

All dimensions are in inches and metric. All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

12/10/01 SY/EH/LS

Last saved by SY

Sales: 909-469-2900 Fax: 909-629-3317

Technical Assistance: 800-241-2060

PomonaACCESS

90458

(800) 444-6785 or (909) 469-2991

More drawings available at www.pomonaelectronics.com

Page 1 of 1

S:\Engineering\Release\DataSheet \Market_01\D5187_1_02.doc
