Model 5056 & Assembly Instructions
Triaxial Male 2 Lug Connector to Cable

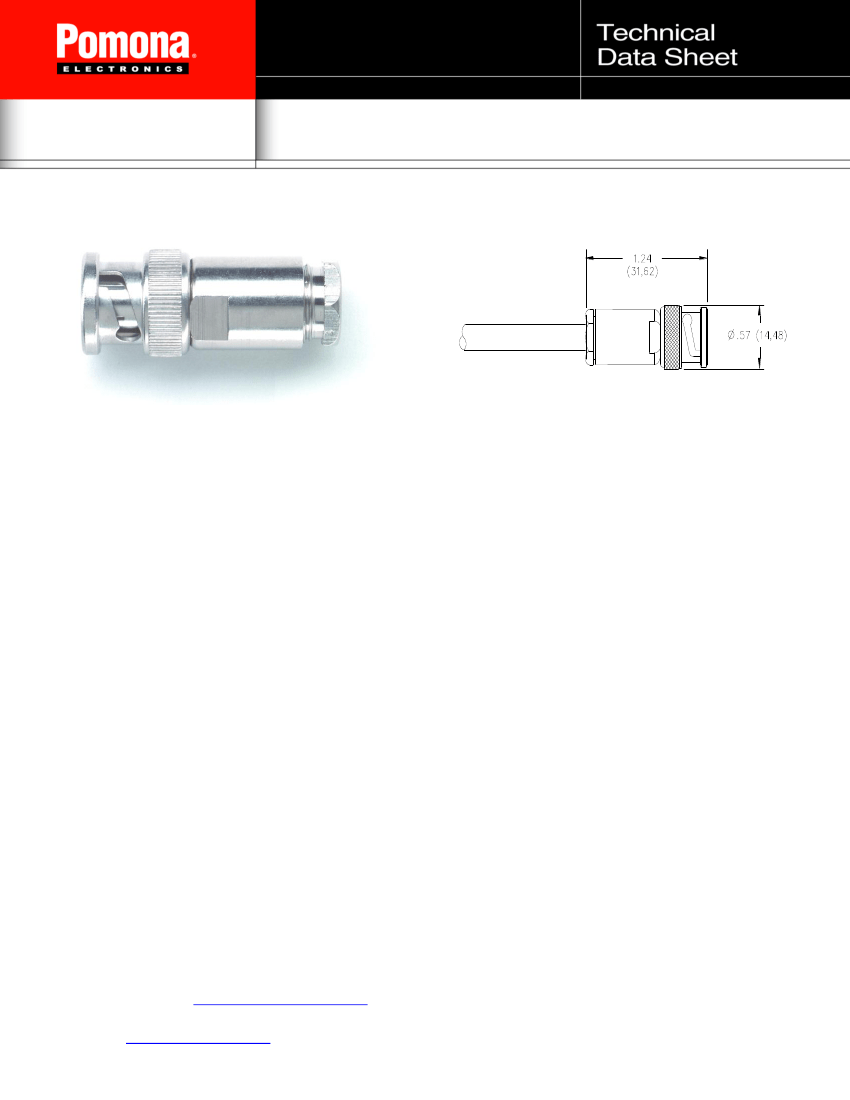

Model 5056
Triaxial Male 2 Lug Connector to Cable
Features
Fits Belden 9222 triaxial cable, 0.242” O.D.
Materials
Body and Fittings:
Center Contacts:
Outer Contact:
Dielectric:
Brass, Tarnish Resistant Plating
Male: Brass, Gold Plated
Beryllium Copper, Gold Plated
PTFE
Specifications
Voltage:
Impedance:
Temperature:
Frequency Range:
500 Vrms
50 Ohm
-65° C. (-85° F.) to +165° C. (+329° F.)
DC to 500 MHz
Ordering Information
Model: 5056
Triaxial Male 2 Lug Connector for Belden 9222 Cable
USA:
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2012
D1094270 Rev. 100
Page 1 of 2
Model 5056 & Assembly Instructions
Triaxial Male 2 Lug Connector to Cable

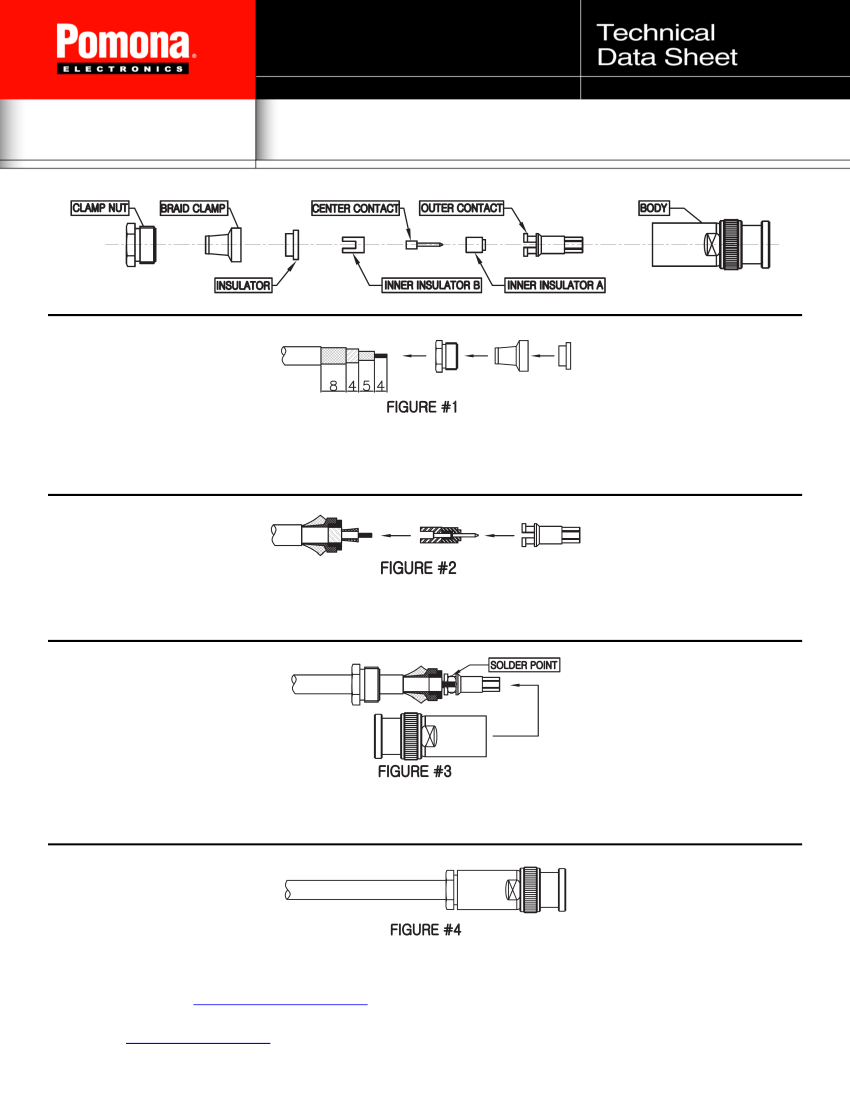

1.1 Strip cable per drawing lengths (mm).
1.2 Slide nut onto stripped cable.
1.3 Insert braid clamp and insulation on stripped cable.
2.1 Solder pin with center conductor then insert inner insulator A and B on the pin.
2.2 Peel back shield and insert outer contact.
3.1 Position shield on solder point and solder outer contact to shield.
3.2 Insert body on assembled cable and fasten with wrench.
4.1 Completed assembly shown.
