Mechanical Note:
A
REVISIONS
DATE
23SEP14
1.
2.
3.
4.
5.
6.
7.
8.
Overall Height: ~ 87 mm from Mounting Surface
Weight: 0.42 lbs
IP Rating: IP67
Operating temp: -35 C to +65 C
Storage Temp: -45 C to +65 C
Color: White
Mounting: Permanent Mount (See "Recommended Mounting Conditions")
Installation Torque: 4 - 6 ft*lbs on Nut
A
Electrical Note:
B
1.
2.
3.
4.
5.
Frequency: VSWR
698 - 806 MHz: < 2.5 : 1.0
806 - 960 MHz: < 2.0 : 1.0
1710 - 2700 MHz: < 2.0:1.0
Nominal Impedance: 50 OHM
Polarization: Vertical
Pattern: Omnidirectional
Ground Plane: No Ground Plane Required
B
37
Packaging Note:
C
1.
2.
3.
4.
Laird Technologies SKU: TRA6927M3PWN-001
Package: S1136
Units per Package: 1
Package Label: Printed Bag
C
D
D
87
High Strength Impact Resistant ABS Radome
111
E
E
5/8" [15.88 mm]
Rugged Insert Molded Design
F
O-ring must be in place during installation
and must get full compression on the
ground plane or surface
Recommended Mounting Conditions:
Surface should be as flat and clean as possible
Hole should be centered as much as possible
Thru Hole
F
Permanent Mount with Hardware
Standard N-Female Termination
G
Protective cap during shipping
Remove before installation
G
Notes:
THE COMPONENTS(S), INCLUDING ANY PLATING, FINISHES, COATINGS, CHEMICALS AND SURFACES TREATMENTS,
SUPPLIED IN THIS DOCUMENT/DRAWING MUST CONFORM AND COMPLY WITH THE LATEST ISSUE OF LAIRD
TECHNOLOGIES SPECIFICATION LT-GES-001, WHICH FULLY INCLUDES BUT IS NOT LIMITED TO ALL CONTENTS
OF EU DIRECTIVES 2002/96/EC (RoHS DIRECTIVE), AS WELL AS INCLUDES REQUIREMENTS OF THE JOINT INDUSTRY
GUIDE STANDARD JIG-101, APRIL 2005. THE COMPONENT(S) IN THIS DOCUMENT/DRAWING MAY BE SUBJECT TO
A FULL COMPOUND ANALYSIS FOR PROOF OF COMPLIANCE. THE LATEST ISSUE OF LAIRD TECHNOLOGIES
SPECIFICATION LT-GES-001, (GENERAL SPECIFICATION FOR THE ENVIRONMENT) IS READILY AVAILABLE UPON
REQUEST FROM THE SUPPLIER.
MATERIAL:
N/A
FINISH:
N/A
APPROVALS
DATE
ME:
B. HOFFMAN 23SEP14
RF:
R. HARO
23SEP14
THIRD ANGLE
PROJECTION
INTERPRET DIMENSIONING AND
TOLERANCING IN ACCORDANCE
WITH ASME Y14.5M-1994
DO NOT SCALE DRAWING
1751 WILKENING COURT
SCHAUMBURG, IL 60173
USA
H
M:\18 - ARAS\Ben\ARAS WD\TRA6927 - NGP\M&O\
UNLESS OTHERWISE NOTED, THIS DOCUMENT CONTAINS LAIRD TECHNOLOGIES CONFIDENTIAL INFORMATION.
EM:
REPRODUCTION, USE, DISCLOSURE OR TRANSMITTAL OF ALL OR ANY PART OF THIS DOCUMENT IS PROHIBITED
EXCEPT TO THE EXTENT APPROVED IN WRITING BY AN AUTHORIZED REPRESENTATIVE OF LAIRD TECHNOLOGIES.
Prod:
LAIRD TECHNOLOGIES RESERVES ALL RIGHTS UNDER PATENTS, TRADEMARKS, COPY RIGHTS AND TRADE SECRETS.
COPYRIGHT, LAIRD TECHNOLOGIES 2008, ALL RIGHTS RESERVED.
TOLERANCES UNLESS OTHERWISE
SPECIFIED
DIMENSIONS ARE IN MILLIMETERS
ANGLE:
0 PLACE DECIMAL:
1 PLACE DECIMAL:
2 PLACE DECIMAL:
30'
0.5
0.25
0.13

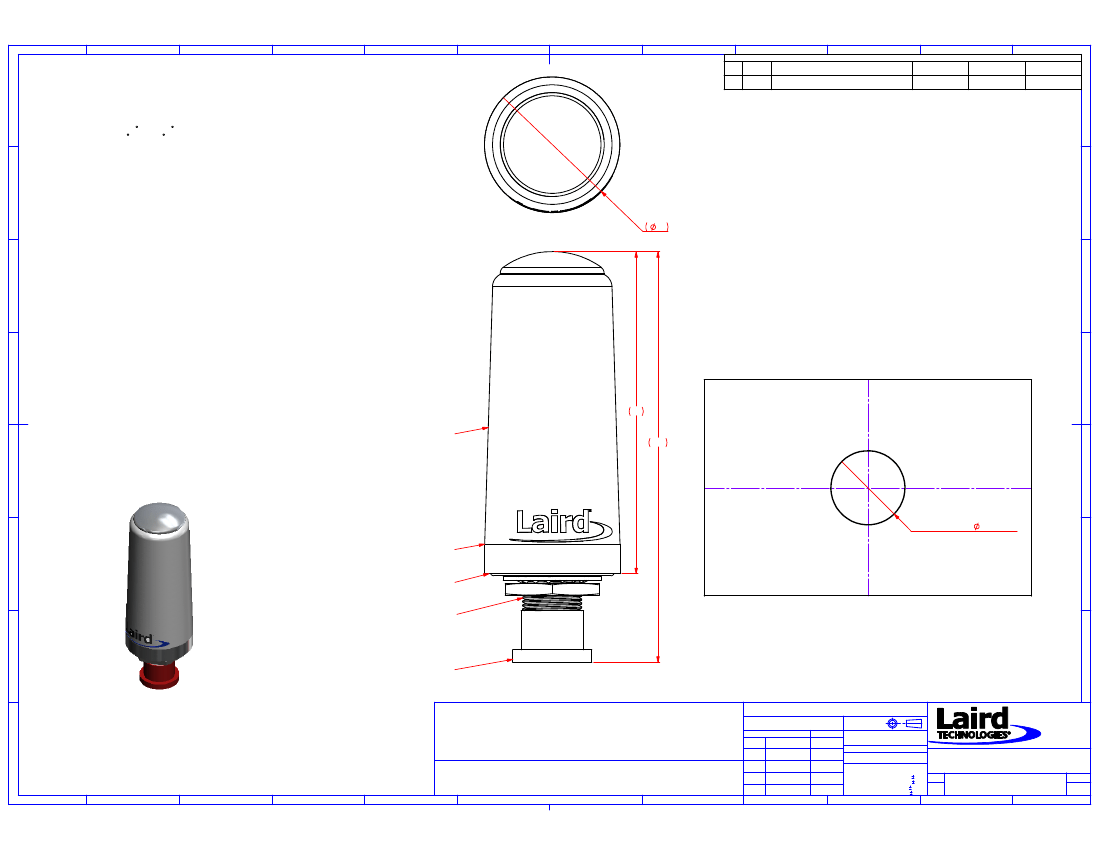

MOUNTING & OUTLINE
TRA6927M3PWN-001
SIZE DWG NO.
TRA6927M3PWN-001MO
A2
SHEET 1 OF 1
