SE40PB, SE40PD, SE40PG, SE40PJ
www.vishay.com
Vishay General Semiconductor
Surface-Mount ESD Capability Rectifiers
FEATURES
eSMP
Series
K
®
• Very low profile - typical height of 1.1 mm
• Ideal for automated placement
• Oxid planar chip junction
• Low forward voltage drop
• ESD capability
Available
1
2
SMPC
(TO-277A)
K
Cathode
Anode 1
Anode 2
• Meets MSL level 1, per J-STD-020,
LF maximum peak of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
I
R
V
F
at I
F
= 4.0 A, (125 °C)
T
J
max.
Package
Circuit configuration
4.0 A
100 V, 200 V, 400 V, 600 V
60 A
10 μA
0.91 V
175 °C
SMPC (TO-277A)
Single
General purpose, power line polarity protection in both
consumer and automotive applications.
MECHANICAL DATA
Case:
SMPC (TO-277A)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3_X - halogen-free, RoHS-compliant and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B,.....)
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 1A whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum DC forward current
Peak forward surge current 10 ms single half
sine-wave superimposed on rated load
Operating junction and storage temperature range
Notes
(1)
Mounted on 14 mm x 14 mm pad areas, 2 oz. FR4 PCB
(2)
Free air, mounted on recommended copper pad area
V
RRM
I
F (1)
I
F (2)
I
FSM
T
J
, T
STG
SYMBOL
SE40PB
40B
100
SE40PD
40D
200
4.0
2.4
60
-55 to +175
SE40PG
40G
400
SE40PJ
40J
600
V
A
A
°C
UNIT
Revision: 22-Mar-18
Document Number: 87954
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SE40PB, SE40PD, SE40PG, SE40PJ
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
I
F
= 2.0 A
Instantaneous forward voltage
I
F
= 4.0 A
I
F
= 2.0 A
I
F
= 4.0 A
Reverse current
Typical reverse recovery time
Typical junction capacitance
rated V
R
T
A
= 25 °C
V
F (1)
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
I
R (2)
t
rr
C
J
SYMBOL
TYP.
0.92
1.00
0.82
0.91
0.1
19
2.2
28
MAX.
-
1.05
-
0.96
10
150
-
-
μA
μs
pF
V
UNIT
I
F
= 0.5 A, I
R
= 1.0 A, I
rr
= 0.25 A
4.0 V, 1 MHz
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JM
(2)
SE40PB
SE40PD
70
6.6
SE40PG
SE40PJ
UNIT
°C/W
Notes
(1)
Free air, mounted on recommended PCB 1 oz. pad area; thermal resistance R
JA
- junction to ambient
(2)
Units mounted on PCB with 14 mm x 14 mm pad areas, 2 oz. FR4 PCB; R
JM
- junction to mount
IMMUNITY TO ELECTRICAL STATIC DISCHARGE TO THE FOLLOWING STANDARDS
(T
A
= 25 °C, unless otherwise noted
STANDARD
AEC-Q101-001
TEST TYPE
Human body model
(contact mode)
TEST CONDITIONS
C = 100 pF, R = 1.5 k
SYMBOL
V
C
CLASS
H3B
VALUE
> 8 kV
ORDERING INFORMATION
(Example)
PREFERRED P/N
SE40PJ-M3/86A
SE40PJ-M3/87A
SE40PJHM3_A/H
(1)
SE40PJHM3_A/I
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.10
0.10
0.10
0.10
PREFERRED PACKAGE CODE
86A
87A
H
I
BASE QUANTITY
1500
6500
1500
6500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Revision: 22-Mar-18
Document Number: 87954
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SE40PB, SE40PD, SE40PG, SE40PJ
www.vishay.com
Vishay General Semiconductor

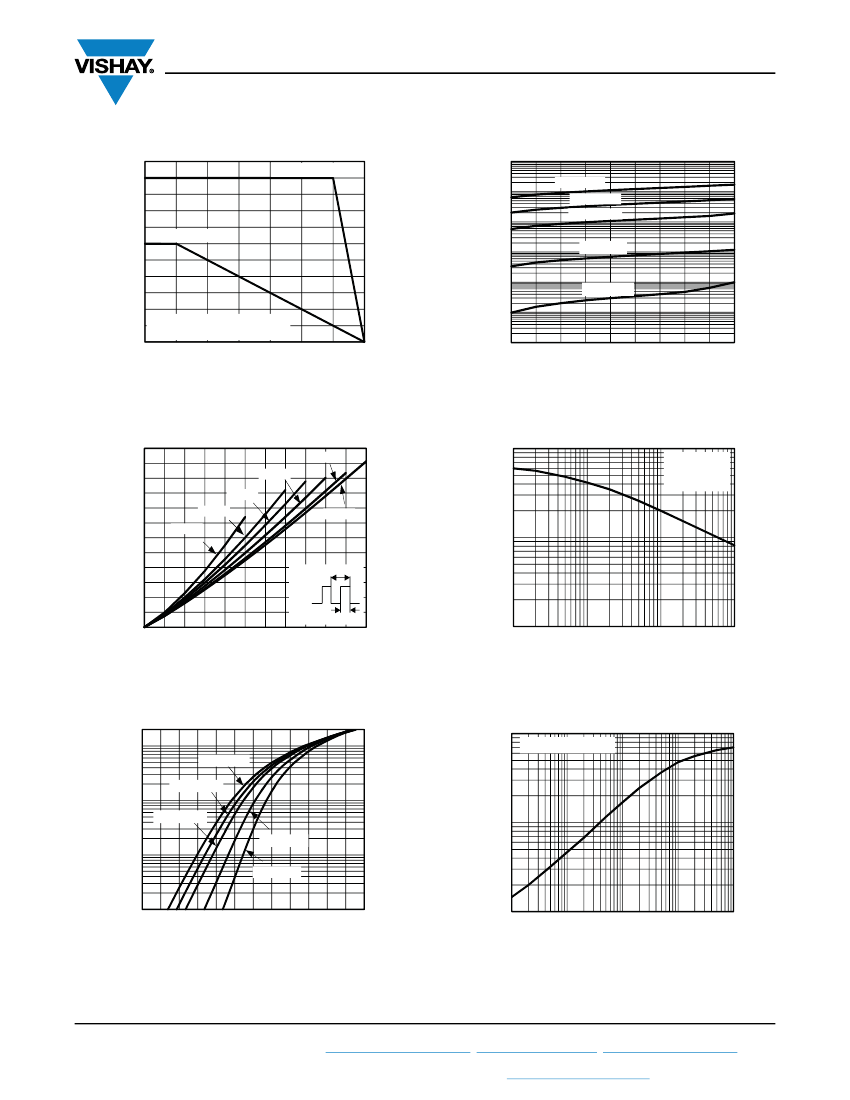

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
Average Forward Rectified Current (A)
Instantaneous Reverse Current (μA)
4.4
4
3.6
3.2
2.8
2.4
2
1.6
1.2
0.8
0.4
0
0
T
M
measured at cathode band
terminal PCB mount
25
50
75
100
125
150
175
T
A
= 25 °C
R
thJ-M
= 6.6 °C/W
1000
T
A
= 175 °C
100
10
1
0.1
0.01
0.001
10
T
A
= 150 °C
T
A
= 125 °C
T
A
= 75 °C
T
A
= 25 °C
20
30
40
50
60
70
80
90
100
Mount Temperature (°C)
Fig. 1 - Maximum Forward Current Derating Curve
Percent of Rated Peak Reverse Voltage (%)
Fig. 4 - Typical Reverse Leakage Characteristics
4.8
4.4
100
D = 0.8
D = 0.5
D = 0.3
D = 0.2
D = 0.1
D = 1.0
Average Power Loss (W)
4.0
3.6
3.2
2.8
2.4
2.0
1.6
1.2
0.8
0.4
0.0
0
0.4 0.8 1.2 1.6
2
Junction Capacitance (pF)
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
10
T
D = t
p
/T
t
p
1
0.1
1
10
100
2.4 2.8 3.2 3.6 4 4.4
Average Forward Current (A)
Fig. 2 - Forward Power Loss Characteristics
Reverse Voltage (V)
Fig. 5 - Typical Junction Capacitance
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
100
Junction to Ambient
10
T
A
= 175 °C
T
A
= 150 °C
1
T
A
= 125 °C
T
A
= 75 °C
0.1
T
A
= 25 °C
10
0.01
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4
1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
t - Pulse Duration (s)
Fig. 6 - Typical Transient Thermal Impedance
Revision: 22-Mar-18
Document Number: 87954
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SE40PB, SE40PD, SE40PG, SE40PJ
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
SMPC
(TO-277A)
0.187 (4.75)
0.175 (4.45)
K
0.016 (0.40)
0.006 (0.15)
Vishay General Semiconductor
0.262 (6.65)
0.250 (6.35)
0.242 (6.15)
0.238 (6.05)
2
1
0.171 (4.35)
0.167 (4.25)
0.146 (3.70)
0.134 (3.40)
0.087 (2.20)
0.075 (1.90)
0.047 (1.20)
0.039 (1.00)
Mounting Pad Layout
0.189 (4.80)
MIN.
0.189 (4.80)
0.173 (4.40)
0.155 (3.94)
NOM.
0.030 (0.75) NOM.
0.268
(6.80)
0.186 (4.72)
MIN.
0.049 (1.24)
0.037 (0.94)
0.084 (2.13) NOM.
0.053 (1.35)
0.041 (1.05)
Conform to JEDEC
®
TO-277A
0.050 (1.27)
MIN.
0.041
(1.04)
0.055 (1.40)
MIN.
Revision: 22-Mar-18
Document Number: 87954
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
