3121-004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> 3121-004

3121-004: DescriptionMOUNT RECT DIODE RESISTOR 0.312"; Categoryaccessories; File Size14KB，1 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric Compare View All

3121-004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3121-004	-	-	View	Buy Now

3121-004 Overview

MOUNT RECT DIODE RESISTOR 0.312"

3121-004 Parametric

Parameter Name	Attribute value
type	Install
shape	rectangle
use	diode, resistor
Material	Polybutylene terephthalate (PBT), glass fiber reinforced
color	black
characteristic	-
length	0.100"（2.54mm）
width	0.250"（6.35mm）1/4"
high	0.312"（7.92mm） 5/16"
Diameter - External	-
Diameter - Internal	-

Preview

Download Datasheet

View All

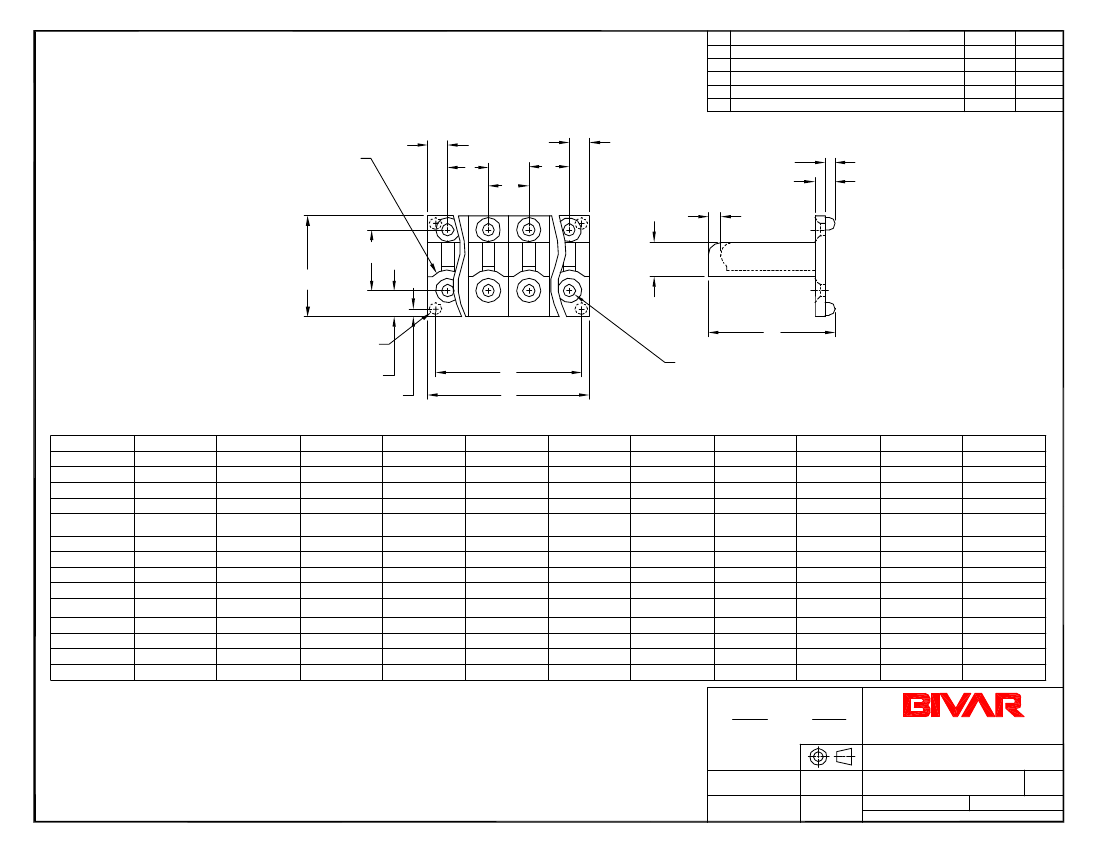

REV.

DESCRIPTION

DATE

APPROVED

Engineering Update w/o Changes

03/01/04

M. C.

0.025 [0.6mm]

0.050 [1.3mm]

RADIUS.

0.150 [3.8mm]

0.250 [6.4mm]

0.085 [2.2mm]

Ø.030 [Ø0.8mm]

TYP.

0.065 [1.7mm]

0.020 [0.5mm]

w/ Ø.062 C'SINK

TYP.

PART NO.

3121-004

3122-010

3123-016

3124-022

4371-005

4372-011

4373-017

4374-023

5621-006

5622-012

5623-018

5624-024

.312(7.9mm)

.437(11.1mm)

.562(14.3mm)

0.100(2.5mm)

0.200(5.1mm)

0.300(7.6mm)

0.400(10.2mm)

0.100(2.5mm)

0.200(5.1mm)

0.300(7.6mm)

0.400(10.2mm)

0.150(3.8mm)

0.300(7.6mm)

0.450(11.4mm)

0.600(15.2mm)

0.030(0.8mm)

0.040(1.0mm)

0.060(1.5mm)

0.160(4.1mm)

0.260(6.6mm)

0.360(9.1mm)

0.060(1.5mm)

0.160(4.1mm)

0.260(6.6mm)

0.360(9.1mm)

0.110(2.8mm)

0.260(6.6mm)

0.410(10.4mm)

0.560(14.2mm)

0.050(1.3mm)

0.075(1.9mm)

0.050(1.3mm)

0.075(1.9mm)

0.055(1.4mm)

0.080(2.0mm)

0.030(0.8mm)

N/A

0.030(0.8mm) 0.100(2.5mm)

N/A

0.030(0.8mm) 0.100(2.5mm) 0.100(2.5mm)

N/A

0.030(0.8mm) 0.100(2.5mm) 0.100(2.5mm) 0.100(2.5mm)

0.030(0.8mm)

N/A

0.030(0.8mm) 0.100(2.5mm)

N/A

0.030(0.8mm) 0.100(2.5mm) 0.100(2.5mm)

N/A

0.030(0.8mm) 0.100(2.5mm) 0.100(2.5mm) 0.100(2.5mm)

0.040(1.0mm)

N/A

0.040(1.0mm) 0.150(3.8mm)

N/A

0.040(1.0mm) 0.150(3.8mm) 0.150(3.8mm)

N/A

0.040(1.0mm) 0.150(3.8mm) 0.150(3.8mm) 0.150(3.8mm)

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

2. MATERIAL: POLYESTER/PBT, 30 % GLASS, 94V-0, BLACK. BIVAR MATERIAL CODE 09-BK.

GENERAL ELECTRIC PBT, 30 % GLASS, VALOX 420 SEO, BLACK.

1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.

.XX

.XXX

DESIGNED:

± .1

± .01

± .005

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

VERTICAL DIODE/RESISTOR MOUNT

DATE:

PART NO:

Shane Irving

CHECKED:

06/25/98

DATE:

31XX-XXX

43XX-XXX

56XX-XXX

REVISION:

M. Chen

09/23/03

CAGE CODE : 32559

CAD GENERATED DOCUMENT,

SHEET #

DO NOT MEASURE DRAWING.
