BSW67A-T datasheet, PDF - EEWORLD Datasheet

BSW67A-T: DescriptionTRANSISTOR 1000 mA, 120 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39, BIP General Purpose Small Signal; CategoryThe transistor; File Size141KB，8 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BSW67A-T Overview

TRANSISTOR 1000 mA, 120 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39, BIP General Purpose Small Signal

Parameter Name	Attribute value
Maker	NXP

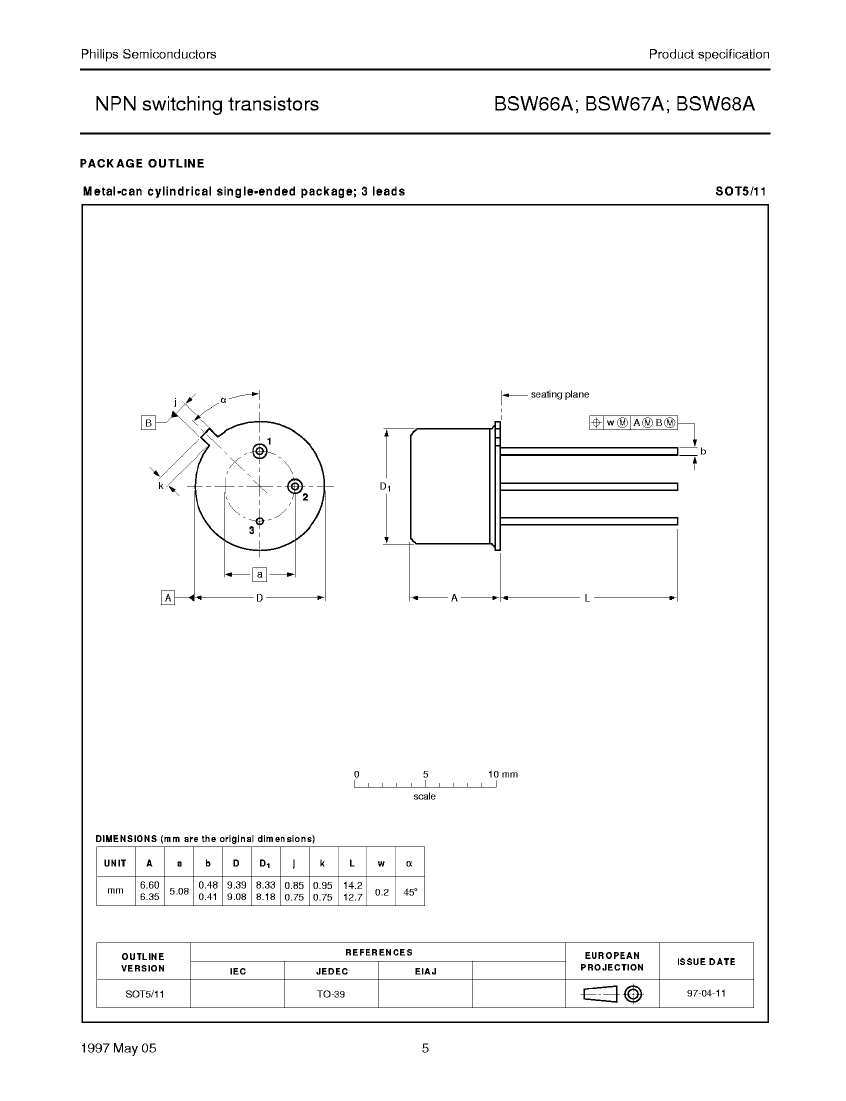

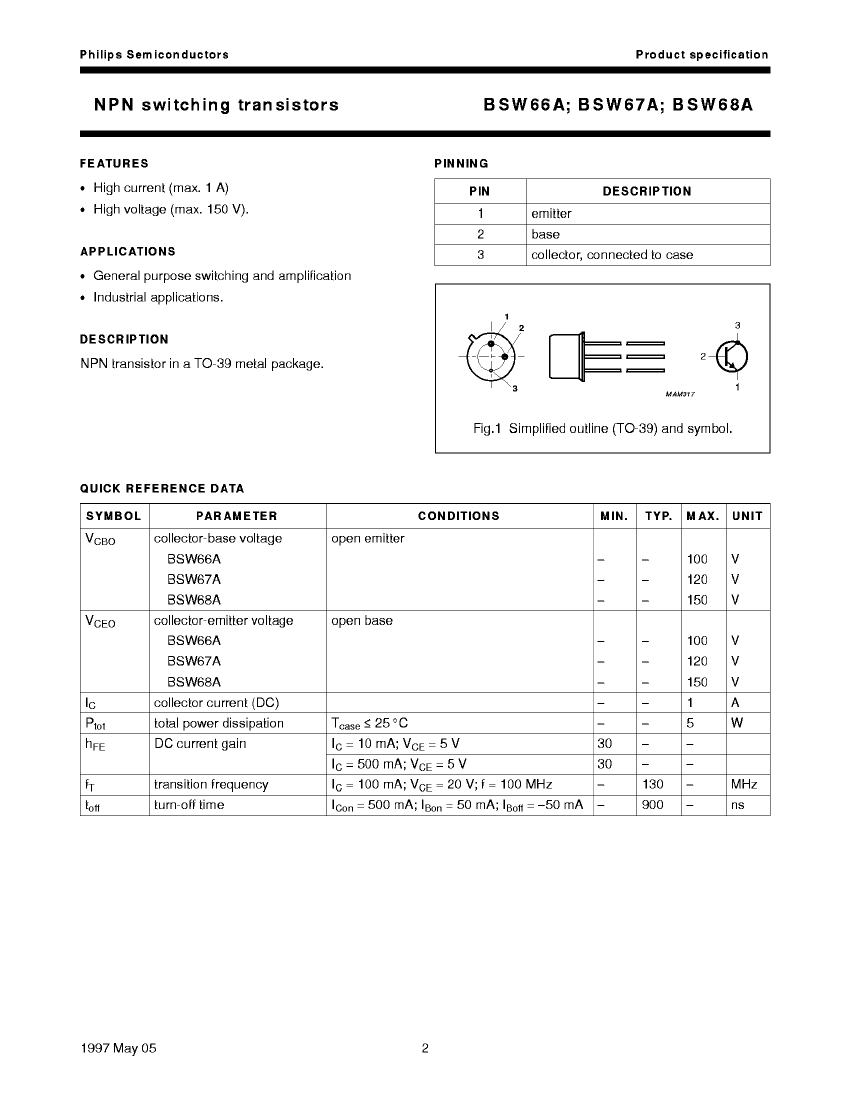

package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Shell connection	COLLECTOR

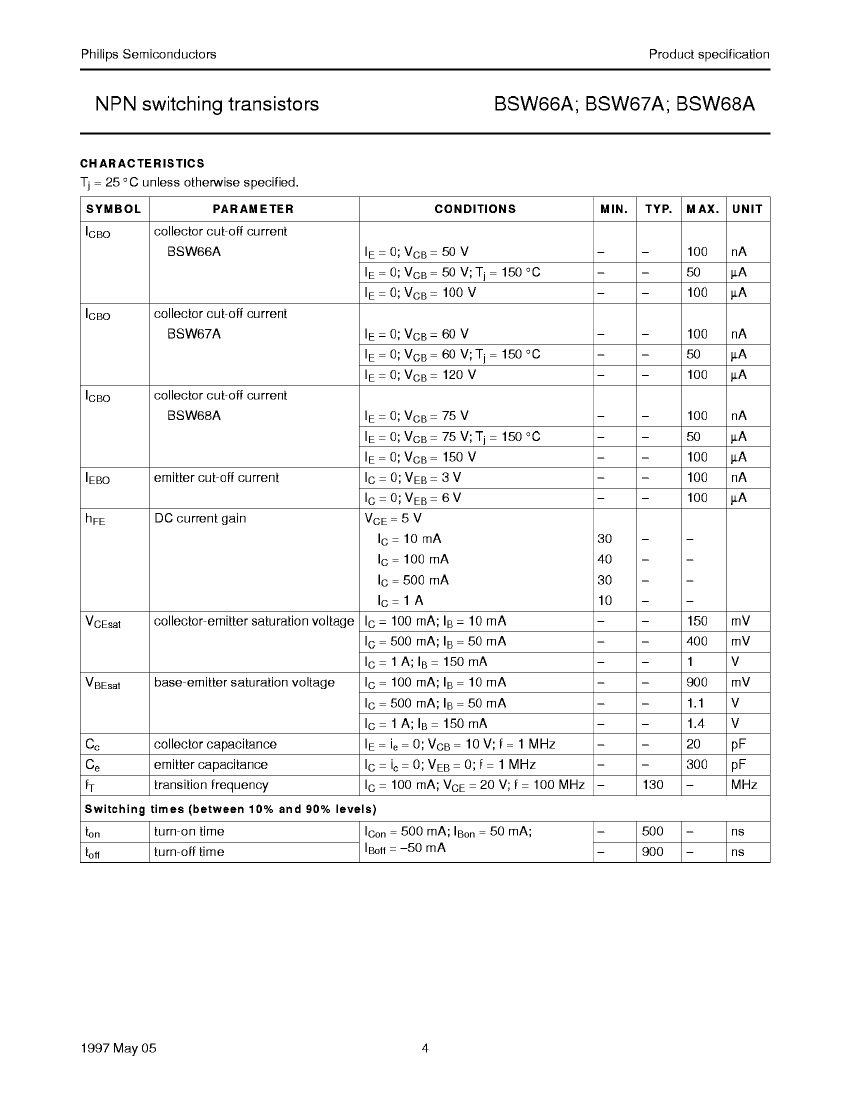

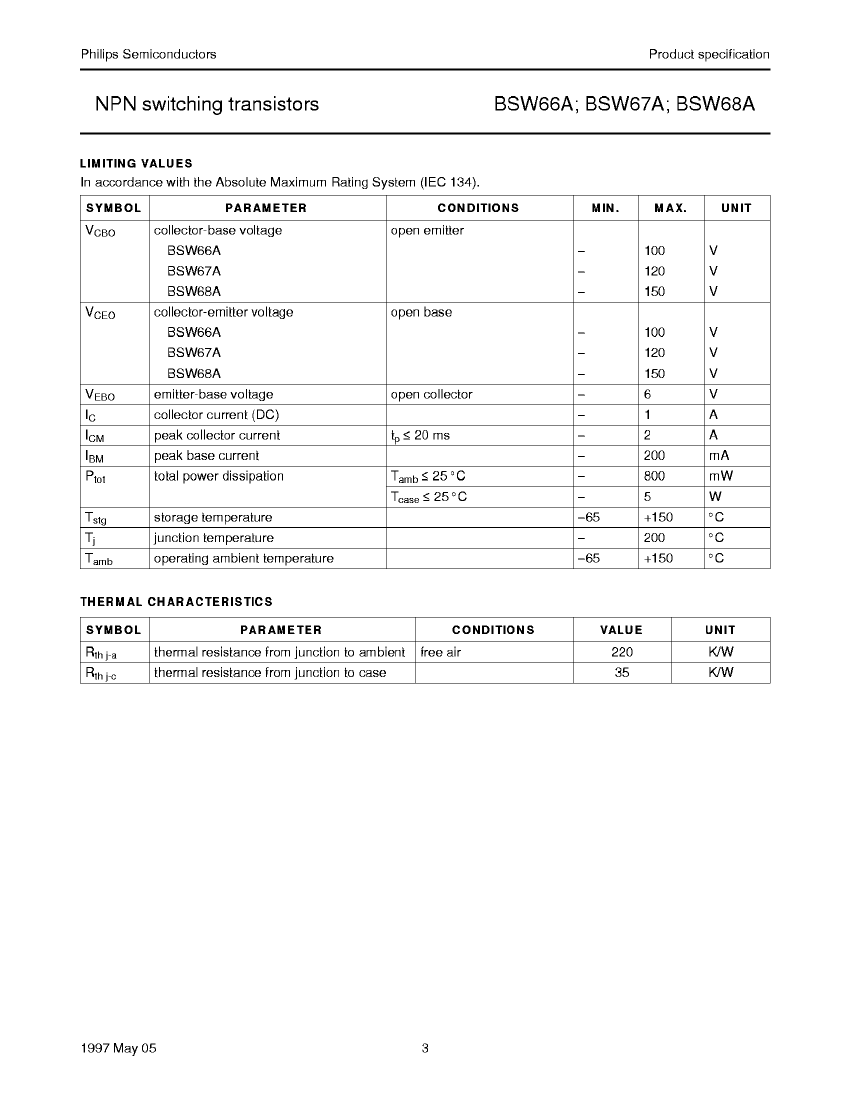

Maximum collector current (IC)	1 A
Collector-based maximum capacity	20 pF
Collector-emitter maximum voltage	120 V
Configuration	SINGLE
Minimum DC current gain (hFE)	10
JEDEC-95 code	TO-39
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Maximum power consumption environment	5 W
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	130 MHz
Maximum off time (toff)	900 ns
Maximum opening time (tons)	500 ns
VCEsat-Max	1 V
Base Number Matches	1

	BSW67A-T	BSW66A-T	BSW68A-T
Description	TRANSISTOR 1000 mA, 120 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39, BIP General Purpose Small Signal	TRANSISTOR 1000 mA, 100 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39, BIP General Purpose Small Signal	TRANSISTOR 1000 mA, 150 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39, BIP General Purpose Small Signal
Maker	NXP	NXP	NXP
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	1 A	1 A	1 A
Collector-based maximum capacity	20 pF	20 pF	20 pF
Collector-emitter maximum voltage	120 V	100 V	150 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	10	10	10
JEDEC-95 code	TO-39	TO-39	TO-39
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	200 °C	200 °C	200 °C
Package body material	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN
Maximum power consumption environment	5 W	5 W	5 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	130 MHz	130 MHz	130 MHz
Maximum off time (toff)	900 ns	900 ns	900 ns
Maximum opening time (tons)	500 ns	500 ns	500 ns
VCEsat-Max	1 V	1 V	1 V
