LZ1-30WW00-0000 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> LZ1-30WW00-0000

LZ1-30WW00-0000: DescriptionLED EMITTER WHT 180LM MINI MCPCB; CategoryLED optoelectronic/LED; File Size904KB，17 Pages; ManufacturerLED Engin; Websitehttp://www.ledengin.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LZ1-30WW00-0000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LZ1-30WW00-0000	-	-	View	Buy Now

LZ1-30WW00-0000 Overview

LED EMITTER WHT 180LM MINI MCPCB

LZ1-30WW00-0000 Parametric

Parameter Name	Attribute value
type	LED module
color	white, warm color
CCT（K）	2700K ~ 3500K
wavelength	-
Configuration	round head
Flux@Current/Temperature-Test	180 lm（146 lm ~ 220 lm）
Current - Test	1A
Temperature - Test	25°C
Voltage - Forward (Vf) (Typical)	3.6V
Lumens/Watt at different test currents	50 lm/W
Current - maximum	1.2 A
CRI (high color rendering index)	85 (standard)
perspective	85°
characteristic	-
size/dimensions	11.50mm diameter
high	4.60mm
Luminous surface (LES)	3.20mm
Lens type	convex mirror

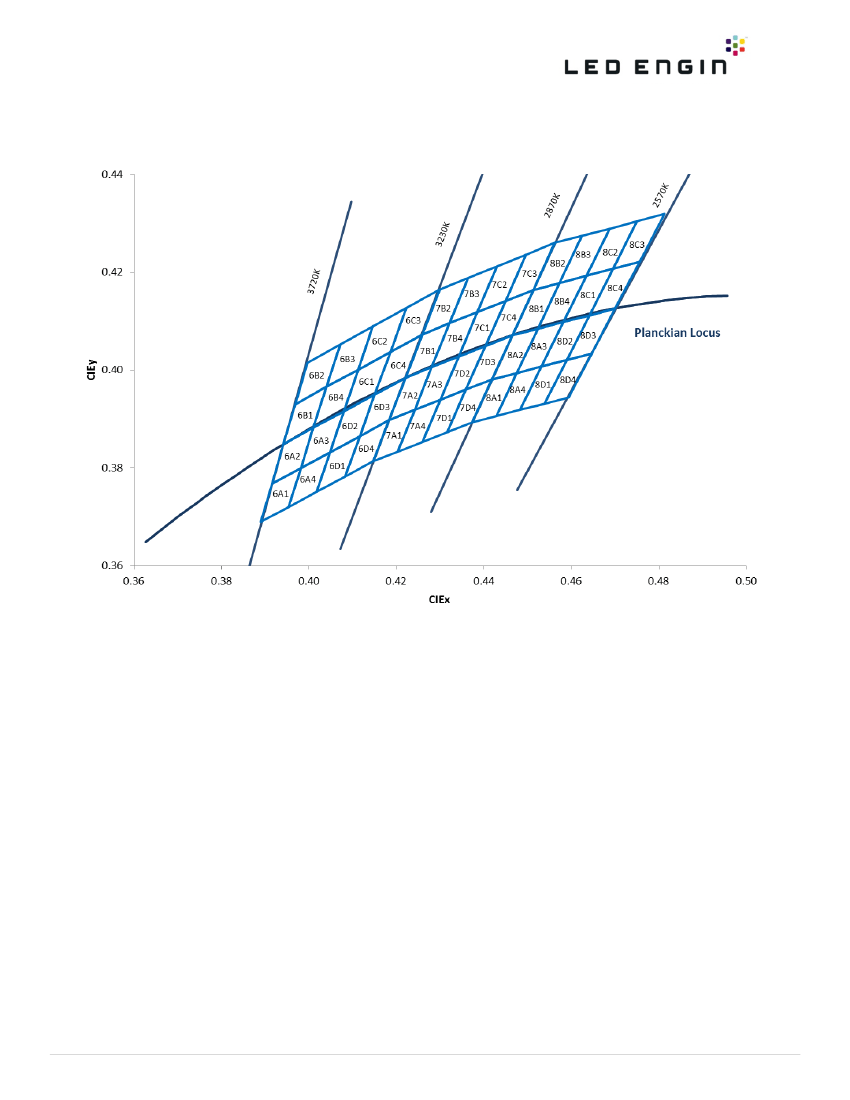

Preview

Download Datasheet

View All

High Luminous Efficacy

Warm White LED Emitter

LZ1-00WW00

Key Features



High Luminous Efficacy Warm White LED

Ultra-small foot print – 4.4mm x 4.4mm

Surface mount ceramic package with integrated glass lens

Low Thermal Resistance (10°C/W)

High Luminous Flux density

Color Rendering Index CRI 85

New industry standard for Lumen Maintenance

Autoclave complaint (JEDEC JESD22-A102-C)

JEDEC Level 1 for Moisture Sensitivity Level

Lead (Pb) free and RoHS compliant

Reflow solderable (up to 6 cycles)

Emitter available on Standard or Miniature MCPCB (optional)

Typical Applications



General lighting

Museum lighting

Retail & high-end interior lighting

Hospitality lighting

Accent & Task lighting

Architectural Detail lighting

Description

The LZ1-00WW00 Warm White LED emitter provides power in an extremely small package. With a 4.4mm x

4.4mm ultra-small footprint, this package provides exceptional luminous flux density. LED Engin’s patent-pending

thermally insulated phosphor layers provide a spatially uniform color across the radiation pattern and a consistent

CCT, CRI 85 and R9 30 over time and temperature. The high quality materials used in the package are chosen to

optimize light output and minimize stresses which results in monumental reliability and lumen maintenance. The

robust product design thrives in outdoor applications with high ambient temperatures and high humidity.

LZ1-00WW00 (2.3-02/06/2015)

LED Engin

651 River Oaks Parkway

San Jose, CA 95134 USA

+1 408 922 7200

fax

+1 408 922 0158

sales@ledengin.com

www.ledengin.com

LZ1-30WW00-0000 Related Products

	LZ1-30WW00-0000	LZ1-00WW00-0000
Description	LED EMITTER WHT 180LM MINI MCPCB	LED LZ1 WARM WHITE 85CRI 4SMD
color	white, warm color	white, warm color
CCT（K）	2700K ~ 3500K	2700K ~ 3500K
Current - Test	1A	1A
Voltage - Forward (Vf) (Typical)	3.6V	3.6V
Lumens/Watt at different test currents	50 lm/W	46 lm/W
Current - maximum	1.2 A	1.2 A
CRI (high color rendering index)	85 (standard)	85 (standard)
perspective	85°	85°
size/dimensions	11.50mm diameter	0.173" long x 0.173" wide (4.40mm x 4.40mm)
