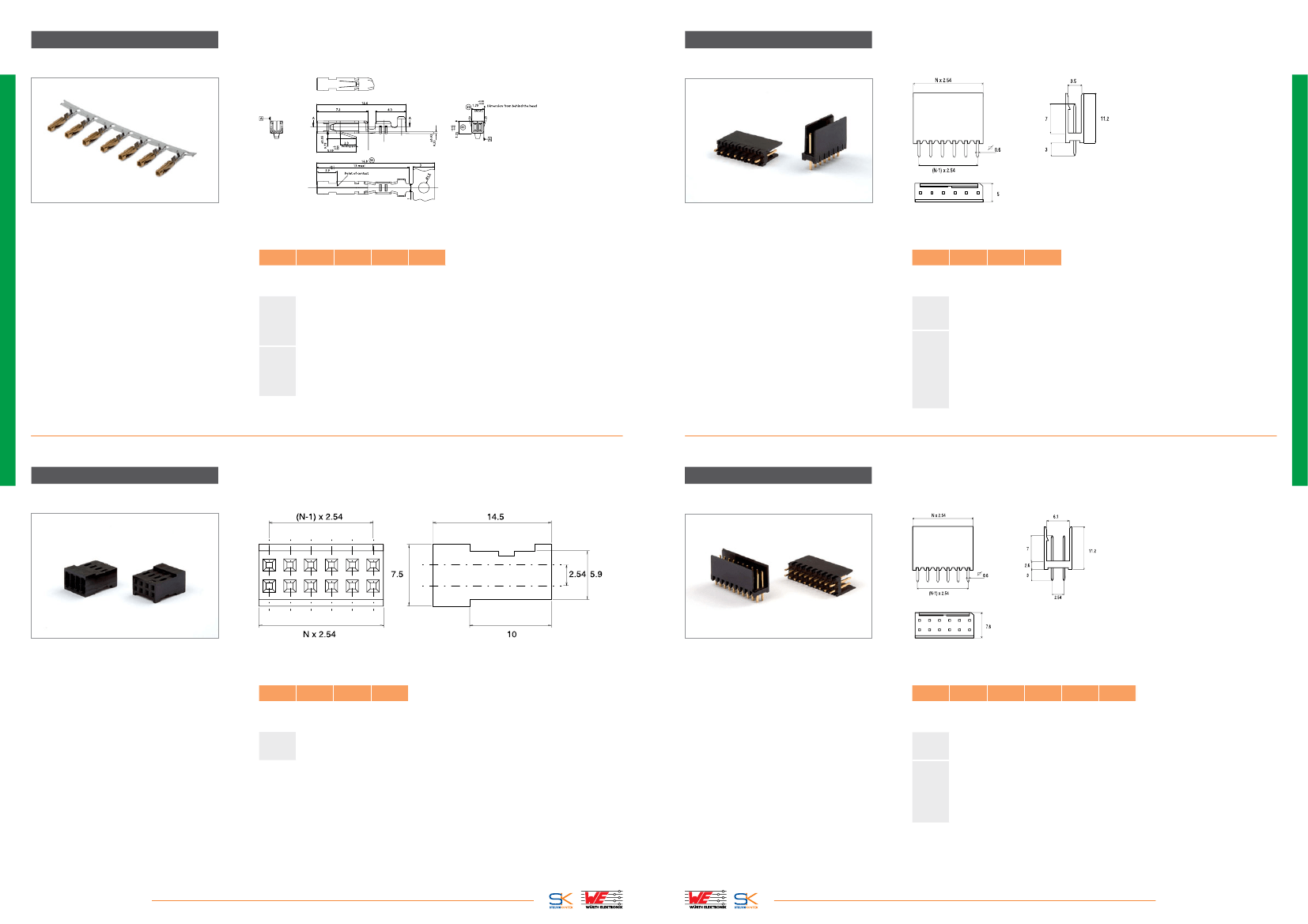

INTERCOM
WIRE TO BOARD
CRIMP CONTACT CONNECTOR
INTERCOM
WIRE TO BOARD
SHROUDED HEADER
Features
Crimp contact for single and double
row housing
Double Wipe Removable contact
AWG 22 - 24 - 26 - 28
Material: Phosphor bronze
Current rating: 3 A maxi
Contact resistance: 20 mΩ maxi
Temperature rating:
-55 °C to 125 °C
Maximum Insulation
Diameter: Ø 1.45 mm
Recyclable cardboard reels
Tooling P/n: Crimping
Product Code
A
485
B
3250
C
000
D
4x
E
x
Features
Material
Polarized header with friction lock
Pitch 2.54 mm
Insulator:
Black thermoplastic GF UL 94V0
Contact: Phosphor bronze
Current rating: 4 A maxi
Dielectric withstanding: 500 V AC
Insulation resistance:
10000 MΩ mini
Temperature rating:
-40 °C to 125 °C
Product Code
A
475
B
0334
C
1xx
D
4x0
Material
Electrical
D
Plating
2 Tin 4 µm
7 Selective gold
0.2 µm over 1.27 µm NI
Packaging
1 reel (8000 contacts each)
2 reel (1000 contacts each)
Electrical
C
Number of contacts 02, 03, 04, 05, 08, 10
Mechanical
Mechanical
Packaging
E
D
Recyclable cardboard boxes
Plating
0 Gold 0.2 µm over Ni 1.27 µm
4 Tin 4 µm over Ni 1.27 µm
7 Selective Gold 0.2 µm over Ni 1.27 µm
Other platings on demand
Packaging
INTERCOM
WIRE TO BOARD
HOUSING
INTERCOM
WIRE TO BOARD
SHROUDED HEADER
Features
Double row housing
for crimping contact
Double Wipe Removable
contact AWG 22 - 24 - 26 - 28
Insulator:
Black glass filled polyester UL 94V0
Current rating: 3 A maxi
Dielectric withstanding: 500 V AC
Insulation resistance: 1000 MΩ mini
Contact resistance: 20 mΩ maxi
Temperature rating:
-40 °C to 125 °C
Maximum Insulation
Diameter: Ø 1.45 mm
Recyclable cardboard boxes
Product Code
A
485
B
3401
C
0xx
D
740
Features
Material
Polarized header with friction lock
Pitch 2.54 mm
Insulator:
Black thermoplastic GF UL 94V0
Contact: Phosphor bronze
Current rating: 4 A maxi
Dielectric withstanding: 500 V AC
Insulation resistance: 1000 MΩ mini
Temperature rating:
-40 °C to 125 °C
Recyclable cardboard boxes
Product Code
A
475
B
1848
C
1
D
xx
E
4x0
F
-1
Material
Electrical
C
Number of contacts 08 or 10
Electrical
D
Number of contacts from 04 to 40
Plating
0 Gold plating 0.2 µm over Ni 1.27 µm
4 Tin plated 4 µm over Ni 1.27 µm
7 Selective Gold plating 0.2 µm over
Ni 1.27 µm
Other plating upon request
Mechanical
Packaging
E
Mechanical
Packaging
102
‧
