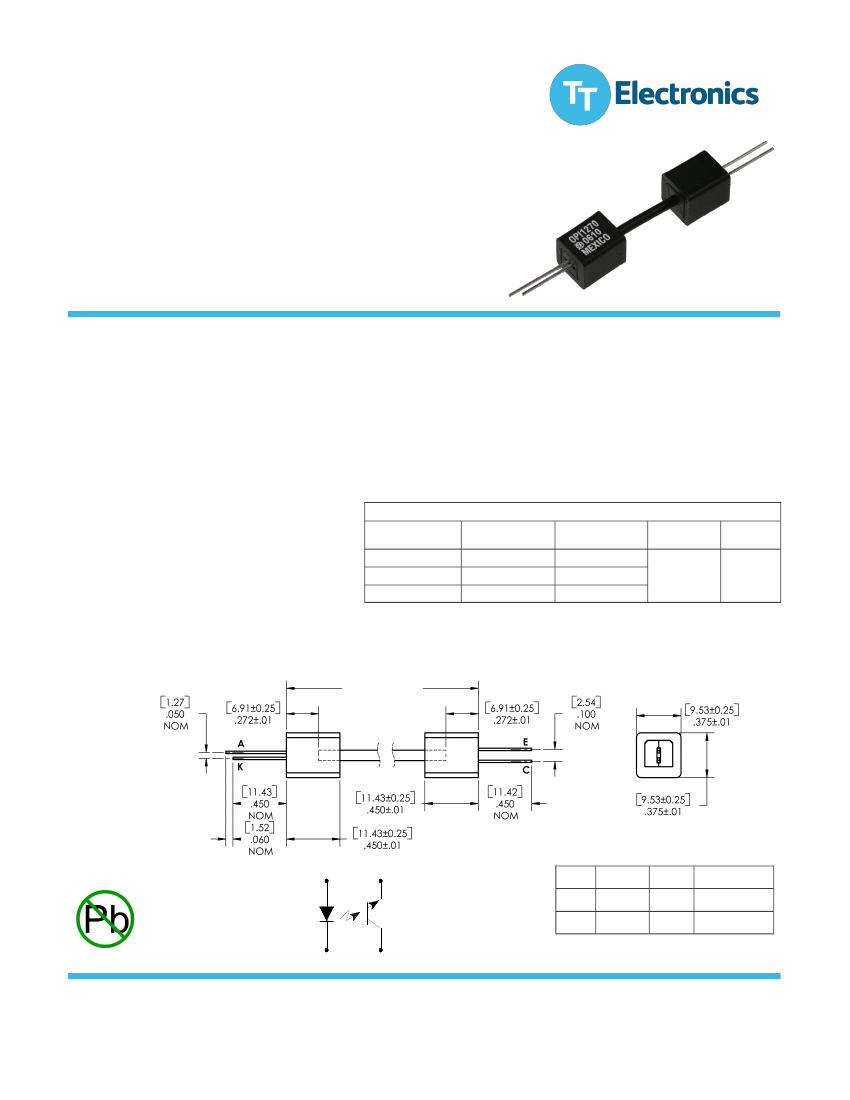

Axial Fiber Optic Isolator
OPI1270 Series
Features:
Opaque plastic housings
High noise immunity
Visible Red LED with Phototransistor Output
0.05” (1.27 mm) lead spacing
Data Transfer through plastic fiber optic cable
Isolation voltage 15 KV (OPI1270-032), Longer versions higher
Description:
Each
OPI1270
consists of a visible Red LED and a Phototransistor sensor, which are housed in separate opaque molded plastic housings
and coupled by plastic fiber optic cable. The heavy-duty opaque housing shields the optical signal from dust, making this series of devices
ideal for dust contaminated environments.
The OPI1270 series are designed for applications that require high voltage isolation between input and output or signal communication
over short distances. Depending on the length of the fiber optic cable, the emitter does not have to be optically in-line with the sensor.
The isolation voltage is greater than 10 K volts per inch (Isolation distance between components) for all versions of the
OPI1270.
OPB1270-032
conforms to UL 1577 (File # E58730).
Custom electrical, wire and cabling and connectors are available. Contact your local representative or OPTEK for more information.
Applications:
Requiring High Voltage isolation between input and
output
Electrical isolation in dirty environments
Industrial equipment
Medical equipment
Office equipment
Ordering Information
Part
Number
OPI1270-018
OPI1270-026
OPI1270-032
Isolation Distance
±2mm
0.71” [18 mm]
1.02” [26 mm]
1.26” [32 mm]
Device
Length ±2mm
1.26” [32.0 mm]
1.57” [40.0 mm]
1.80” [45.8 mm]
LED Peak
Lead Length
Wavelength
645 nm
0.45”
[11.4 mm]
Device Length
DIMENSIONS ARE IN:
1
3
[MILLIMETERS]
INCHES
Pin #
1
2
LED
Anode
Cathode
Pin #
3
4
Transistor
Emitter
Collector
RoHS
2
4
General Note
TT Electronics reserves the right to make changes in product specification without
notice or liability. All information is subject to TT Electronics’ own data and is
considered accurate at time of going to print.
© TT electronics plc
OPTEK Technology, Inc.
1645 Wallace Drive, Carrollton, TX 75006|Ph: +1 972 323 2200
www.optekinc.com | www.ttelectronics.com
Issue C.3
06/2016
Page 1
Axial Fiber Optic Isolator
OPI1270 Series
Absolute Maximum Ratings
(T
A
=25°C unless otherwise noted)
Storage Temperature Range
(note 4)
Operating Temperature Range
(note 4)
Lead Soldering Temperature [1/16 inch (1.6 mm) from case for 5 seconds with soldering iron]
Power Dissipation
(2)
-40
o
C to +80
o
C
-20° C to +75° C
260° C
(1)
100 mW
Electrical Characteristics
(T
A
= 25°C unless otherwise noted)
SYMBOL
PARAMETER
MIN
TYP
MAX
UNITS
TEST CONDITIONS
LED
(See OVLAS6CB8 for additional information)
V
F
I
R
On-State Collector Current
Collector-Dark Current
1.2
-
-
-
2.3
80
V
µA
I
F
= 20 mA
V
R
= 3.0 V
SENSOR—Phototransistor
(See OP506 for additional information)
I
CEO
V
(BR)CEO
V
(BR)ECO
COUPLED
I
C(ON)
I
ISO(3)
0.36
-
-
-
-
1.0
mA
µA
V
CE
= 5 V, I
F
= 10 mA
I @ 7 KV RMS, 25° C, Test Duration = 2 sec.
Collector Dark Current
Collector-Emitter Breakdown Voltage
Emitter-Collector Breakdown Voltage
-
33
5.5
-
-
-
50
-
-
nA
V
V
V
CE
= 10 V, E
E
= 0
I
C
= 100 µA, E
E
= 0
I
E
= 100 µA, E
E
= 0
Notes:
1. RMA flux is recommended. Duration can be extended to 10 seconds maximum when flow soldering. A maximum 20 grams force may be applied
to the leads when soldering.
2. Derate linearly 1.33 mW/° C above 25° C.
3. Isolation voltage testing is required.
4. Storage and Operating temperature values are based on the plastic optical interface temperature ratings. Please reference UL1577 and UL file
AVLVZ.E89328
Output Current vs Forward Current vs Temperature
5.0
Normalized I
F
= 10mA, Vce = 5V, Ta = 20°C
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
5
10
15
20
25
30
35
40
-40°C
-20°C
0°C
20°C
40°C
60°C
80°C
100°C
Normalized Output Current
Forward Current ( mA)
