2318136-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 2318136-8

Preview

2318136-8: DescriptionBarrier Strip Terminal Block; CategoryThe connector; File Size183KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2318136-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2318136-8	-	-	View	Buy Now

2318136-8 Overview

Barrier Strip Terminal Block

2318136-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7263293694
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	28 weeks 2 days
Samacsys Description	TWO-PIECE POKE-IN, 8MM HEADER, 8 POS
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2023-07-24 15:50:11
Installation type	BOARD
Rows	1
Number of channels	8
Rated current	5 A
Rated voltage	250 V
safety certificate	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

4

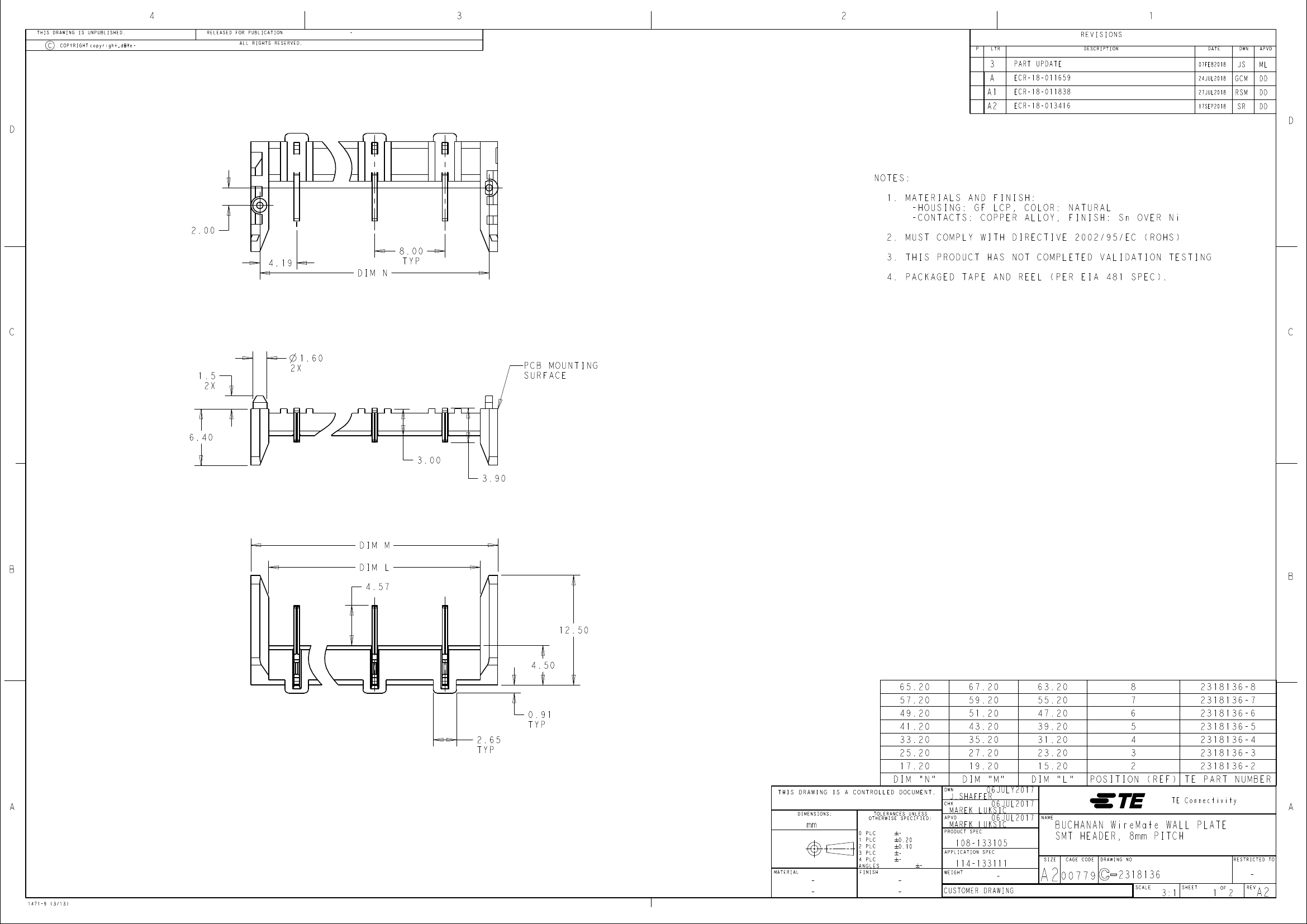

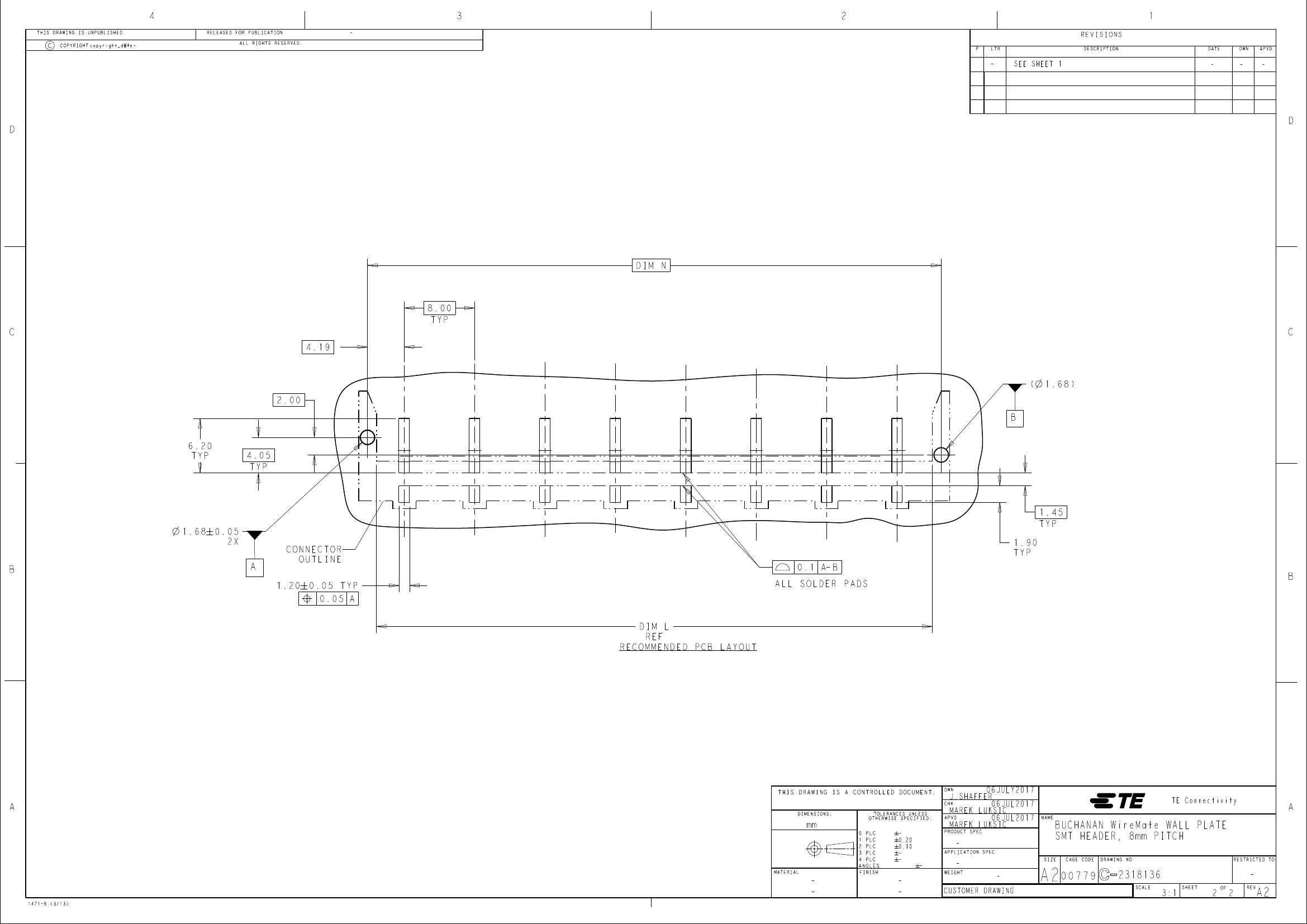

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

BY

copyright_date -

3

A1

A2

A

PART UPDATE

ECR-18-011659

ECR-18-011838

ECR-18-013416

07FEB2018

24JUL2018

27JUL2018

17SEP2018

JS

GCM

RSM

SR

ML

DD

D

NOTES:

1. MATERIALS AND FINISH:

-HOUSING: GF LCP, COLOR: NATURAL

-CONTACTS: COPPER ALLOY, FINISH: Sn OVER Ni

8.00

TYP

2. MUST COMPLY WITH DIRECTIVE 2002/95/EC (ROHS)

3. THIS PRODUCT HAS NOT COMPLETED VALIDATION TESTING

4. PACKAGED TAPE AND REEL (PER EIA 481 SPEC).

2.00

4.19

DIM N

C

1.60

2X

PCB MOUNTING

SURFACE

C

1.5

2X

6.40

3.00

3.90

DIM M

B

DIM L

4.57

B

12.50

4.50

65.20

57.20

0.91

TYP

2.65

TYP

49.20

41.20

33.20

25.20

DIM "N"

THIS DRAWING IS A CONTROLLED DOCUMENT.

67.20

59.20

51.20

43.20

35.20

27.20

19.20

63.20

55.20

47.20

39.20

31.20

23.20

DIM "L"

15.20

8

7

6

5

4

3

POSITION (REF)

2

2318136-8

2318136-7

2318136-6

2318136-5

2318136-4

2318136-3

TE PART NUMBER

TE Connectivity

17.20

DWN

CHK

DIM "M"

2318136-2

A

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.20

0.10

-

06JUL2017

MAREK LUKSIC

APVD

06JUL2017

MAREK LUKSIC

PRODUCT SPEC

APPLICATION SPEC

J.SHAFFER

06JULY2017

NAME

A

108-133105

SIZE

BUCHANAN WireMate WALL PLATE

SMT HEADER, 8mm PITCH

CAGE CODE

DRAWING NO

RESTRICTED TO

-

1471-9 (3/13)

-

114-133111

WEIGHT

-

CUSTOMER DRAWING

A2

00779

2318136

SCALE

3:1

SHEET

1

OF

2

REV

-

A2
