87333-2220 datasheet, PDF - EEWORLD Datasheet

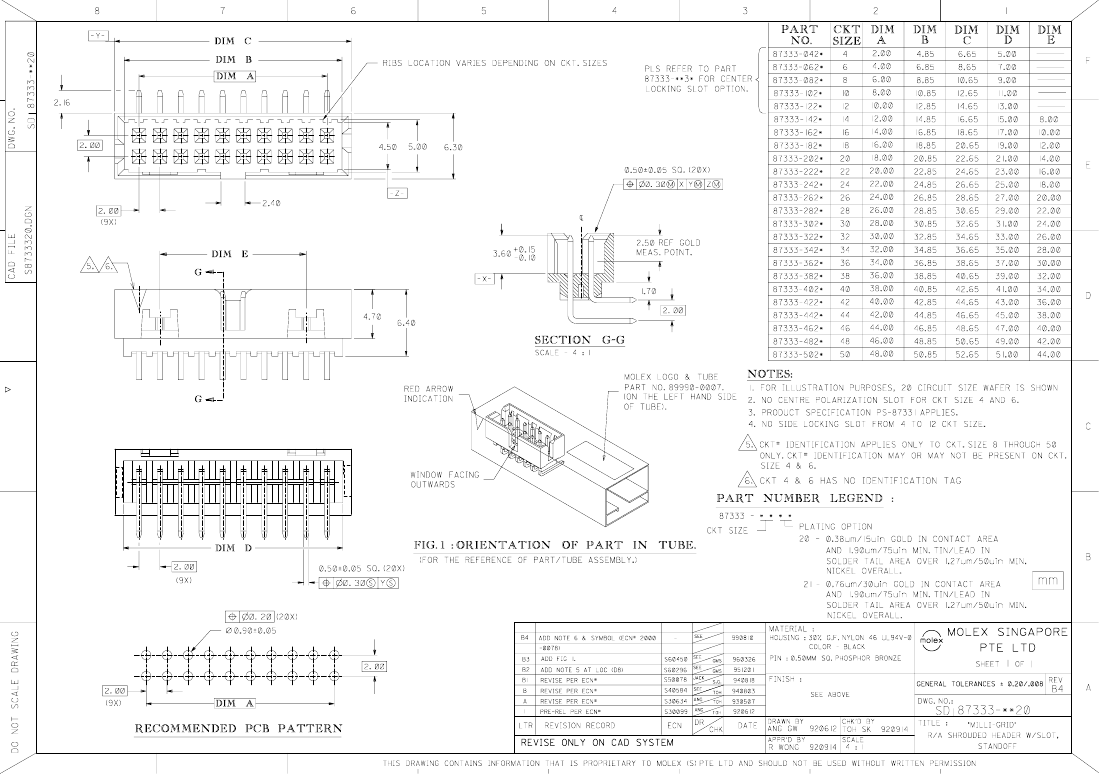

87333-2220: DescriptionCONN HEADER 22POS 2MM R/A GOLD; CategoryThe connector; File Size146KB，1 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric Compare View All

87333-2220 Overview

CONN HEADER 22POS 2MM R/A GOLD

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.079"（2.00mm）
Number of pins	22
Number of rows	2
Line spacing - patching	0.079"（2.00mm）
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole, right angle
Termination	welding
Fastening type	latch holder
Contact Length - Mating	0.141"（3.60mm）
Contact length - terminal	0.085"（2.16mm）
Overall contact length	-
Insulation height	0.248"（6.30mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	15.0µin（0.38µm）
Contact Surface Preparation - Column	Tin - Lead
Contact material	Phosphor bronze
Insulation Materials	Polyamide (PA46), nylon 46, glass fiber reinforced
characteristic	keyway
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	74.8µin（1.90µm）
application	automotive, general, telecommunications

	87333-2220
Description	CONN HEADER 22POS 2MM R/A GOLD
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.079"（2.00mm）
Number of pins	22
Number of rows	2
Line spacing - patching	0.079"（2.00mm）
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole, right angle
Termination	welding
Fastening type	latch holder
Contact Length - Mating	0.141"（3.60mm）
Contact length - terminal	0.085"（2.16mm）
Insulation height	0.248"（6.30mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	15.0µin（0.38µm）
Contact Surface Preparation - Column	Tin - Lead
Contact material	Phosphor bronze
Insulation Materials	Polyamide (PA46), nylon 46, glass fiber reinforced
characteristic	keyway
Material flammability rating	UL94 V-0
Insulation color	black
Contact Surface Treatment Thickness - Column	74.8µin（1.90µm）
application	automotive, general, telecommunications
