PM3602-250-B: DescriptionINDUCT ARRAY 2 COIL 250UH SMD; CategoryPassive components; File Size906KB，4 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

PM3602-250-B Overview

INDUCT ARRAY 2 COIL 250UH SMD

PM3602-250-B Parametric

Parameter Name	Attribute value
Number of coils	2
Inductor - connected in parallel	250µH
Inductor - connected in series	1mH
Tolerance	±20%
Rated current - parallel connection	330mA
Rated current - series	170mA
DC Resistor (DCR) - Parallel	1.19 ohms max
DC Resistor (DCR) - Series	4.76 ohms max
shield	No shielding
grade	-
Operating temperature	-55°C ~ 125°C
Installation type	surface mount
Package/casing	non-standard
size/dimensions	0.452" long x 0.354" wide (11.48mm x 8.99mm)
high	0.225"（5.72mm）

PM3602-250-B Preview

Features

■

Formerly

■

Applications

■

Parallel, series, dual differential mode

model

Current rating up to 3.3 A

Dielectric strength of 500 Vrms

Tape and reel packaging

RoHS compliant*

inductor and 1:1 ratio transformer

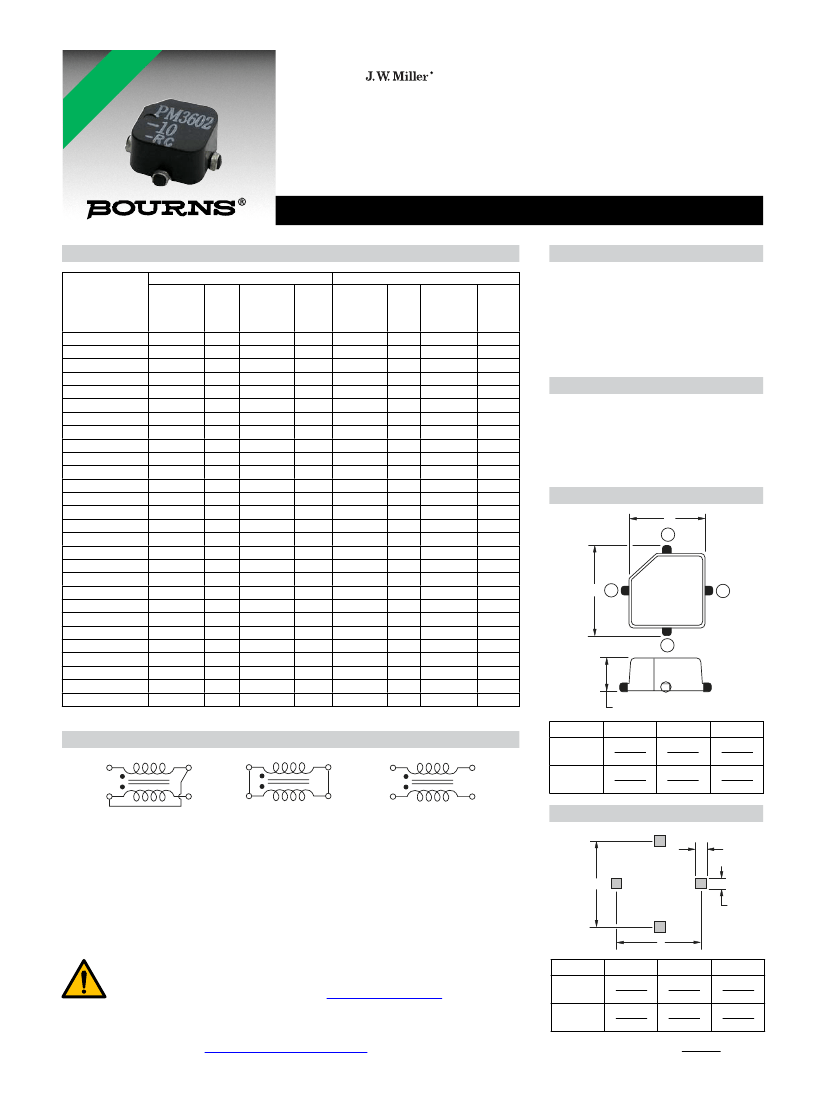

PM3600 Series - SMD Inductor/Transformer

Electrical Speciﬁcations

PARALLEL

Inductance

(μH)

Irms

±20 %

(A)

@ Irms

SERIES

Inductance

(μH)

Irms

±20 %

(A)

@ Irms

PM3602-5-RC

PM3602-8-RC

PM3602-10-RC

PM3602-15-RC

PM3602-20-RC

PM3602-25-RC

PM3602-33-RC

PM3602-50-RC

PM3602-68-RC

PM3602-100-RC

PM3602-150-RC

PM3602-200-RC

PM3602-250-RC

PM3602-300-RC

PM3604-5-RC

PM3604-8-RC

PM3604-10-RC

PM3604-15-RC

PM3604-20-RC

PM3604-25-RC

PM3604-33-RC

PM3604-50-RC

PM3604-68-RC

PM3604-100-RC

PM3604-150-RC

PM3604-200-RC

PM3604-250-RC

PM3604-300-RC

Bourns

Part No.

Inductance

(μH)

±20 %

100

150

200

250

300

100

150

200

250

300

2.41

1.90

1.83

1.45

1.25

1.17

0.98

0.78

0.72

0.58

0.47

0.40

0.33

0.32

3.30

3.00

2.70

2.20

2.02

1.91

1.60

1.28

1.19

0.98

0.78

0.65

0.60

0.52

3.8

6.1

7.4

11.1

15.2

18.5

24.8

37.5

49.6

74.0

111.0

150.0

192.5

225.0

3.8

5.8

7.3

11.0

14.2

17.0

23.1

35.5

46.2

68.0

103.5

140.0

172.5

213.0

0.023

0.037

0.040

0.063

0.086

0.098

0.14

0.22

0.26

0.40

0.60

0.84

1.19

1.31

0.019

0.024

0.028

0.041

0.049

0.054

0.078

0.12

0.14

0.21

0.32

0.47

0.53

0.73

DCR

(Ω)

Max.

Inductance

(μH)

±20 %

100

132

200

272

400

600

800

1000

1200

100

132

200

272

400

600

800

1000

1200

1.20

0.95

0.92

0.73

0.63

0.59

0.49

0.38

0.36

0.29

0.24

0.20

0.17

0.16

1.65

1.50

1.35

1.10

1.01

0.96

0.80

0.64

0.60

0.49

0.39

0.33

0.30

0.26

15.2

23.2

29.6

44.4

60.8

99.2

150

198.4

296

444

600

770

900

15.2

23.2

29.2

56.8

92.4

142

184.8

272

414

560

690

852

0.092

0.15

0.16

0.25

0.34

0.39

0.56

0.88

1.04

1.60

2.40

3.36

4.76

5.24

0.076

0.096

0.11

0.16

0.20

0.22

0.31

0.48

0.56

0.84

1.28

1.88

2.12

2.92

DCR

(Ω)

Max.

General Speciﬁcations

Temperature Rise ..... 35 °C max. at Irms

Operating Temperature

................................ -55 °C to +125 °C

Storage Temperature

................................ -55 °C to +125 °C

Soldering .......... 245 °C, 5 seconds max.

Dielectric Strength ................... 500 Vrms

between windings

Materials

Core .................................................. Iron

Wire ........... Polyurethane-coated copper

Terminal Coating............. Sn-Ag-Cu alloy

Packaging

PM3602 ........700 pcs. per 13-inch reel

PM3604 ........400 pcs. per 13-inch reel

Product Dimensions

PM3602

-10

-RC

C MAX.

Schematics

Series Mode

Parallel Mode

1:1 Transformer

Dual Diff. Mode

Model

PM3602

PM3604

11.48

(0.452)

13.97

(0.550)

8.99

(0.354)

11.48

(0.452)

5.72

(0.225)

6.73

(0.265)

Recommended Pad Layout

Model

WARNING Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice. Users should verify actual device performance in their speciﬁc

applications. The products described herein and this document are subject to speciﬁc legal disclaimers as set forth on

the last page of this document, and at

www.bourns.com/docs/legal/disclaimer.pdf

PM3602

PM3604

2.54

(0.10)

4.06

(0.16)

DIMENSIONS:

2.54

(0.10)

2.54

(0.10)

(INCHES)

9.78

(0.385)

12.7

(0.500)

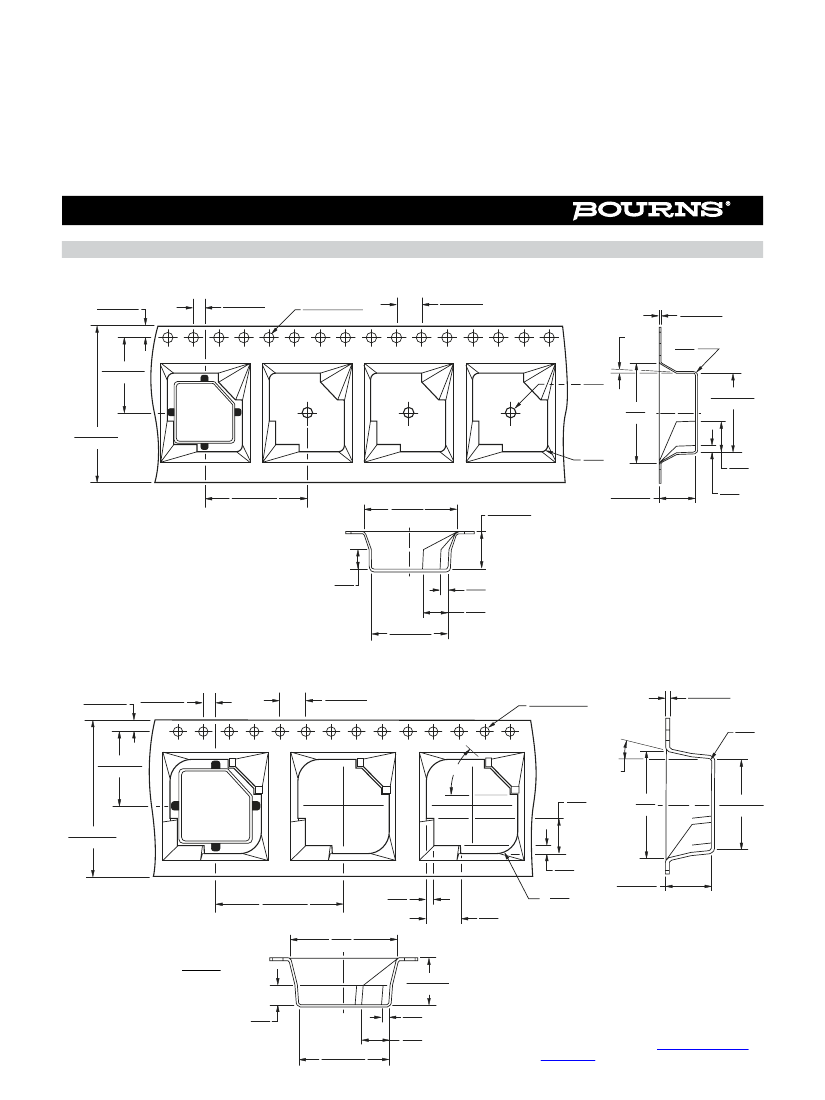

PM3600 Series - SMD Inductor/Transformer

Packaging Speciﬁ

cations

PM3602

1.75 ± 0.10

(.069 ± .004)

2.00 ± 0.10

(.079 ± .004)

DIA.

1.50 +0.10-0.00

(.059 +.004/-.000)

4.00 ± 0.10

(.157 ± .004)

3 ° MAX.

11.50 ± 0.10

(.453 ± .004)

PM3602

-10

-RC

0.35± 0.05

(.014 ± .002)

0.3

(.012)

MAX.

11.80 ± 0.10

(.465 ± .004)

DIA.

1.50

(.059)

15.0

(.591)

24.00 ± 0.30

(.945 ± .012)

1.0

(.039)

TYP.

20.00 ± 0.10

(.787 ± .004)

14.0

(.551)

5.70 ± 0.10

(.24 ± .004)

4.7

(.185)

1.0

(.039)

5.70 ± 0.10

(.224 ± .004)

3.0

(.118)

1.2

(.047)

4.0

(.157)

11.80 ± 0.10

(.465 ± .004)

PM3604

1.75 ± 0.10

(,069 ± .004)

2.00 ± 0.10

(.079 ± .004)

4.00 ± 0.10

(.157 ± .004)

1.50 +-.10/-0.00

(.059 +.004/-000)

DIA.

0.35 ± 0.05

(.014 ± .002)

0.3

(.012)

MAX.

5 ° MAX.

5.25

(.207)

16.6

(.654)

14.10 ± 0.10

(.555 ± .004)

11.50 ± 0.10

(.453 ± .004)

45 °

PM3604

-10

-RC

24.00 ± 0.30

(.945 ± .012)

1.15

(.045)

20.00 ± 0.10

(.787 ± .004)

16.6

(.654)

1.15

(.045)

3.0

(.118)

7.10 ± 0.10

(.280 ± .004)

5.25

(.207)

DIMENSIONS:

(INCHES)

7.10 ± 0.10

(.280 ± .004)

3.0

(.118)

14.10 ± 0.10

(.555 ± .004)

1.15

(.045)

4.25

(.167)

Speciﬁcations are subject to change without notice.

Users should verify actual device performance in their

speciﬁc applications.

The products described herein and this document are

subject to speciﬁc disclaimers as set forth on the last

page of this document, and at

www.bourns.com/legal/

disclaimer.pdf.

PM3600 Series - SMD Inductor/Transformer

Packaging Speciﬁ

cations (Continued)

330

DIA.

(12.99)

2.0

0.5

(.079

.020)

13.0 ± 0.5

(.512 ± .020)

DIA.

50.0

(1.969)

13.0 ± 0.5

DIA.

(.512 ± .020)

26.0

(1.024)

30.4

(1.197)

21.0

0.8

(.827

.031)

THICKNESS

0.10

(.004)

MAX.

EMBOSSED

CAVITY

EMBOSSED

CARRIER

DIMENSIONS:

(INCHES)

Tel: +886-2 2562-4117 • Email: asiacus@bourns.com

EMEA:

Tel: +36 88 520 390 • Email: eurocus@bourns.com

The Americas:

Tel: +1-951 781-5500 • Email: americus@bourns.com

www.bourns.com

REV. 05/12

Speciﬁcations are subject to change without notice.

Users should verify actual device performance in their speciﬁc applications.

The products described herein and this document are subject to speciﬁc legal disclaimers as set forth on the last page of this document, and at

www.bourns.com/docs/legal/disclaimer.pdf.

Legal Disclaimer Notice

This legal disclaimer applies to purchasers and users of Bourns

products manufactured by or on behalf of Bourns, Inc. and

its affiliates (collectively, “Bourns”).

Unless otherwise expressly indicated in writing, Bourns

products and data sheets relating thereto are subject to change

without notice. Users should check for and obtain the latest relevant information and verify that such information is current

and complete before placing orders for Bourns

products.

The characteristics and parameters of a Bourns

product set forth in its data sheet are based on laboratory conditions, and

statements regarding the suitability of products for certain types of applications are based on Bourns’ knowledge of typical

requirements in generic applications. The characteristics and parameters of a Bourns

product in a user application may vary

from the data sheet characteristics and parameters due to (i) the combination of the Bourns

product with other components

in the user’s application, or (ii) the environment of the user application itself. The characteristics and parameters of a Bourns

product also can and do vary in different applications and actual performance may vary over time. Users should always verify

the actual performance of the Bourns

product in their specific devices and applications, and make their own independent

judgments regarding the amount of additional test margin to design into their device or application to compensate for

differences between laboratory and real world conditions.

Unless Bourns has explicitly designated an individual Bourns

product as meeting the requirements of a particular industry

standard (e.g., ISO/TS 16949) or a particular qualification (e.g., UL listed or recognized), Bourns is not responsible for any

failure of an individual Bourns

product to meet the requirements of such industry standard or particular qualification. Users

of Bourns

products are responsible for ensuring compliance with safety-related requirements and standards applicable to

their devices or applications.

Bourns

products are not recommended, authorized or intended for use in nuclear, lifesaving, life-critical or life-sustaining

applications, nor in any other applications where failure or malfunction may result in personal injury, death, or severe property

or environmental damage. Unless expressly and specifically approved in writing by two authorized Bourns representatives

on a case-by-case basis, use of any Bourns

products in such unauthorized applications might not be safe and thus is at

the user’s sole risk. Life-critical applications include devices identified by the U.S. Food and Drug Administration as Class III

devices and generally equivalent classifications outside of the United States.

Bourns expressly identifies those Bourns

standard products that are suitable for use in automotive applications on such

products’ data sheets in the section entitled “Applications.” Unless expressly and specifically approved in writing by two

authorized Bourns representatives on a case-by-case basis, use of any other Bourns

standard products in an automotive

application might not be safe and thus is not recommended, authorized or intended and is at the user’s sole risk. If Bourns

expressly identifies a sub-category of automotive application in the data sheet for its standard products (such as infotainment

or lighting), such identification means that Bourns has reviewed its standard product and has determined that if such Bourns

standard product is considered for potential use in automotive applications, it should only be used in such sub-category of

automotive applications. Any reference to Bourns

standard product in the data sheet as compliant with the AEC-Q standard

or “automotive grade” does not by itself mean that Bourns has approved such product for use in an automotive application.

Bourns

standard products are not tested to comply with United States Federal Aviation Administration standards generally

or any other generally equivalent governmental organization standard applicable to products designed or manufactured for

use in aircraft or space applications. Bourns expressly identifies Bourns

standard products that are suitable for use in aircraft

or space applications on such products’ data sheets in the section entitled “Applications.” Unless expressly and specifically

approved in writing by two authorized Bourns representatives on a case-by-case basis, use of any other Bourns

standard

product in an aircraft or space application might not be safe and thus is not recommended, authorized or intended and is at

the user’s sole risk.

The use and level of testing applicable to Bourns

custom products shall be negotiated on a case-by-case basis by Bourns

and the user for which such Bourns

custom products are specially designed. Absent a written agreement between Bourns

and the user regarding the use and level of such testing, the above provisions applicable to Bourns

standard products shall

also apply to such Bourns

custom products.

Users shall not sell, transfer, export or re-export any Bourns

products or technology for use in activities which involve the

design, development, production, use or stockpiling of nuclear, chemical or biological weapons or missiles, nor shall they use

Bourns

products or technology in any facility which engages in activities relating to such devices. The foregoing restrictions

apply to all uses and applications that violate national or international prohibitions, including embargos or international

regulations. Further, Bourns

products and Bourns technology and technical data may not under any circumstance be

exported or re-exported to countries subject to international sanctions or embargoes. Bourns

products may not, without

prior authorization from Bourns and/or the U.S. Government, be resold, transferred, or re-exported to any party not eligible

to receive U.S. commodities, software, and technical data.

To the maximum extent permitted by applicable law, Bourns disclaims (i) any and all liability for special, punitive, consequential,

incidental or indirect damages or lost revenues or lost profits, and (ii) any and all implied warranties, including implied warranties

of fitness for particular purpose, non-infringement and merchantability.

For your convenience, copies of this Legal Disclaimer Notice with German, Spanish, Japanese, Traditional Chinese and Simplified Chinese

bilingual versions are available at:

Web Page:

http://www.bourns.com/legal/disclaimers-terms-and-policies

PDF:

http://www.bourns.com/docs/Legal/disclaimer.pdf

C1753 05/17/18R

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Automatic watch anti-theft alarm circuit

Application of Huifeng frequency converter in refrigeration equipment

Microprocessor power supply circuit diagram using LT1584 and LT1431

MAX663 series output voltage setting method circuit PMOS direct output has overcurrent protection circuit diagram

Simple TTL delay circuit (1) circuit diagram

Phase-voltage converter circuit diagram

Design of GPS positioning system based on MSP430 LCD display: [size=6]Design of GPS Positioning System Based on MSP430 LCD Display[/size] [size=6]File includes: program, schematic diagram, module introduction, module purchase address! The title of the graduation...; fish001 Microcontroller MCU

Refuse to be fooled: A complete explanation of mobile GPU (Part 2): [i=s]This post was last edited by jameswangsynnex on 2015-3-3 20:02[/i][b]Let's talk about the neglected [font=Calibri]Shader[/font][/b][align=left][font=微软雅黑,]Next, let's go back to the shader. The s...; wstt Mobile and portable

How to boot kernel with uboot: I compiled uboot and found that the problem was with the cross compiler. Fortunately, it was over and I started to boot the kernel. I looked at the uboot code and found no information about the nand f...; zengjiangyi Embedded System

ST F7 Competition ~ Intelligent Community Control System ~ μCOSIII Transplantation II: [i=s]This post was last edited by abofly on 2015-11-2 19:57[/i] [align=left]The previous project did not enable FPU, and μCOS was the latest version. However, there were always problems when enabling ...; abofly stm32/stm8

Circuit Diagram 33-Analysis of the principles of household lighting and power circuits: [i=s] This post was last edited by tiankai001 on 2018-2-11 10:49 [/i] [b]1. Power distribution lines for one-bedroom and one-living room houses [/b] [align=left][color=rgb(34, 34, 34)][font="]The powe...; tiankai001 Integrated technical exchanges

Some problems in the 4511 decoder!: I recently designed a buzzer, but I can't figure out some problems! I know there are many experts in our forum, so I'm here to ask for advice! I need to connect a seven-segment display to the back of ...; fsunboy Embedded System

Shortcut: S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components
