52745-0490 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 52745-0490

52745-0490: DescriptionCONN FFC FPC TOP 4POS 0.50MM R/A; CategoryThe connector; File Size424KB，5 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric Compare View All

52745-0490 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52745-0490	-	-	View	Buy Now

52745-0490 Overview

CONN FFC FPC TOP 4POS 0.50MM R/A

52745-0490 Parametric

Parameter Name	Attribute value
Flat flexible type	FFC，FPC
Installation type	Surface mount, right angle
Connector/contact type	contacts, top
Number of pins	4
spacing	0.020"（0.50mm）
Termination	welding
FFC, FCB thickness	0.30mm
board height	0.079"（2.00mm）
Lock function	slide lock
Cable end type	straight, tapered
Contact material	Phosphor bronze
Contact plating	Tin - Lead
Shell material	Polyamide (PA46), nylon 4/6, fiberglass reinforced
Actuator material	Polyphenylene sulfide (PPS), glass fiber reinforced
characteristic	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-20°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.5A
Contact plating thickness	-
Shell color	White
Actuator color	black
Number of patches	20

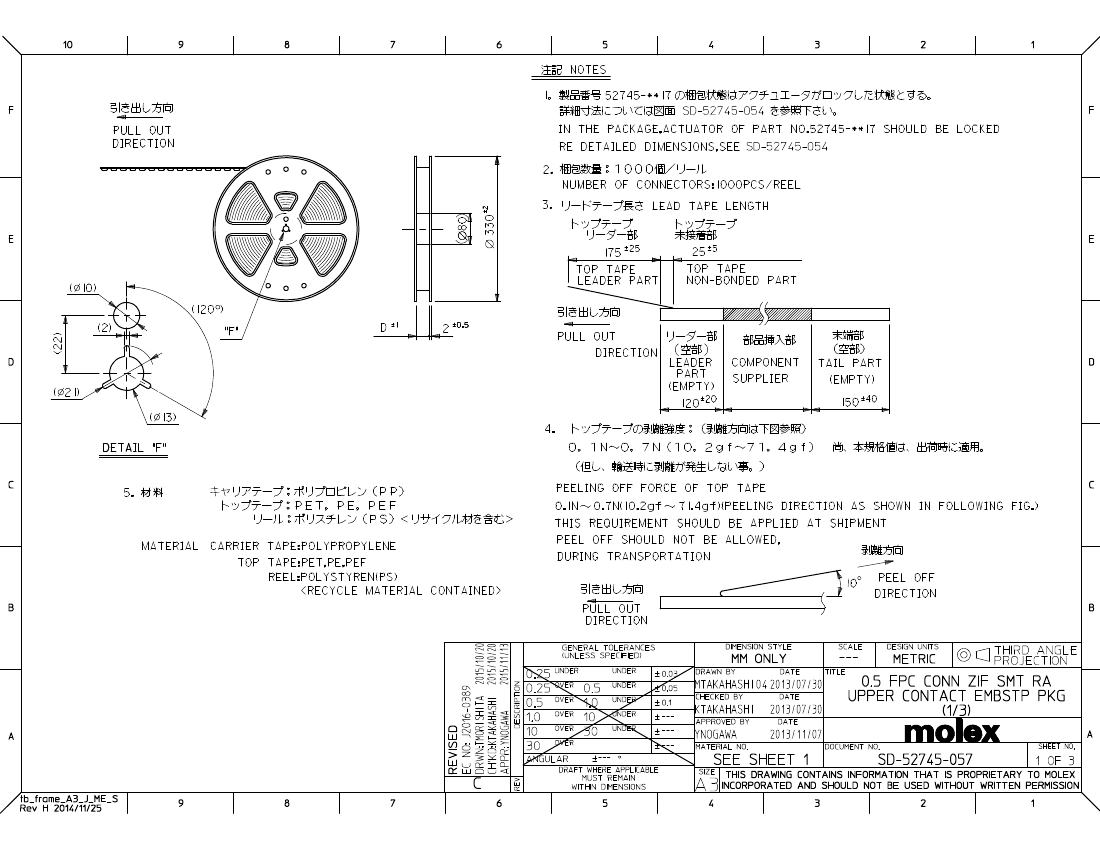

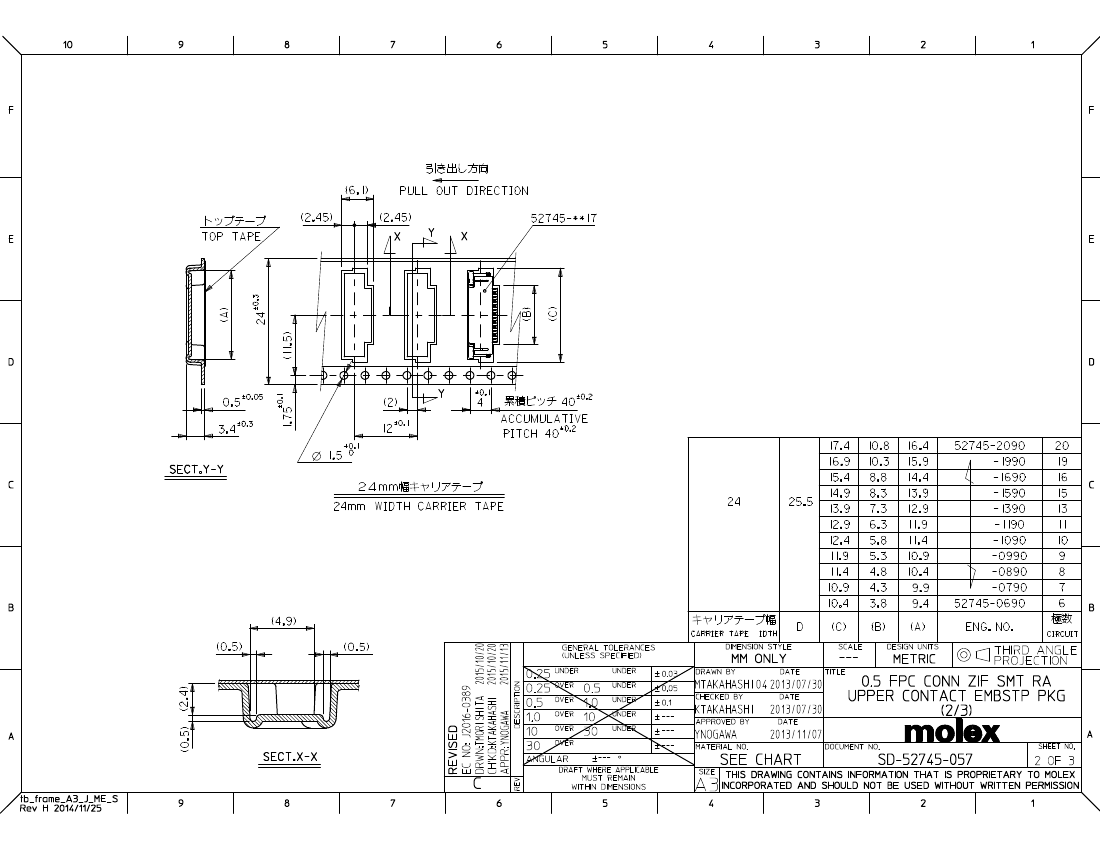

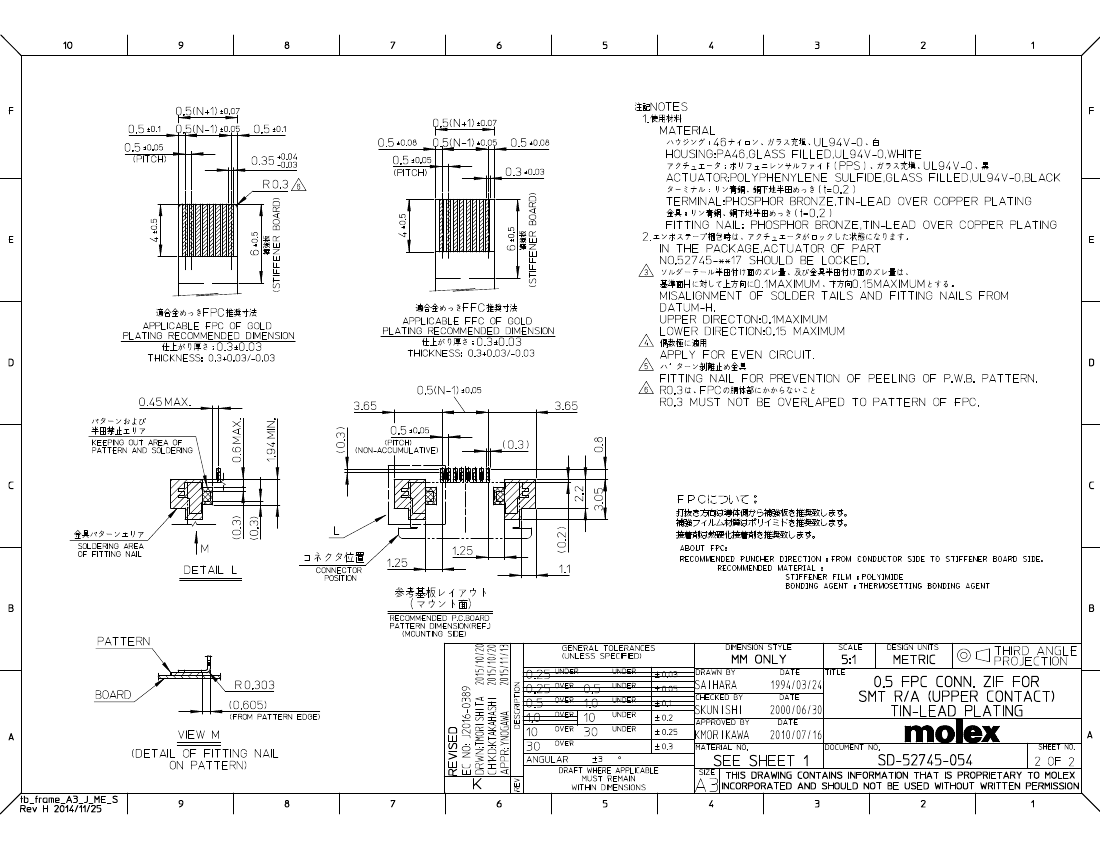

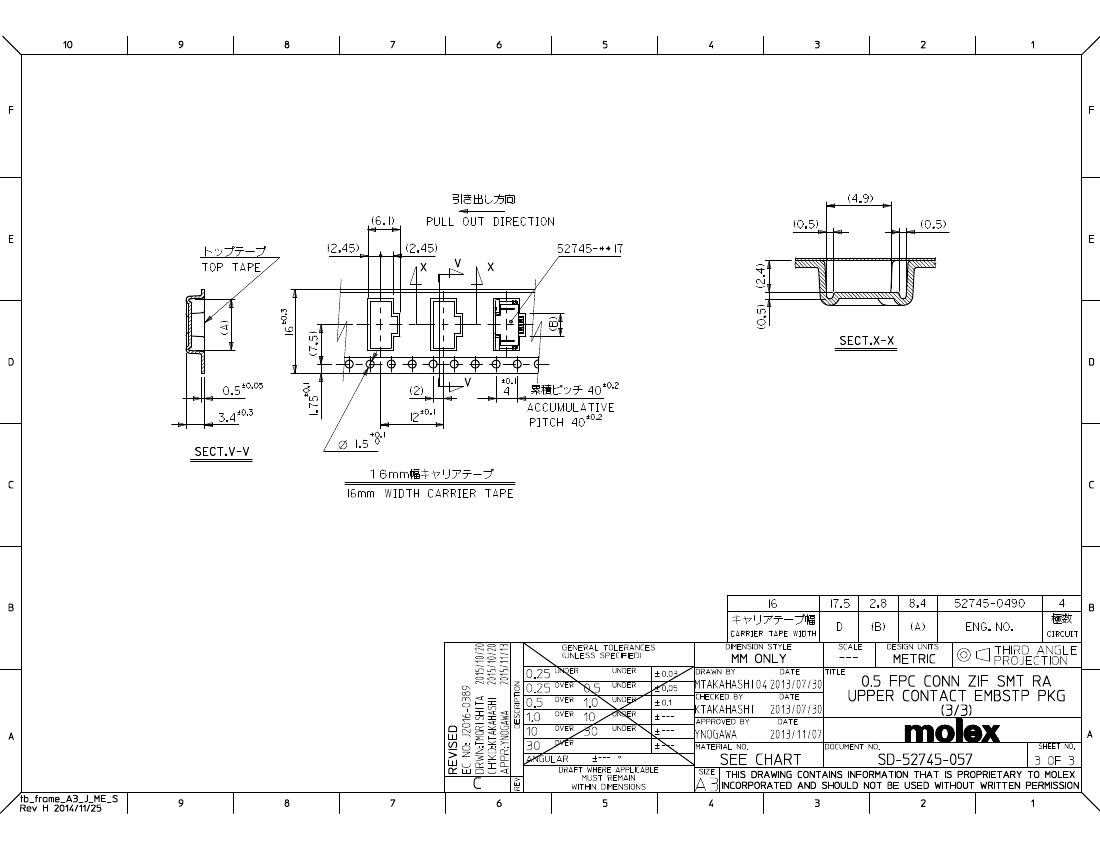

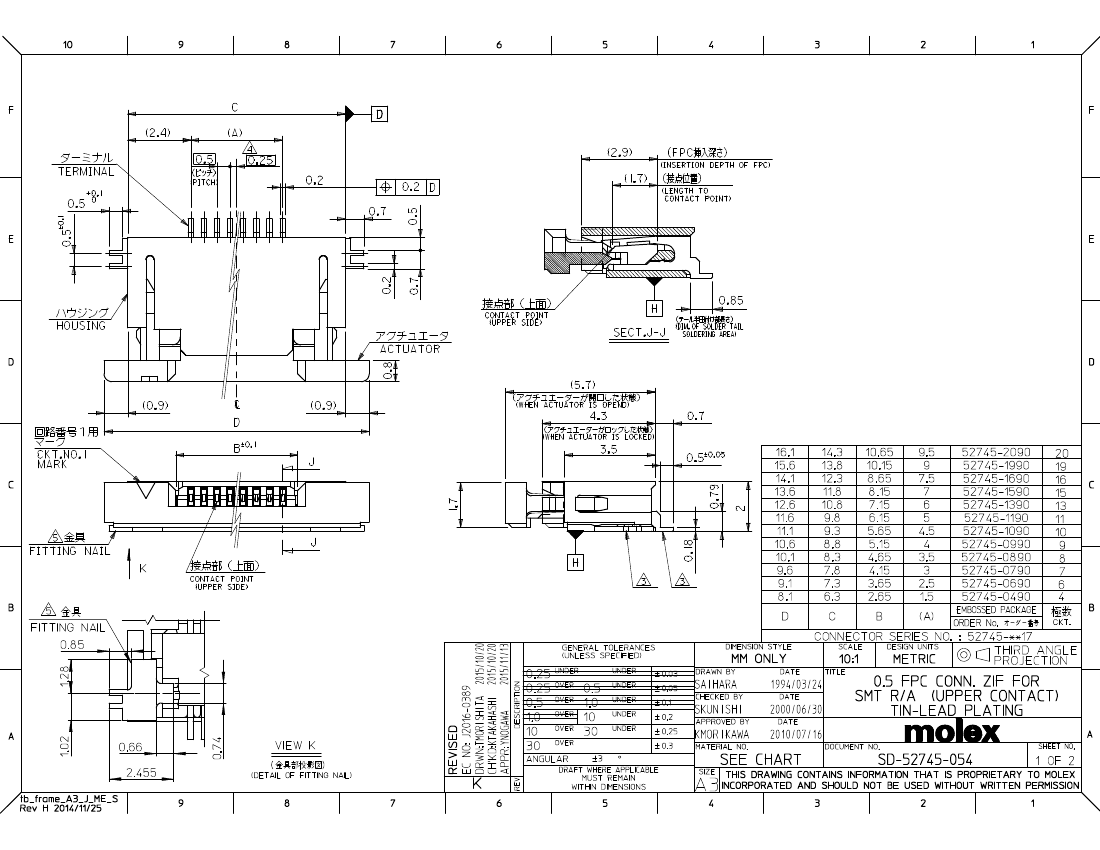

Preview

Download Datasheet

View All

52745-0490 Related Products

	52745-0490	52745-0790	52745-0890	52745-0990	52745-1190	52745-1390	52745-1690	52745-1890	52745-0690	52745-1090
Description	CONN FFC FPC TOP 4POS 0.50MM R/A	CONN FFC FPC TOP 7POS 0.50MM R/A	CONN FFC FPC TOP 8POS 0.50MM R/A	CONN FFC FPC TOP 9POS 0.50MM R/A	CONN FFC TOP 11POS 0.50MM R/A	CONN FFC TOP 13POS 0.50MM R/A	CONN FFC TOP 16POS 0.50MM R/A	CONN FFC TOP 18POS 0.50MM R/A	CONN FFC FPC TOP 6POS 0.50MM R/A	CONN FFC TOP 10POS 0.50MM R/A
Flat flexible type	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top
Number of pins	4	7	8	9	11	13	16	18	6	10
spacing	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）
Termination	welding	welding	welding	welding	welding	welding	welding	welding	welding	welding
FFC, FCB thickness	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm
board height	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）
Lock function	slide lock	slide lock	slide lock	slide lock	slide lock	slide lock	slide lock	slide lock	slide lock	slide lock
Cable end type	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	Tin - Lead	Tin - Lead	Tin - Lead	Tin - Lead	Tin - Lead	Tin - Lead	Tin - Lead	Tin - Lead	Tin - Lead	Tin - Lead
Shell material	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced
Actuator material	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced
characteristic	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V	50V	50V	50V	50V	50V	50V	50V	50V	50V
Operating temperature	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A
Shell color	White	White	White	White	White	White	White	White	White	White
Actuator color	black	black	black	black	black	black	black	black	black	black
Number of patches	20	20	20	20	20	20	20	20	20	20
