UCS

Universal electronics housings

Data sheet

107750_en_01

1

Description

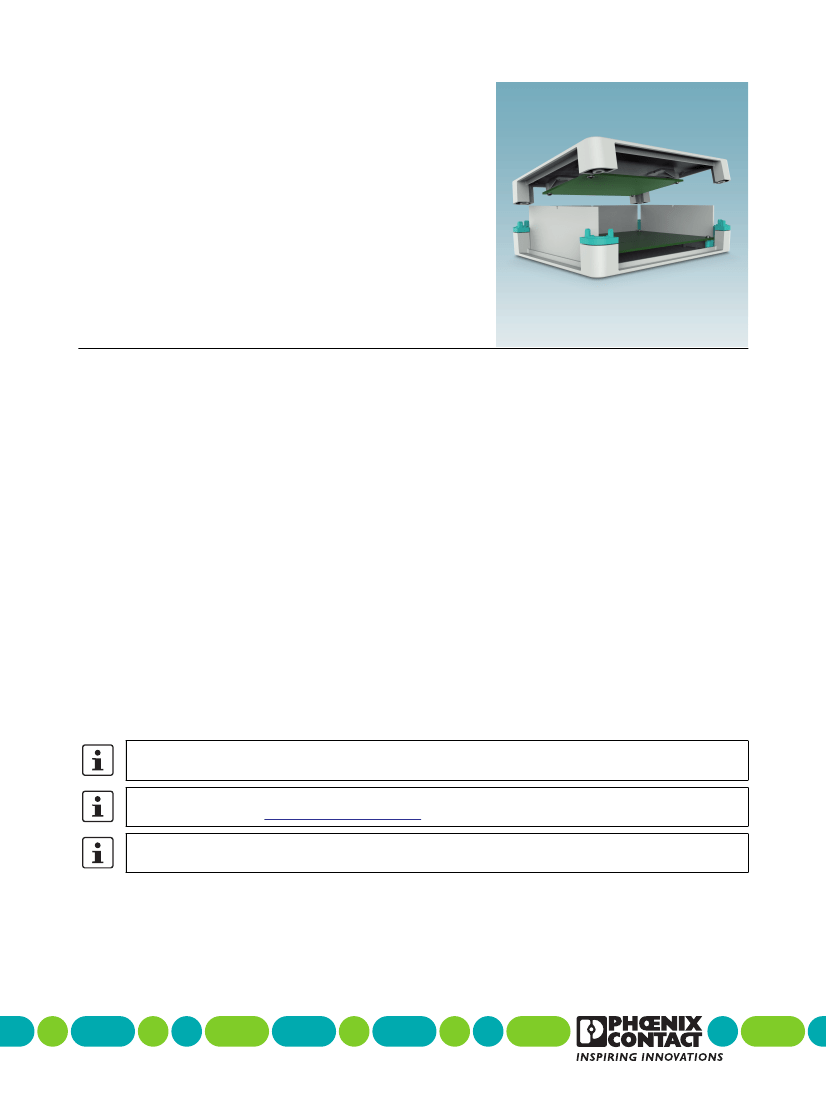

The UCS... universal electronics housings consist of two

housing half-shells, which can be combined with side walls

in two different heights. The housing half-shells are avail-

able in four sizes and several colors.

– Four housing sizes:

125 x 87 mm

145 x 125 mm

195 x 145 mm

237 x 195 mm

–

Two housing heights:

47 mm or 67 mm

–

Colors:

light gray (similar to RAL 7035) or deep black

(similar to RAL 9005). The fastening elements are

RAL 5018 (turquoise blue)

The housings have special corner inlays, to which a PCB

can be attached. It is also possible to attach the PCBs with

adhesive domes. The adhesive domes are attached to the

housing half-shells. The PCB is screwed onto the adhesive

domes. This allows several PCBs to be added to the hous-

ings. We can also provide you with templates for positioning

the adhesive domes. The housing half-shells are also avail-

able with customer-specific adhesive domes.

Complete housings are available for certain PCBs with a

form factor (e.g., ETX, ITX, DTX, EBX, EPIC). Corner inlays

with domes or adhesive domes are available for attaching

the PCB. In addition to the above PCB format, further PCBs

can be installed in the complete housings depending on the

size. The template layouts for the adhesive domes are avail-

able for download with the products.

Connection systems and display and operating elements

can be installed in the housings. We would be glad to install

the required openings for you.

A configurator is available for selecting the products at phoenixcontact.com, web code: #0512. You can use it to

create your housing. You will then receive 3D data, order lists, and PCB layouts.

Make sure you always use the latest documentation.

It can be downloaded at

phoenixcontact.net/products.

This document is valid for the products listed in Section “Ordering data” from Page 4.

UCS

Table of contents

1

2

3

4

5

Description..................................................................................................................................1

Overview of UCS products..........................................................................................................3

Ordering data..............................................................................................................................4

Technical data ............................................................................................................................6

Housing dimensions ...................................................................................................................7

5.1

5.2

5.3

5.4

Outer and inner dimensions ...........................................................................................................................7

Space for printing ...........................................................................................................................................8

Space for cutouts ...........................................................................................................................................9

PCB dimensions...........................................................................................................................................10

6

Mounting the housing ...............................................................................................................11

6.1

6.2

6.3

6.4

6.5

6.6

6.7

6.8

Mounting PCBs ............................................................................................................................................11

Screw on the housing ...................................................................................................................................11

Inserting a height adapter .............................................................................................................................12

Attaching adhesive domes ...........................................................................................................................12

Mounting the housing on a wall ....................................................................................................................13

Snapping on the stand..................................................................................................................................13

Mounting accessories ..................................................................................................................................14

Mounting the housing on a DIN rail...............................................................................................................14

107750_en_01

PHOENIX CONTACT

2 / 14

UCS

2

Overview of UCS products

5

4

3

2

1

Figure 1

Overview

Accessories are available for setting up the housing.

1 Stacking adapters

for connecting housings of the

same size

2 Corner guards,

anti-slip

Stand

for upright housings, for the 47 mm version only

3 DIN rail adapter

for the following housing sizes (in-

stead of a side panel): 125 mm x 87 mm /

145 mm x 125 mm / 195 mm x 145 mm

4

Application example with prepared side panels for vari-

ous connections

5 Wall bracket,

special corner inlays with longitudinal

hole for mounting on a wall

Figure 2

Housing example

107750_en_01

PHOENIX CONTACT

3 / 14

UCS

3

Ordering data

A configurator is available for selecting the products at phoenixcontact.com, web code: #0512. You can use it to

create your housing. You will then receive 3D data, order lists, and PCB layouts.

UCS 125 x 87…

47 mm

67 mm

UCS 145 x 125…

47 mm

67 mm

UCS 195 x 145

47 mm

67 mm

UCS 237 x 195…

47 mm

67 mm

Complete housing

With PCB mounting, flexi-

ble, suitable for the follow-

ing form factors*

Raspberry Pi

ETX

PC/104

Pico ITX

EPIC

Nano ITX

Mini DTX

Mini ITX

EBX

Raspberry Pi

ETX

PC/104

Pico ITX

EPIC

Nano ITX

Mini DTX

Mini ITX

EBX

211.8 x 169.8 mm

169.8 x 120 mm

120 x 100 mm

100 x 62 mm

211.8 x 169.8 mm

169.8 x 120 mm

120 x 100 mm

100 x 62 mm

UCS WM-B 7035

UCS WM-B 9005

UCS WM-B 5018

UCS PED 7035

UCS PED 9005

UCS PED 5018

UCS CP 7035

UCS CP 9005

UCS CP 5018

UCS CS 7035

UCS CS 9005

RAL

9005

1

2203329 2203330

2203333 2203335

2203337 2203340

2203342

2203455

2203453 2203454

2203447 2203450

2203443 2203445

RAL 9005

1

2203441 2203442

2203448 2203451

2203444 2203446

RAL 7035

1

RAL 9005

1

RAL 5018

1

RAL 7035

1

RAL 9005

1

RAL 5018

1

RAL 7035

1

RAL 9005

1

RAL 5018

1

RAL 7035

1

RAL 9005

1

2203718

2203719

2203391

2203392

2203393

2203394

2203346

2203347

2203348

2203720

2203721

2203718 2203718 2203718 2203718

2203719 2203719 2203719 2203719

2203391 2203391 2203391 2203391

2203392

2203393

2203394

2203346 2203346 2203346 2203346

2203347 2203347 2203347 2203347

2203348 2203348 2203348 2203348

2203720 2203720 2203720 2203720

2203721 2203721 2203721 2203721

2203718 2203718 2203718

2203719 2203719 2203719

2203391 2203391 2203391

2203392

2203393

2203394

2203346 2203346 2203346

2203347 2203347 2203347

2203348 2203348 2203348

2203720 2203720 2203720

2203721 2203721 2203721

2203456 2203458

2203345

2203457

RAL 7035

1

2203328 2203331

2203332 2203334

2203336 2203338

2203341 2203344

With PCB mounting, fixed

for maximum PCB dimen-

sions

RAL 7035

1

Wall bracket

Stand

Corner guards

Stacking adapters

1

Color similar to the specified RAL color

107750_en_01

PHOENIX CONTACT

4 / 14

UCS

Housing

size

RAL 7035

1

RAL 9005

1

Side panel

Flat (47 mm)

Length

87

125

145

195

237

87

Material

RAL 7035

1

PC

RAL 9005

1

PC

Aluminum

RAL 7035

1

PC

RAL 9005

1

PC

Aluminum

RAL 7035

1

PC

RAL 9005

1

PC

Aluminum

RAL 7035

1

PC

RAL 9005

1

PC

Aluminum

RAL 7035

1

PC

RAL 9005

1

PC

Aluminum

RAL 7035

1

PC

9005

1

Product

UCS SW 87-F 7035

UCS SW 87-F 9005

UCS SW 87-F AL

UCS SW 125-F 7035

UCS SW 125-F 9005

UCS SW 125-F AL

UCS SW 145-F 7035

UCS SW 145-F 9005

UCS SW 145-F AL

UCS SW 195-F 7035

UCS SW 195-F 9005

UCS SW 195-F AL

UCS SW 237-F 7035

UCS SW 237-F 9005

UCS SW 237-F AL

UCS SW 87-H 7035

UCS HH... housing half-shells

...125-87...

...145-125...

...195-145...

2203349

2203350

2203351

2203352

2203353

2203354

...237-195...

2203356

2203357

2203358

2203359

2203360

2203364

2203365

2203366

2203372

2203373

2203374

2203378

2203379

2203380

2203385

2203386

2203387

2203361

X

Tall (67 mm)

87

RAL

PC

UCS SW 87-H 9005

2203362

X

87

Aluminum

UCS SW 87-H AL

2203363

X

125

RAL 7035

1

PC

UCS SW 125-H 7035 2203367

X

125

RAL 9005

1

PC

UCS SW 125-H 9005 2203369

X

125

Aluminum

UCS SW 125-H AL

2203370

X

1

PC

145

RAL 7035

UCS SW 145-H 7035 2203375

1

PC

145

RAL 9005

UCS SW 145-H 9005 2203376

145

Aluminum

UCS SW 145-H AL

2203377

1

PC

195

RAL 7035

UCS SW 195-H 7035 2203381

1

PC

195

RAL 9005

UCS SW 195-H 9005 2203382

195

Aluminum

UCS SW 195-H AL

2203383

1

PC

237

RAL 7035

UCS SW 237-H 7035 2203388

1

PC

237

RAL 9005

UCS SW 237-H 9005 2203389

237

Aluminum

UCS SW 237-H AL

2203390

Height adapter,

required in conjunction with tall side panels, four pieces incl. four longer screws

RAL 7035

1

UCS HAC 7035

2203399

X

RAL 9005

1

UCS HAC 9005

2203400

X

Corner inlay,

4 pieces in PE bag

RAL 7035

1

UCS CC 7035

2203395

X

1

RAL 9005

UCS CC 9005

2203396

X

1

RAL 5018

UCS CC 5018

2203398

X

Corner inlay,

with domes incl. four screws for PCB mounting, 4 pieces

RAL 7035

1

UCS CCD 7035

2203479

X

1

RAL 9005

UCS CCD 9005

2203477

X

RAL 5018

1

UCS CCD 5018

2203404

X

Screw set,

for housing half-shells, 4 pieces

Flat (47 mm)

UCS SF 3,5X20

2203402

X

Tall (67 mm)

UCS SH 3,5X40

2203403

X

Adhesive dome,

incl. screws for PCB mounting, 4 pieces

UCS GD

2203401

X

1

X

Color similar to the specified RAL color

107750_en_01

PHOENIX CONTACT

5 / 14
