Datasheet> All Categories > Discrete semiconductor> diode> HSM580GE3/TR13

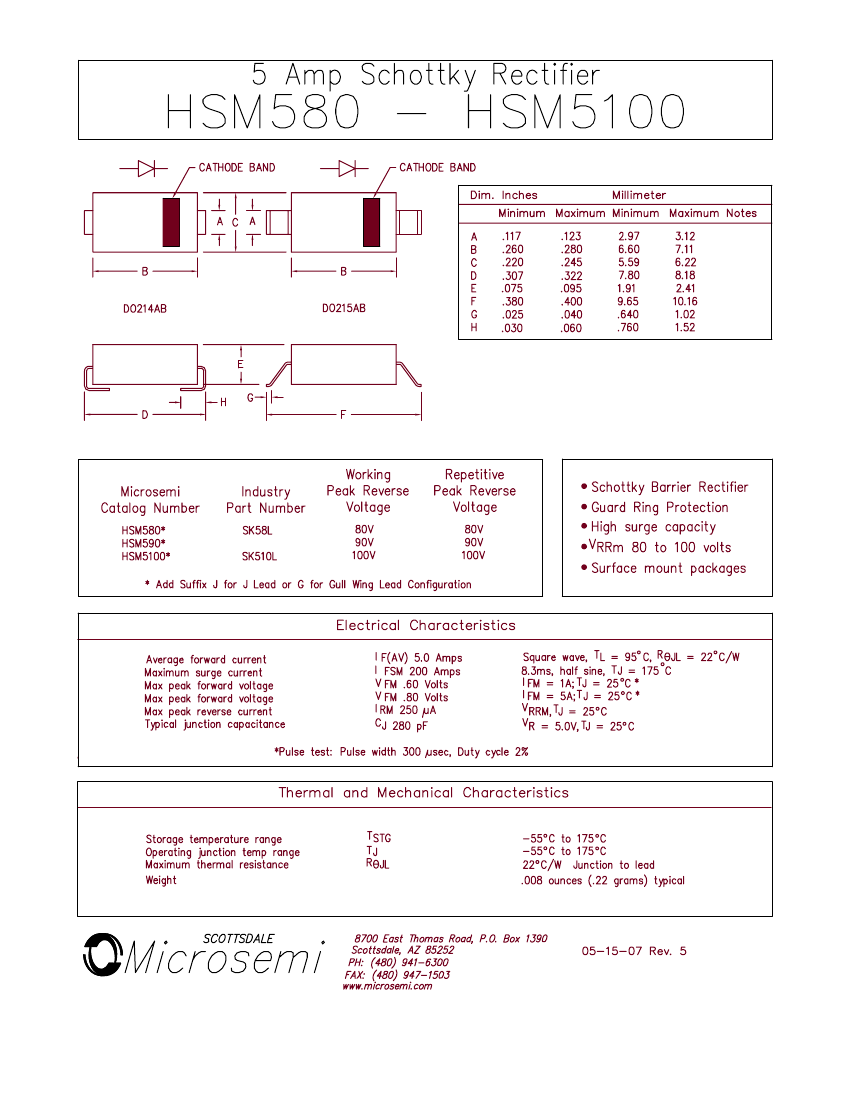

Preview

HSM580GE3/TR13: DescriptionDIODE SCHOTTKY 80V 5A DO215AB; CategoryDiscrete semiconductor diode; File Size117KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

HSM580GE3/TR13 Overview

DIODE SCHOTTKY 80V 5A DO215AB

HSM580GE3/TR13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Microsemi
package instruction	SMCG, 2 PIN
Reach Compliance Code	compliant
Other features	FREE WHEELING DIODE , LOW LEAKAGE CURRENT
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.8 V
JEDEC-95 code	DO-215AB
JESD-30 code	R-PDSO-G2
JESD-609 code	e3
Maximum non-repetitive peak forward current	200 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	80 V
Maximum reverse current	250 µA
Reverse test voltage	80 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

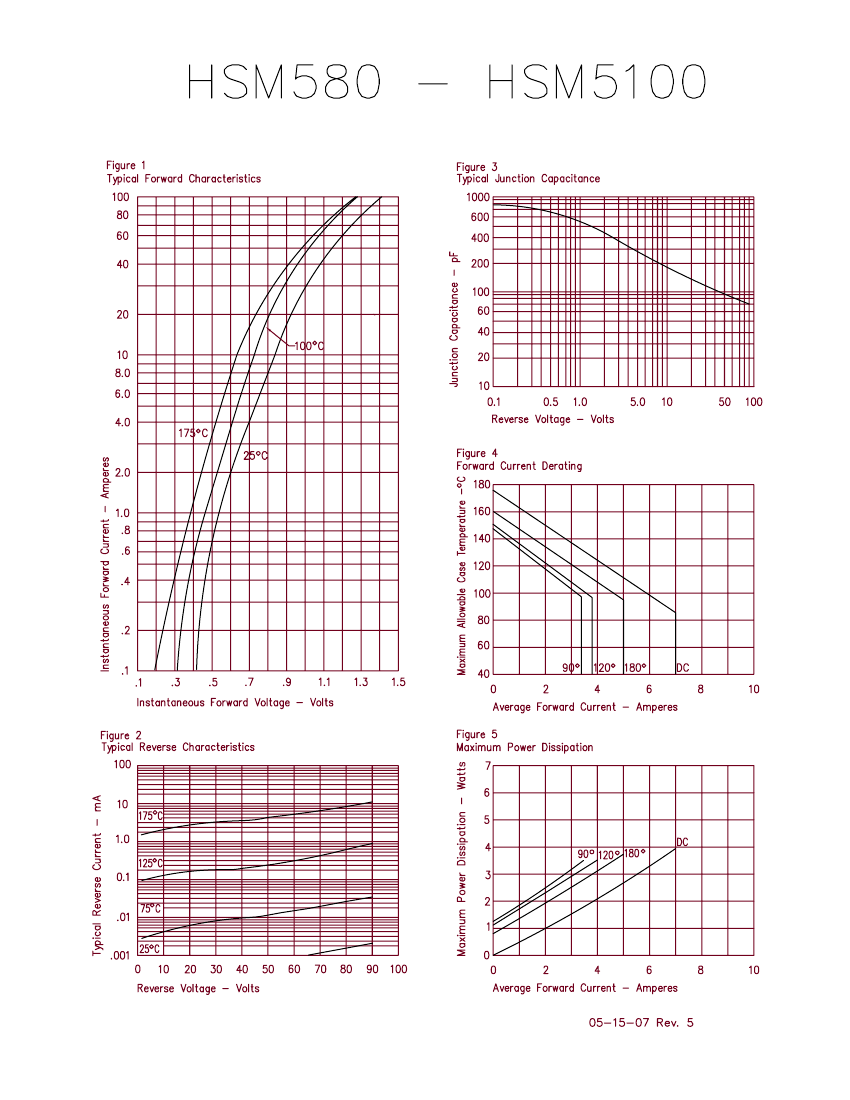

Preview

Download Datasheet

View All

HSM580GE3/TR13 Related Products

	HSM580GE3/TR13	HSM5100G/TR13	HSM580G/TR13	HSM590G/TR13	HSM5100GE3/TR13	HSM590GE3/TR13
Description	DIODE SCHOTTKY 80V 5A DO215AB	DIODE SCHOTTKY 100V 5A DO215AB	DIODE SCHOTTKY 80V 5A DO215AB	DIODE SCHOTTKY 90V 5A DO215AB	DIODE SCHOTTKY 100V 5A DO215AB	DIODE SCHOTTKY 90V 5A DO215AB
Is it lead-free?	Lead free	Contains lead	Contains lead	Contains lead	Lead free	Lead free
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible	conform to	conform to
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	compliant	unknown	unknown	unknown	compliant	compliant
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-609 code	e3	e0	e0	e0	e3	e3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Matte Tin (Sn)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
package instruction	SMCG, 2 PIN	-	SMCG, 2 PIN	-	SMCG, 2 PIN	R-PDSO-G2
Other features	FREE WHEELING DIODE , LOW LEAKAGE CURRENT	-	FREE WHEELING DIODE , LOW LEAKAGE CURRENT	-	FREE WHEELING DIODE, LOW LEAKAGE CURRENT	FREE WHEELING DIODE, LOW LEAKAGE CURRENT
application	EFFICIENCY	-	EFFICIENCY	-	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	-	SINGLE	-	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	-	SILICON	SILICON
Maximum forward voltage (VF)	0.8 V	-	0.8 V	-	0.8 V	0.8 V
JEDEC-95 code	DO-215AB	-	DO-215AB	-	DO-215AB	DO-215AB
JESD-30 code	R-PDSO-G2	-	R-PDSO-G2	-	R-PDSO-G2	R-PDSO-G2
Maximum non-repetitive peak forward current	200 A	-	200 A	-	200 A	200 A
Number of components	1	-	1	-	1	1
Phase	1	-	1	-	1	1
Number of terminals	2	-	2	-	2	2
Maximum operating temperature	175 °C	-	175 °C	-	175 °C	175 °C
Minimum operating temperature	-55 °C	-	-55 °C	-	-55 °C	-55 °C
Maximum output current	5 A	-	5 A	-	5 A	5 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	80 V	-	80 V	-	100 V	90 V
Maximum reverse current	250 µA	-	250 µA	-	250 µA	250 µA
Reverse test voltage	80 V	-	80 V	-	100 V	90 V
surface mount	YES	-	YES	-	YES	YES
technology	SCHOTTKY	-	SCHOTTKY	-	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	-	GULL WING	-	GULL WING	GULL WING
Terminal location	DUAL	-	DUAL	-	DUAL	DUAL
