5054481471 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5054481471

5054481471: DescriptionEMBOSSED PKG FOR 505448 14P BLAC; CategoryThe connector; File Size680KB，3 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

5054481471 Overview

EMBOSSED PKG FOR 505448 14P BLAC

5054481471 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.049"（1.25mm）
Number of pins	14
Number of rows	2
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Surface mount, right angle
Termination	welding
Fastening type	latch holder
Contact Length - Mating	-
Contact length - terminal	-
Overall contact length	-
Insulation height	0.352"（8.95mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Polyamide (PA), nylon
characteristic	Pick and place, weld hold
Operating temperature	-40°C ~ 105°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	Varies with wire gauge
Rated voltage	50VAC/DC
Joint stack height	-
Contact Surface Treatment Thickness - Column	39.4µin（1.00µm）
application	general,industrial,lighting

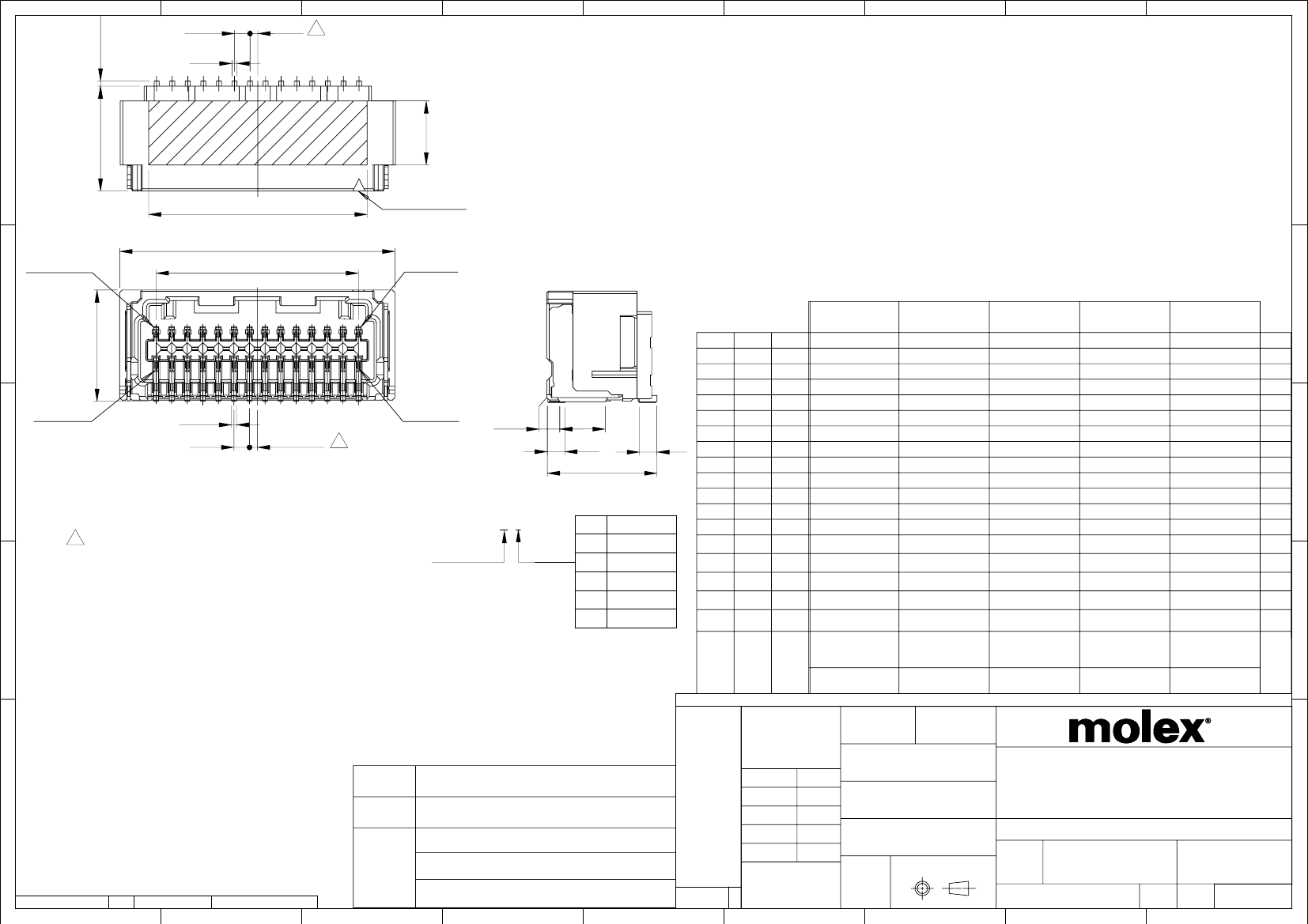

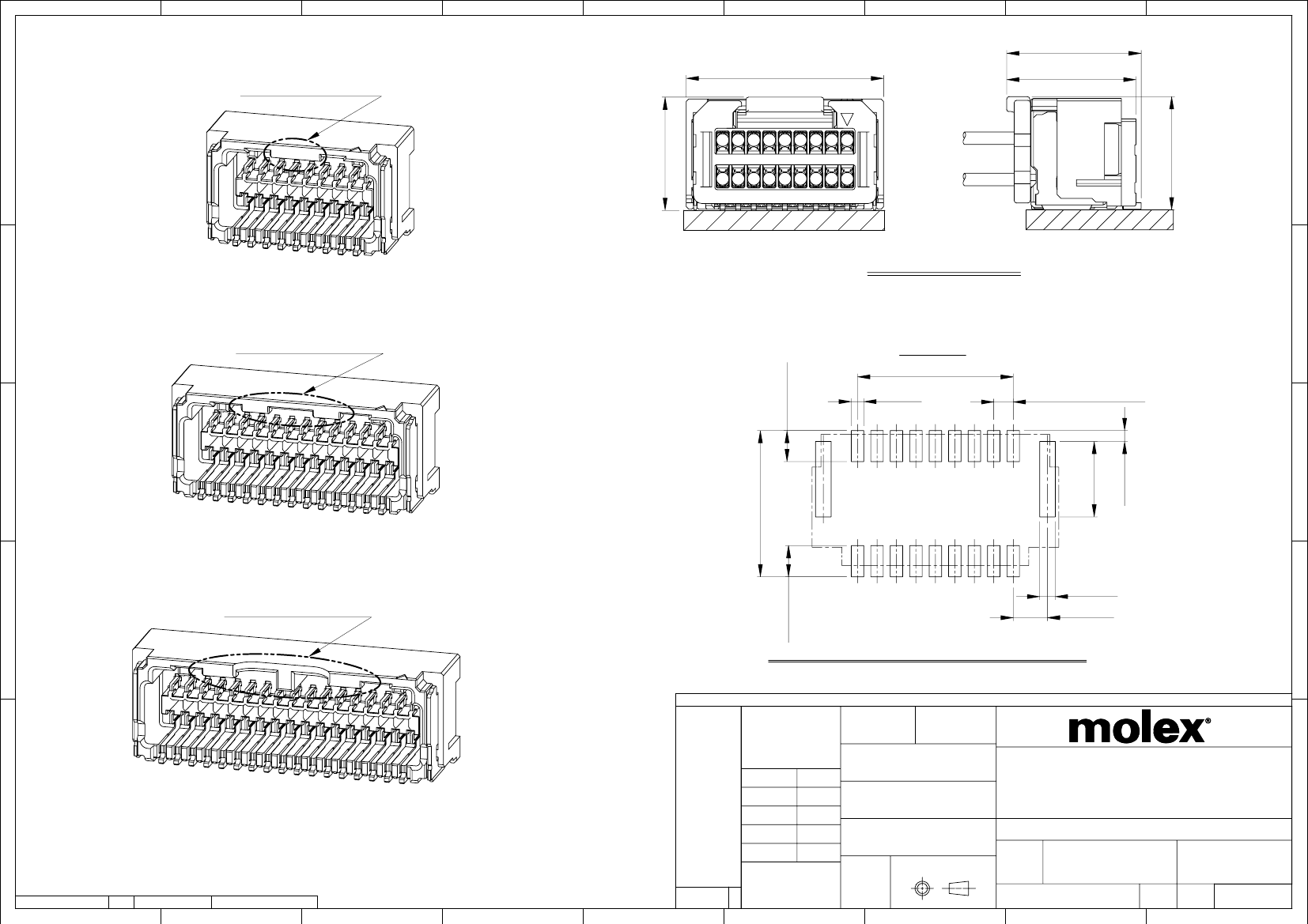

Preview

Download Datasheet

View All

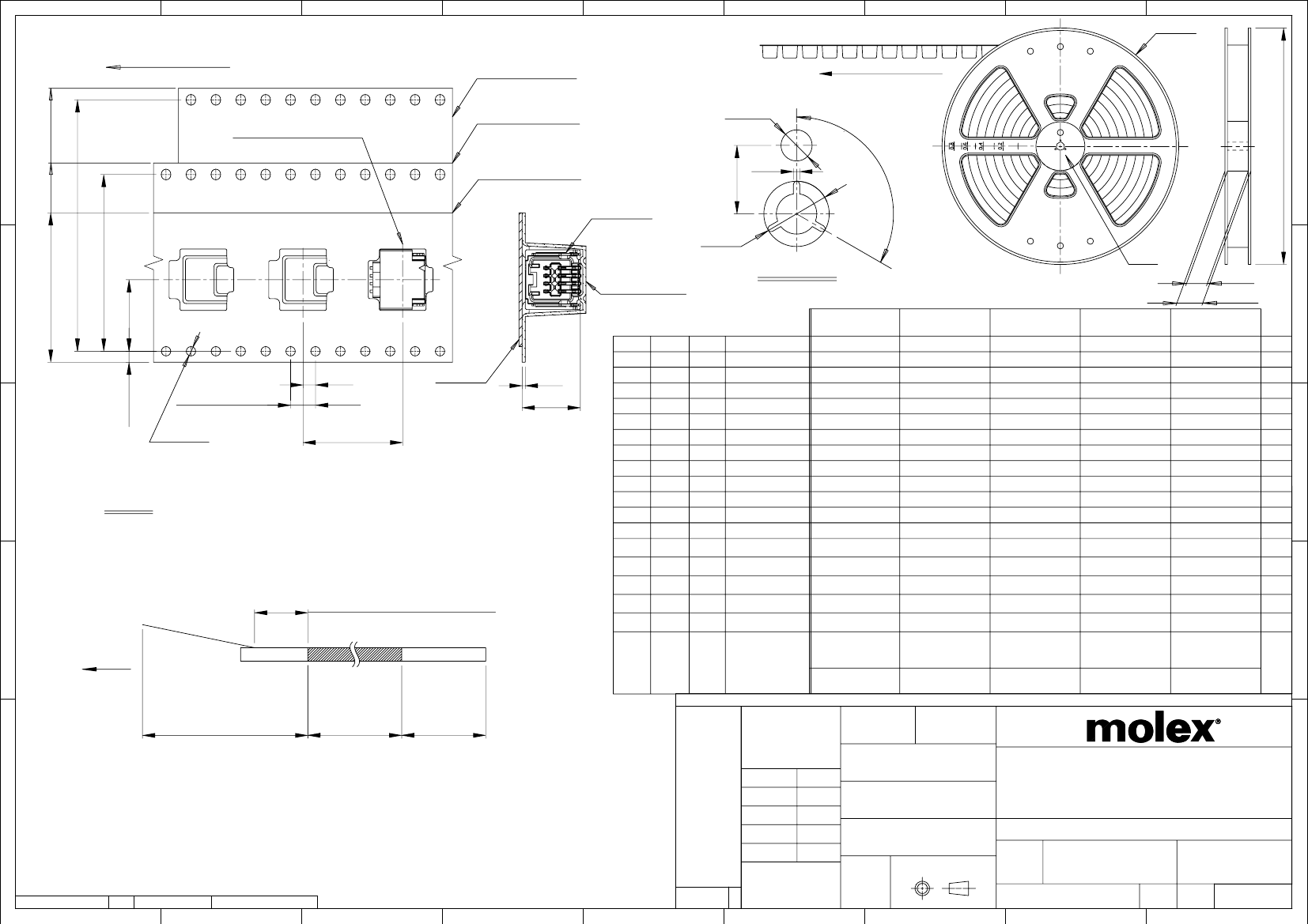

リール

REEL

引き出し方向

PULL OUT DIRECTION

44½½幅テープ

TAPE WIDTH : 44mm

32½½幅テープ

TAPE WIDTH : 32mm

24½½幅テープ

TAPE WIDTH : 24mm

コネクタ

CONNECTOR

(

⌀

10)

引き出し方向

PULL OUT DIRECTION

エンボスポケット中心½½

CENTER OF

EMBOSSED PACKET

(120

)

40.4

0.1

28.4

0.1

(

⌀

21)

DETAIL E

(22)

(0.2)

0.3

(B)

エンボステープ

EMBOSSED TAPE

1.0

φ380

1.75

0.1

(

)

累積ピッチ：40

0.2

ACCUMULATIVE PITCH

0.1

(PITCH)

トップテープ

TOP TAPE

(

0.5

)

(

9.35

)

⌀

1.5

+0.1

(

)

NOTES

1. ½品番号505448**7*の詳細寸法は5054480001PSD000を参照して下さい。

FOR DETAIL OF 505448**7* DIMENSIONS,

PLEASE SEE THE 5054480001PSD000 (NOT PACKAGED).

2. 梱包数量　：　500個

NUMBER OF CONNECTIORS : 500 PIECES/REEL.

3. リードテープ長さ

LEAD TAPE LENGTH

トップテープ接着部（空エンボス）

100 PIECES MIN.

TOP TAPE BONDED PART(EMPTY)

引き出し方向

PULL OUT

DIRECTION

部品挿入部

CONPONENT

SUPPLIER

末端部

（空部）

TAIL PART

(EMPTY)

49.4

37.4

29.4

45.4 20.2

33.4 14.2

25.4 11.5

エンボステープ幅

WIDTH OF TAPE

HSG COLOR

GREEN

5054484276

5054484076

5054483876

5054483676

5054483476

5054483276

5054483076

5054482876

5054482676

5054482476

5054482276

5054482076

5054481876

5054481676

5054481476

5054481276

5054481076

5054480876

エンボス梱包

ORDER NO.

DRWN BY

HSG COLOR

BLUE

5054484274

5054484074

5054483874

5054483674

5054483474

5054483274

5054483074

5054482874

5054482674

5054482474

5054482274

5054482074

5054481874

5054481674

5054481474

5054481274

5054481074

5054480874

EMBOSSED TAPE

PACKAGE

オーダー番号

EMBOSSED TAPE

PACKAGE

エンボス梱包

ORDER NO.

SCALE

HSG COLOR

RED

5054484272

5054484072

5054483872

5054483672

5054483472

5054483272

5054483072

5054482872

5054482672

5054482472

5054482272

5054482072

5054481872

5054481672

5054481472

5054481272

5054481072

5054480872

EMBOSSED TAPE

PACKAGE

エンボス梱包

ORDER NO.

HSG COLOR

BLACK

5054484271

5054484071

5054483871

5054483671

5054483471

5054483271

5054483071

5054482871

5054482671

5054482471

5054482271

5054482071

5054481871

5054481671

5054481471

5054481271

5054481071

5054480871

EMBOSSED TAPE

PACKAGE

エンボス梱包

ORDER NO.

HSG COLOR

NATURAL

5054484270

5054484070

5054483870

5054483670

5054483470

5054483270

5054483070

5054482870

5054482670

5054482470

5054482270

5054482070

5054481870

5054481670

5054481470

5054481270

5054481070

5054480870

エンボス梱包

ORDER NO.

EMBOSSED TAPE

PACKAGE

極数

オーダー番号

CKT. NO.

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

2017/01/18

2017/03/30

2017/04/03

400MIN.

160MIN.

GENERAL

TOLERANCES

(UNLESS SPECIFIED)

ANGULAR TOL ±

3.0

DIMENSION UNITS

NTS

DATE

EC NO:

DRWN:

CHK'D:

APPR:

4. 材料

MATERIAL

キャリアテープ：ポリスチレン（PS）

CARRIER TAPE：POLYSTYRENE（PS）

トップテープ：ポリエステル（PET）、その他

TOP TAPE：POLYESTER（PET）、OTHER

リール：ポリスチレン（PS）　<リサイクル材を含む>

REEL：POLYSTYRENE（PS） <RECYCLE MATERIAL CONTAINED>

5. トップテープの剥離強度については、IEC60286-3に準拠

TOP TAPE PEEL FORCE IS DEFINED BY IEC60286-3.

RELEASED

4 PLACES

3 PLACES

2 PLACES

1 PLACE

0 PLACES

0.2

TAKAIKE

CHK'D BY

DATE

2017/01/18

2017/03/30

DATE

112331

TAKAIKE

KOMURAKAMI

TKANEKO

MICRO-LOCK PLUS 1.25 W/B

DUAL ROW RA SMT EMBOSSED TAPE PKG

KOMURAKAMI

APPR BY

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

TKANEKO

DRAWING SIZE

2017/04/03

THIRD ANGLE PROJECTION

RELEASE STATUS

FORMAT: tb-prod-A3

REVISION: G

DATE: 2015/12/14

RELEASE DATE

03.04.2017

04:17:02

REV

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

505448

DOCUMENT NUMBER

SEE TABLE

GENERAL

DOC TYPE

DOC PART

SHEET NUMBER

5054480000

PSD

000

1 OF 1

5054481471 Related Products

	5054481471	5054484071	5054482071	5054481071	5054482671	5054481271	5054482271	5054483671
Description	EMBOSSED PKG FOR 505448 14P BLAC	EMBOSSED PKG FOR 505448 40P BLAC	EMBOSSED PKG FOR 505448 20P BLAC	EMBOSSED PKG FOR 505448 10P BLAC	EMBOSSED PKG FOR 505448 26P BLAC	EMBOSSED PKG FOR 505448 12P BLAC	EMBOSSED PKG FOR 505448 22P BLAC	EMBOSSED PKG FOR 505448 36P BLAC
Connector type	Connector	Connector	Connector	Connector	Connector	Connector	Connector	Connector
Contact type	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin
Spacing - Mating	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）
Number of pins	14	40	20	10	26	12	22	36
Number of rows	2	2	2	2	2	2	2	2
Number of pins loaded	all	all	all	all	all	all	all	all
style	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire
shield	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Termination	welding	welding	welding	welding	welding	welding	welding	welding
Fastening type	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder
Insulation height	0.352"（8.95mm）	0.352"（8.95mm）	0.352"（8.95mm）	0.352"（8.95mm）	0.352"（8.95mm）	0.352"（8.95mm）	0.352"（8.95mm）	0.352"（8.95mm）
Contact shape	Square	Square	Square	Square	Square	Square	Square	Square
Contact surface treatment - mating	tin	tin	tin	tin	tin	tin	tin	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
Contact Surface Preparation - Column	tin	tin	tin	tin	tin	tin	tin	tin
Contact material	brass	brass	brass	brass	brass	brass	brass	brass
Insulation Materials	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon
characteristic	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation color	black	black	black	black	black	black	black	black
Rated current	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge
Rated voltage	50VAC/DC	50VAC/DC	50VAC/DC	50VAC/DC	50VAC/DC	50VAC/DC	50VAC/DC	50VAC/DC
Contact Surface Treatment Thickness - Column	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
application	general,industrial,lighting	general,industrial,lighting	general,industrial,lighting	general,industrial,lighting	general,industrial,lighting	general,industrial,lighting	general,industrial,lighting	general,industrial,lighting
