179-015-612-571 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 179-015-612-571

Preview

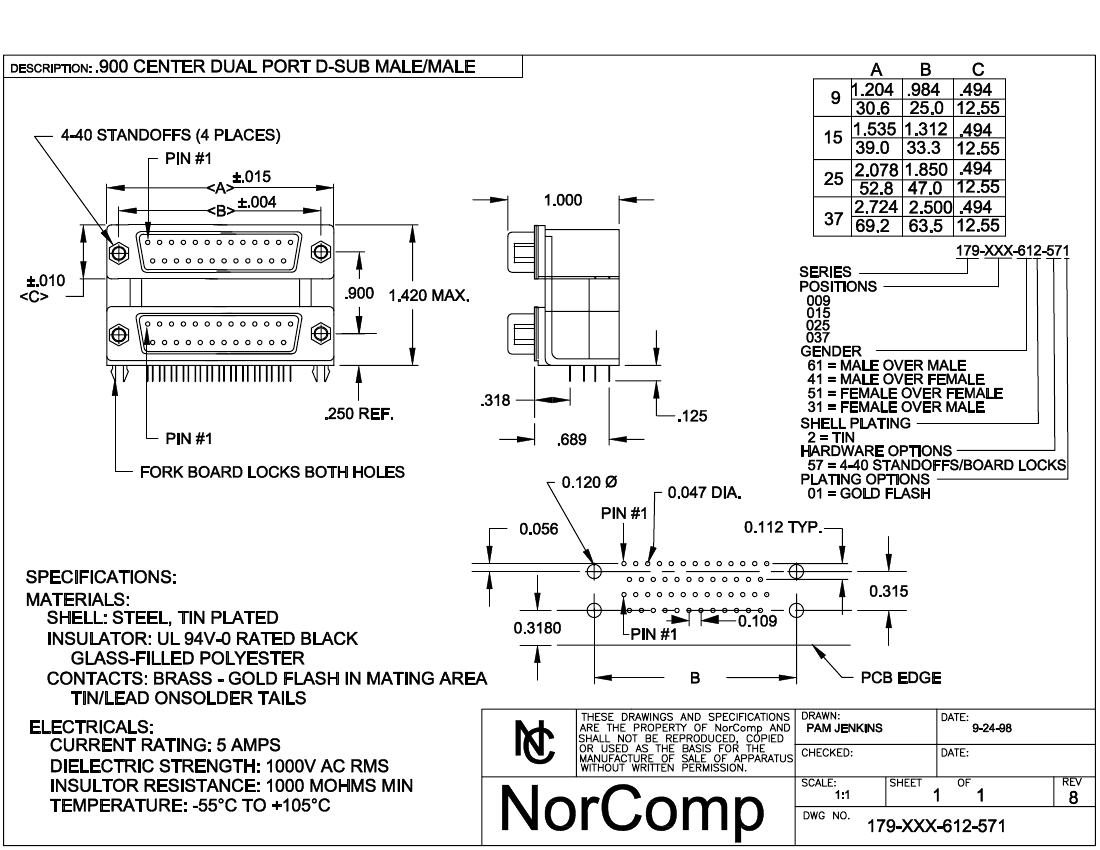

179-015-612-571: DescriptionCONN D-SUB PLUG 15POS R/A SLDR; CategoryThe connector; File Size160KB，1 Pages; ManufacturerNorComp; Websitehttps://www.norcomp.net

Download Datasheet Parametric Compare View All

179-015-612-571 Overview

CONN D-SUB PLUG 15POS R/A SLDR

179-015-612-571 Parametric

Parameter Name	Attribute value
Connector style	Type D ultra-micro-stacking type
Connector type	Plug, male pin
Number of pins	15，15
Number of rows	2，2
Housing size, connector layout	2（DA，A）；2（DA，A）
Contact type	Signal
Installation type	Board edge, through hole, right angle
Flange characteristics	Mating side, female anti-falling screw (4-40)
Termination	welding
characteristic	Plate lock, ground dent
Housing material, plating	Steel, tinned
Contact plating	gold
Contact plating thickness	flash
Intrusion protection	-
Material flammability rating	UL94 V-0
Rated current	5A
Operating temperature	-55°C ~ 105°C
Rated voltage	-
color	black
Contact shape	with imprint
Shell material	Polyester, fiberglass reinforced
Wire gauge	-
Contact material	brass
Braking device interval	0.318"（8.08mm）

Preview

Download Datasheet

View All

179-015-612-571 Related Products

	179-015-612-571	179-009-612-571	179-037-612-571	179-025-612-571
Description	CONN D-SUB PLUG 15POS R/A SLDR	conn db9 male-male .900" spacing	CONN D-SUB PLUG 37POS R/A SLDR	CONN D-SUB PLUG 25POS R/A SLDR
Connector style	Type D ultra-micro-stacking type	-	Type D ultra-micro-stacking type	Type D ultra-micro-stacking type
Connector type	Plug, male pin	-	Plug, male pin	Plug, male pin
Number of pins	15，15	-	37，37	25，25
Number of rows	2，2	-	2，2	2，2
Housing size, connector layout	2（DA，A）；2（DA，A）	-	4（DC，C）；4（DC，C）	3（DB，B）；3（DB，B）
Contact type	Signal	-	Signal	Signal
Installation type	Board edge, through hole, right angle	-	Board edge, through hole, right angle	Board edge, through hole, right angle
Flange characteristics	Mating side, female anti-falling screw (4-40)	-	Mating side, female anti-falling screw (4-40)	Mating side, female anti-falling screw (4-40)
Termination	welding	-	welding	welding
characteristic	Plate lock, ground dent	-	Plate lock, ground dent	Plate lock, ground dent
Housing material, plating	Steel, tinned	-	Steel, tinned	Steel, tinned
Contact plating	gold	-	gold	gold
Contact plating thickness	flash	-	flash	flash
Material flammability rating	UL94 V-0	-	UL94 V-0	UL94 V-0
Rated current	5A	-	5A	5A
Operating temperature	-55°C ~ 105°C	-	-55°C ~ 105°C	-55°C ~ 105°C
color	black	-	black	black
Contact shape	with imprint	-	with imprint	with imprint
Shell material	Polyester, fiberglass reinforced	-	Polyester, fiberglass reinforced	Polyester, fiberglass reinforced
Contact material	brass	-	brass	brass
Braking device interval	0.318"（8.08mm）	-	0.318"（8.08mm）	0.318"（8.08mm）
