74HCT241PW,118 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Buffer and line drives> 74HCT241PW,118

74HCT241PW,118: DescriptionBuffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin TSSOP T/R; CategoryBuffer and line drives; File Size166KB，9 Pages; ManufacturerNexperia; Websitehttps://www.nexperia.com; Environmental Compliance

Download Datasheet Parametric Compare View All

74HCT241PW,118 Overview

Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin TSSOP T/R

74HCT241PW,118 Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Logic Family	HCT
Logic Function	Buffer/Line Driver
Number of Elements per Chip	2
Number of Channels per Chip	8
Number of Inputs per Chip	8
Number of Input Enables per Chip	0
Number of Outputs per Chip	8
Number of Output Enables per Chip	1 Low/1 High
Bus Hold	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	22@4.5V
Absolute Propagation Delay Time (ns)	45
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	6
Maximum High Level Output Current (mA)	-6
Minimum Operating Supply Voltage (V)	4.5
Typical Operating Supply Voltage (V)	5
Maximum Operating Supply Voltage (V)	5.5
Maximum Quiescent Current (uA)	8
Propagation Delay Test Condition (pF)	50
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Packaging	Tape and Reel
Supplier Package	TSSOP
Pin Count	20
Mounting	Surface Mount
Package Height	0.95(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20

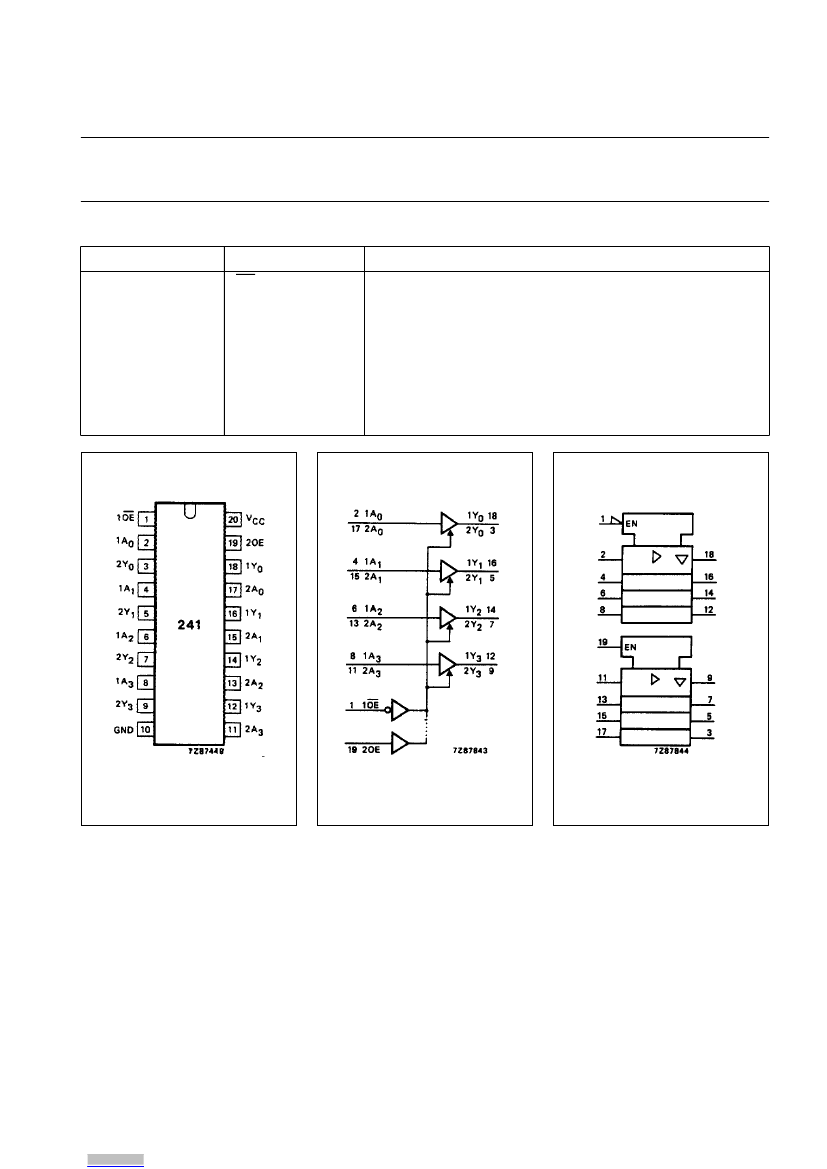

Preview

Download Datasheet

View All

Important notice

Dear Customer,

On 7 February 2017 the former NXP Standard Product business became a new company with the

tradename

Nexperia.

Nexperia is an industry leading supplier of Discrete, Logic and PowerMOS

semiconductors with its focus on the automotive, industrial, computing, consumer and wearable

application markets

In data sheets and application notes which still contain NXP or Philips Semiconductors references, use

the references to Nexperia, as shown below.

Instead of http://www.nxp.com, http://www.philips.com/ or http://www.semiconductors.philips.com/,

use

http://www.nexperia.com

Instead of sales.addresses@www.nxp.com or sales.addresses@www.semiconductors.philips.com, use

salesaddresses@nexperia.com

(email)

Replace the copyright notice at the bottom of each page or elsewhere in the document, depending on

the version, as shown below:

reserved

Should be replaced with:

If you have any questions related to the data sheet, please contact our nearest sales office via e-mail

or telephone (details via

salesaddresses@nexperia.com).

Thank you for your cooperation and

understanding,

Kind regards,

Team Nexperia

74HCT241PW,118 Related Products

	74HCT241PW,118	74HCT241D,653	74HCT241PW,112	74HCT241D,652
Description	Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin TSSOP T/R	Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin SO	Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin TSSOP Bulk	Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin SO Bulk
EU restricts the use of certain hazardous substances	Compliant	Compliant	-	Compliant
ECCN (US)	EAR99	EAR99	-	EAR99
Part Status	Active	Active	-	LTB
HTS	8542.39.00.01	8542.39.00.01	-	8542.39.00.01
Logic Family	HCT	HCT	-	HCT
Logic Function	Buffer/Line Driver	Buffer/Line Driver	-	Buffer/Line Driver
Number of Elements per Chip	2	2	-	2
Number of Channels per Chip	8	8	-	8
Number of Inputs per Chip	8	8	-	8
Number of Outputs per Chip	8	8	-	8
Number of Output Enables per Chip	1 Low/1 High	1 Low/1 High	-	1 Low/1 High
Bus Hold	No	No	-	No
Polarity	Non-Inverting	Non-Inverting	-	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	22@4.5V	22@4.5V	-	22@4.5V
Absolute Propagation Delay Time (ns)	45	45	-	45
Process Technology	CMOS	CMOS	-	CMOS
Input Signal Type	Single-Ended	Single-Ended	-	Single-Ended
Output Type	3-State	3-State	-	3-State
Maximum Low Level Output Current (mA)	6	6	-	6
Maximum High Level Output Current (mA)	-6	-6	-	-6
Minimum Operating Supply Voltage (V)	4.5	4.5	-	4.5
Typical Operating Supply Voltage (V)	5	5	-	5
Maximum Operating Supply Voltage (V)	5.5	5.5	-	5.5
Maximum Quiescent Current (uA)	8	8	-	8
Propagation Delay Test Condition (pF)	50	50	-	50
Minimum Operating Temperature (°C)	-40	-40	-	-40
Maximum Operating Temperature (°C)	125	125	-	125
Supplier Package	TSSOP	SO	-	SO
Pin Count	20	20	-	20
Mounting	Surface Mount	Surface Mount	-	Surface Mount
Package Height	0.95(Max)	2.45(Max)	-	2.45(Max)
Package Length	6.6(Max)	13(Max)	-	13(Max)
Package Width	4.5(Max)	7.6(Max)	-	7.6(Max)
PCB changed	20	20	-	20
