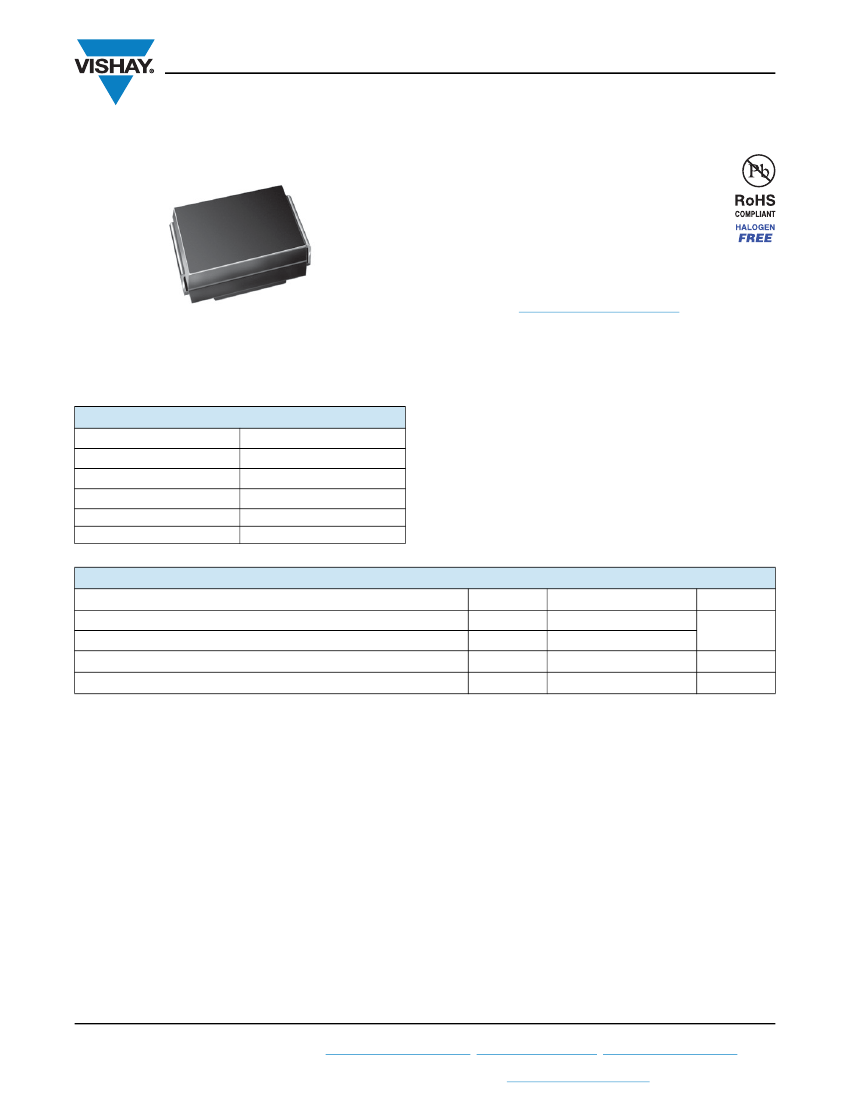

SMBZ5919B thru SMBZ5945B
www.vishay.com
Vishay General Semiconductor
Surface Mount Power Voltage-Regulating Diodes
FEATURES
• Low profile package
• Ideal for automated placement
• Low Zener impedance
• Low regulation factor
• Meets MSL level 1, per J-STD-020, if maximum peak of
260 °C
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
DO-214AA (SMBJ)
TYPICAL APPLICATIONS
For general purpose regulation and protection applications.
MECHANICAL DATA
PRIMARY CHARACTERISTICS
V
Z
P
tot
at T
L
= 75 °C
P
tot
at T
A
= 25 °C
T
J
max.
V
Z
specification
Int. construction
5.6 V to 68 V
3000 mW
550 mW
150 °C
Pulse current
Single
Case:
DO-214AA (SMBJ)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Terminals:
Matte tin plated leads, solderable
J-STD-002 and JESD22-B102
M3 suffix meets JESD 201 class 1A whisker test
Polarity:
Color band denotes cathode end
per
MAXIMUM RATINGS
(T
A
= 25 °C, unless otherwise noted)
PARAMETER
Maximum steady state power dissipation at T
L
= 75 °C (fig. 1)
Maximum steady state power dissipation at T
A
= 25 °C (fig. 1)
Maximum instantaneous forward voltage at 200 mA for all types
Operating junction and storage temperature range
Notes
(1)
Mounted on minimum recommended pad layout
(2)
Pulse test: 300 μs pulse width, 1 % duty cycle
SYMBOL
P
tot
P
tot (1)
V
F (2)
T
J
, T
STG
VALUE
3000
550
1.5
- 55 to + 150
UNIT
mW
V
°C
Revision: 25-May-12
Document Number: 89418
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMBZ5919B thru SMBZ5945B
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
SYMBOL
V
Z
I
ZT
Z
ZT
I
ZK
Z
ZK
I
R
V
R
I
F
V
F
I
ZM
PARAMETER
Reverse Zener voltage at I
ZT
Reverse current
Maximum Zener impedance at I
ZT
Reverse current
Maximum Zener impedance at I
ZK
Reverse leakage current at V
R
Reverse voltage
Forward current
Forward voltage at I
F
Maximum DC Zener current
V
Z
V
R
I
R
V
F
I
ZT
V
I
F
Zener Voltage Regulator
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
DEVICE
MARKING
CODE
ZENER VOLTAGE
RANGE
V
Z
AT I
ZT
V
MIN.
SMBZ5919B
SMBZ5920B
SMBZ5921B
SMBZ5924B
SMBZ5925B
SMBZ5926B
SMBZ5927B
SMBZ5928B
SMBZ5929B
SMBZ5930B
SMBZ5931B
SMBZ5932B
SMBZ5933B
SMBZ5934B
SMBZ5935B
SMBZ5936B
SMBZ5937B
SMBZ5938B
SMBZ5939B
SMBZ5940B
SMBZ5941B
SMBZ5942B
SMBZ5943B
SMBZ5944B
SMBZ5945B
19B
20B
21B
24B
25B
26B
27B
28B
29B
30B
31B
32B
33B
34B
35B
36B
37B
38B
39B
40B
41B
42B
43B
44B
45B
5.32
5.89
6.46
8.64
9.5
10.5
11.4
12.4
14.3
15.2
17.1
19.0
20.9
22.8
25.7
28.5
31.4
34.2
37.1
40.9
44.6
48.4
53.2
58.9
64.6
NOM.
5.6
6.2
6.8
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
MAX.
5.88
6.51
7.14
9.56
10.5
11.6
12.6
13.7
15.8
16.8
18.9
21.0
23.1
25.2
28.4
31.5
34.7
37.8
41.0
45.2
49.4
53.6
58.8
65.1
71.4
66.9
60.5
55.1
41.2
37.5
34.1
31.2
28.8
25.0
23.4
20.8
18.7
17.0
15.6
13.9
12.5
11.4
10.4
9.6
8.7
8.0
7.3
6.7
6.0
5.5
1
1
1
0.5
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
TEST
CURRENT
I
ZT
mA
MAX.
5
2
2.5
4.0
4.5
5.5
6.5
7.0
9.0
10.0
12.0
14.0
17.5
19.0
23.0
28.0
33.0
38.0
45.0
53.0
67
70
86
100
120
I
ZK
MAXIMUM ZENER
IMPEDANCE
Z
ZT
AT I
ZT
MAX.
700
700
400
1000
1000
550
550
550
600
600
650
650
650
700
700
750
800
850
900
950
1000
1100
1300
1500
1700
Z
ZK
AT I
ZK
REVERSE
LEAKAGE
CURRENT
I
R
AT V
R
μA
MAX.
200
200
200
25
25
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
4
5.2
7.0
8.0
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
V
MAXIMUM
ZENER
CURRENT
I
ZM
mA
MAX.
267
241
220
164
150
136
125
115
100
93
83
75
68
62
55
50
45
41
38
34
31
29
26
24
22
PART
NUMBER
Revision: 25-May-12
Document Number: 89418
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMBZ5919B thru SMBZ5945B
www.vishay.com
Vishay General Semiconductor
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance, junction to lead
Typical thermal resistance, junction to ambient
Note
(1)
Mounted on minimum recommended pad layout
SYMBOL
R
JL
R
JA
(1)
VALUE
25
226
UNIT
°C/W
°C/W
ORDERING INFORMATION
(Example)
PREFERRED P/N
SMBZ5935B-M3/52
SMAZ5935B-M3/5B
UNIT WEIGHT (g)
0.096
0.096
PREFERRED PACKAGE CODE
52
5B
BASE QUANTITY
750
3200
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
P
tot
-
Maximum Power Dissipation (W)
4.0
80
V
Z
- Temperature Coefficient (mV/°C)
3.5
3.0
2.5
2.0
1.5
1.0
T
A
0.5
0
0
25
50
75
100
125
150
T
L
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
V
ZT
at I
ZT
Temperature (°C)
V
Z
- Zener Voltage (V)
Fig. 1 - Steady State Power Durating
Fig. 3 - Typical Temperature Coefficients
5.0
100
V
Z
- Temperature Coefficient (mV/°C)
4.0
V
ZT
at I
ZT
I
Z
- Zener Test Current (mA)
10
3.0
2.0
1
1.0
0
5.0
5.5
6.0
6.5
7.0
0.1
0
1
2
3
4
5
6
7
8
9
10
V
Z
- Zener Voltage (V)
V
Z
- Zener Voltage (V)
Fig. 2 - Typical Temperature Coefficients
Fig. 4 - Typical Zener Voltage
Revision: 25-May-12
Document Number: 89418
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMBZ5919B thru SMBZ5945B
www.vishay.com
Vishay General Semiconductor
10 000
100
C
J
- Junction Capacitance (pF)
Measured at Zero Bias
I
Z
- Zener Test Current (mA)
10
1000
Measured at V
Z/2
100
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mVp-p
10
1
10
100
1
0.1
0
20
40
60
V
Z
- Zener Voltage (V)
V
BR
- Breakdown Voltage (V)
Fig. 5 - Typical Zener Voltage
Fig. 7 - Typical Junction Capacitance
200
100
I
Z
= 1 mA
Z
Z
- Dynamic Impedance (Ω)
10
I
Z
= 10 mA
I
Z
= 20 mA
I
Z(rms)
= 0.1 I
Z(DC)
2
10
100
V
Z
- Zener Voltage (V)
Fig. 6 - Typical Zener Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-214AA (SMB-J-Bend)
Cathode Band
0.085 (2.159)
MAX.
Mounting Pad Layout
0.086 (2.20)
0.077 (1.95)
0.155 (3.94)
0.130 (3.30)
0.086 (2.18)
MIN.
0.180 (4.57)
0.160 (4.06)
0.012 (0.305)
0.006 (0.152)
0.096 (2.44)
0.084 (2.13)
0.060 (1.52)
MIN.
0.220 REF.
0.060 (1.52)
0.030 (0.76)
0.220 (5.59)
0.205 (5.21)
0.008 (0.2)
0 (0)
Revision: 25-May-12
Document Number: 89418
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
