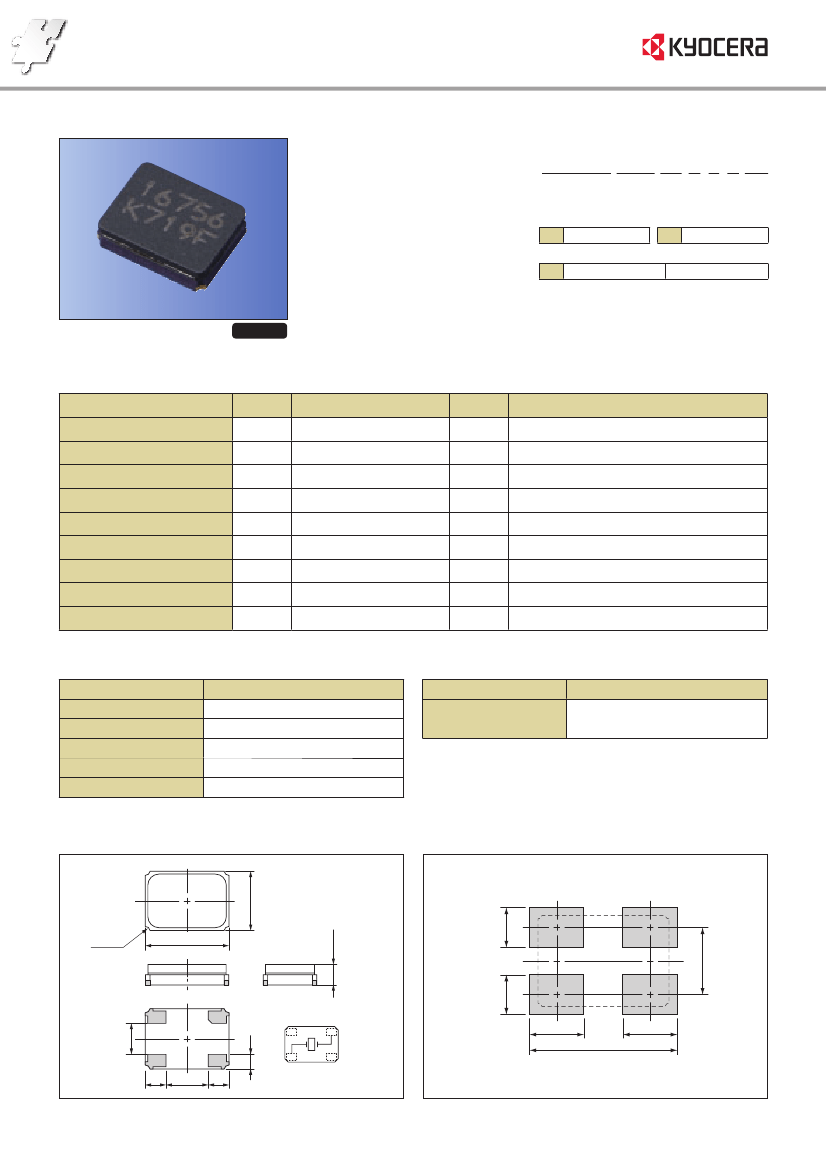

Crystal Units
Surface Mount Type CX3225GB
3.2
×
2.5mm for Consumer Products
Features
• Crystal unit for Consumer Products
• Small and low profile 0.9mm max.
(3.2
×
2.5
×
0.8mm)
• Ceramic package
• Reflow compatible
How to Order
CX3225GB 27000
D0 H E Q CC
①
②
③ ④⑤⑥ ⑦
②
Frequency
④
Frequency Tolerance
H
±
20
×
10
−
6
±
30
×
10
−
6
①
Series
③
Load Capacitance
D0
8 pF
−
10 to
+
70
°
C
Applications
• Digital Electronics
• Consumer Products
⑤
Operating Temp. Range
⑥
Frequency Temp. Stability
EQ
⑦
Individual Specification
(STD Specification is “CC”)
Packaging (Tape & Reel 3000 pcs./ reel)
RoHS Compliant
Specifications
Item
Frequency Range
Overtone Order
Load Capacitance
Frequency Tolerance
Motional Series Resistance
Drive Level
Operating Temp. Range
Storage Temp. Range
Frequency Temp. Characteristics
Please contact us for other specifications.
Symbol
f
_nom
OT
CL
f
_tol
R1
DL
T
_use
T
_stg
f
_tem
Specification
12000 to 54000
Fundamental
8
±
20
Table 1
Table 2
−
10 to
+
70
−
40 to
+
85
±
30
Units
kHz
―
pF
×
10
−
6
ohm
μ
W
°
C
°
C
×
10
−
6
Remarks
Please contact us for other Load Capacitance.
25
°
C
±
3
°
C
Freq. deviation from the value at 25
°
C
Table1 Motional Series Resistance
Frequency Range
12000
≤
f
_nom
<
13000kHz
13000
≤
f
_nom
<
14000kHz
14000
≤
f
_nom
<
20000kHz
20000
≤
f
_nom
<
27000kHz
27000
≤
f
_nom
≤
54000kHz
Motional Series Resistance
150
Ω
max.
100
Ω
max.
80
Ω
max.
60
Ω
max.
50
Ω
max.
Table2 Level of Drive
Frequency Range
12000
≤
f
_nom
≤
54000kHz
Level of Drive
10
μ
W (100
μ
W max.)
Dimensions
#4
#3
(Unit: mm)
Recommended Land Pattern
(Unit: mm)
2.5 0.1
4-R0.2
#1
3.2 0.1
#2
0.8 0.1
1.05
#1
#2
CONNECTION
#4 (TOP VIEW)
#3
HOT
NC
1.05
1.0
1.3
3.6
1.3
0.75
HOT
#4
1.0
1.2
1.0
#3
#1
#2
NC
1.85
As of March 2018
